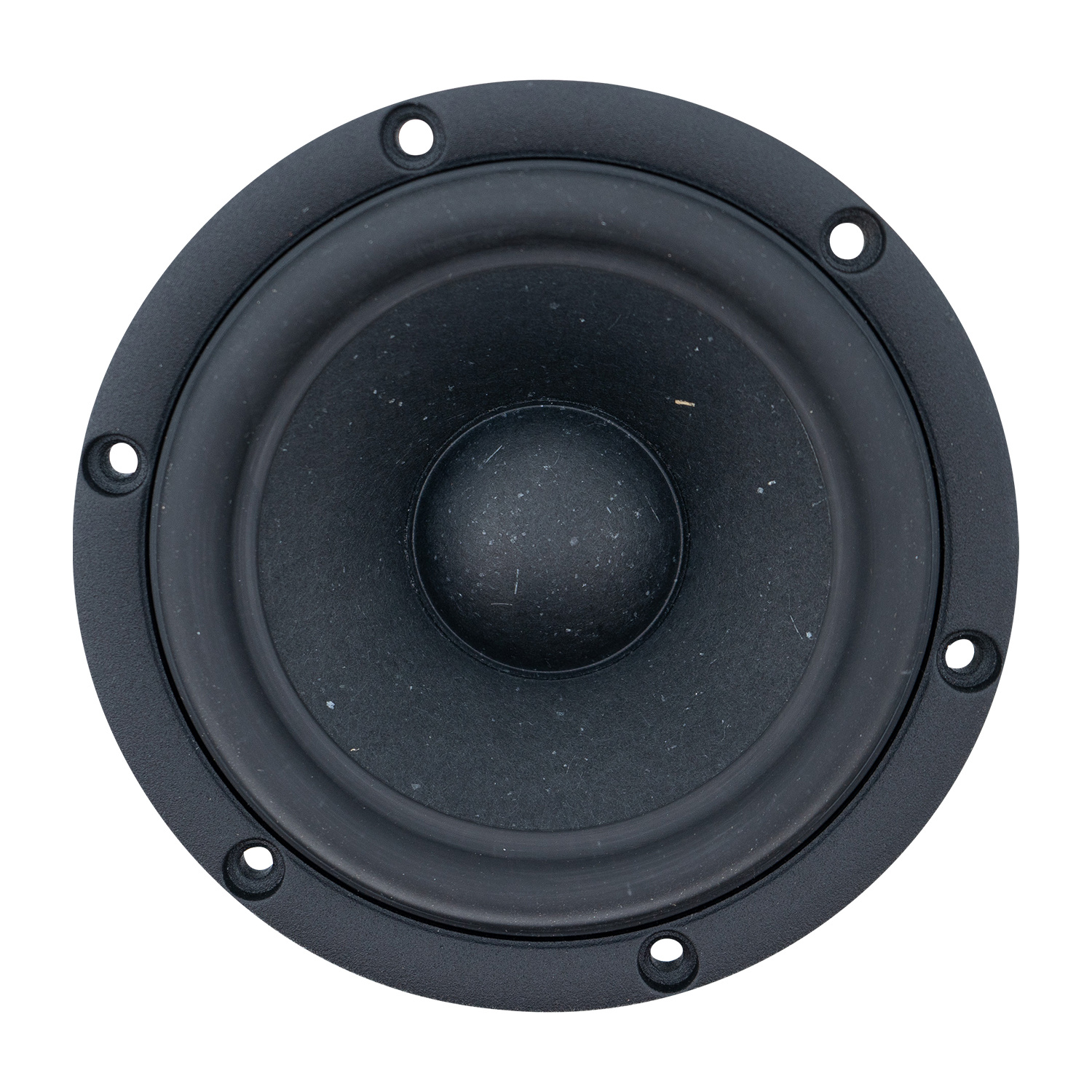

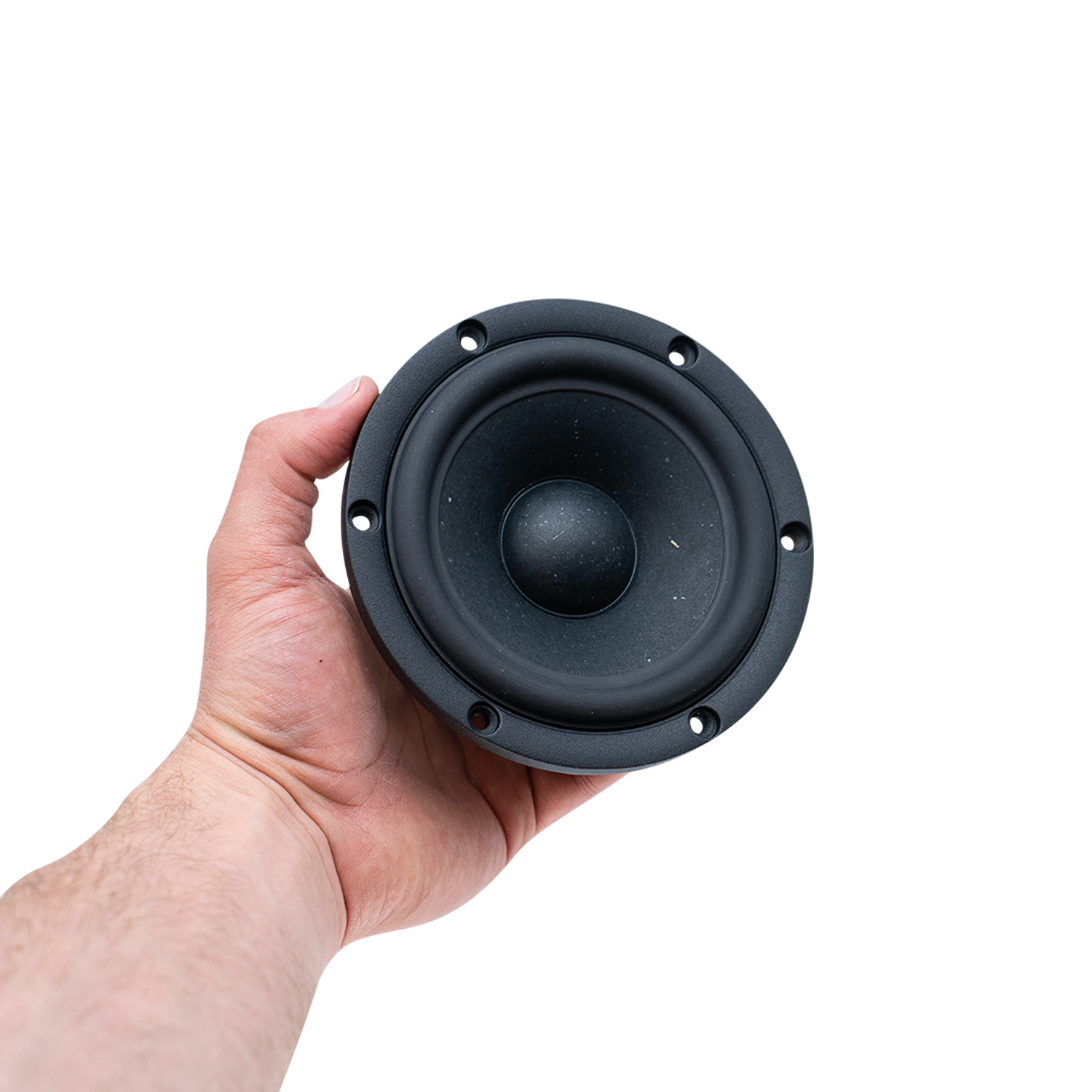

SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

1 reviews

Marke: SB Acoustics

Alle anzeigen Audio-Komponenten

Vergleichen

5" | 8 Ω

Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

€ 101,20€ 122,45 2 Auf Lager: Lieferzeit 1-3 Werktage

SB Acoustics Satori MR13P-8 Midrange is a simply outstanding Neodymium magnet 5" 8 ohm midrange, featuring a supplemented proprietary Papyrus Paper cone, a specially designed soft low damping optimum response rubber surround, BiMax spider, and a glassfibe... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

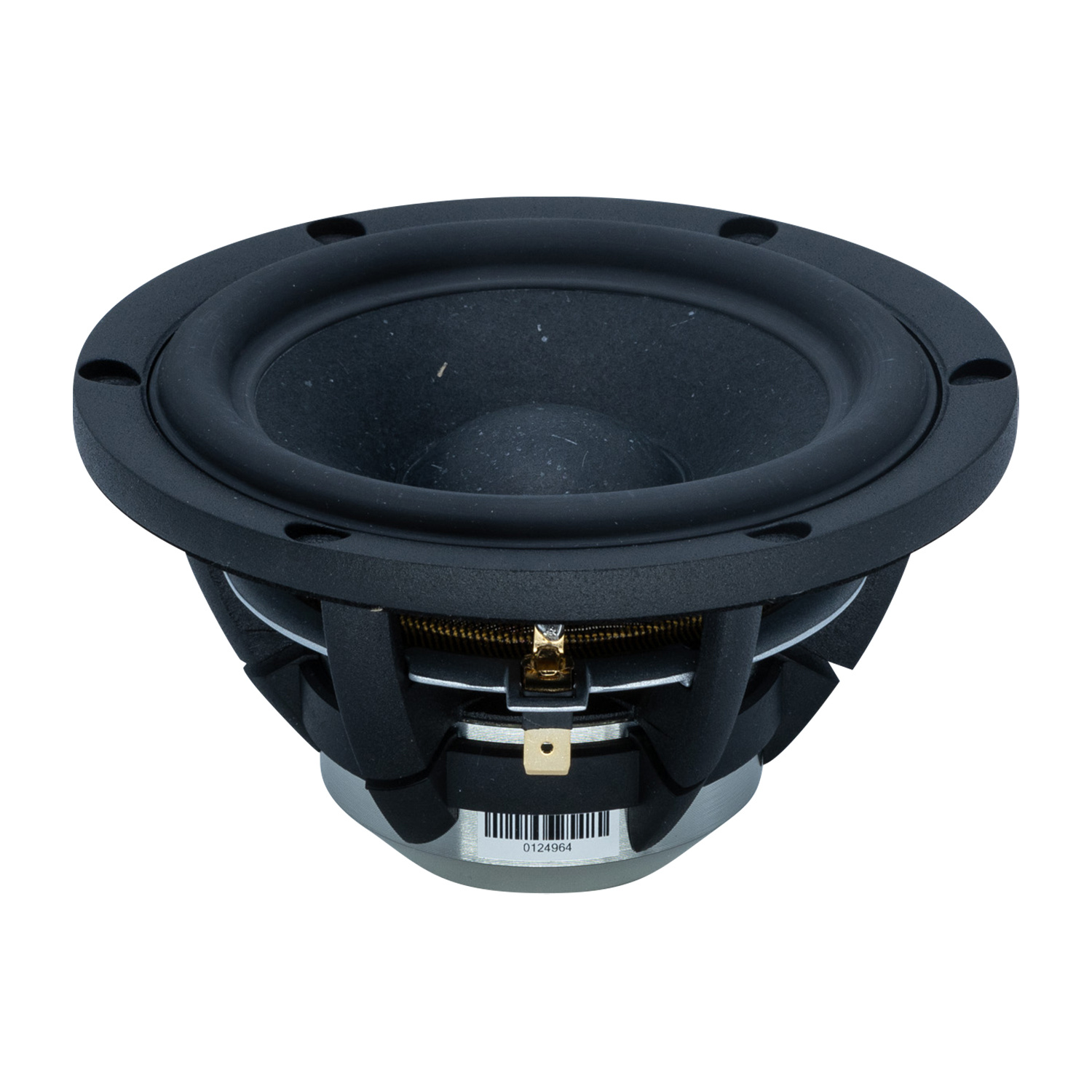

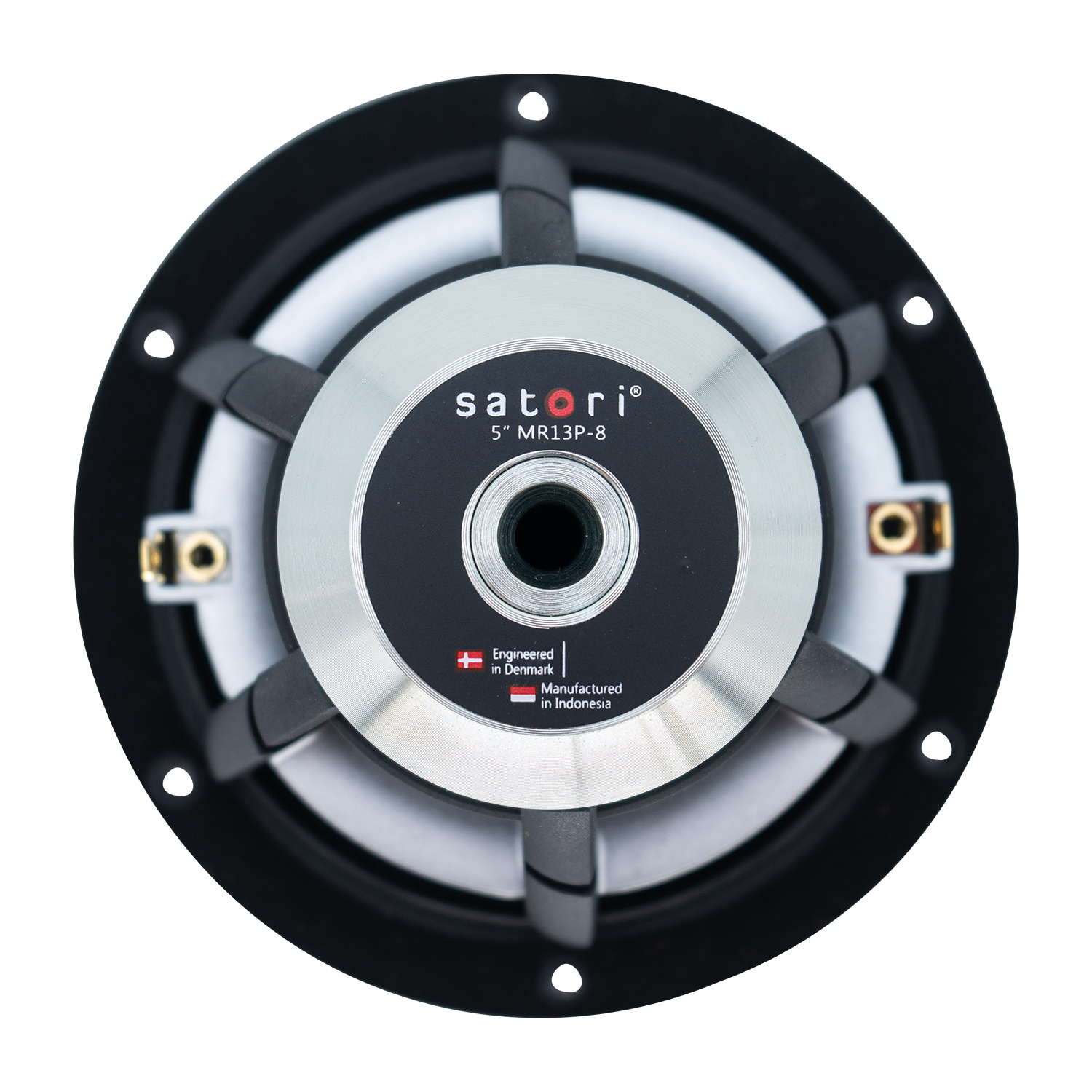

Vented aerodynamic cast aluminum chassis for optimum strength and low compression
Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
Soft low damping rubber surround for optimum transient response
Advanced BIMAX spider for improved linearity
Powerful optimized low distortion neodymium motor system
Non-conducting fiber glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and reduced distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires attached 180° apart for improved stability
Vented pole piece and coil former for reduced compression
High piston to chassis diameter ratio
Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

Product details

SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

Fitted with a 1.25" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece provides an extremely low distortion. Fs 45Hz, and a class-leading level wide response curve. Extended level midrange response, a very flexible unit.

Eigenschaften

Artikelnummer:: MR13P-8
Woofer Series: Satori Series
Woofer Type: Midwoofer
Nominal Diameter: 5"
Power Handling (RMS): 30 Watts
Impedance: 8 ohms
Sensitivity: 88 dB 2.83V/1m
Voice Coil Diameter: 1.2"
DC Resistance (Re): 6.8 ohms
Voice Coil Inductance (Le): 0.11 mH
Resonant Frequency (Fs): 45 Hz
Mechanical Q (Qms): 4.25
Electromagnetic Q (Qes): 0.33
Total Q (Qts): 0.31
Diaphragm Mass Inc. Airload (Mms): 6 g
Mechanical Compliance of Suspension (Cms): 1.86 mm/N
Surface Area of Cone (Sd): 70 cm2
BL Product (BL): 6.1 Tm
Compliance Equivalent Volume (Vas): 0.44 ft.³
Maximum Linear Excursion (Xmax): 3 mm

Data sheet

Bewertungen

1 reviews

5 from 5Based on 1 reviews

Produkt bewerten

5 van 5

Fantastic workmanship. I replaced a Philips AD0210 SQ8 with a Satori MR13P in a vintage Jamo J80. The Satori works with the factory 12 " Jamo subwoofer and with an also new Eton 26 HD3 tweeter. Ingenious. Beautiful vocals and acoustic instruments, great 3D space, serious depth and width.

Even though the Satori itself costs as much as the full J80 used, I am still happy with the purchase. You can hear the change and I am very pleased.

I was looking for this sound and effect. I got it.

Durch gotanster on 15 Dezember 2020
