210-10 ''The Lazy Ribbon'' Flachfolie 9'' Bändchenhochtöner mit Amorphous Core

€999,95

Zum Warenkorb hinzufügen

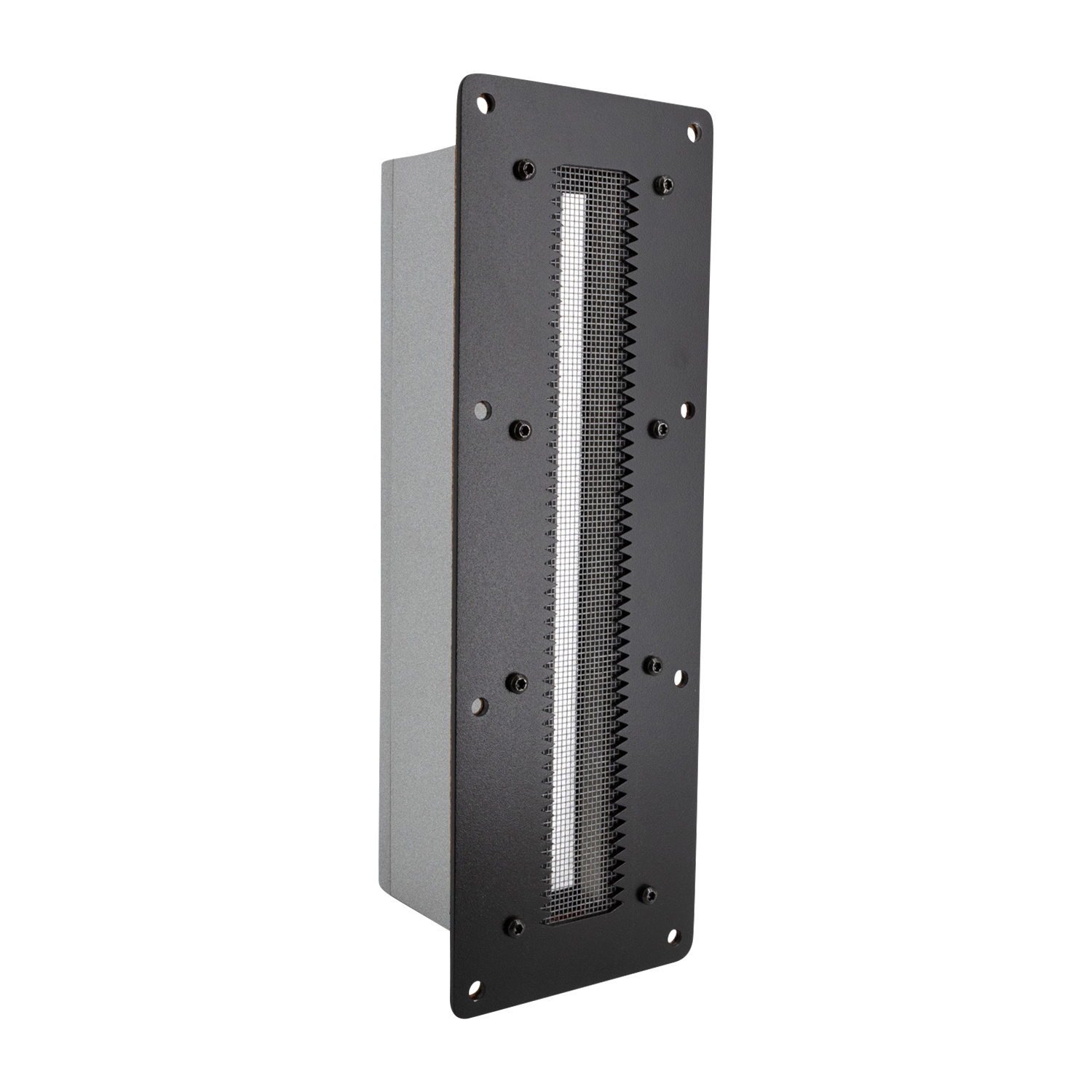

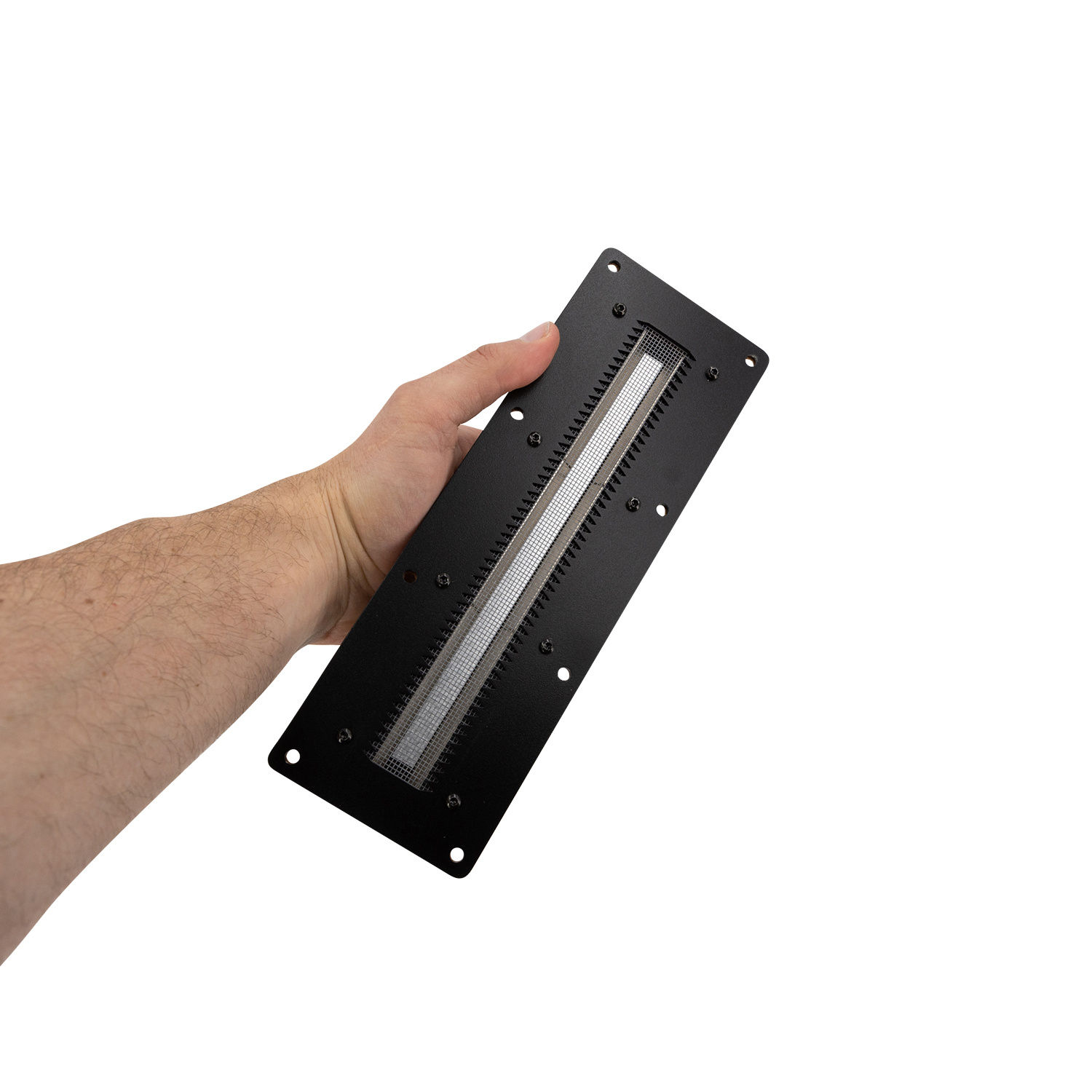

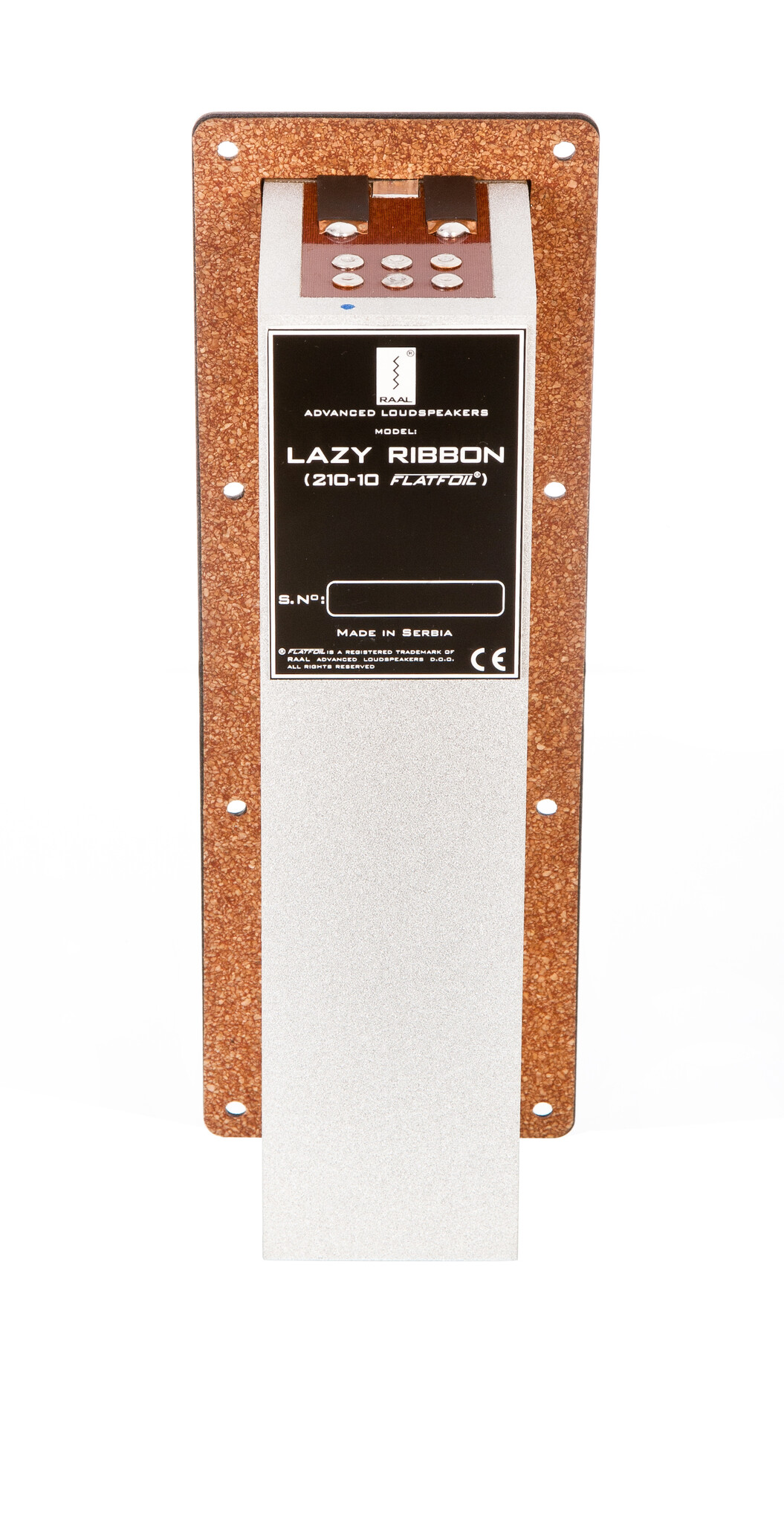

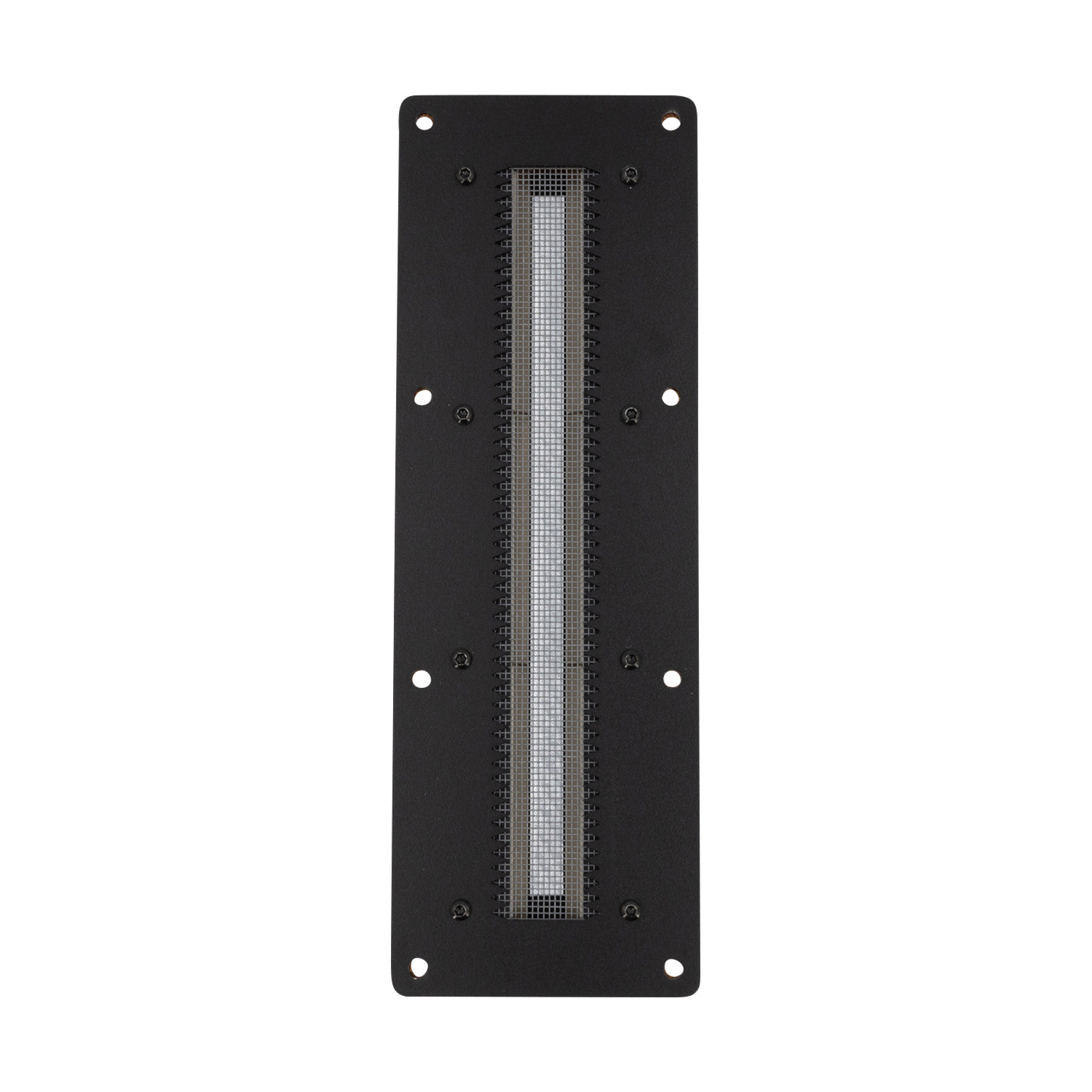

RAAL 210-10 ''The Lazy Ribbon'' Flachfolie 9'' Bändchenhochtöner mit Amorphous Core

Name: RAAL 210-10 ''The Lazy Ribbon'' Flachfolie 9'' Bändchenhochtöner mit Amorphous Core
Brand: RAAL
SKU: 210-10
Price: 999.95 EUR
Availability: InStock

0 reviews

Marke: RAAL

Zeige alle Neue Produkte

Ribbon | 8 Ω

210-10 ''The Lazy Ribbon'' Flachfolie 9'' Bändchenhochtöner mit Amorphous Core

826,41 €999,95 € 2 Auf Lager

Kostenloser Versand (DE & A)
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The 9" Raal Lazy Ribbon is a super detailed and super efficient ribbon tweeter. The high efficiency makes this a perfect choice as a tweeter or super tweeter for horn systems or other high efficiency systems. Ribbon tweeters are a dead short to the amplifier, so you need to use a passive crossover on the tweeter.

Highlights

Aluminum ribbon supertweeter with an amorphous C-core transfo
Ribbon surface of 20cm2
Impedance of 3.5 - 5 - 7 - 10 - 14 ohms selectable
Power handling (RMS) of 200 W
Frequency response between 3000 - 50000 Hz
Sensitivity between 105 - 106.5 - 108 - 109.5 - 111 dB selectable

Product details

RAAL 210-10 Flatfoil Ribbon Tweeter

The RAAL 210-10 Flatfoil Ribbon Tweeter is a high-end tweeter that is known for its excellent sound quality and high efficiency. It features an aluminum ribbon supertweeter with an amorphous C-core transfo and a ribbon surface of 20cm2. The tweeter has an impedance of 3.5 - 5 - 7 - 10 - 14 ohms selectable and a power handling (RMS) of 200 W. The frequency response is between 3000 - 50000 Hz and the sensitivity is between 105 - 106.5 - 108 - 109.5 - 111 dB selectable.

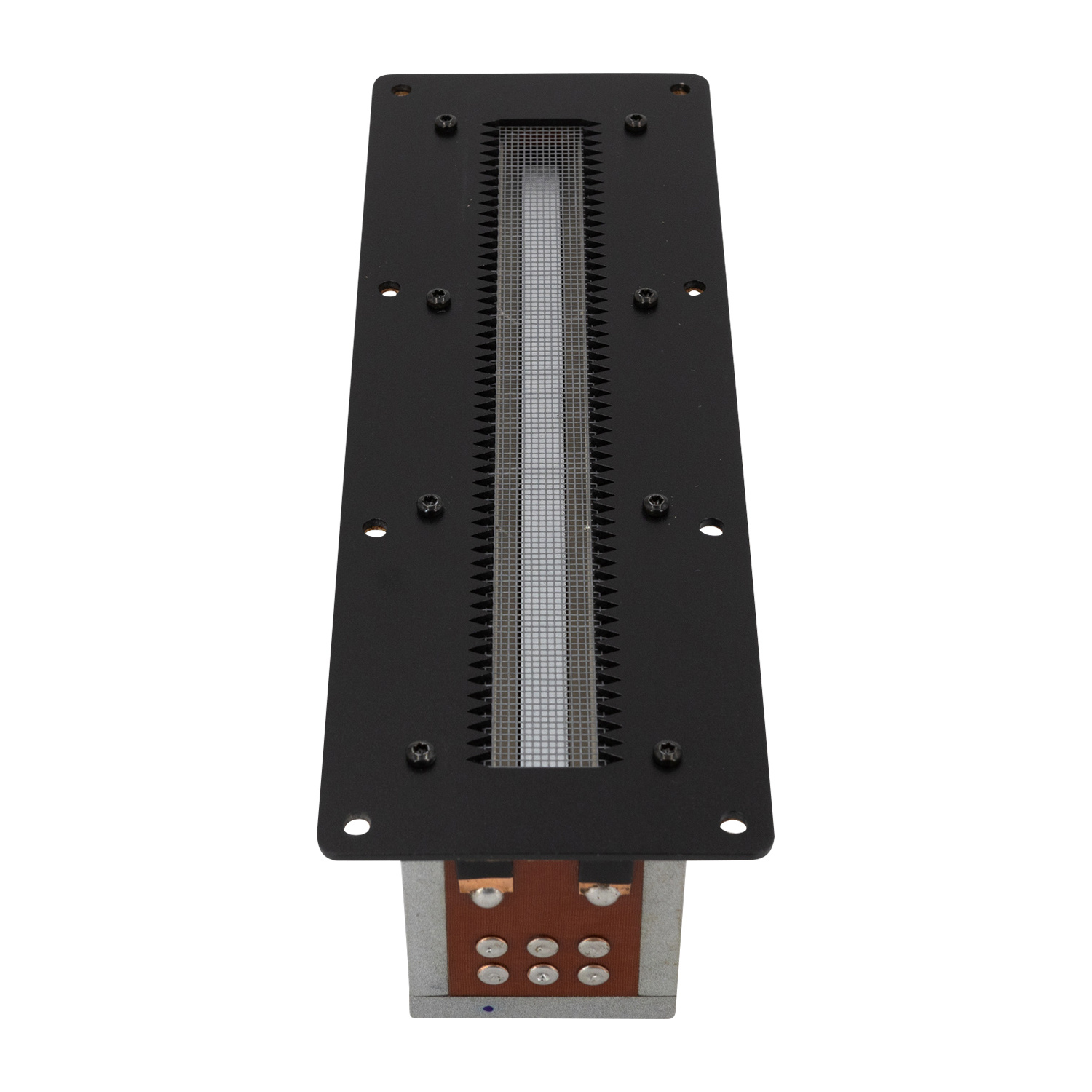

If you intend to use an electronic crossover, you still need to use a large capacitor in series with the tweeter, in this case perhaps a 30mfd. The tweeter has different soldering points in order to adjust the tweeter output level.
