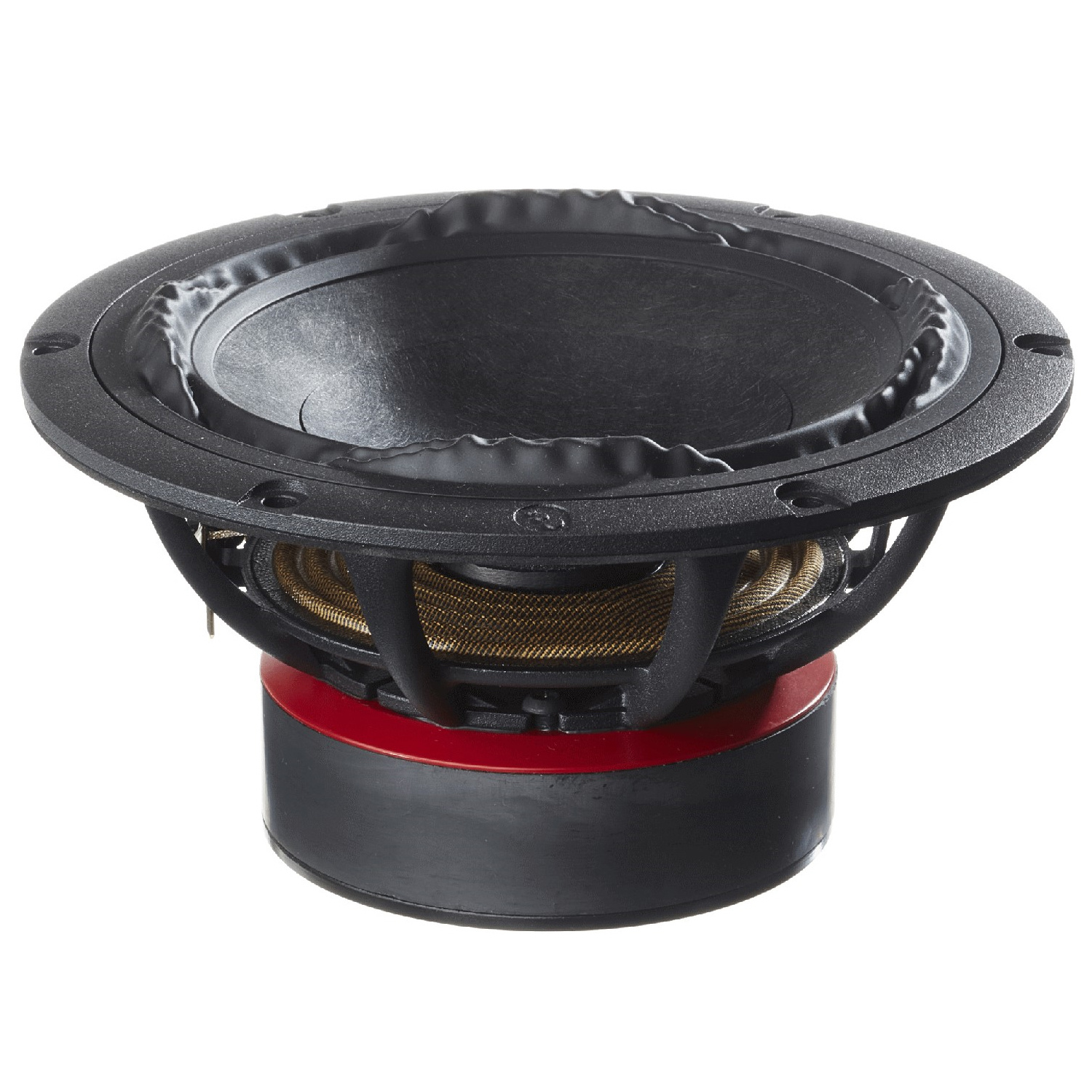

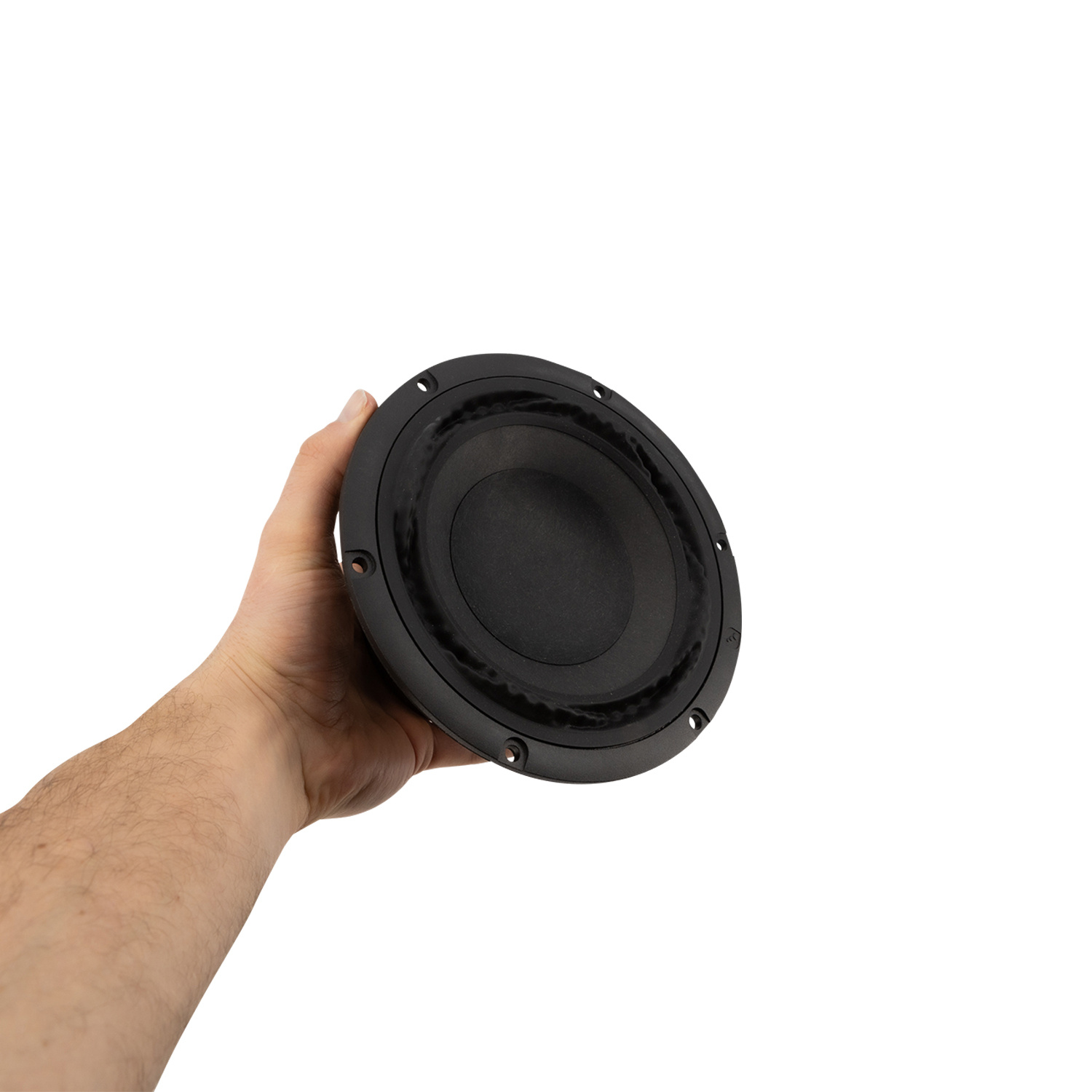

    PURIFI PTT6.5M08-NFA-01 Mid-range Woofer

    € 314,01€ 379,95 Nicht auf Lager: bitte kontaktieren Sie uns für die aktuelle Lieferzeit

    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -10% Bestellung 4 für nur €341,96 pro stück
    • -15% Bestellung 6 für nur €322,96 pro stück
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag
    • Hausinterner technischer Support
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    Dedicated midrange driver with enhanced efficiency. Negligible force factor modulation. Ultra-low magnetic hysteresis distortion. Utilizes PURIFI’s neutral surround technology.



    Highlights

    • A whole new take on driver design
    • PURIFI’s Natural Surround
    • Extreme low distortion over full excursion range
    • Engineered and manufactured in Denmark
    • Excellent midrange performance
    • High power handling
    • Perfect balance between volume displacement and midrange efficiency



    Product Details

    PURIFI PTT6.5M08-NFA-01 Ultra Low Distortion Midrange



    PURIFI is a fresh company that designs and manufactures extremely high-performance transducers and amplifier modules. Don’t let the freshness fool you; their leadership team consists out of some well-respected audio technology pioneers. PURIFI developed a deep understanding of many performances degrading aspects for both amplifiers and transducers. Besides this 8 ohm version, there is also a 4-ohm version, the PTT6.5M04-NFA-01, and a 6,5" passive radiator available.



    The challenge

    Loudspeaker drivers are known to add a large, if not the largest, amount of distortion in an audio signal chain. Reducing this distortion is a challenge with the complication of fine-tuning to improve one part (e.g. harmonic distortion) often results in a degradation of another part (e.g. intermodulation distortion). These distortions consist out of several separate distortion mechanisms. By carefully mapping and completely understanding these mechanisms, PURIFI succeeded in improving the overall performance to a large degree.



    A whole new take on driver design

    PURIFI developed mathematical models for the motor system, suspension, cone, and surround. These models allowed for the optimization of each distortion mechanism separately. This systematic approach reduced all distortions mechanisms and keeps intermodulation distortion low. The result makes that the dedicated midrange driver with enhanced efficiency. Negligible force factor modulation. Ultra-low magnetic hysteresis distortion. Utilizes PURIFI’s neutral surround technology.



    The mechanism

    Improvement

    Low force factor modulation

    Current through the voice coil is not distorted by cone movement. Gives undistorted midrange regardless of the excursion

    Constant force factor over excursion - Bl(x)

    Prevents amplitude devotions of midrange output during the large excursion (sometimes called ‘burbling’)

    Low surround radiation distortion

    Reduces harmonic and intermodulation distortion caused by surround

    Low magnetic hysteria distortion

    Reduces harmonic and intermodulation distortion caused by magnetic traces left by the previous cycle



    FAQ

    Q: Why is this surround odd-shaped?

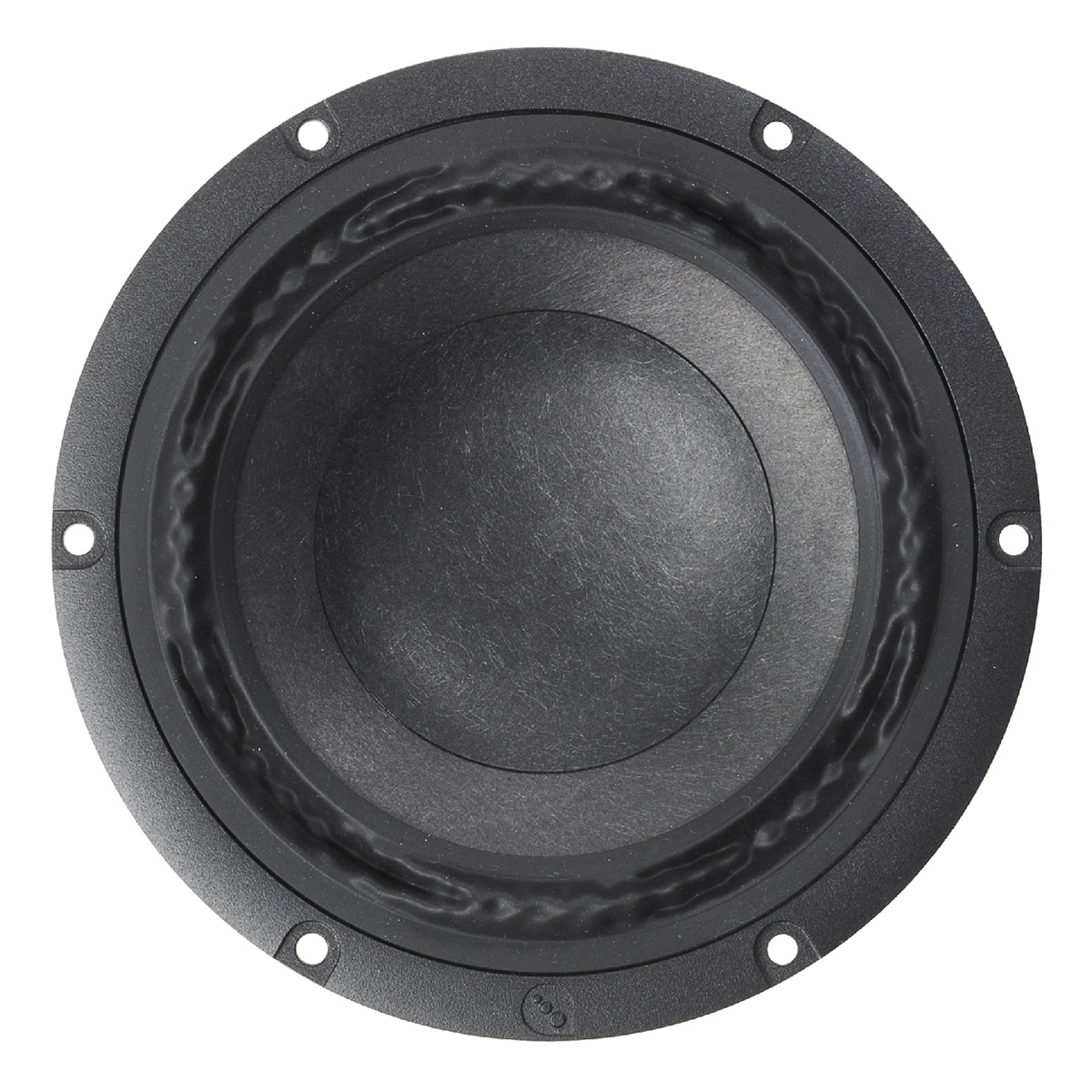

    A: This is the PURIFI Natural Surround. Conventional surroundings create distortion as they deform. The shape of the Natural Surround reduces cone edge resonances and distortion. It might be odd-looking, but form follows function here. A more detailed look shows that the surround actually represents a complex sound wave. We are told that the Natural Surround is also called ‘wormy’ by insiders.

    Eigenschaften

    Artikelnummer:
    PTT6.5M08-NFA-01
    Tieftönertyp
    Ultra Low Distortion Midrange
    Nenndurchmesser
    6.5"
    Belastbarkeit (QMW)
    200 Watts
    Impedanz (Z)
    8 Ohms
    Empfindlichkeit
    2.83Vrms/1m 91.0 dB
    Gleichstromwiderstand (Re)
    6.5 Ω
    Resonanzfrequenz (Fs)
    57 Hz
    Elektrische Güte (Qes)
    0.42
    Gesamtgüte (Qts)
    0.38
    Bewegliche Masse (Mms)
    17.0 g
    Nachgiebigkeit der Aufhängung (Cms)
    0.46 mm/N
    Membranfläche (Sd)
    133 cm2
    Kraftfaktor (BL)
    9.7 N/A
    Äquivalentvolumen (Vas)
    12 L
    Maximale Auslenkung (Xmax)
    +/- 3.9 mm
    Driver's Mechanical Losses (Rms)
    1.44 kg/s
    Cone / Diaphragm Material
    Proprietary Fibre Mix

    Mehr anzeigen
