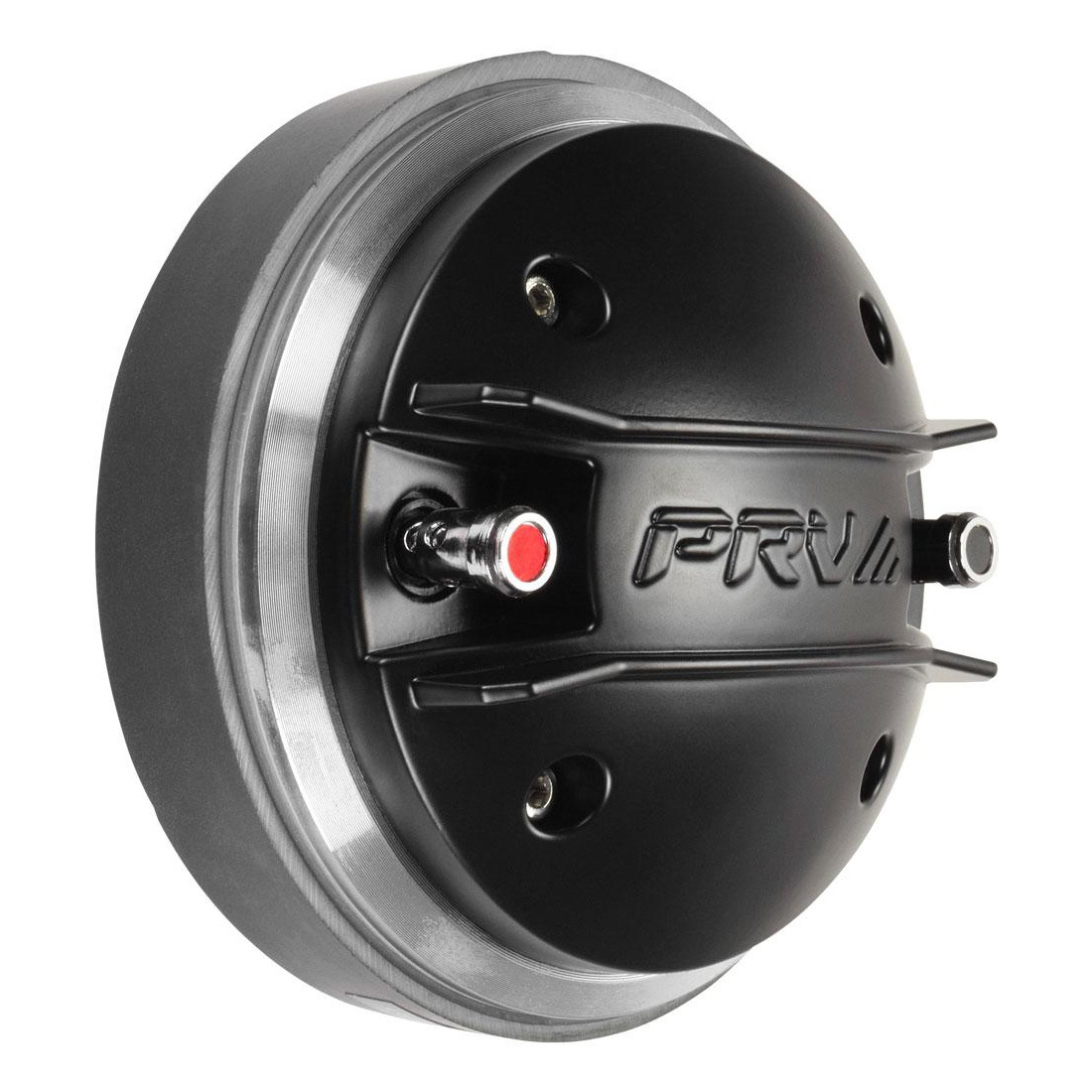

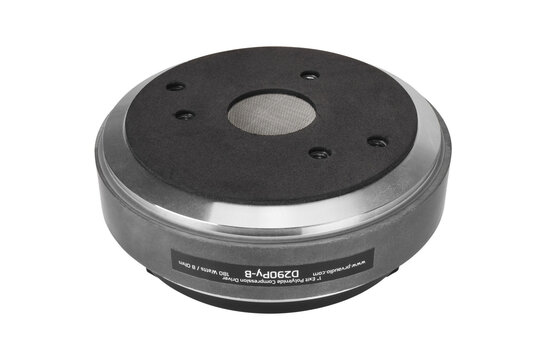

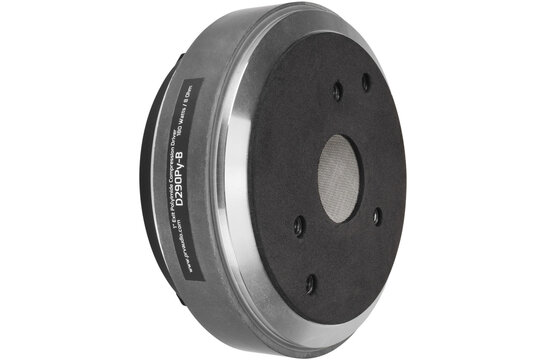

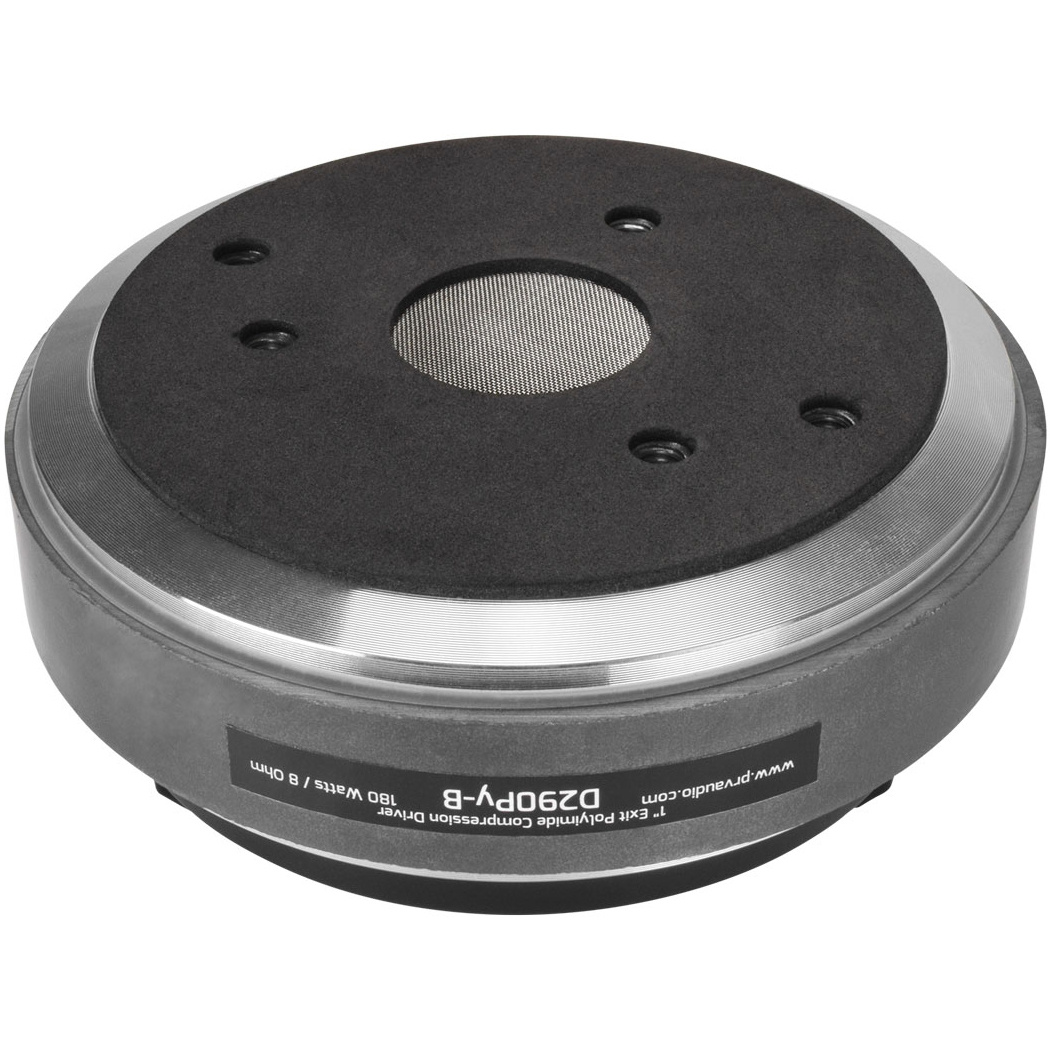

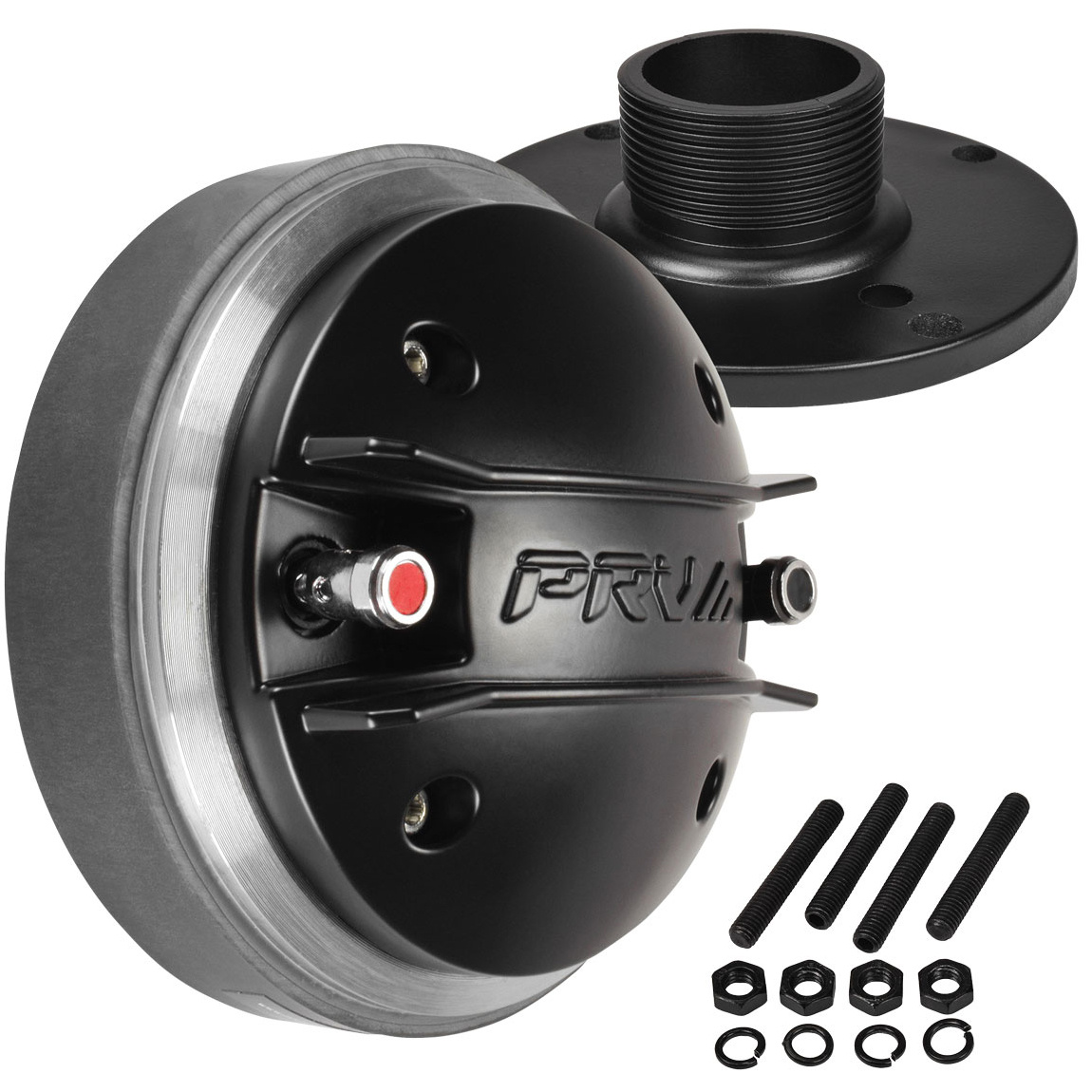

Name: PRV Audio D290Py-B Kompressionstreiber
Brand: PRV Audio
SKU: D290Py-B
Price: 93.95 EUR
Availability: InStock

1" | 8 Ω

77,64 €93,95 € 6 Auf Lager

Wir versenden nach
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung PRV Audio D290Py-B Kompressionstreiber

The PRV Audio D290Py-B is a high-efficiency 1" exit compression driver engineered for professional audio applications. With a compact design and robust power handling, it delivers outstanding performance across a wide frequency range, making it ideal for high-frequency reinforcement in PA systems and custom speaker builds.

Highlights of the PRV Audio D290Py-B

1.75" copper voice coil on a Kapton® former for excellent thermal stability
90 Watts RMS / 180 Watts program power handling
109 dB sensitivity for high output with minimal power input
Wide frequency response from 650 Hz to 19,000 Hz with polyimide diaphragm

Product details PRV Audio D290Py-B

PRV Audio D290Py-B Compression Driver

The PRV Audio D290Py-B compression driver is designed for demanding professional audio environments, offering a 1" (25.4 mm) exit throat and a lightweight polyimide diaphragm. Its 1.75" (44.4 mm) copper voice coil is wound on a Kapton® former, delivering reliable performance and excellent heat dissipation during extended use. Operating at 8 ohms, this driver handles 90 Watts of continuous power and 180 Watts program power, with a recommended 1,000 Hz high-pass crossover (12 dB/octave) for full power operation.

It features a high flux density of 1.85 Tesla, supported by a robust ferrite magnet structure. With a wide usable frequency range from 650 Hz to 19 kHz and a high sensitivity rating of 109 dB at 2.83V/1m, the D290Py-B ensures clarity and projection in mid to high-frequency applications. Its compact form factor - with a 120 mm diameter and 61 mm depth - allows flexible integration into tight enclosures or horn-loaded systems. The D290Py-B is perfect for PA system upgrades, DIY speaker builders, and anyone seeking professional-grade audio performance in a compact compression driver.

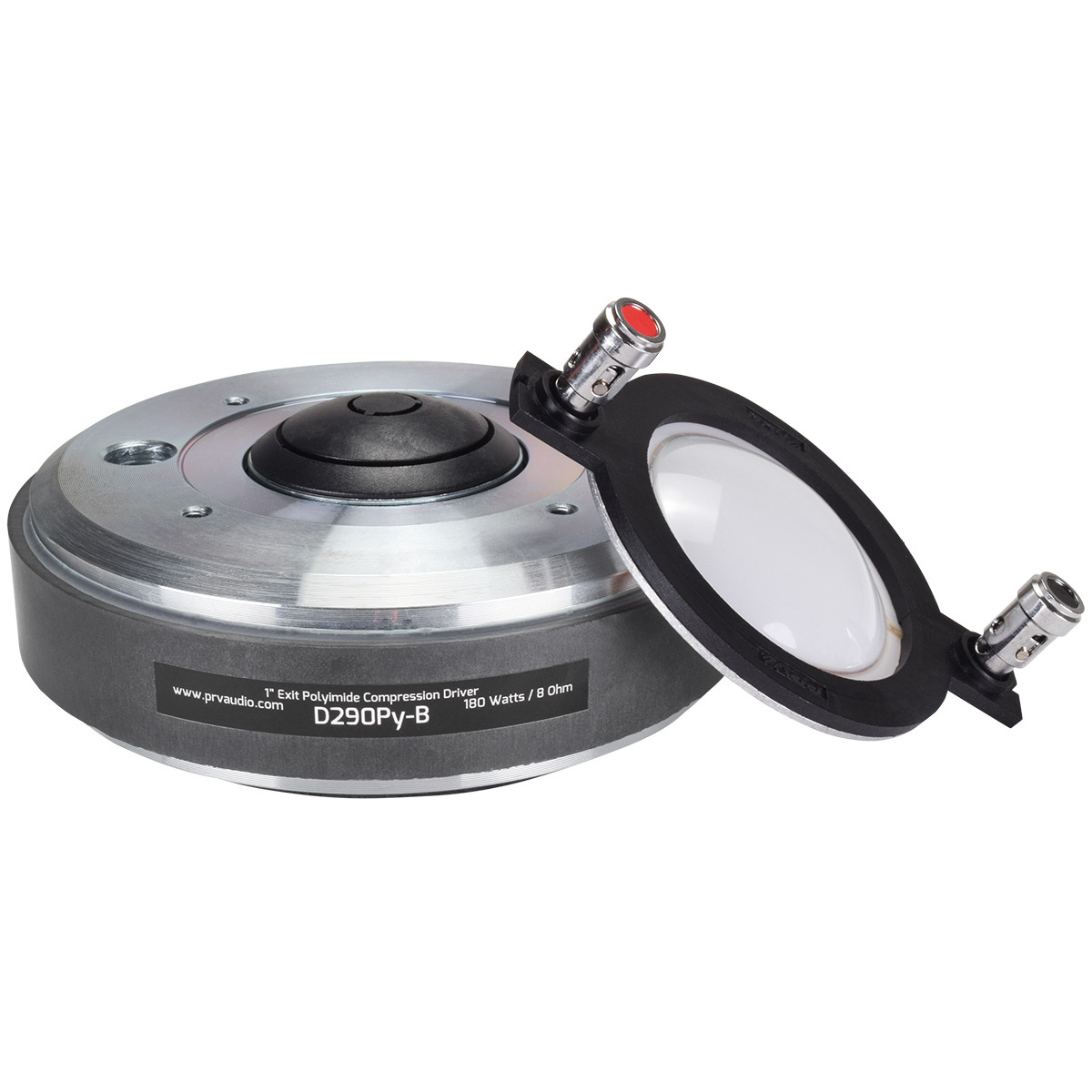

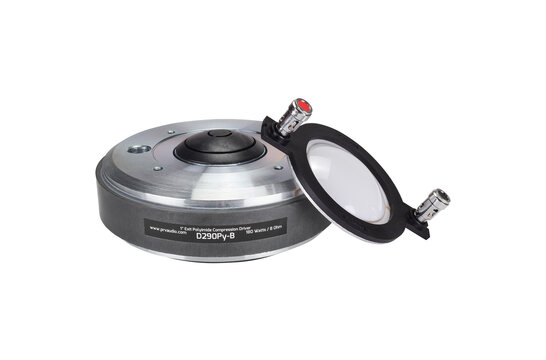

To support long-term reliability and easy maintenance, we offer a matching replacement diaphragm. The PRV Audio RPD290Py Replacement Diaphragm allows quick restoration of original performance and extending the service life of the compression driver.
