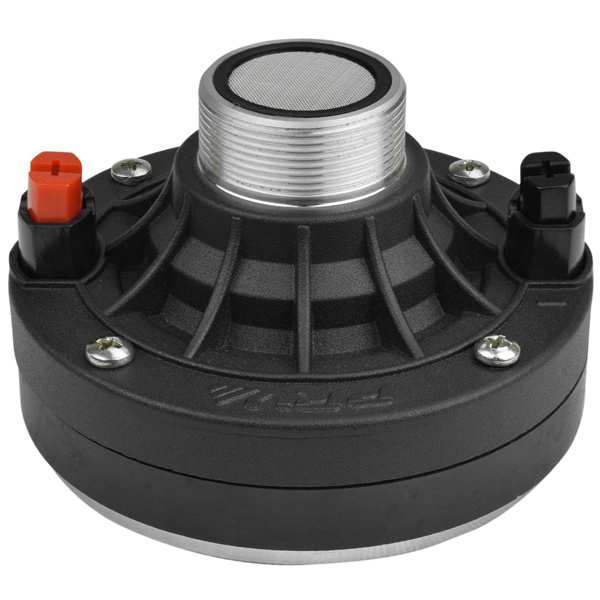

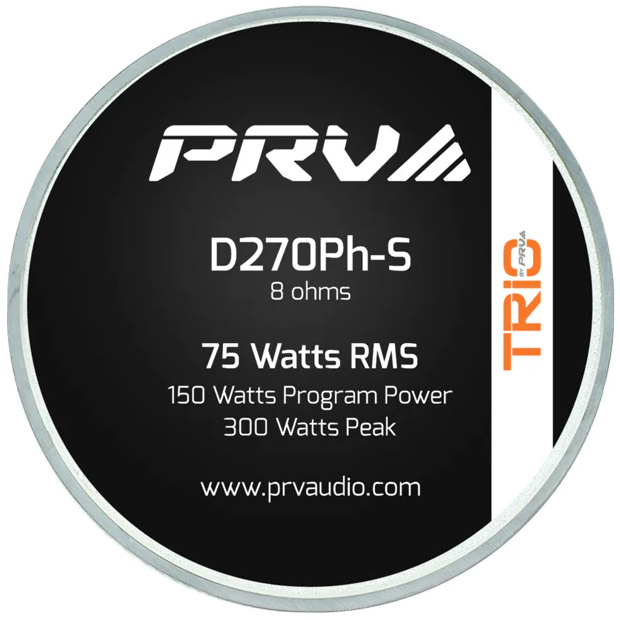

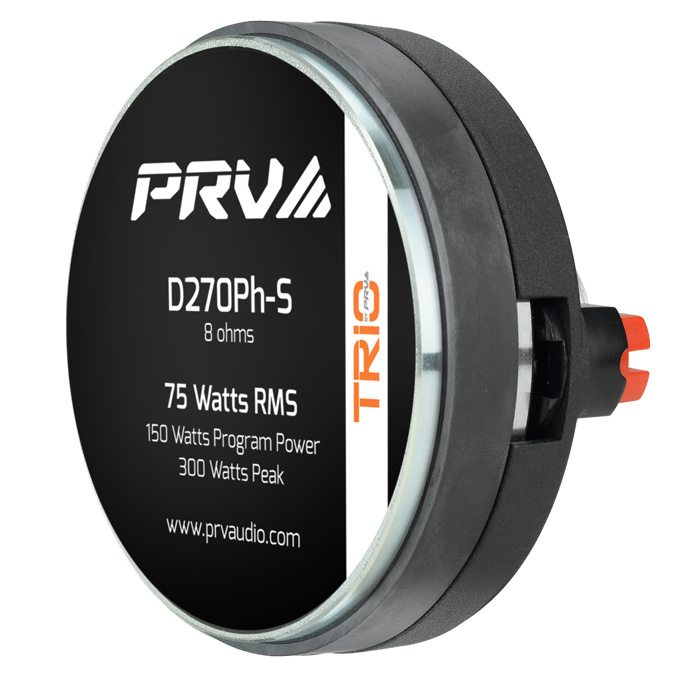

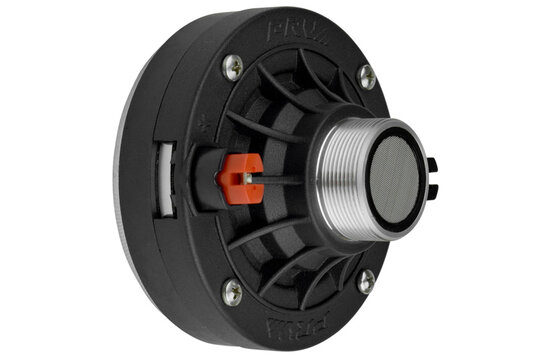

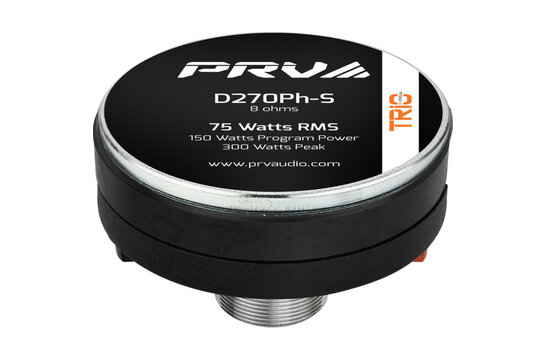

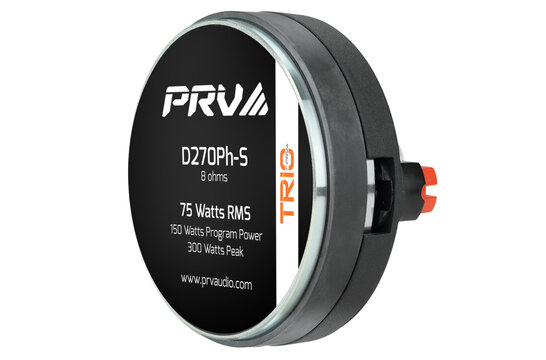

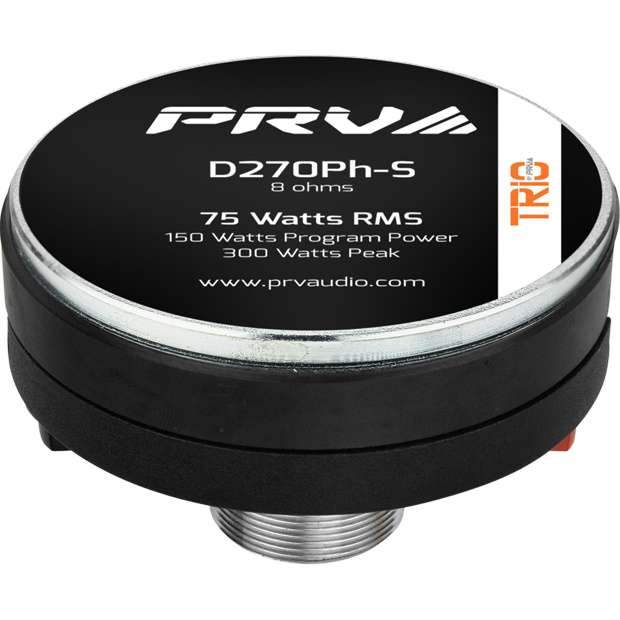

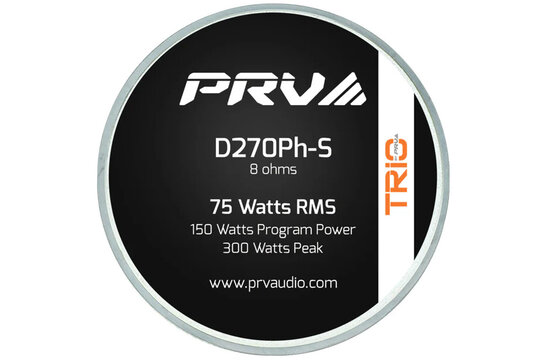

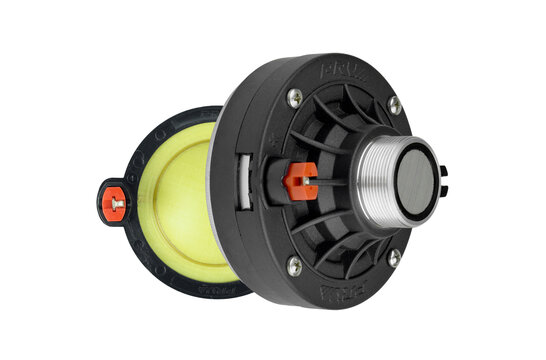

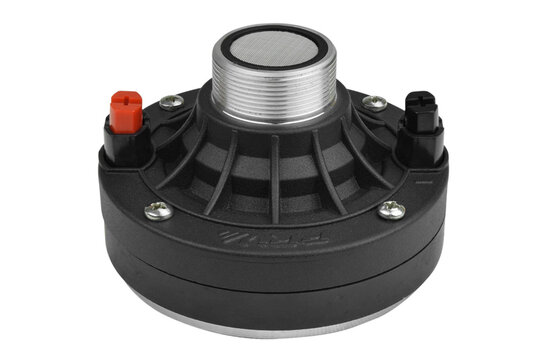

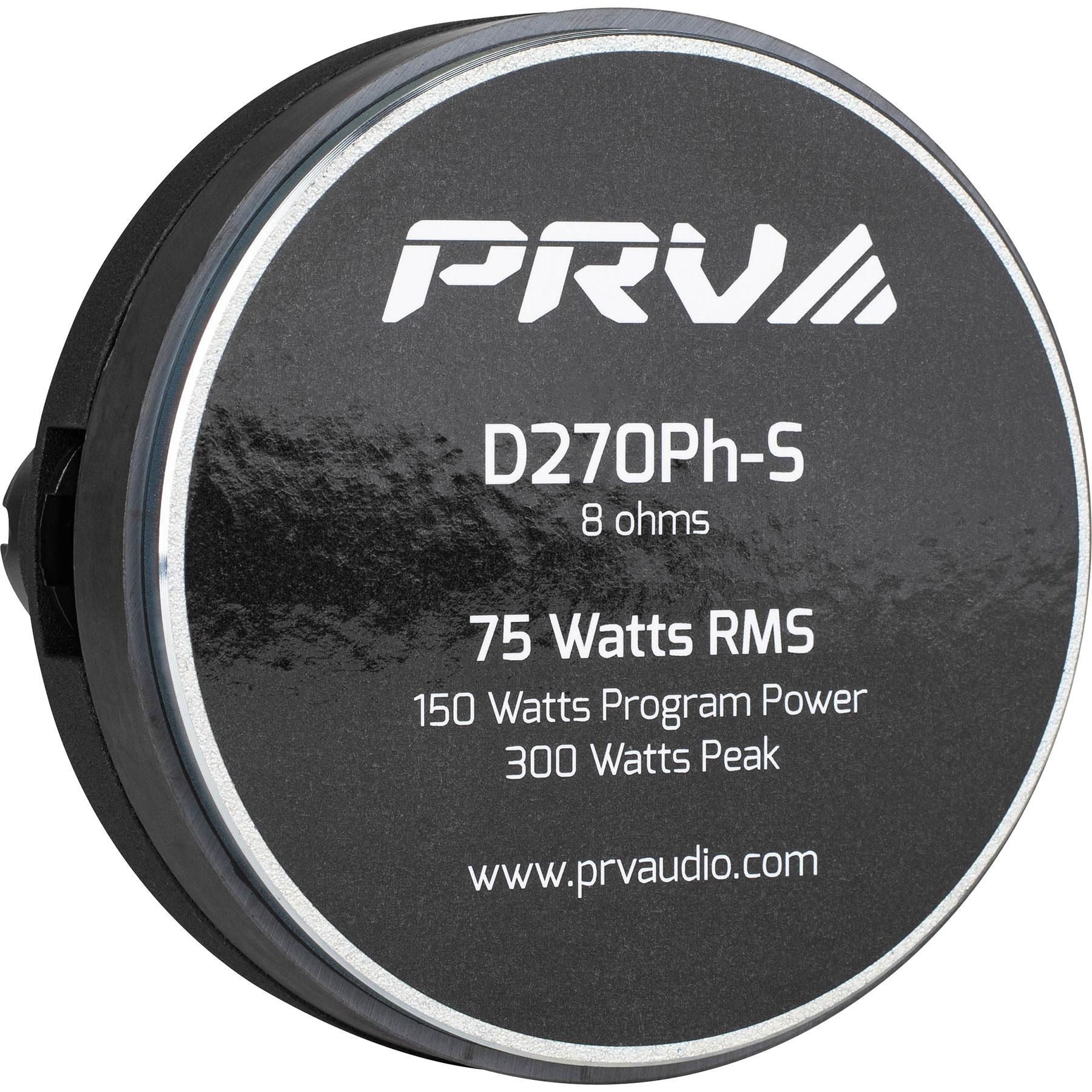

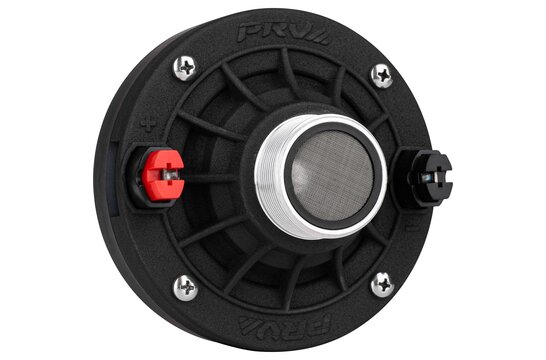

      D270Ph-S Kompressionstreiber

      PRV Audio D270Ph-S Kompressionstreiber

      €43,95

      7 Auf Lager

      Zum Warenkorb hinzufügen

      PRV Audio D270Ph-S Kompressionstreiber

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: PRV Audio
      Zeige alle Neue Produkte
      1" | 8 Ω
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      36,32 €43,95 € 7 Auf Lager
      • -5% Bestelle 4 für nur 41,75 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber
      D270Ph-S Kompressionstreiber

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Ideal for mid-range and vocal sound reinforcement
      • Compact size
      • Not suitable as a stand alone driver

      Produktbeschreibung PRV Audio D270Ph-S Kompressionstreiber

      The PRV Audio D270Ph-S is a professional-grade compression driver designed for high-efficiency midrange and high-frequency reproduction, making it well suited for PA systems, stage monitors, and DIY loudspeaker projects.



      Highlights of the PRV Audio D270Ph-S

      • 2” copper voice coil with 1” exit throat for controlled and efficient sound projection
      • High sensitivity of 107.5 dB (2.83V/1m) for maximum output with minimal amplifier power
      • Phenolic diaphragm optimized for smooth response and durability in vocal applications
      • Wide usable frequency range from 400 Hz to 8,000 Hz with recommended high-pass crossover at 500 Hz



      Product details PRV Audio D270Ph-S

      PRV Audio D270Ph-S Professional Compression Driver



      The PRV Audio D270Ph-S compression driver is engineered to deliver reliable performance in professional loudspeaker systems. It features a 2” (50 mm) copper voice coil wound on a Kapton former, combined with a phenolic resin diaphragm that provides a balanced tonal character and excellent thermal stability. With a nominal impedance of 8 ohms, the driver handles 75 watts of continuous power and up to 150 watts program power, making it suitable for demanding sound reinforcement environments.



      Designed around a ferrite magnet structure with a flux density of 1.10 T, the D270Ph-S achieves a high sensitivity rating of 107.5 dB, allowing it to produce strong output even with moderate amplification. The 1” (25.4 mm) exit throat and standard 1-3/8” 18 TPI mounting thread ensure compatibility with a wide range of horns and waveguides. Its frequency response, measured on the WG14-25 horn, spans from 400 Hz to 8 kHz at -10 dB, making it particularly effective for vocal and midrange-focused applications in PA systems and custom DIY designs.

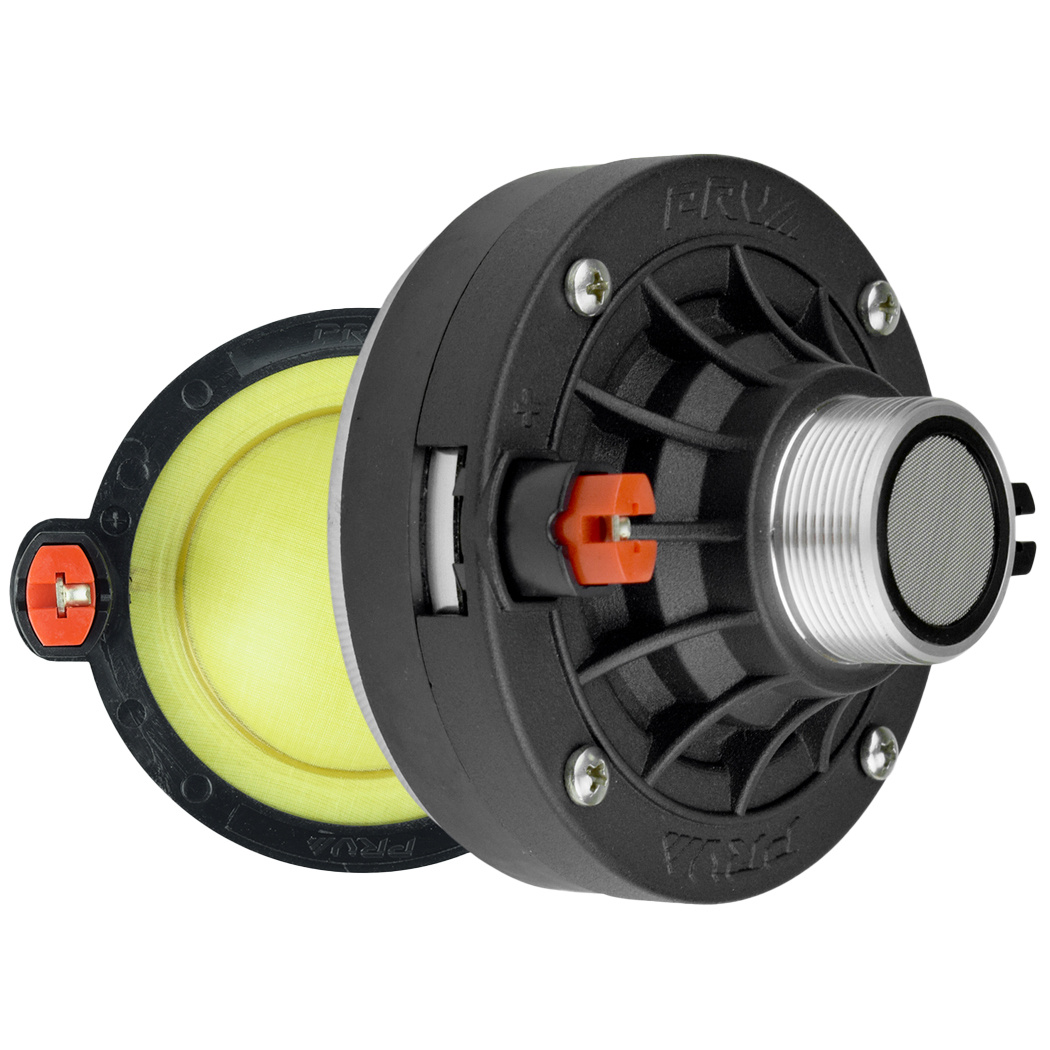

      To support long-term reliability and easy maintenance, we offer a matching replacement diaphragm. The PRV Audio RPD270Ph Replacement Diaphragm allows quick restoration of original performance and extending the service life of the compression driver.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      D270Ph-S
      EAN
      602938022484
