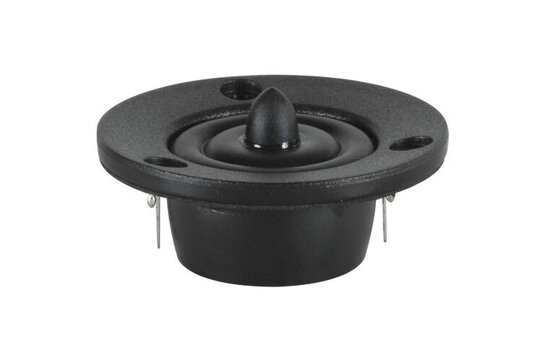

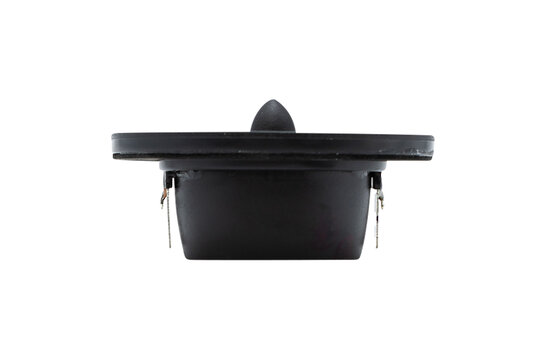

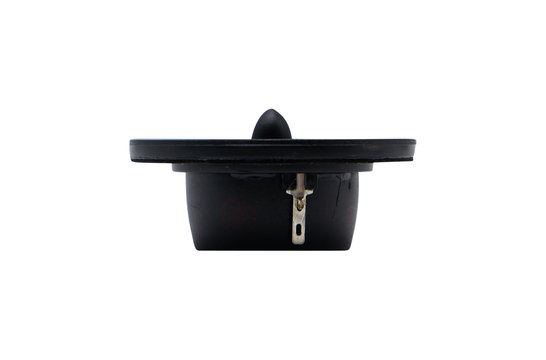

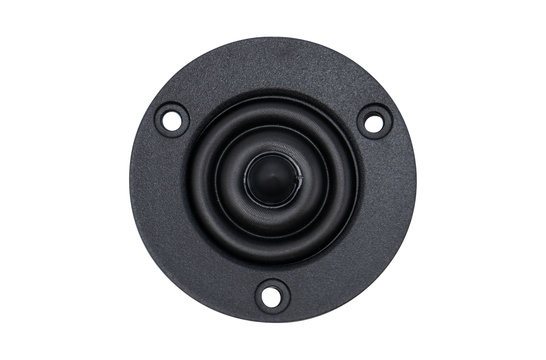

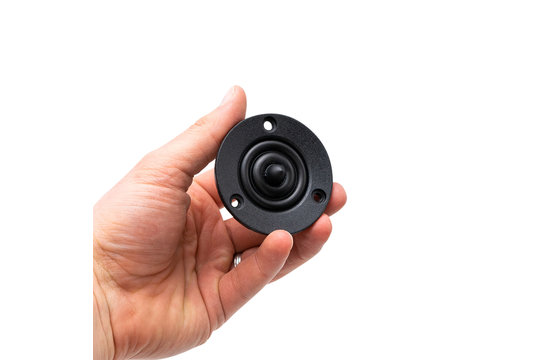

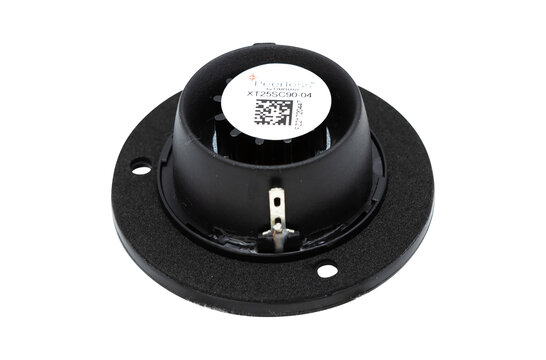

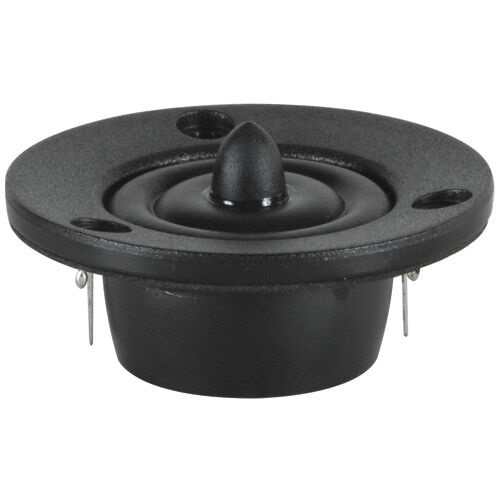

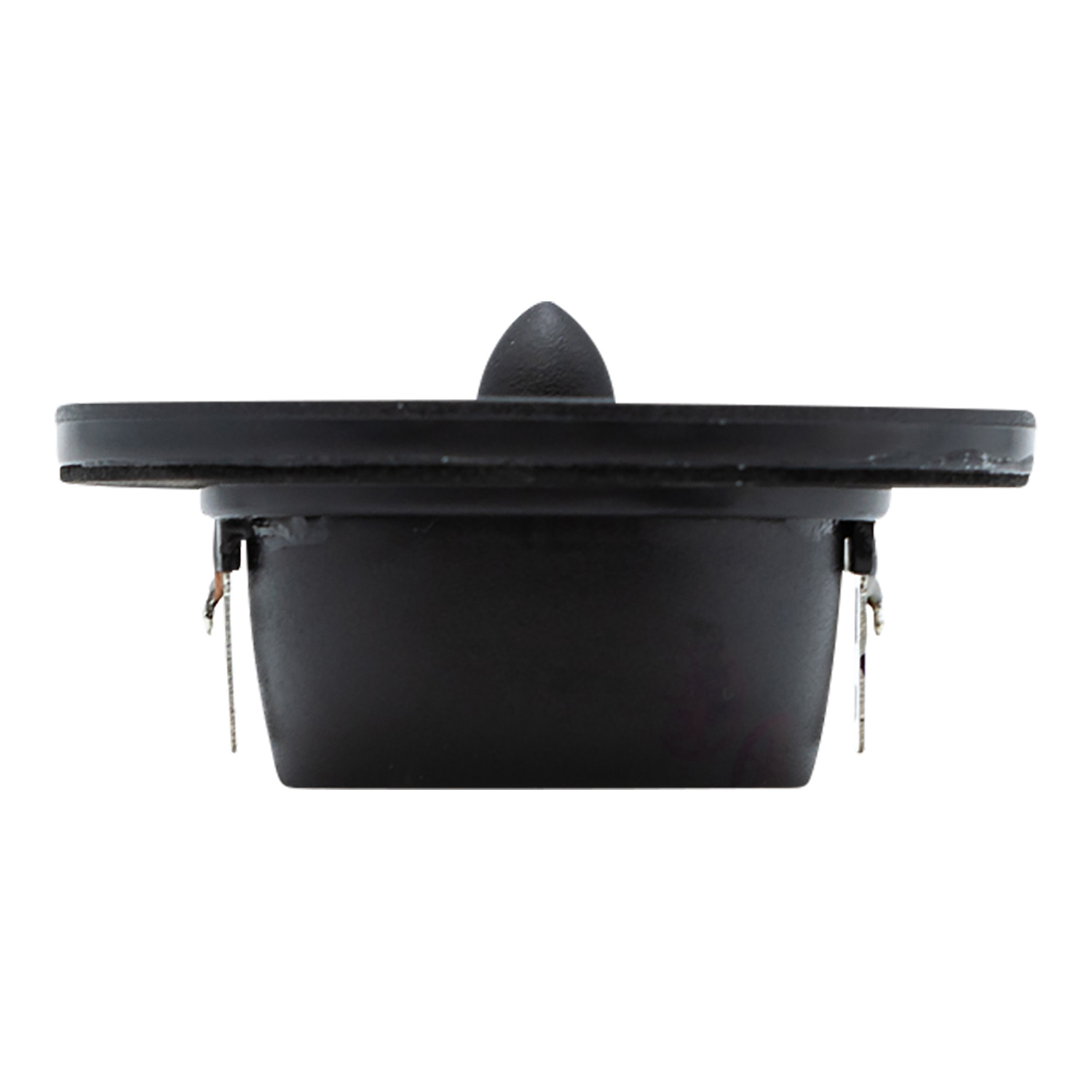

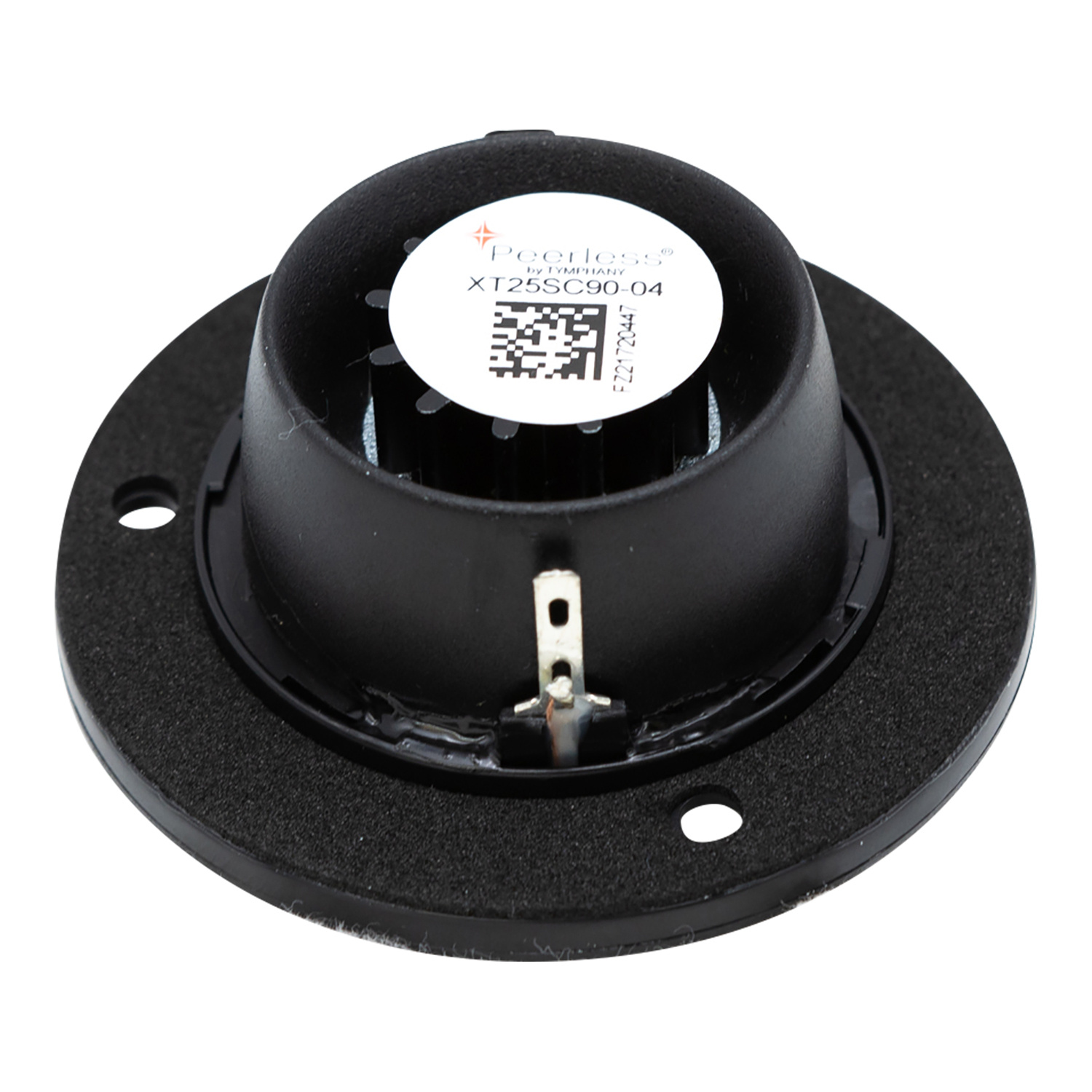

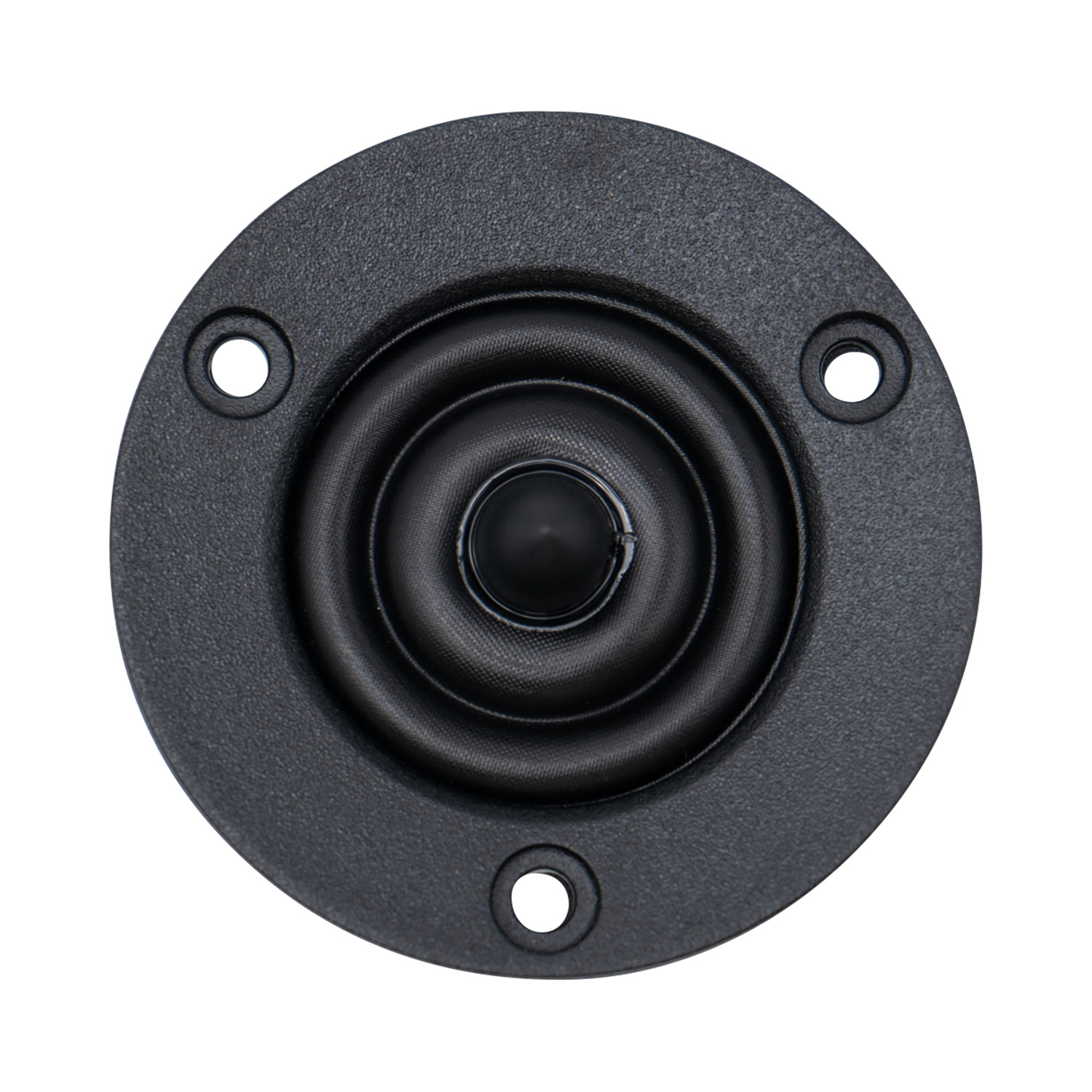

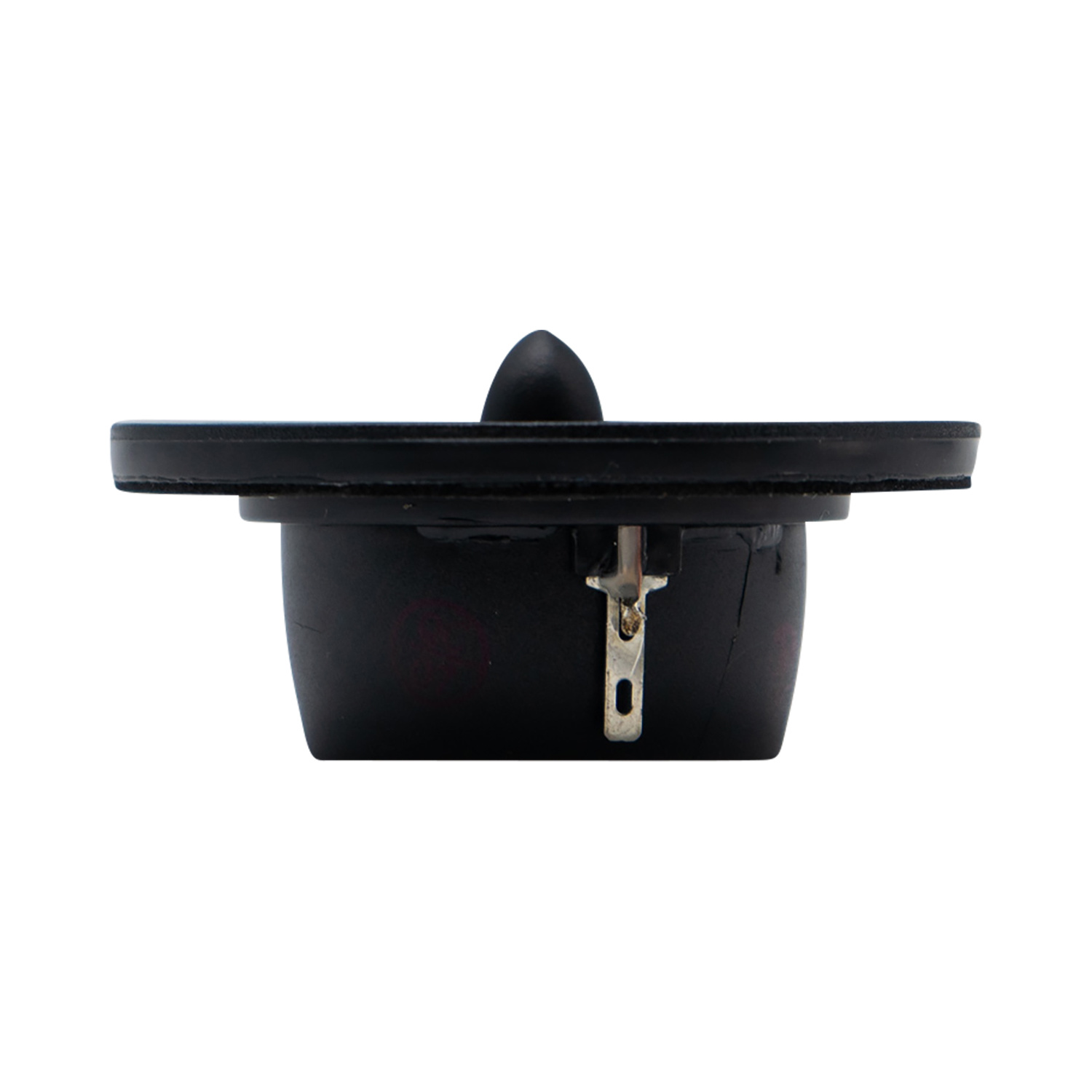

Peerless by Tymphany XT25SC90-04 1" Dual Ring Radiator Tweeter

4 reviews

Marke: Peerless by Tymphany

Alle anzeigen Audio-Komponenten

Vergleichen

1" | 4 Ω

XT25SC90-04 1" Dual Ring Radiator Tweeter

€ 20,62€ 24,95 >10 Auf Lager: Lieferzeit 1-3 Werktage

The smaller-sized Tymphany XT25SC90-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

The smaller-sized Tymphany XT25SC90-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.

Highlights

Patented dual ring radiator diaphragm with waveguide center plug
Neodymium magnet, low distortion motor
Flat response to 40 kHz

Product details

Peerless by Tymphany XT25SC90-04 1" Dual Ring Radiator Tweeter

This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25 mm voice coil, mounted in a neodymium magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

Eigenschaften

Artikelnummer:: XT25SC90-04
Tweeter Type: Ring Radiator
Tweeter Series: XT Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance: 4 ohms
Sensitivity: 90.14 dB 1W/1m
Frequency Response: 1600 to 20,000 Hz
Resonant Frequency (Fs): 824 Hz
DC Resistance (Re): 3.13 ohms
Voice Coil Inductance (Le): 0.01 mH
Mechanical Q (Qms): 7.17
Electromagnetic Q (Qes): 1.07
Total Q (Qts): 0.93
Overall Outside Diameter: 2.55”
Cutout Diameter: 1.85”
Depth: 1.00"

Data sheet

Bewertungen

4 reviews

5 from 5Based on 4 reviews

Produkt bewerten

5 van 5

Its a great tweeter. The tweeter is placed to a car with a custom pillar. The cut off frequency is at 2800hz and its sounds amazing. Great value for money. I recommend.

Durch GOULIELMOS S. on 29 Oktober 2020

5 van 5

Perfetto
Ideale per le mie esigenze

Durch graziano m. on 7 Juli 2020
