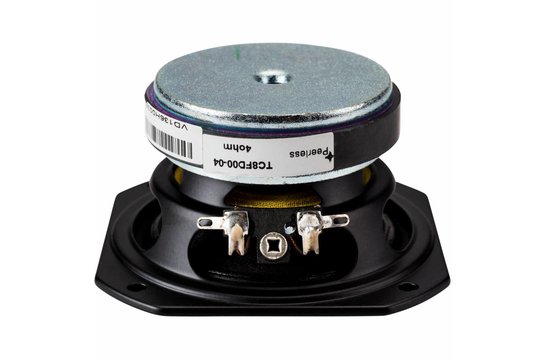

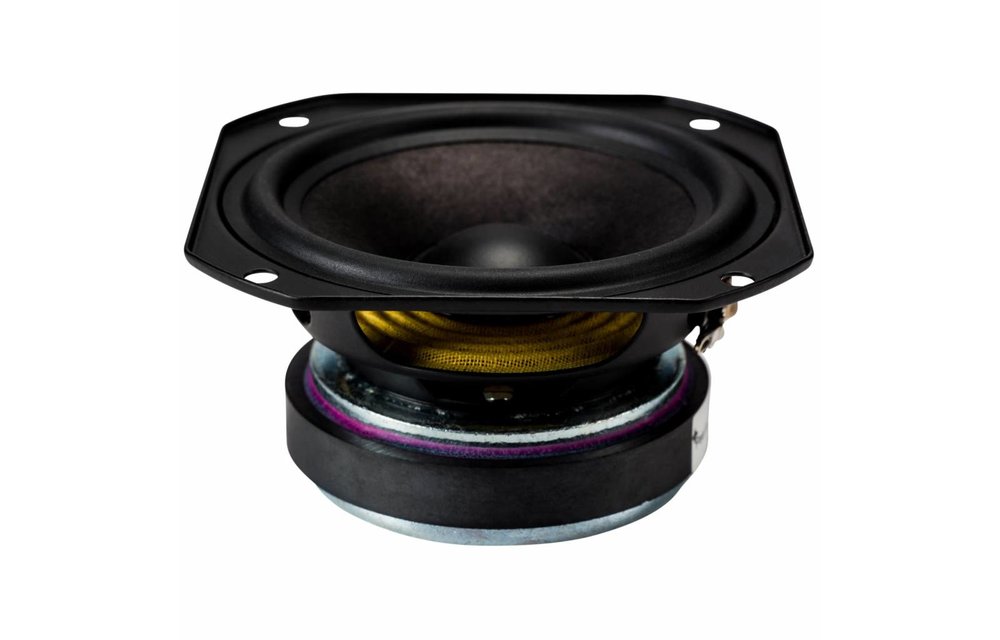

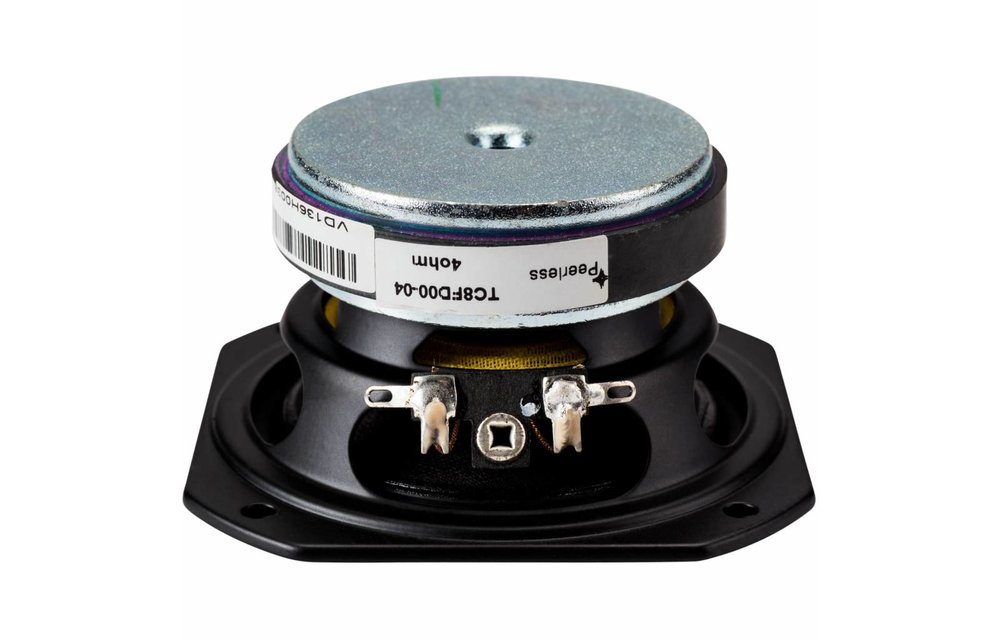

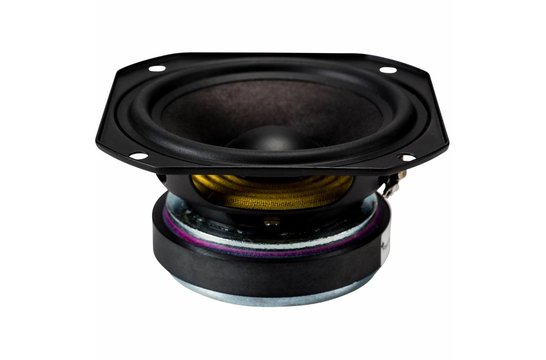

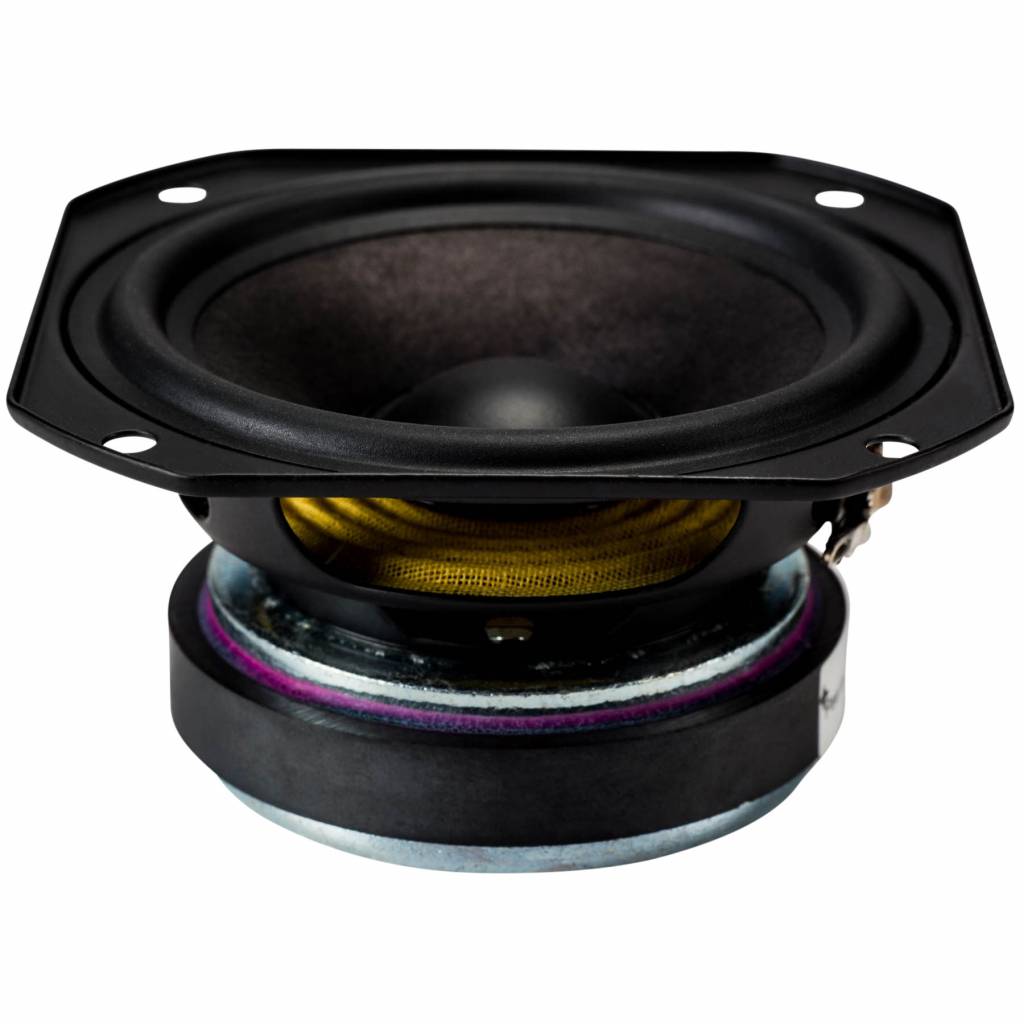

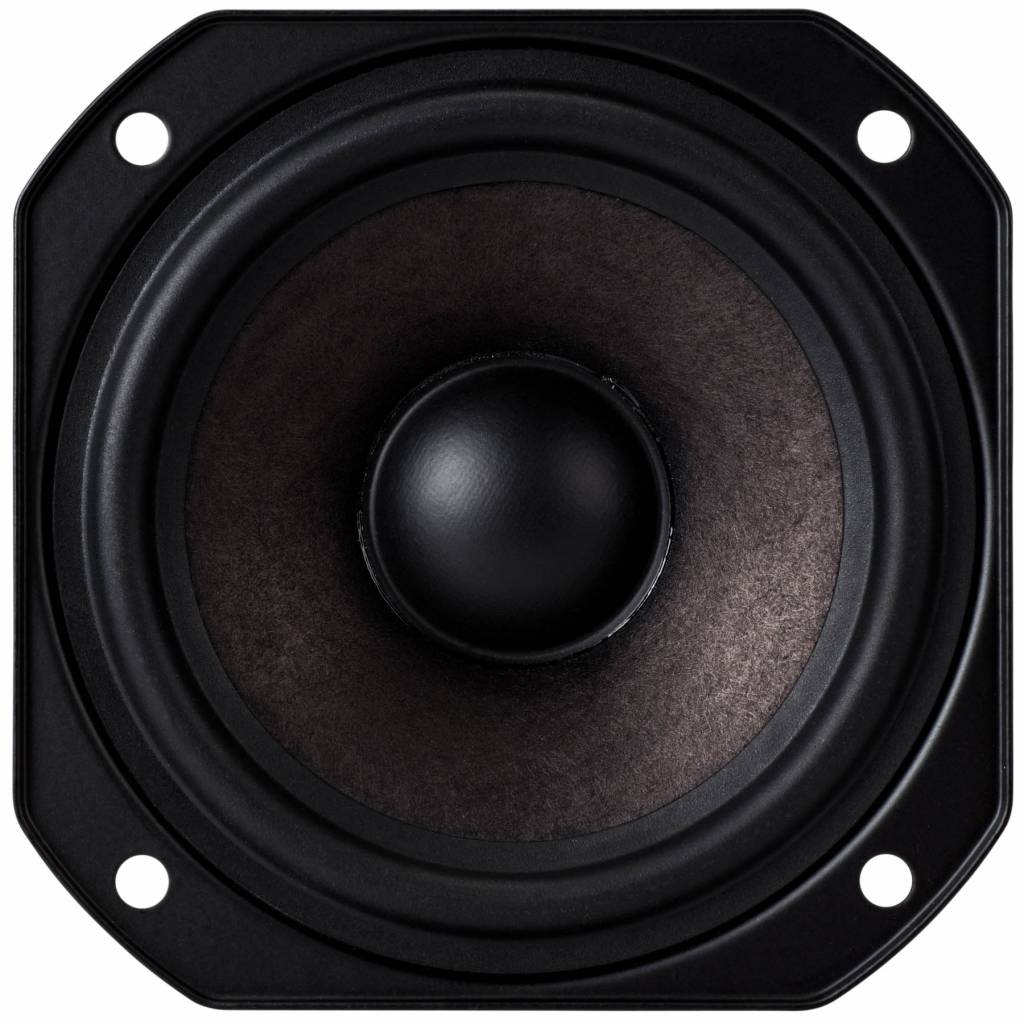

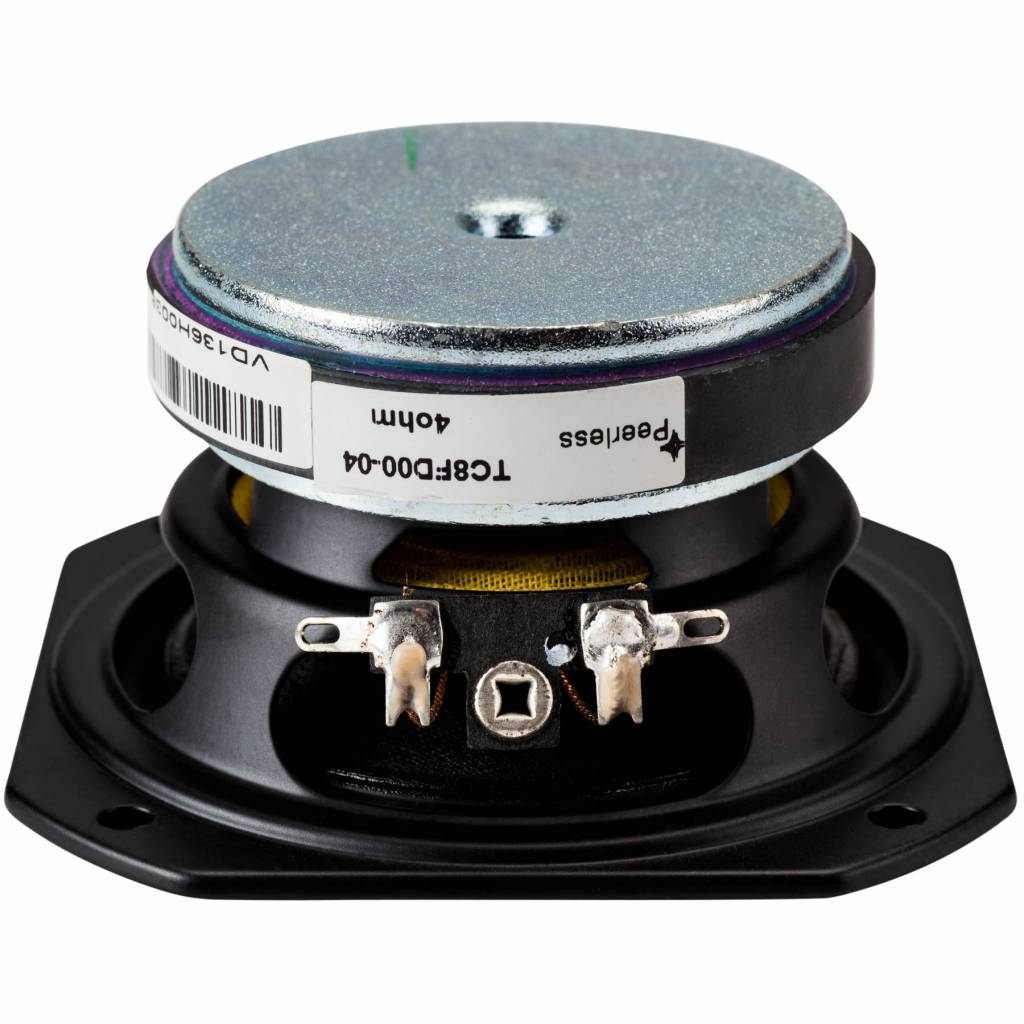

Peerless by Tymphany TC8FD00-04 3" Full Range Paper Cone Woofer

Lieferzeit: 1-3 Werktage

  • Artikelnummer: TC8FD00-04
  • Vorrat: 3 Auf Lager

Choose the Tymphany TC Series TC8FD00-04 3", 4-ohm full-range driver for space-limited audio applications. The patented PentaCut NRSC cone damps and controls resonances for superior frequency response from 120 to 20,000 Hz.

€ 17,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €16,58 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Peerless by Tymphany TC8FD00-04 3" Full Range Paper Cone Woofer

Choose the Tymphany TC Series TC8FD00-04 3", 4-ohm full-range driver for space-limited audio applications. The patented PentaCut NRSC cone damps and controls resonances for superior frequency response from 120 to 20,000 Hz.



Highlights

  • Patented PentaCut NRSC cone for a flat, damped response
  • Copper capped pole piece reduces inductance and distortion
  • Great for building mini speakers and line array column speakers



Product Details

Peerless by Tymphany TC8FD00 3" Full Range Speaker



This TC family 3.0 inch 4 ohm full-range driver, with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.

Eigenschaften

Spezifikationen für: TC8FD00-04 3" Full Range Paper Cone Woofer

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers.
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Full Range Speaker
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 3"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 25 Watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 50 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 85.7 dB 2.83V/1m
  • Frequency Response 130 to 20,000Hz
  • Voice Coil Diameter 0.75"
  • Magnet Weight
  • DC Resistance (Re) 3.3 ohms
  • Voice Coil Inductance (Le) 0.03 mH
  • Resonant Frequency (Fs) 125 Hz
  • Mechanical Q (Qms) 3.7
  • Electromagnetic Q (Qes) 1.23
  • Total Q (Qts) 0.92
  • Diaphragm Mass Inc. Airload (Mms) 2.55g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.64 mm/N
  • Surface Area of Cone (Sd) 33.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.32 Tm
  • Compliance Equivalent Volume (Vas) 0.03 ft.³
  • Maximum Linear Excursion (Xmax) 2.4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 3.19"
  • Overall Depth 1.65"
  • Baffle Cutout Diameter 3.05"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
