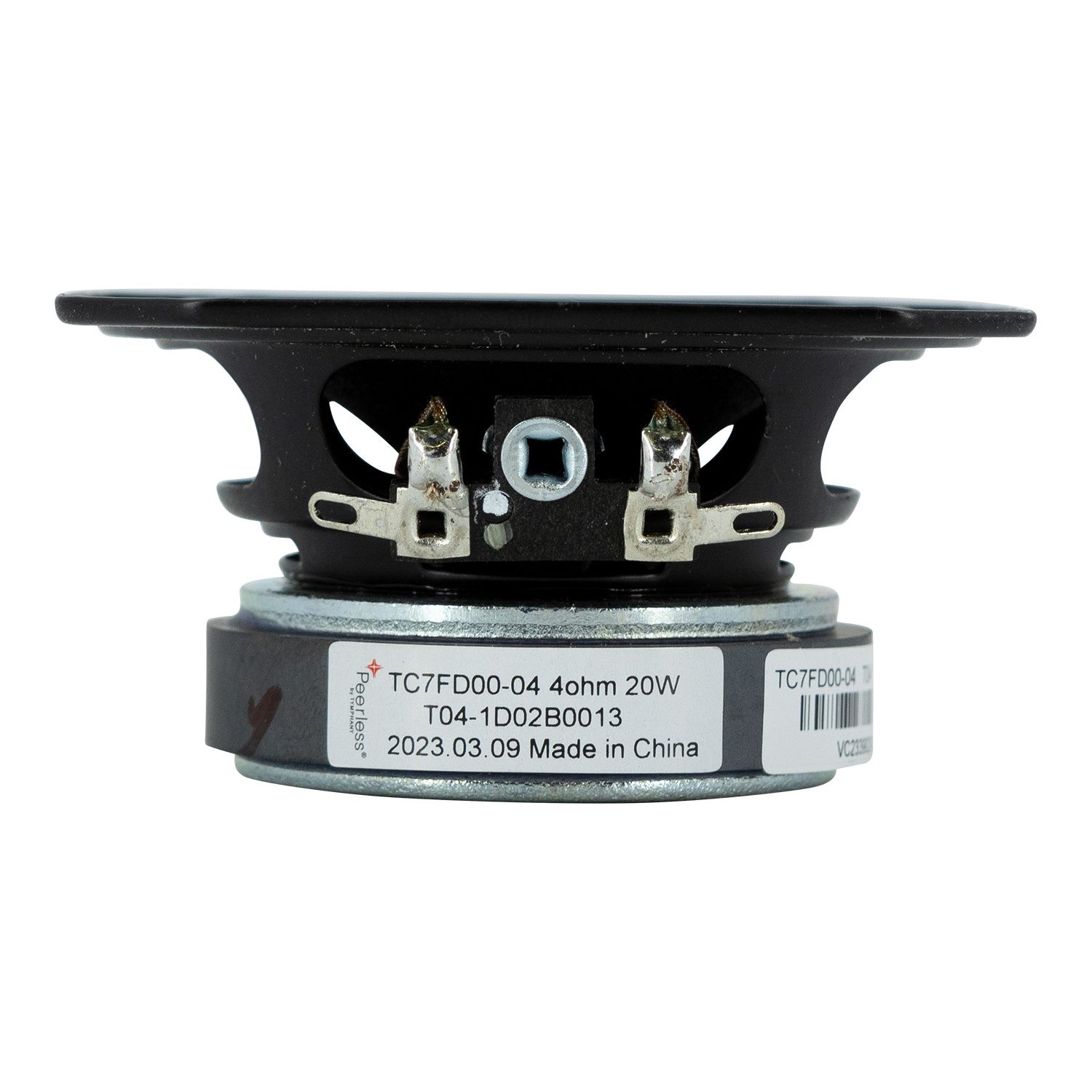

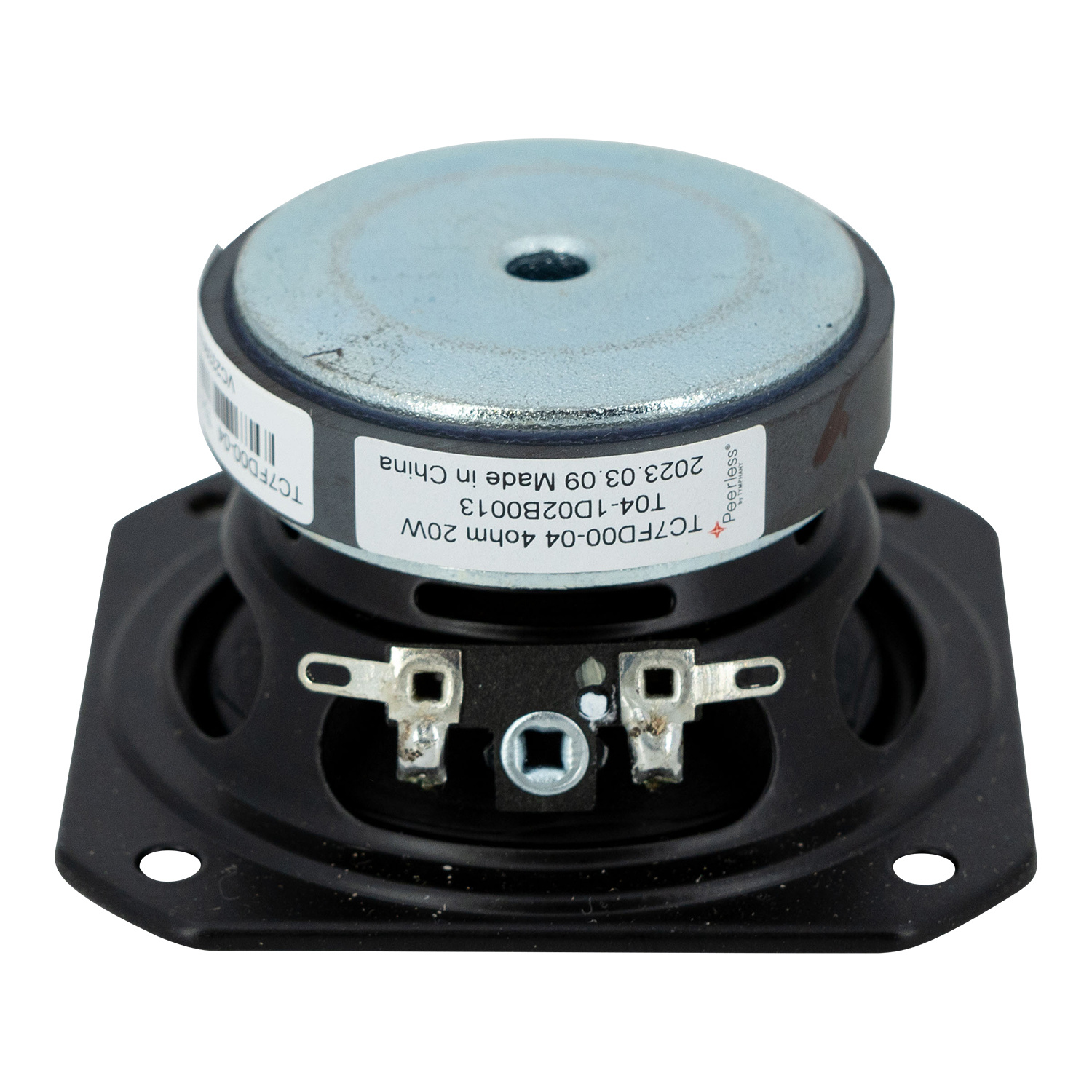

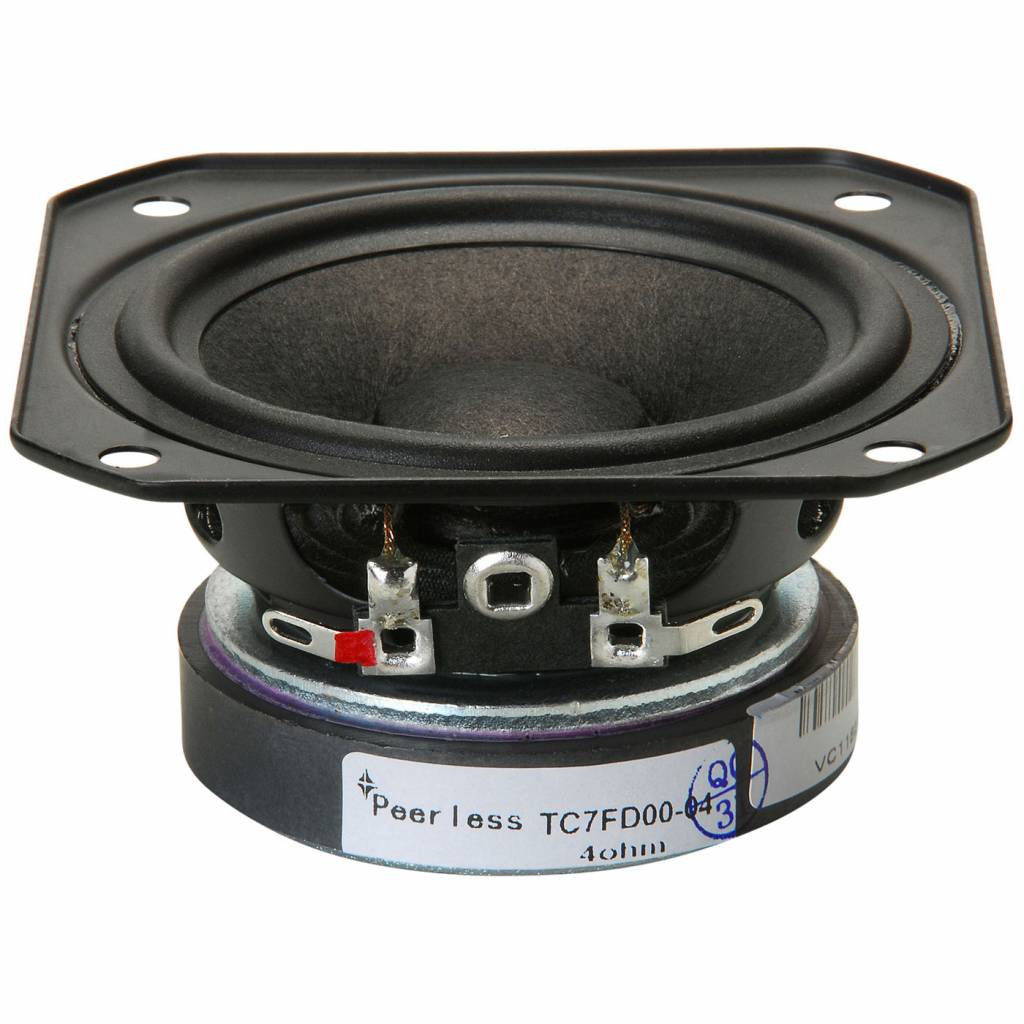

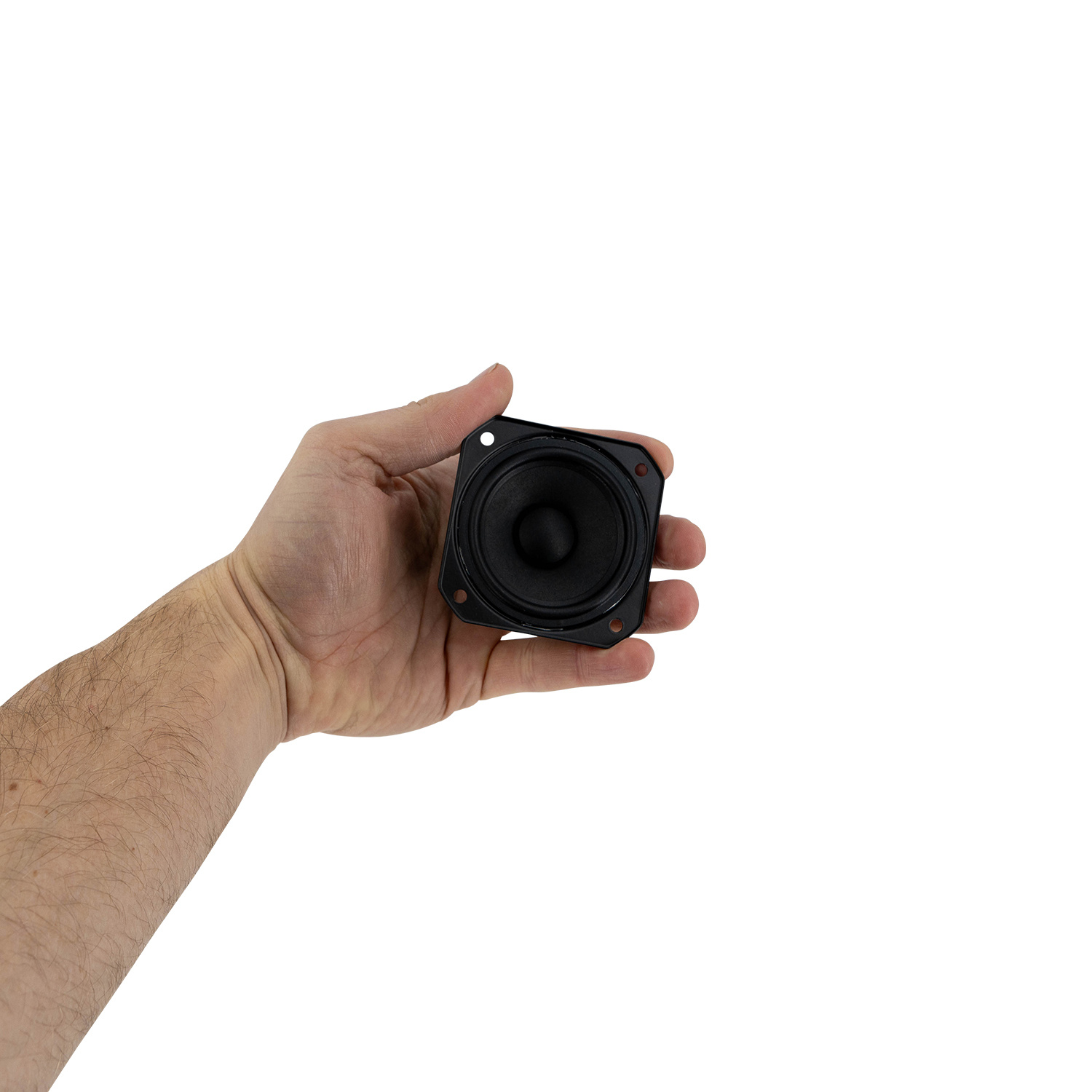

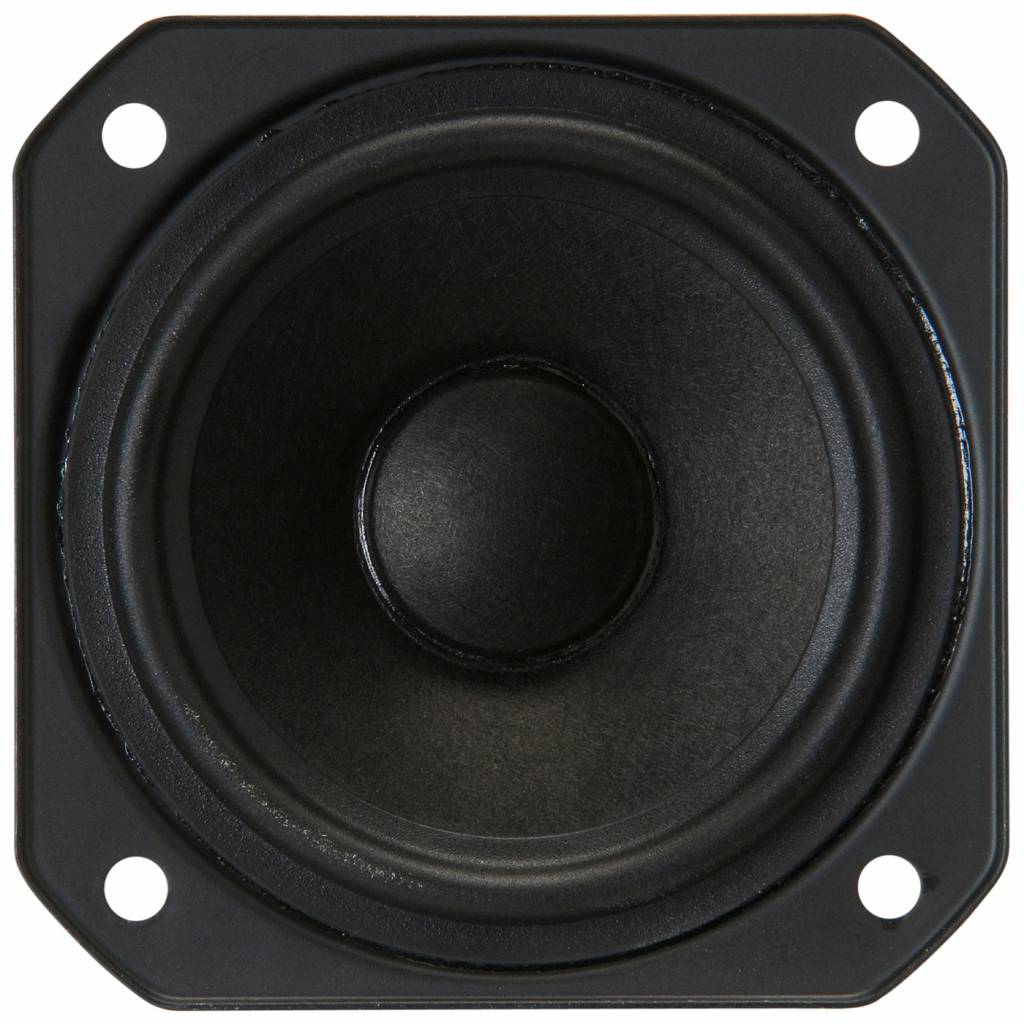

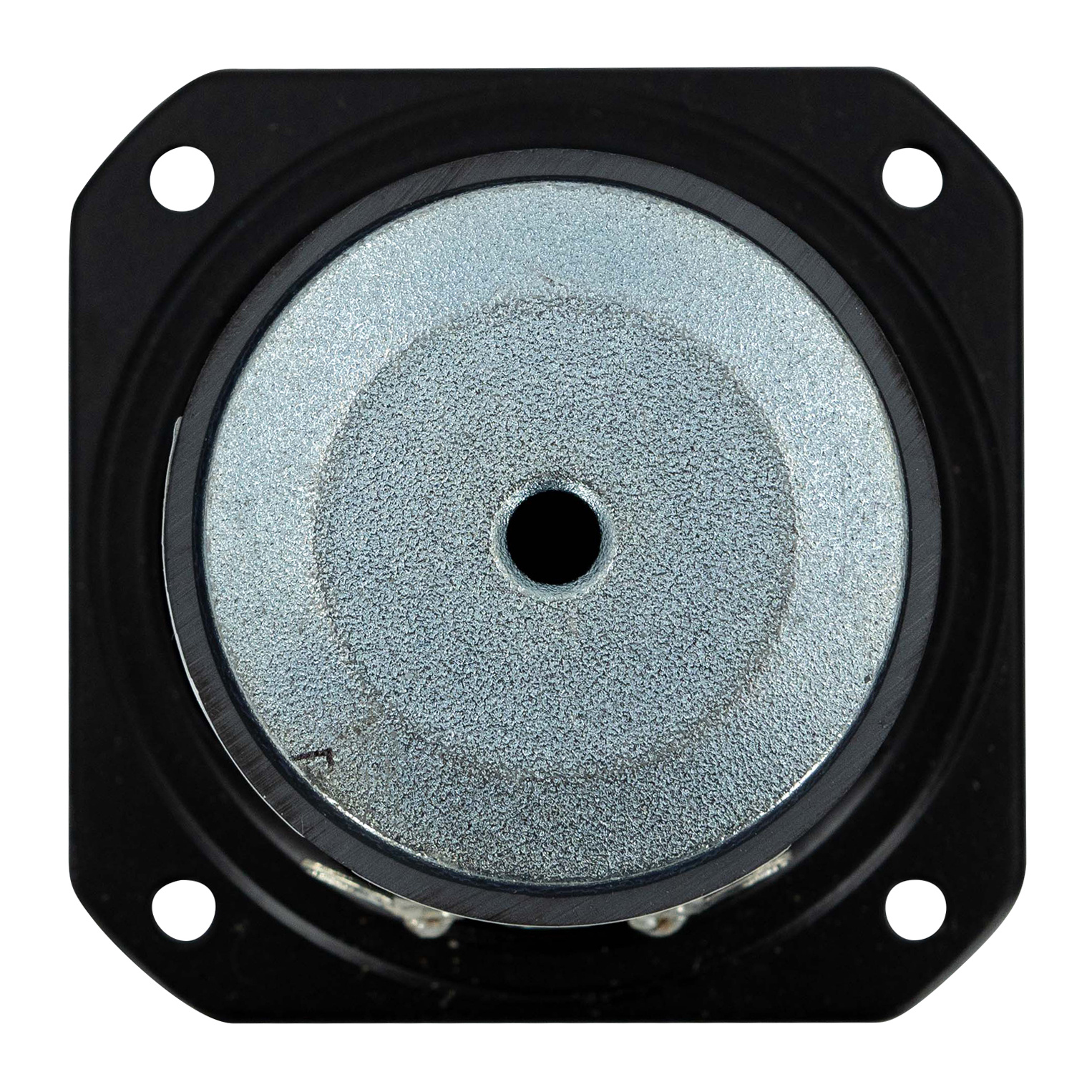

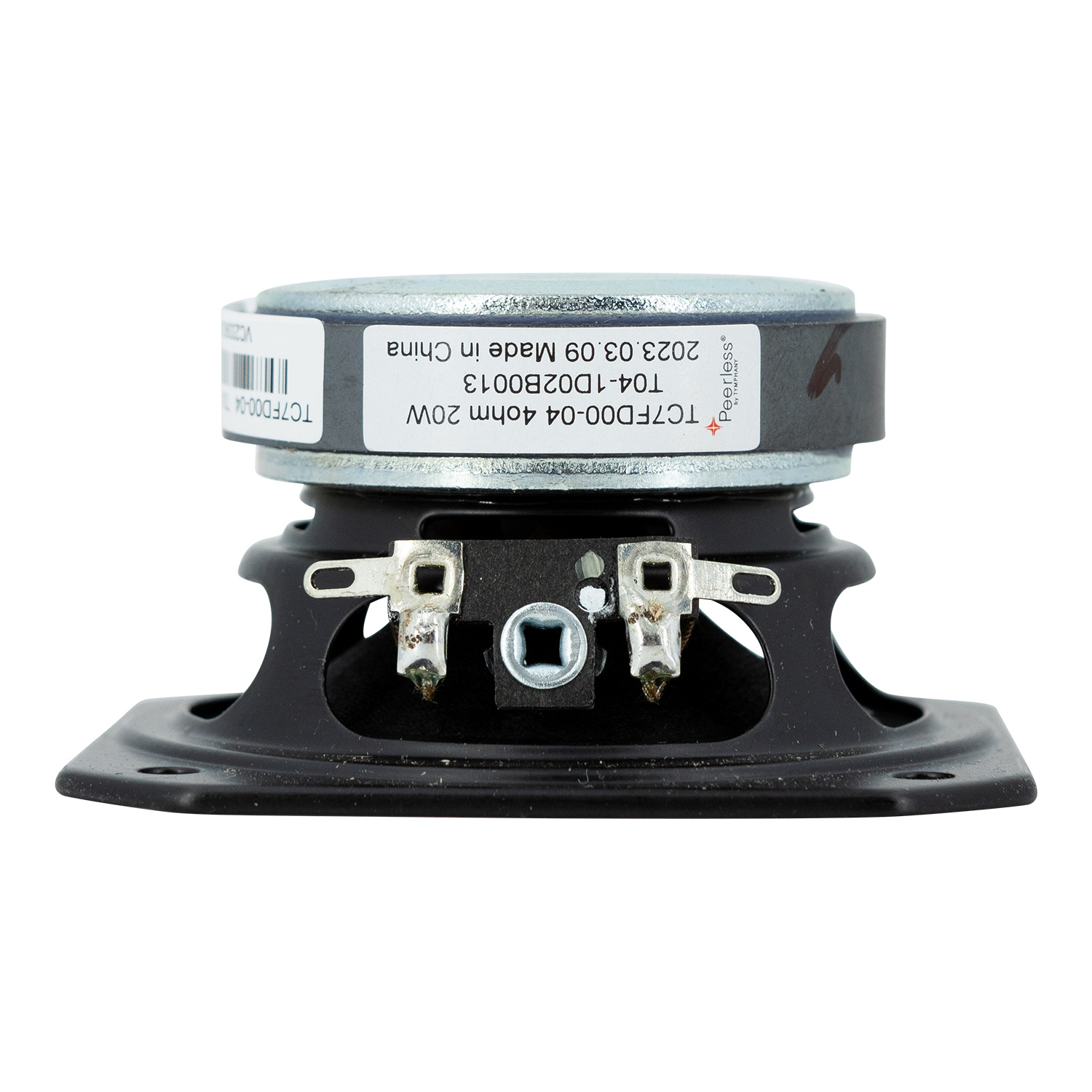

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer

€ 11,12€ 13,45 4 Auf Lager: Lieferzeit 1-3 Werktage
The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €12,78 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.



Highlights

  • Cost-effective ceramic ferrite magnet and stamped steel frame
  • Patented NRSC PentaCut cone technology controls resonances and improves performance
  • Under-spider venting increases power handling
  • Half-roll rubber surround for unrestricted travel
  • Copper pole piece cap controls impedance and extends HF response



Product details

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer



This TC family 2.5 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.

Eigenschaften

Artikelnummer:
TC7FD00-04
Woofer Type
Full Range Woofer
Nominal Diameter
2-1/2"
Power Handling (RMS)
20 Watts
Power Handling (max)
40 Watts
Impedance
4 ohms
Sensitivity
82.4 dB 2.83V/1m
Frequency Response
130 to 20,000Hz
Voice Coil Diameter
0.75"
DC Resistance (Re)
3.2 ohms
Voice Coil Inductance (Le)
0.02 mH
Resonant Frequency (Fs)
143 Hz
Mechanical Q (Qms)
3.7
Electromagnetic Q (Qes)
1.22
Total Q (Qts)
0.92
Diaphragm Mass Inc. Airload (Mms)
1.64g
Mechanical Compliance of Suspension (Cms)
0.75 mm/N
Surface Area of Cone (Sd)
22.1 cm²
BL Product (BL)
1.97 Tm
Compliance Equivalent Volume (Vas)
0.02 ft.³
Maximum Linear Excursion (Xmax)
1 mm
Cone / Diaphragm Material
Paper
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
2.95"
Overall Depth
1.43"
Baffle Cutout Diameter
2.56"
# Mounting Holes
4
Sealed Volume
0.05 ft.³
Sealed F3
138 Hz
Vented Volume
0.1 ft.³
Vented F3
82 Hz
