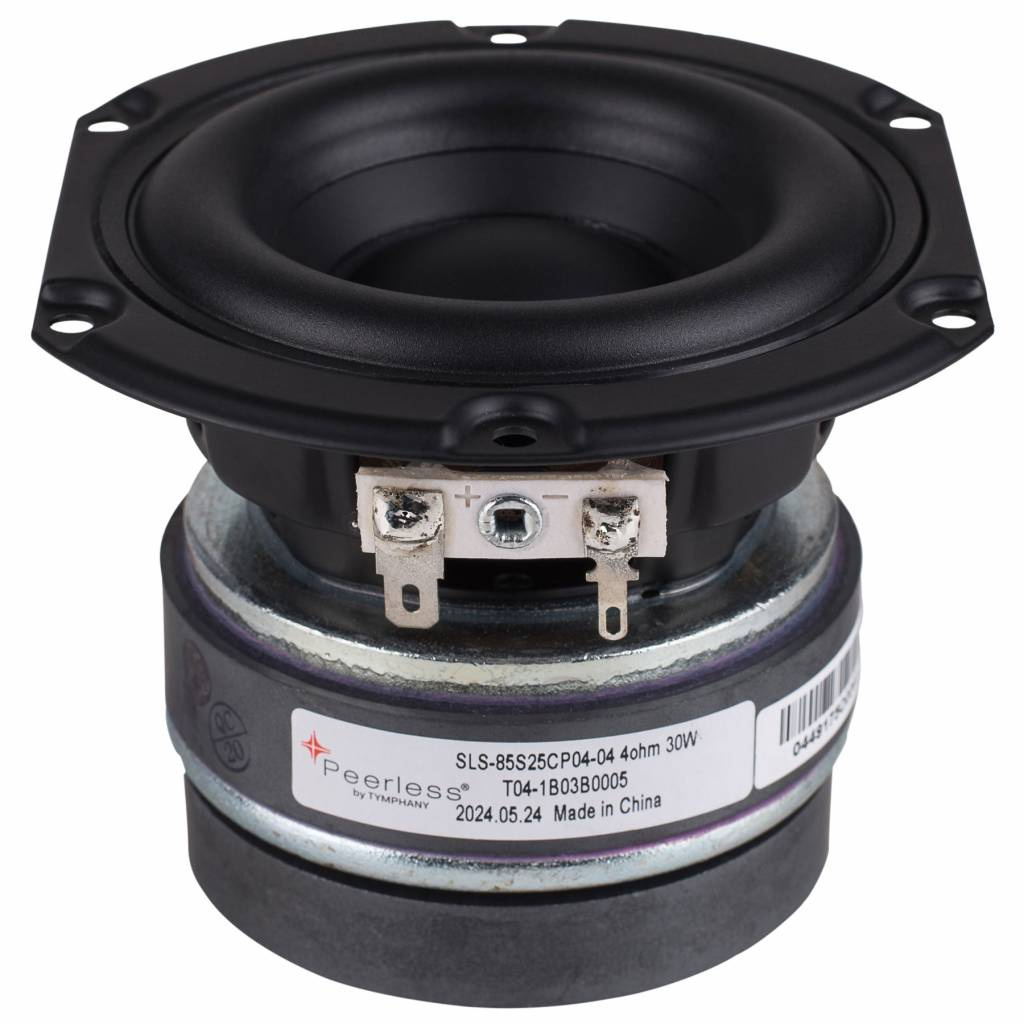

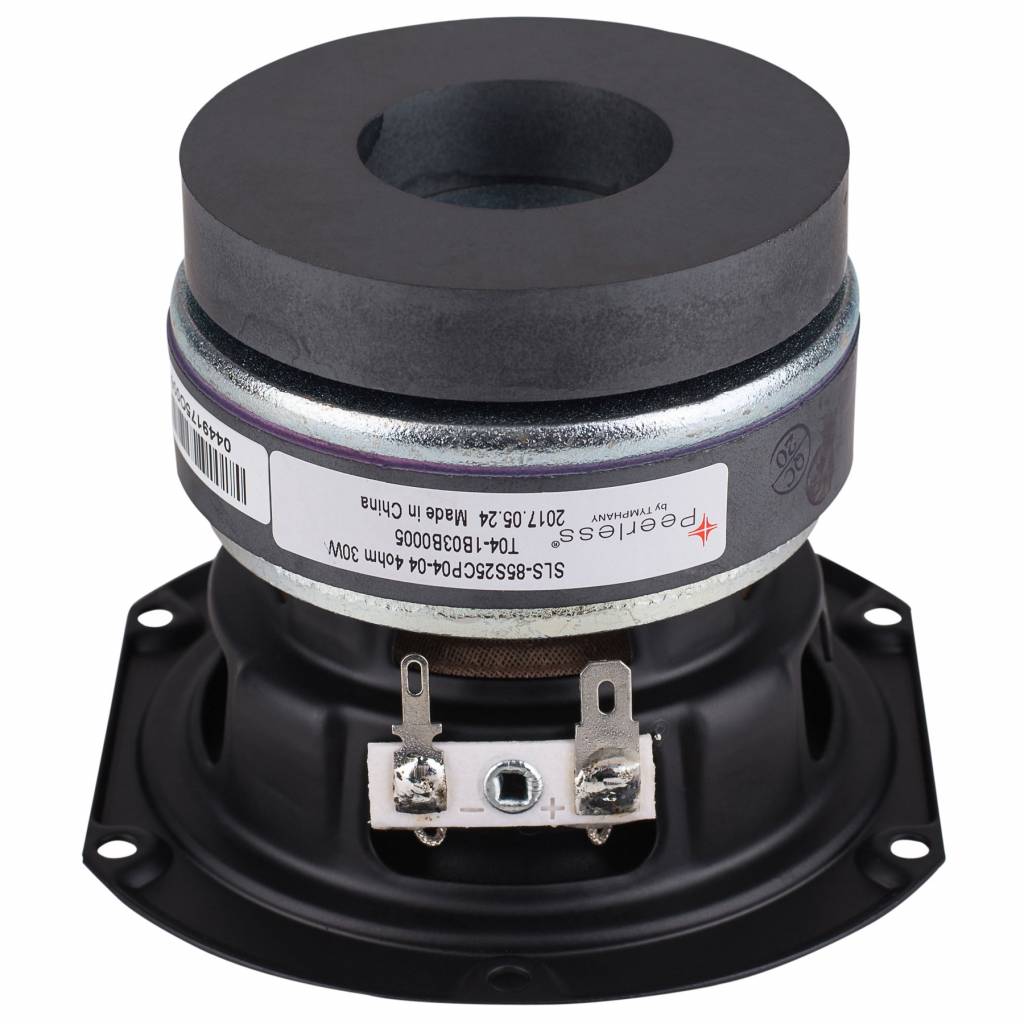

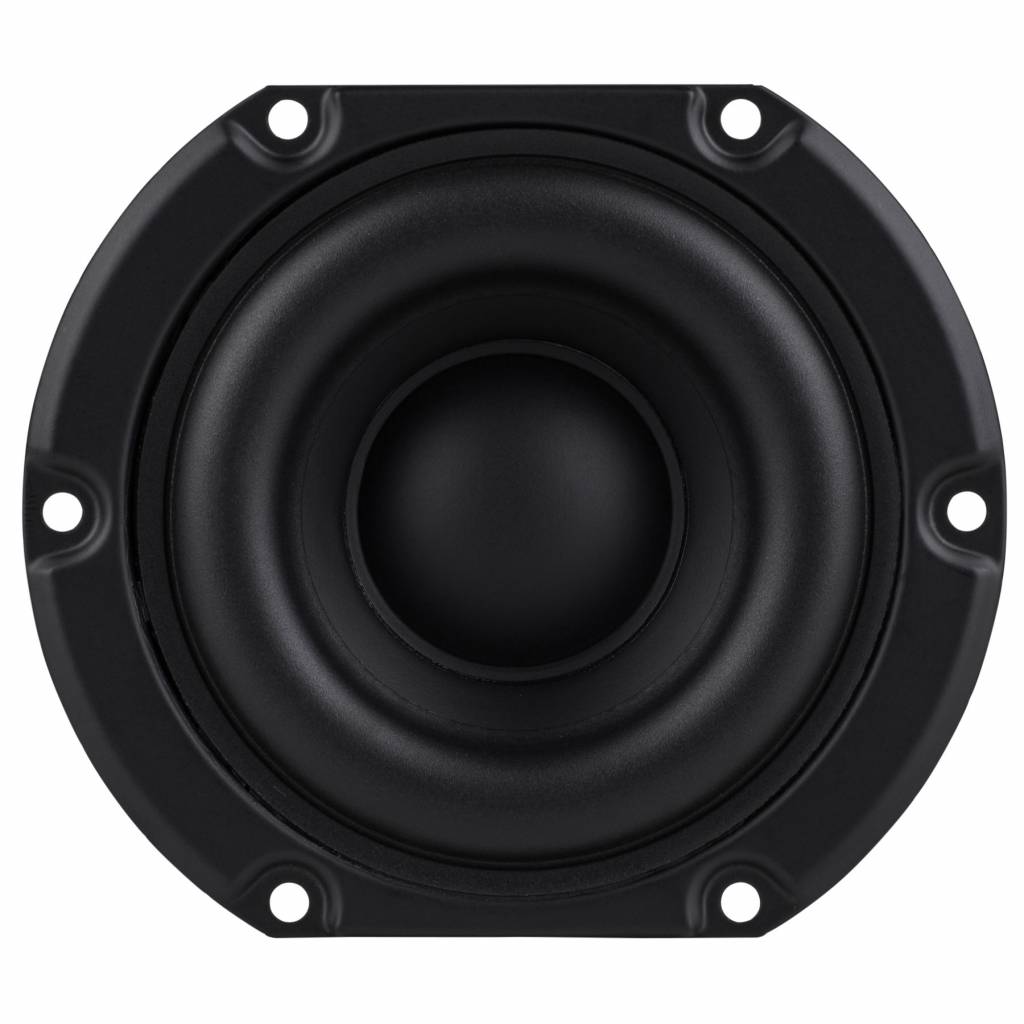

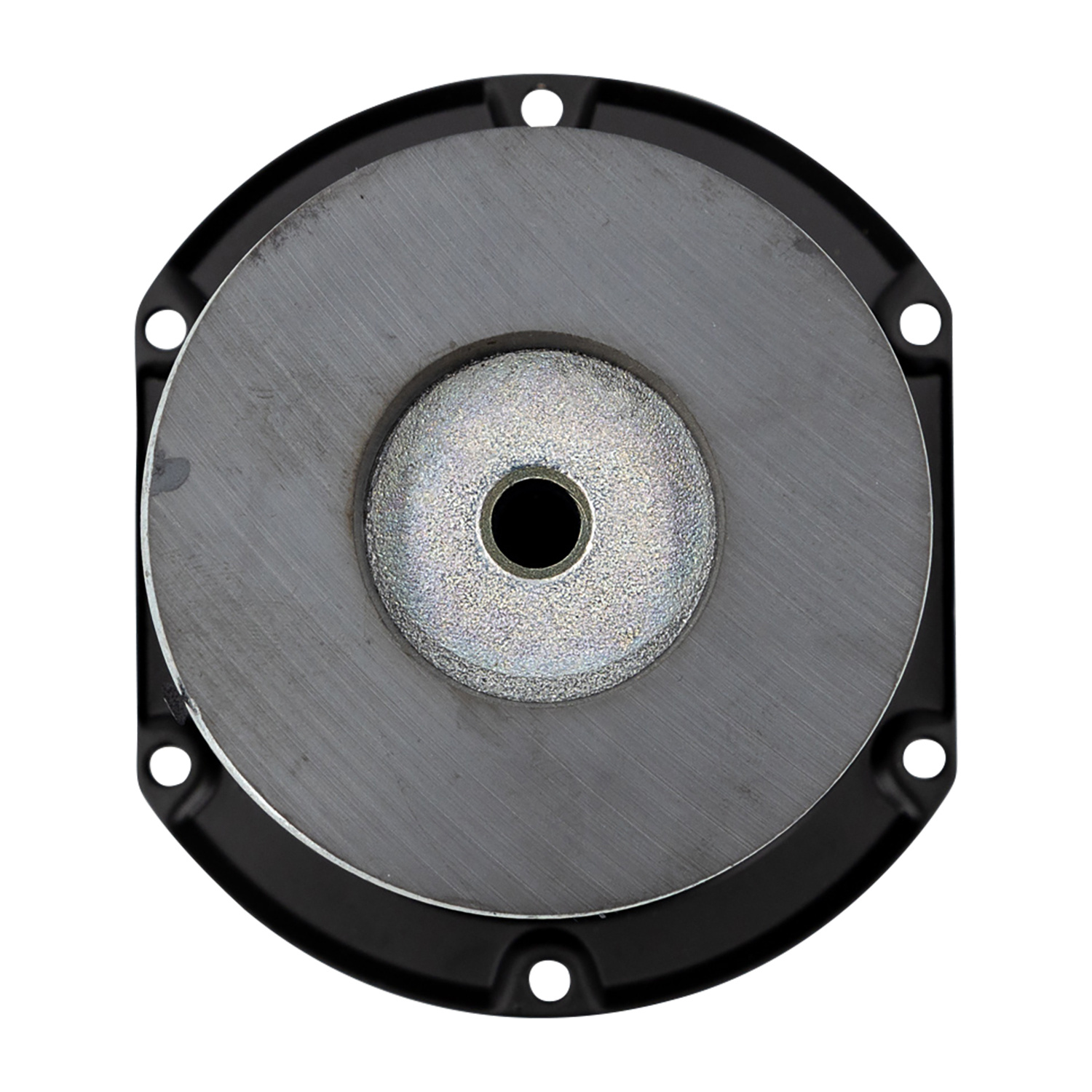

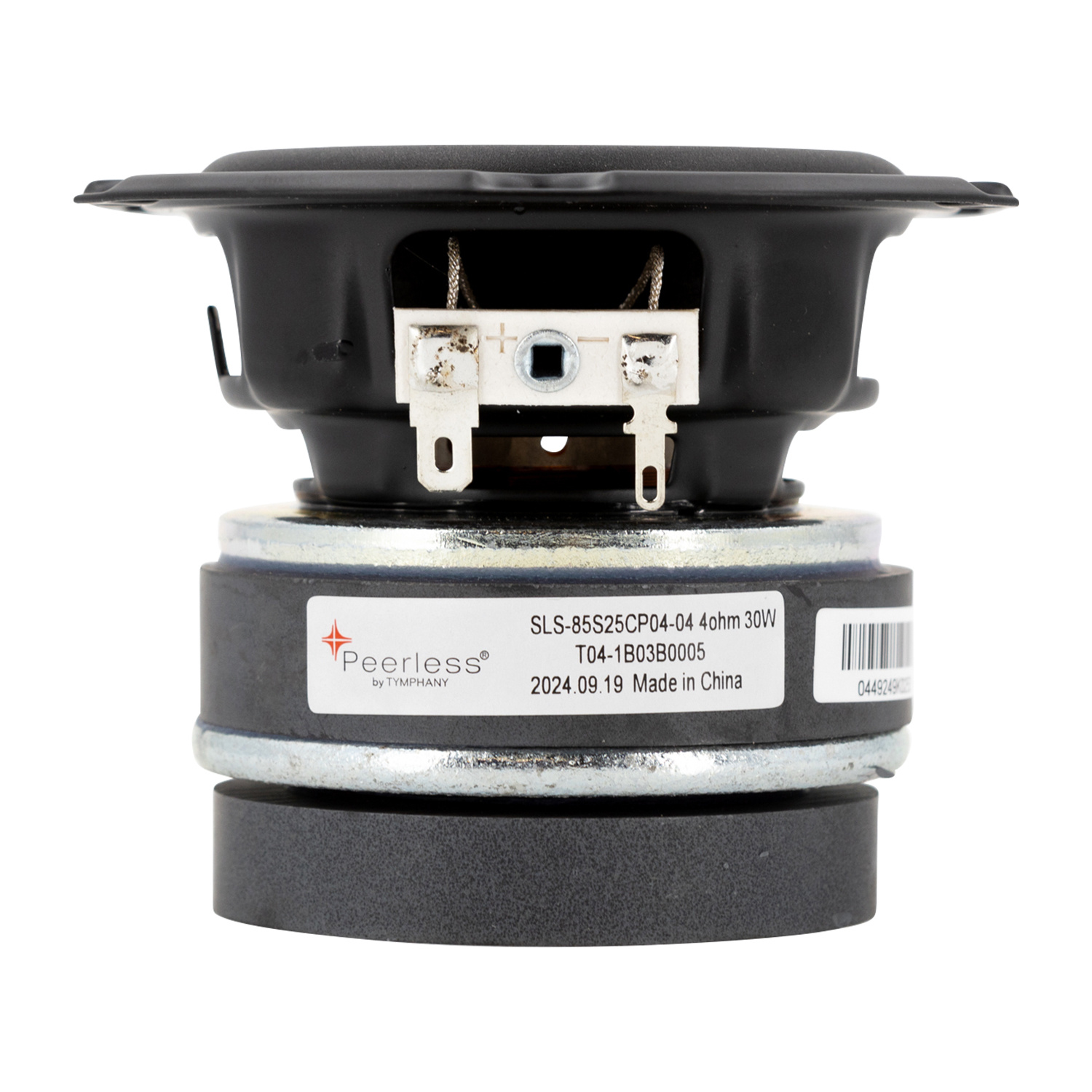

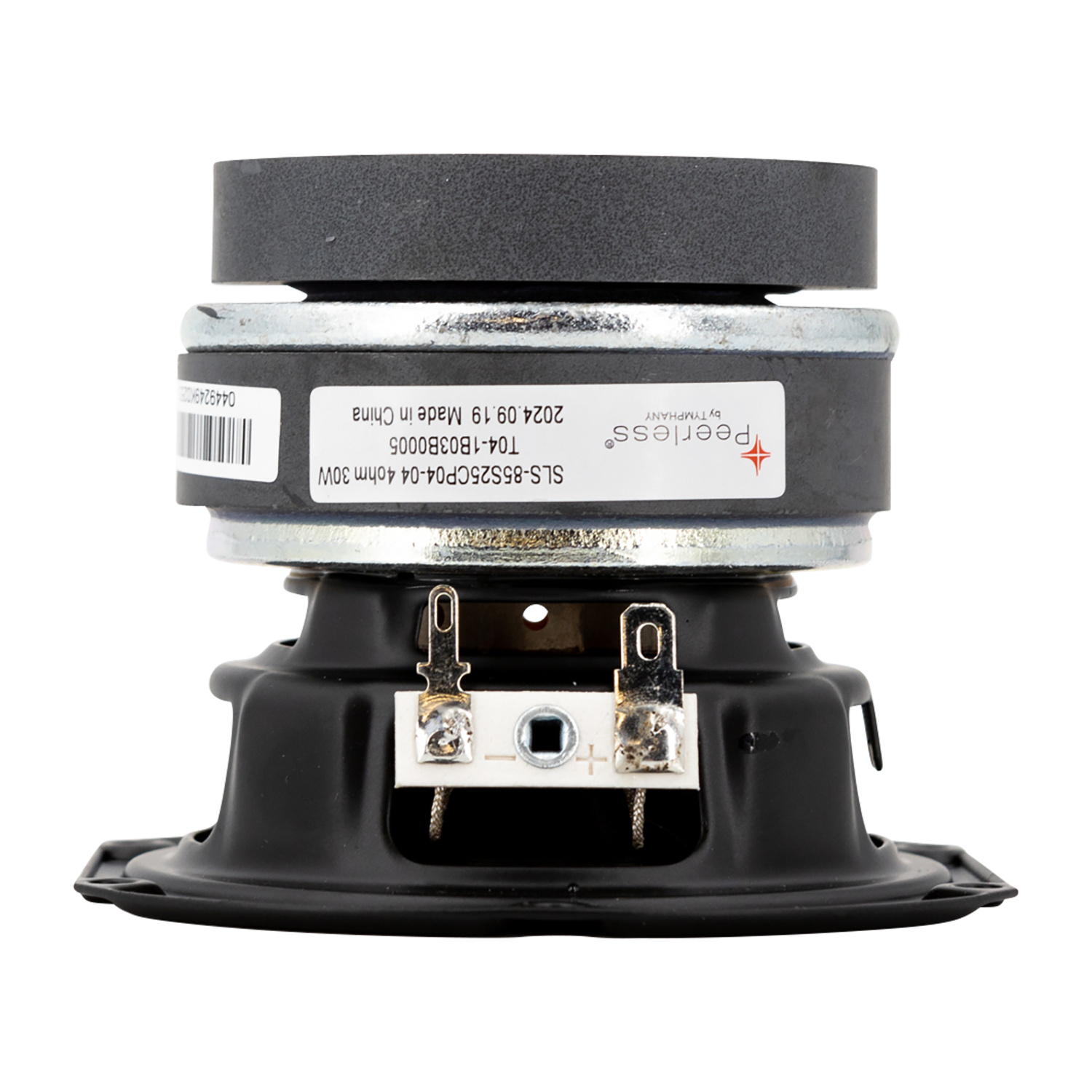

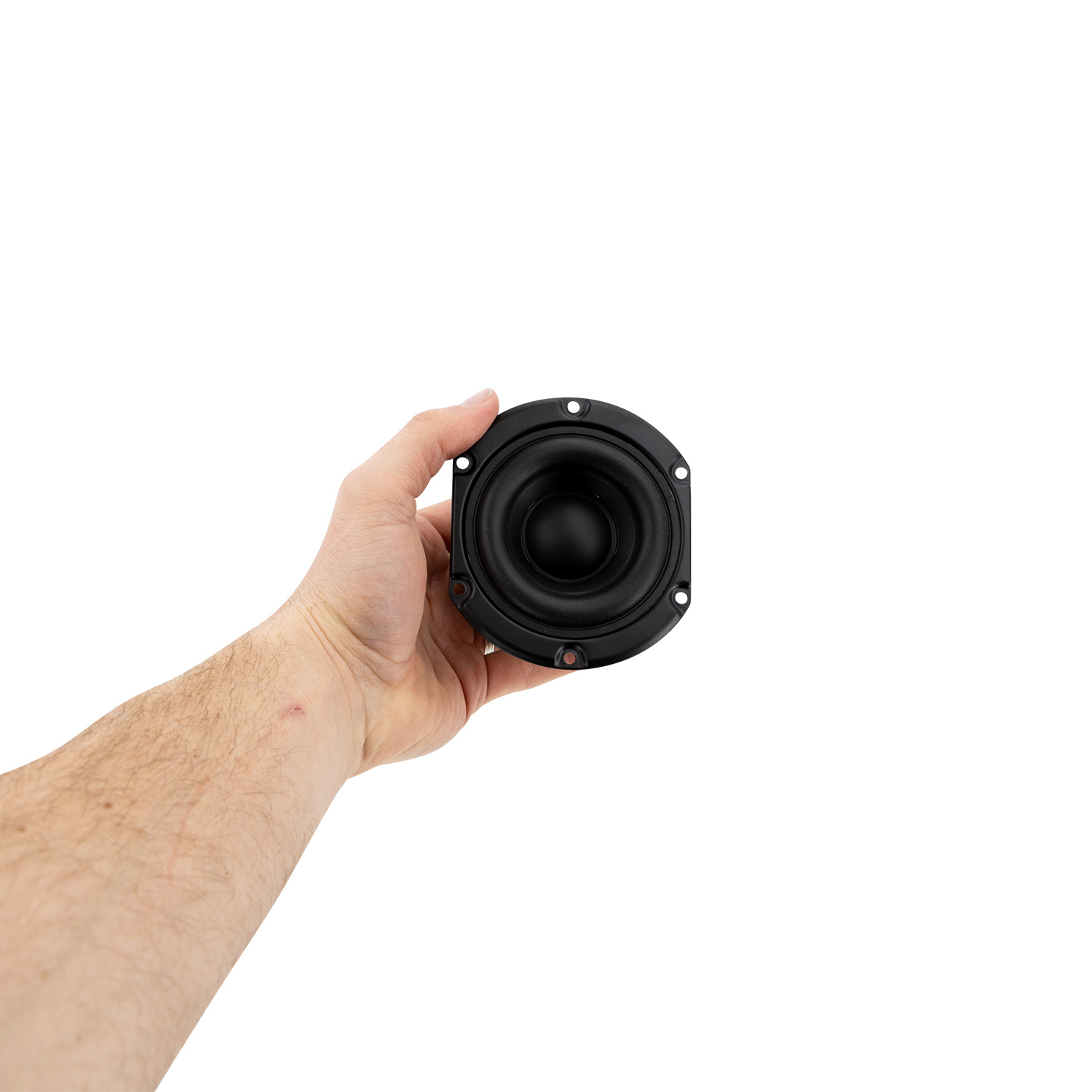

Peerless by Tymphany SLS-85S25CP04-04 3-1/2" Paper Cone Woofer

€ 19,79€ 23,95 1 Auf Lager: Lieferzeit 1-3 Werktage
With a low Fs and 4.5 mm of excursion, the 3-1/2" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 5,000 Hz ensures low distortion and accuracy through... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €22,75 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

With a low Fs and 4.5 mm of excursion, the 3-1/2" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 5,000 Hz ensures low distortion and accuracy throughout the midrange frequencies.



Highlights

  • Patented PentaCut NRSC cone for a flat, damped response
  • Copper capped pole piece reduces inductance and distortion
  • Great for building mini speakers and line array column speakers



Product details

Peerless by Tymphany SLS-85S25CP04-04 3-1/2" Paper Cone Woofer



The SLS line combines high quality performance with an affordable design. This 3.5 inch 4 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.

Eigenschaften

Artikelnummer:
SLS-85S25CP04-04
Woofer Type
Woofer
Nominal Diameter
3-1/2"
Power Handling (RMS)
30 Watts
Power Handling (max)
60 Watts
Impedance
4 ohms
Sensitivity
85.98 dB 2.83V/1m
Frequency Response
70 to 6,000Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.18 ohms
Voice Coil Inductance (Le)
0.16 mH
Resonant Frequency (Fs)
72 Hz
Mechanical Q (Qms)
5.38
Electromagnetic Q (Qes)
0.37
Total Q (Qts)
0.35
Diaphragm Mass Inc. Airload (Mms)
4.7g
Mechanical Compliance of Suspension (Cms)
1.023 mm/N
Surface Area of Cone (Sd)
30.8 cm²
BL Product (BL)
4.31 Tm
Compliance Equivalent Volume (Vas)
0.049 ft.³
Maximum Linear Excursion (Xmax)
4.5 mm
Cone / Diaphragm Material
Treated Paper
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
4.13"
Overall Depth
3.79"
Baffle Cutout Diameter
2.96"
# Mounting Holes
6
Sealed Volume
0.014 ft.³
Sealed F3
176 Hz
Vented Volume
0.35 ft.³
Vented F3
92 Hz
