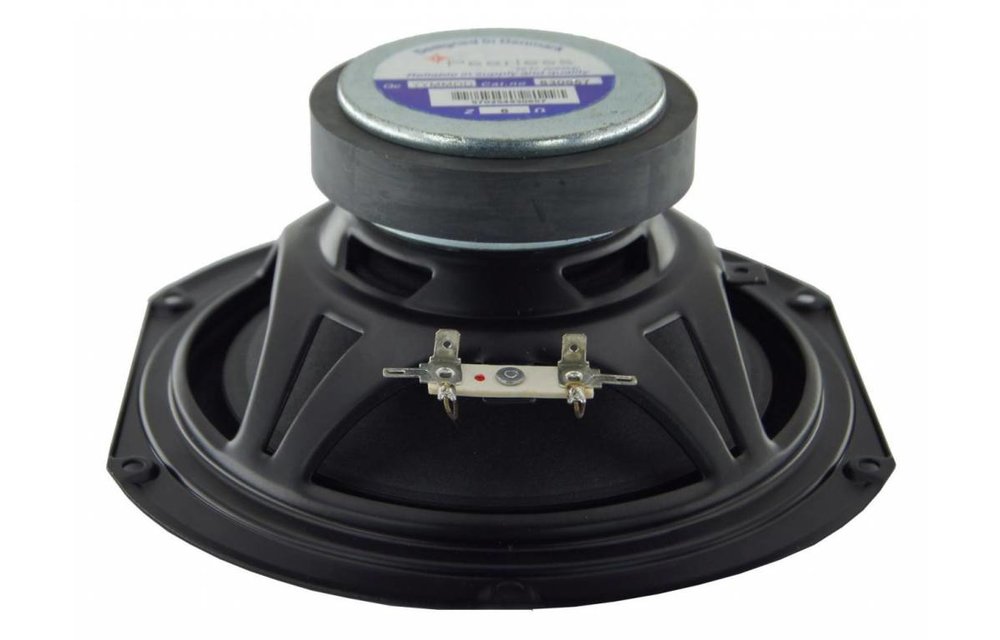

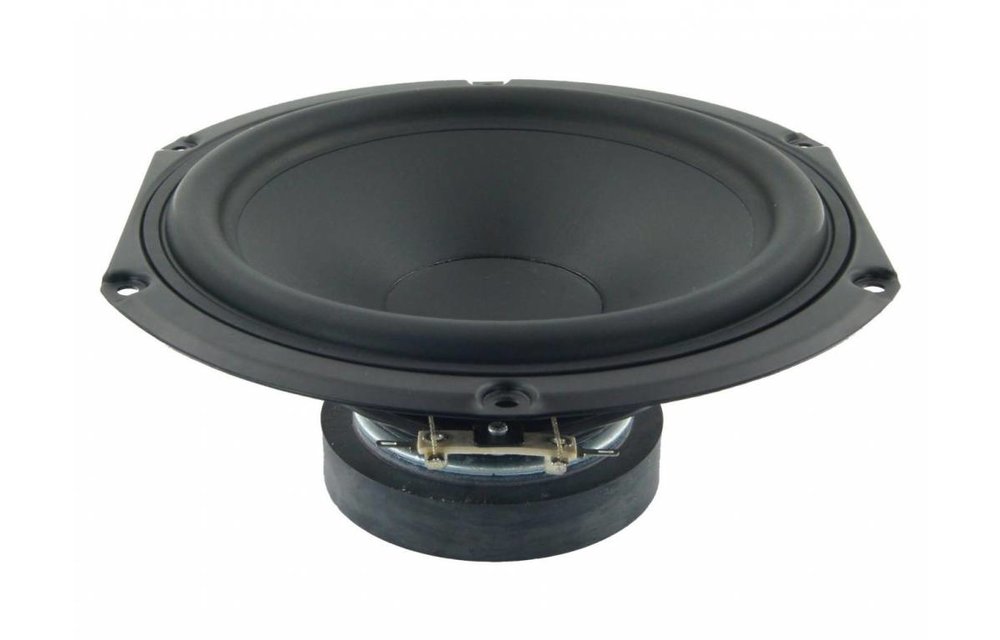

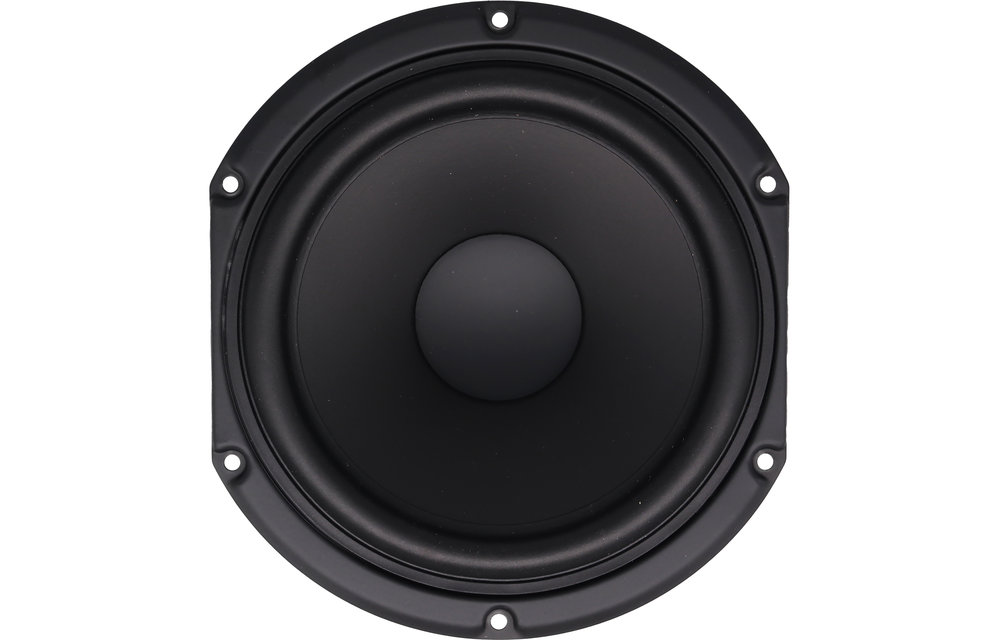

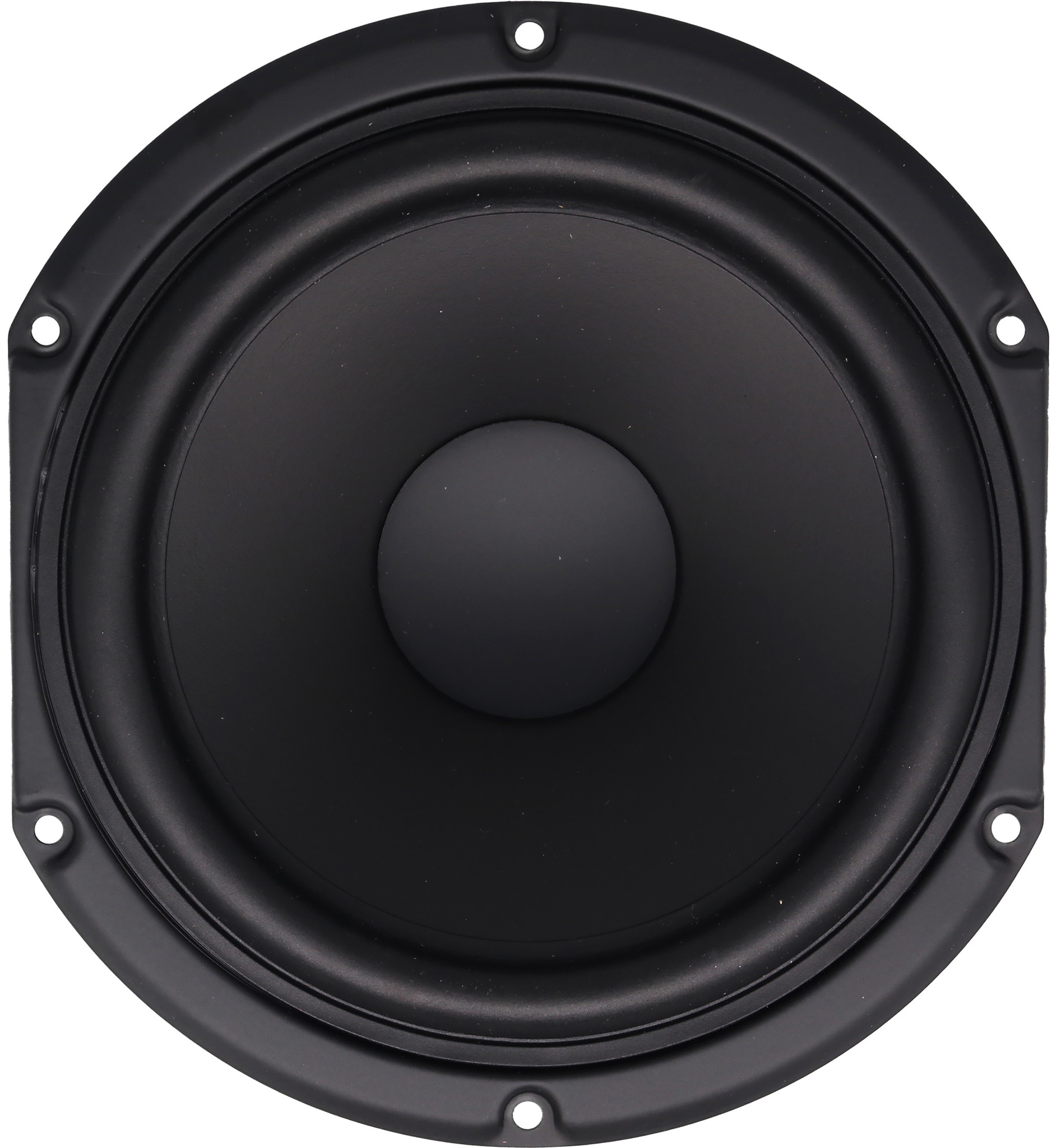

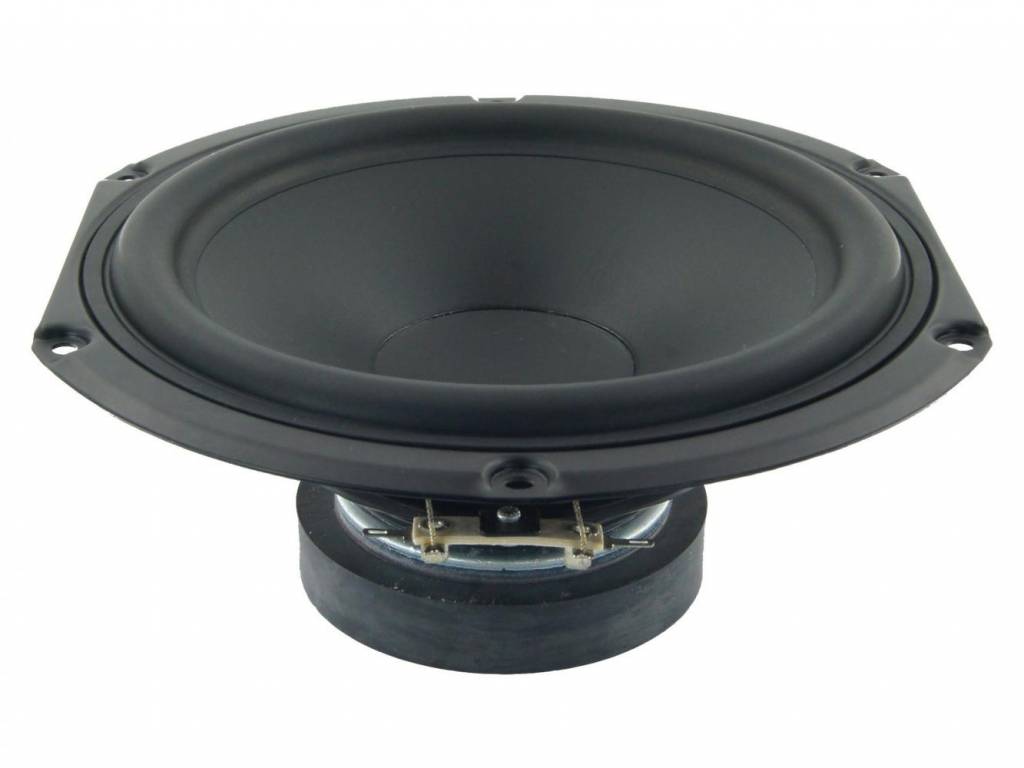

Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer

€ 21,03€ 25,45 4 Auf Lager: Lieferzeit 1-3 Werktage
The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €24,18 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.



Highlights

  • Premium sculpted stamped steel chassis
  • Coated paper cone with rubber edge
  • Smooth, extended response



Product details

Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer



The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 6.5 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets.

Eigenschaften

Artikelnummer:
SDS-P830657
Woofer Series
SDS Series
Woofer Type
Midwoofer
Nominal Diameter
6-1/2”
Power Handling (RMS)
60 Watts
Power Handling (max)
110 Watts
Impedance
8 Ohms
Sensitivity
88.2 dB 2.83V/1m
Frequency Response
40 to 4,000Hz
Voice Coil Diameter
1"
DC Resistance (Re)
6 ohms
Voice Coil Inductance (Le)
0.38 mH
Resonant Frequency (Fs)
45 Hz
Mechanical Q (Qms)
2.74
Electromagnetic Q (Qes)
0.55
Total Q (Qts)
0.46
Diaphragm Mass Inc. Airload (Mms)
11.5g
Mechanical Compliance of Suspension (Cms)
1.1 mm/N
Surface Area of Cone (Sd)
141 cm²
BL Product (BL)
5.98 Tm
Compliance Equivalent Volume (Vas)
1.09 ft.³
Maximum Linear Excursion (Xmax)
3.46 mm
Cone / Diaphragm Material
Coated Paper
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
7.17"
Overall Depth
2.72"
Baffle Cutout Diameter
5.71"
# Mounting Holes
6
Sealed Volume
0.4 ft.³
Sealed F3
89 Hz
Vented Volume
1.27 ft.³
Vented F3
45 Hz

Bewertungen

5 from 5Based on 3 reviews
Produkt bewerten
5 van 5
No description was given
Durch Lenn M. on 1 September 2019
5 van 5
Great woofer for a good price.
Used it as a replacement driver in a dual 6.5 system.
Durch Lenn on 19 August 2019
