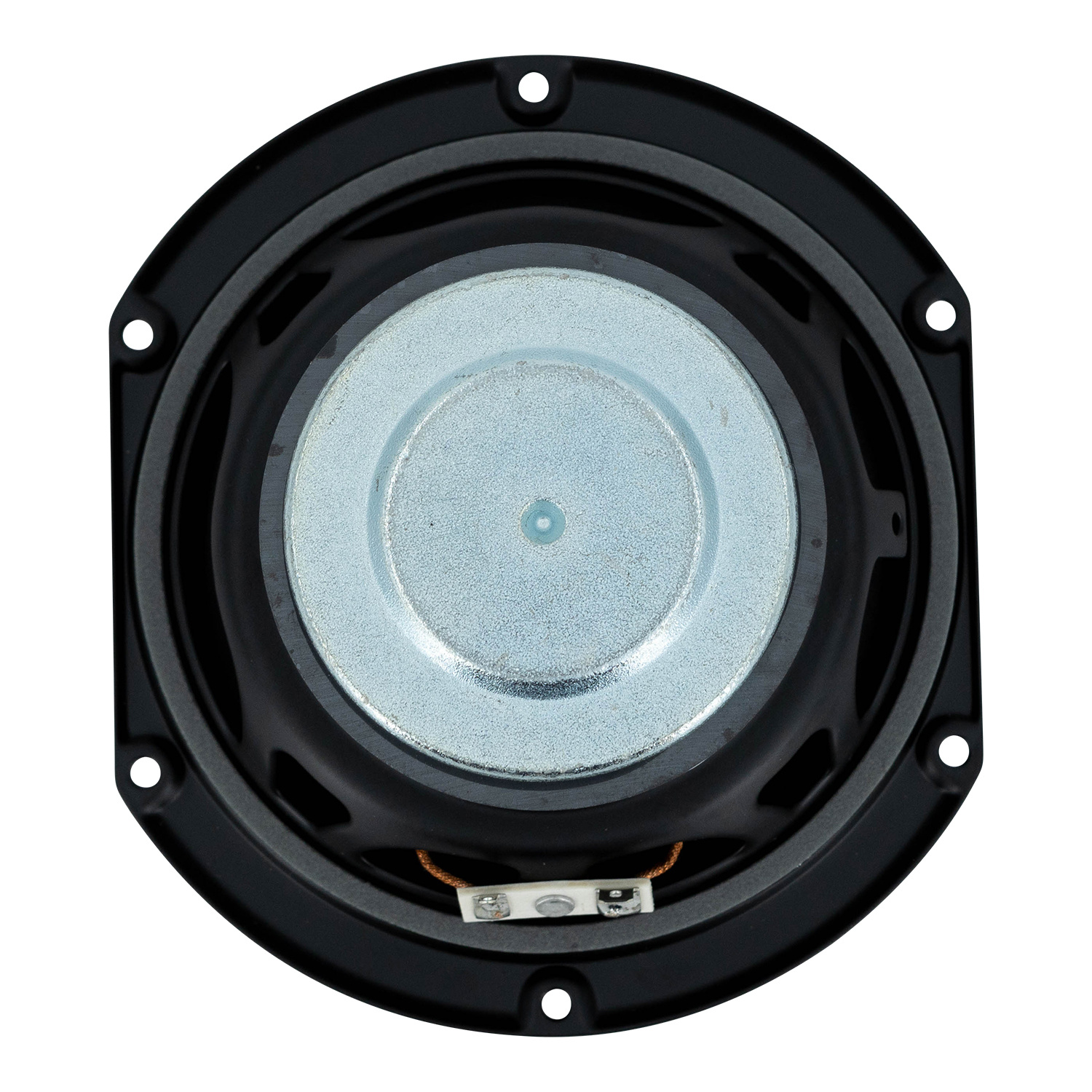

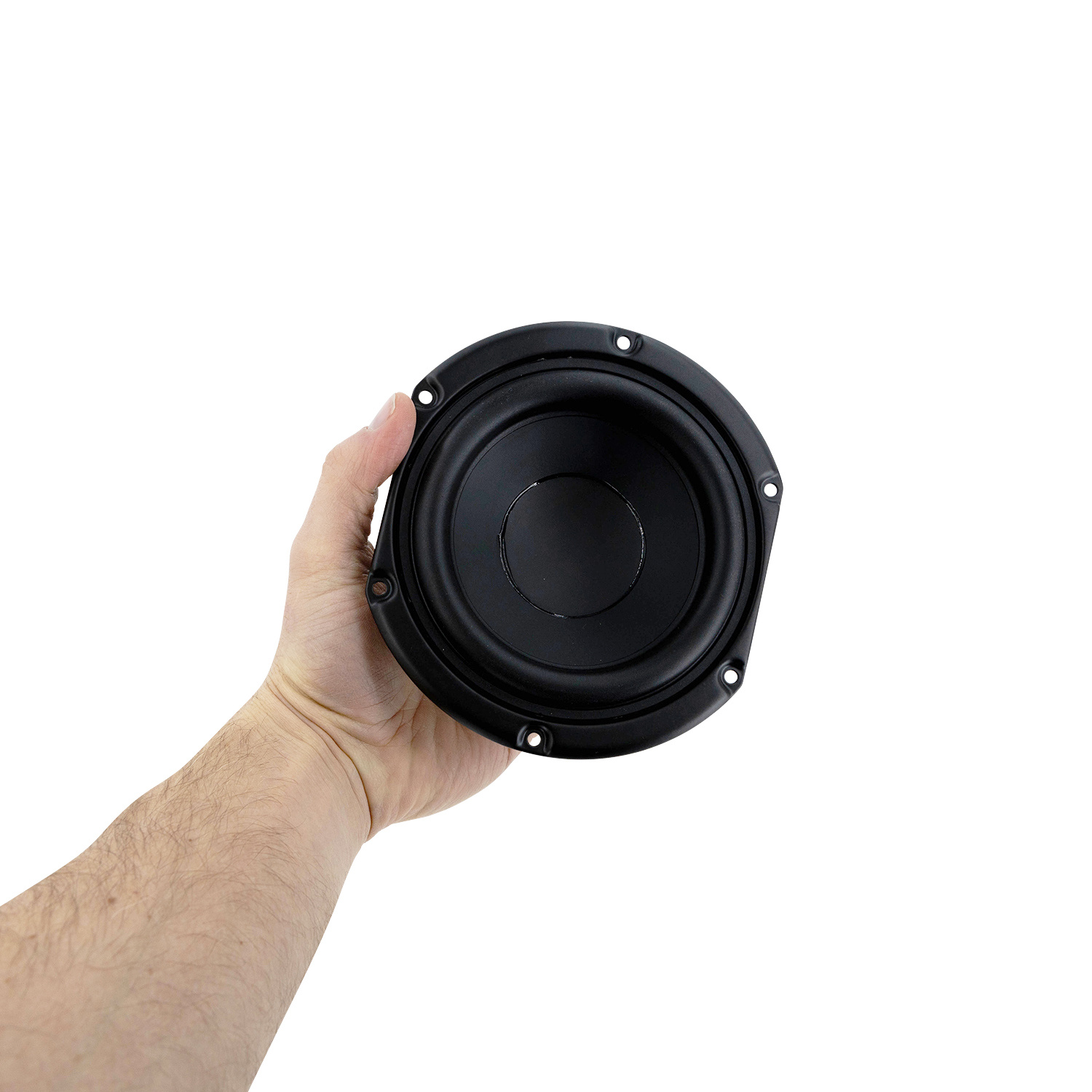

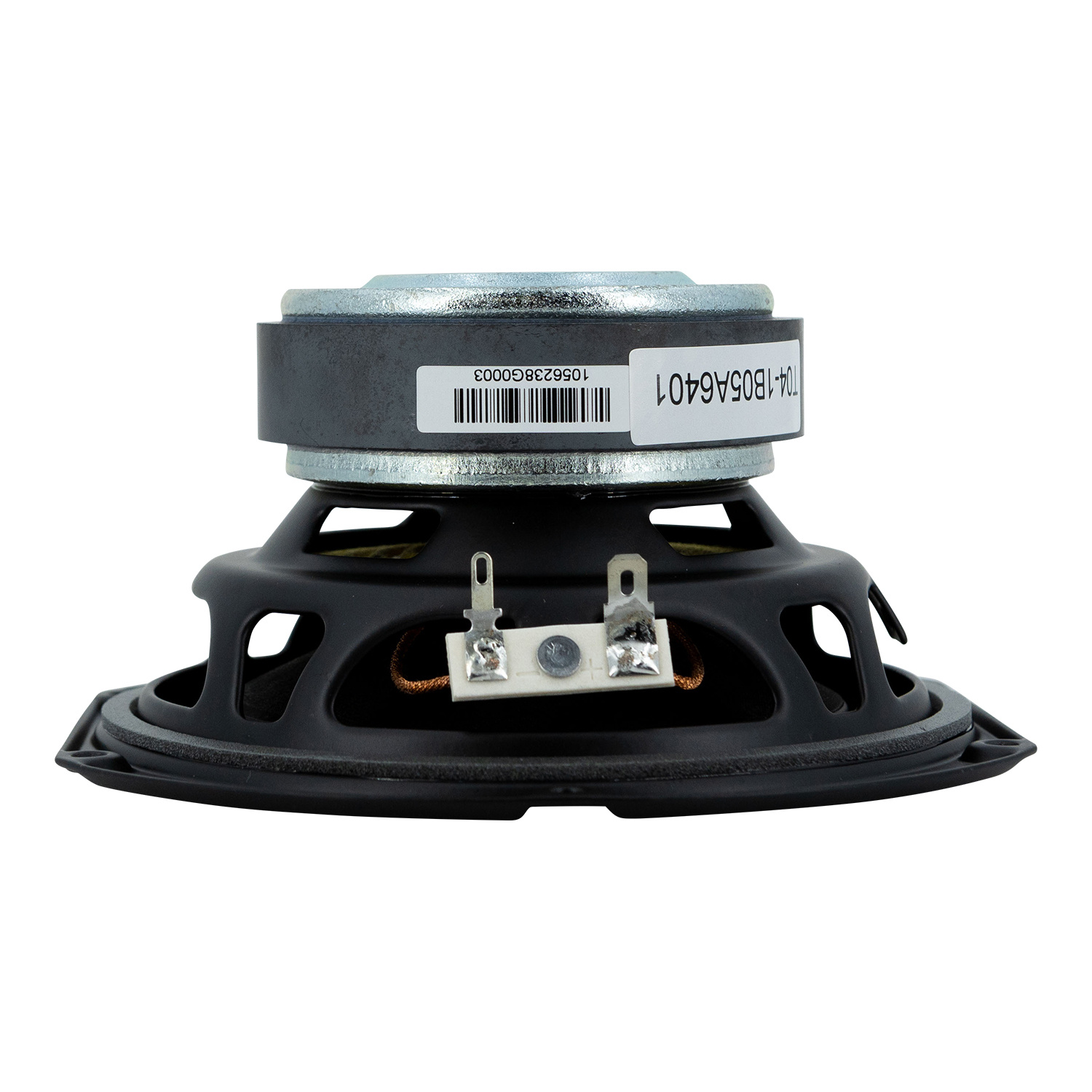

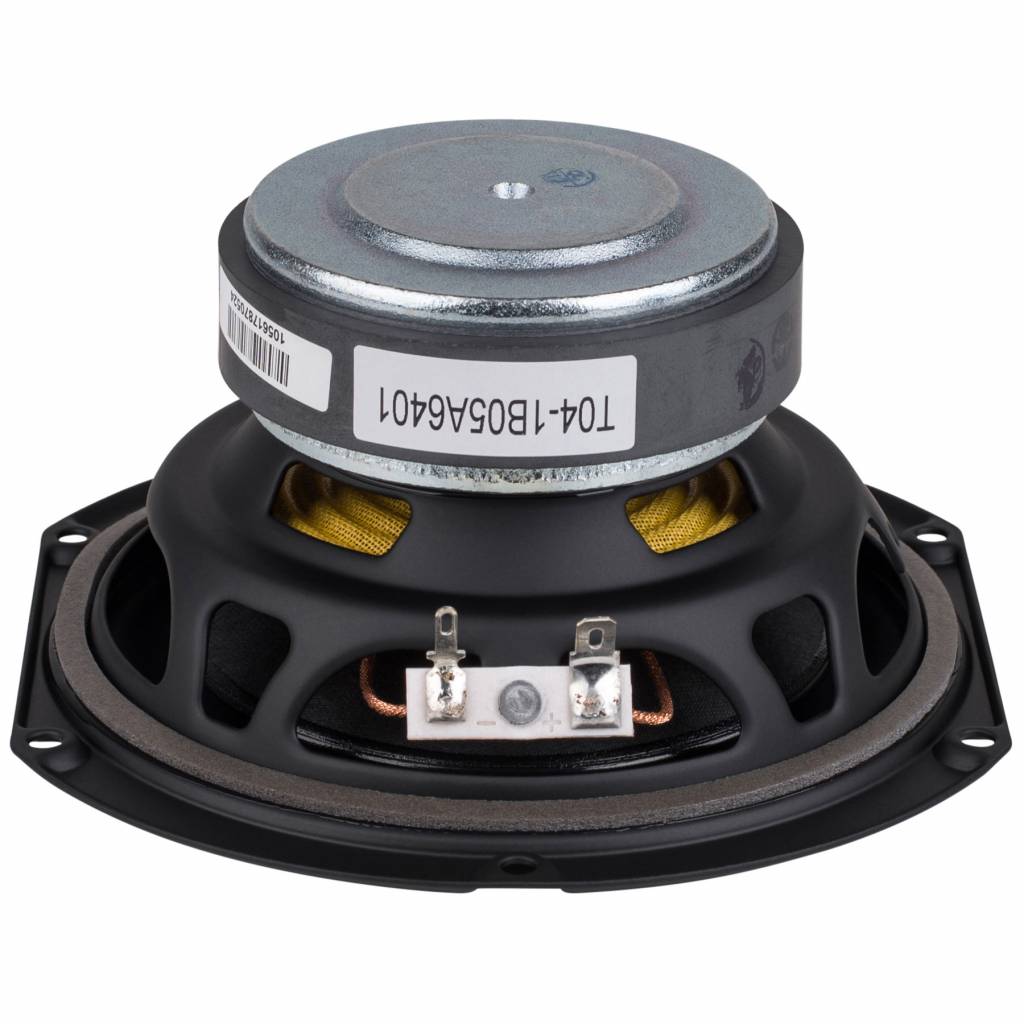

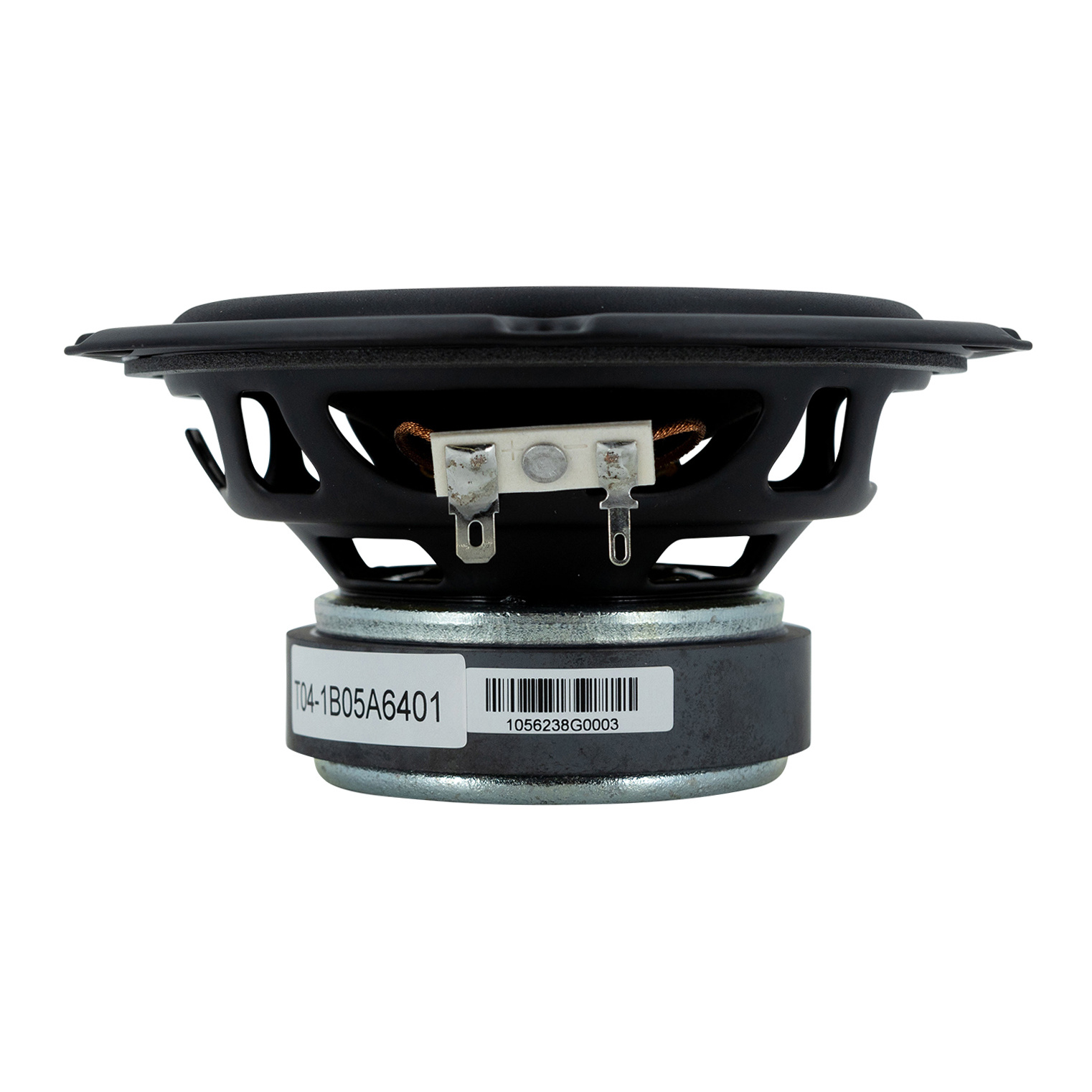

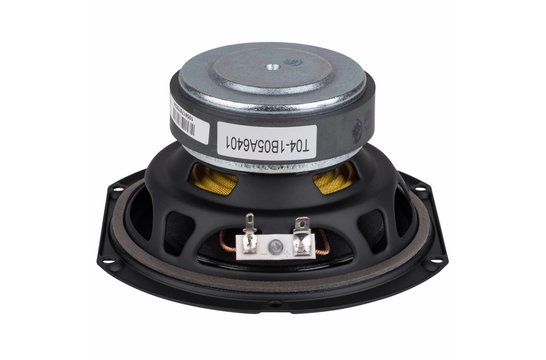

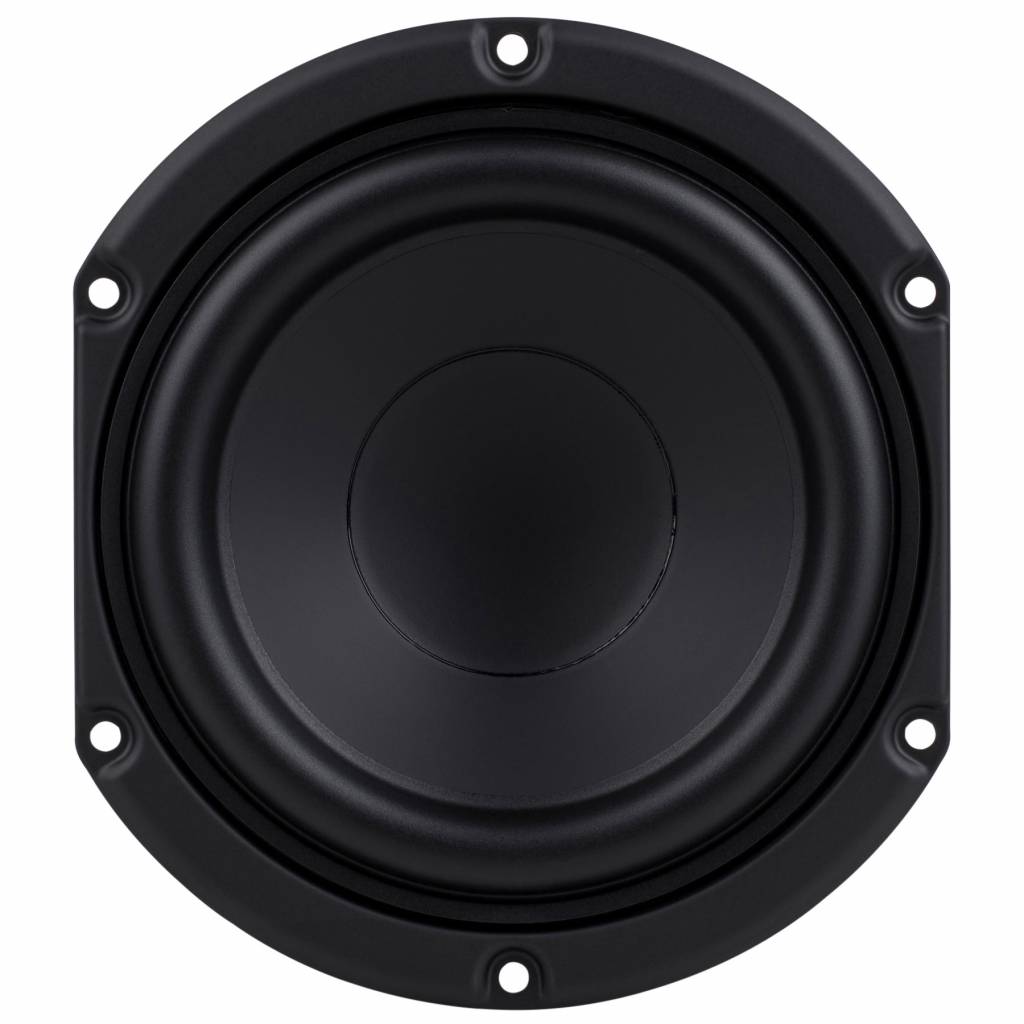

Peerless by Tymphany SDS-135F25CP02-04 5-1/4" Paper Cone Woofer

€ 28,88€ 34,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The SDS-135F25CP02-04 5-1/4" subwoofer from Peerless is perfect for adding powerful bass performance to portable speaker designs or small 2.1 systems. This high excursion driver is designed to excel in small enclosures.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €33,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The SDS-135F25CP02-04 5-1/4" subwoofer from Peerless is perfect for adding powerful bass performance to portable speaker designs or small 2.1 systems. This high excursion driver is designed to excel in small enclosures.



Highlights

  • Paper cone and rubber surround for excellent damping
  • Cosmetic mounting flange for a clean look without flush mounting
  • Under spider venting for minimal power compression and high power handling
  • Great for building small subwoofers and adding low end to portable designs



Product details

Peerless by Tymphany SDS-135F25CP02-04 5-1/4" Paper Cone Woofer



The Peerless SDS-135F25CP02-04 compact subwoofer offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 5.25 inch 4 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket shaped to fit into narrow cabinets.

Eigenschaften

Artikelnummer:
SDS-135F25CP02-04
Woofer Series
SDS Series
Woofer Type
Subwoofer
Nominal Diameter
5-1/4"
Power Handling (RMS)
50 Watts
Power Handling (max)
100 Watts
Impedance
4 ohms
Sensitivity
86.1 dB 2.83V/1m
Frequency Response
40 to 500 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.3 ohms
Voice Coil Inductance (Le)
1.22 mH
Resonant Frequency (Fs)
57.7 Hz
Mechanical Q (Qms)
3.89
Electromagnetic Q (Qes)
0.45
Total Q (Qts)
0.41
Diaphragm Mass Inc. Airload (Mms)
20.6g
Mechanical Compliance of Suspension (Cms)
0.369 mm/N
Surface Area of Cone (Sd)
86.35 cm²
BL Product (BL)
7.401 Tm
Compliance Equivalent Volume (Vas)
0.138 ft.³
Maximum Linear Excursion (Xmax)
5.2 mm
Cone / Diaphragm Material
Paper
Surround Material
Rubber
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
5.98"
Overall Depth
2.55"
Baffle Cutout Diameter
4.875"
Bolt Circle Diameter
5.55"
# Mounting Holes
6
Sealed Volume
0.129 ft.³
Sealed F3
114 Hz
Vented Volume
0.109 ft.³
Vented F3
70 Hz
