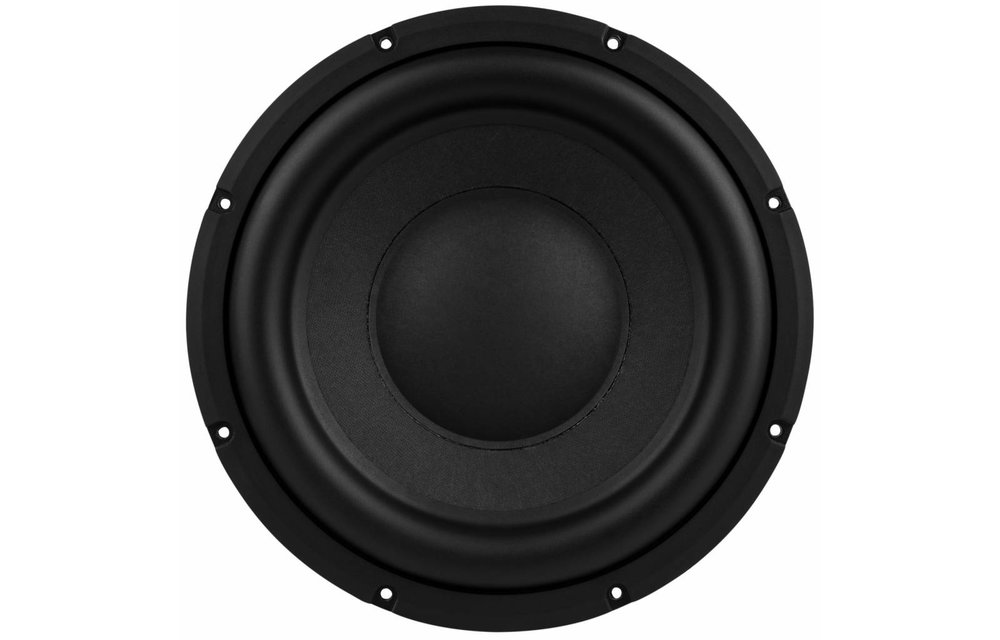

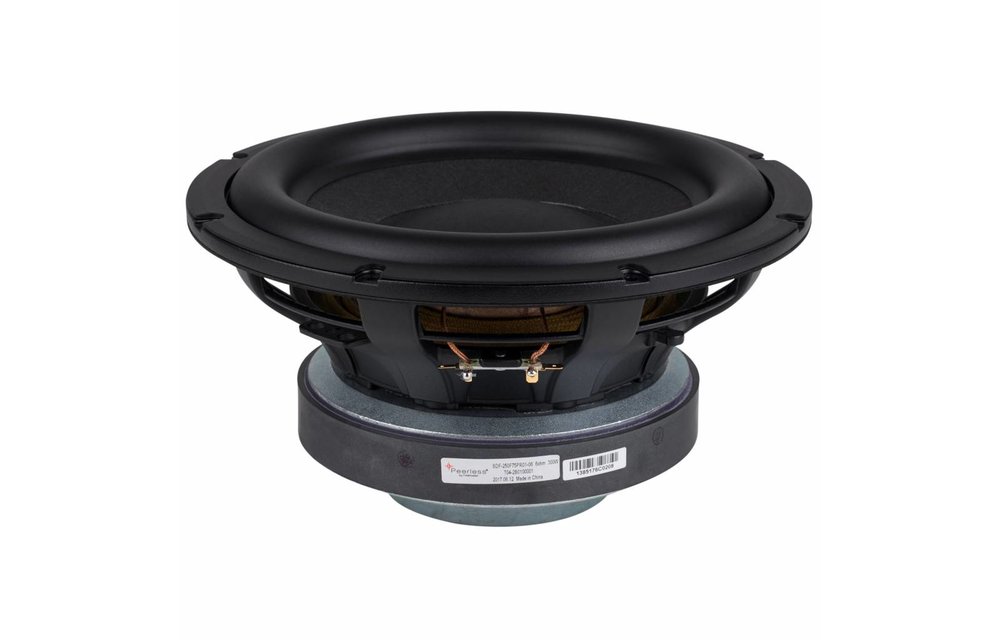

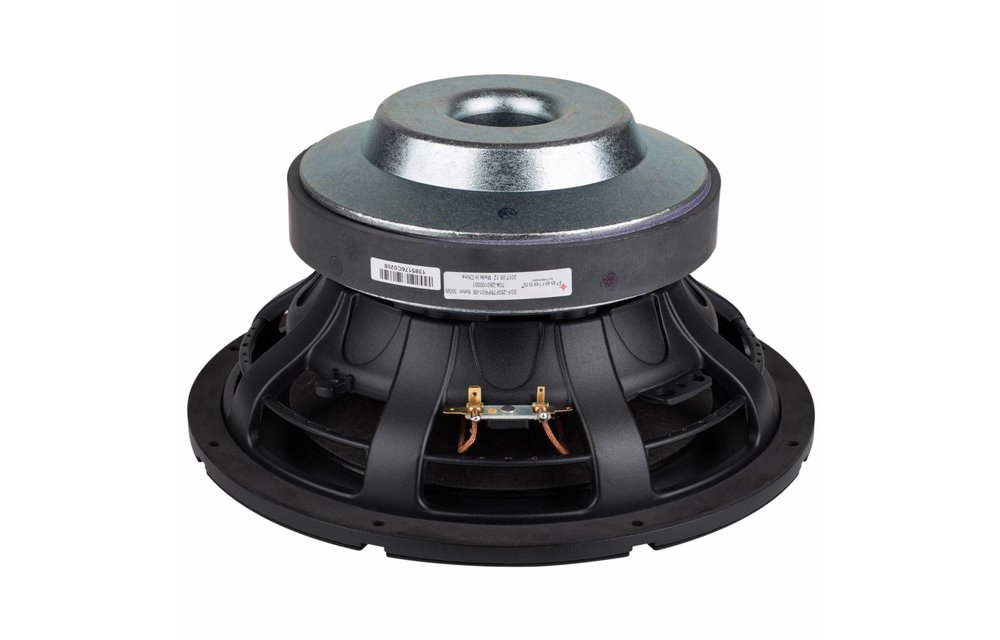

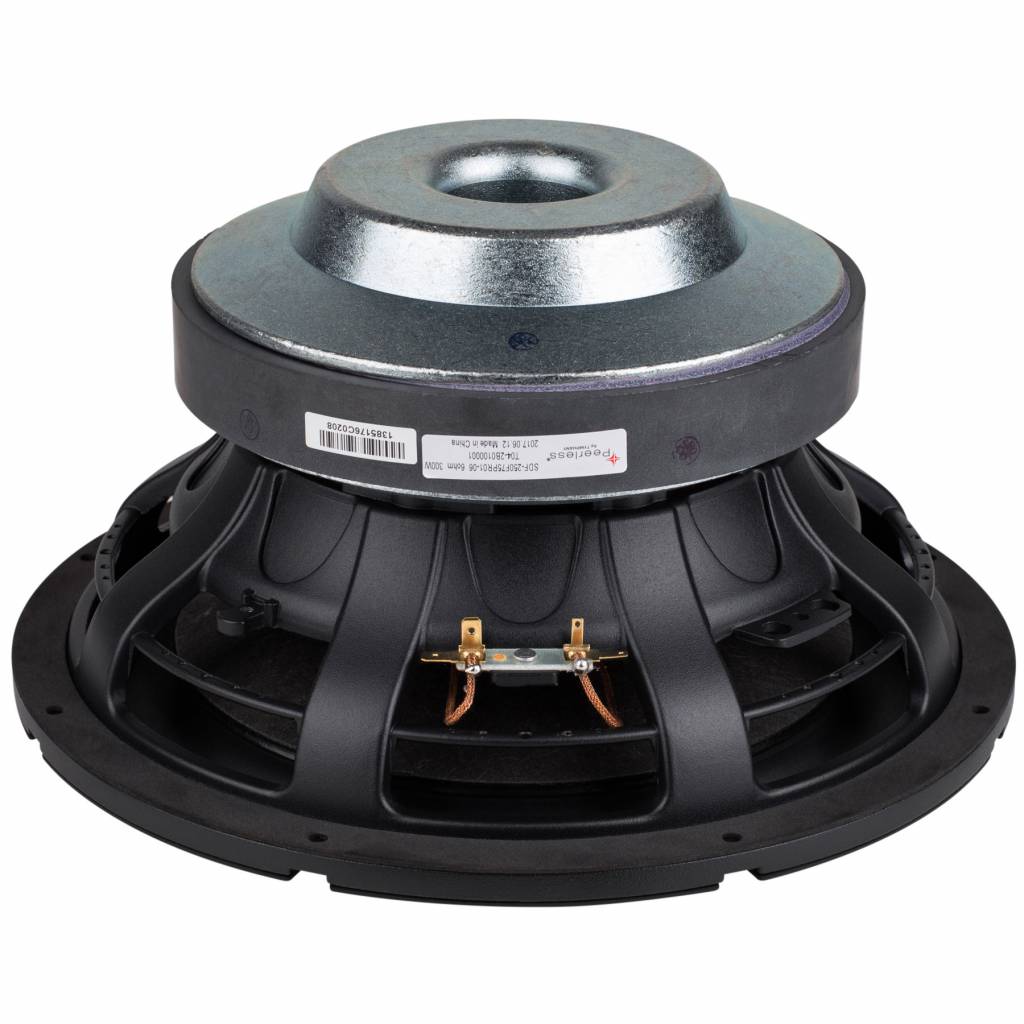

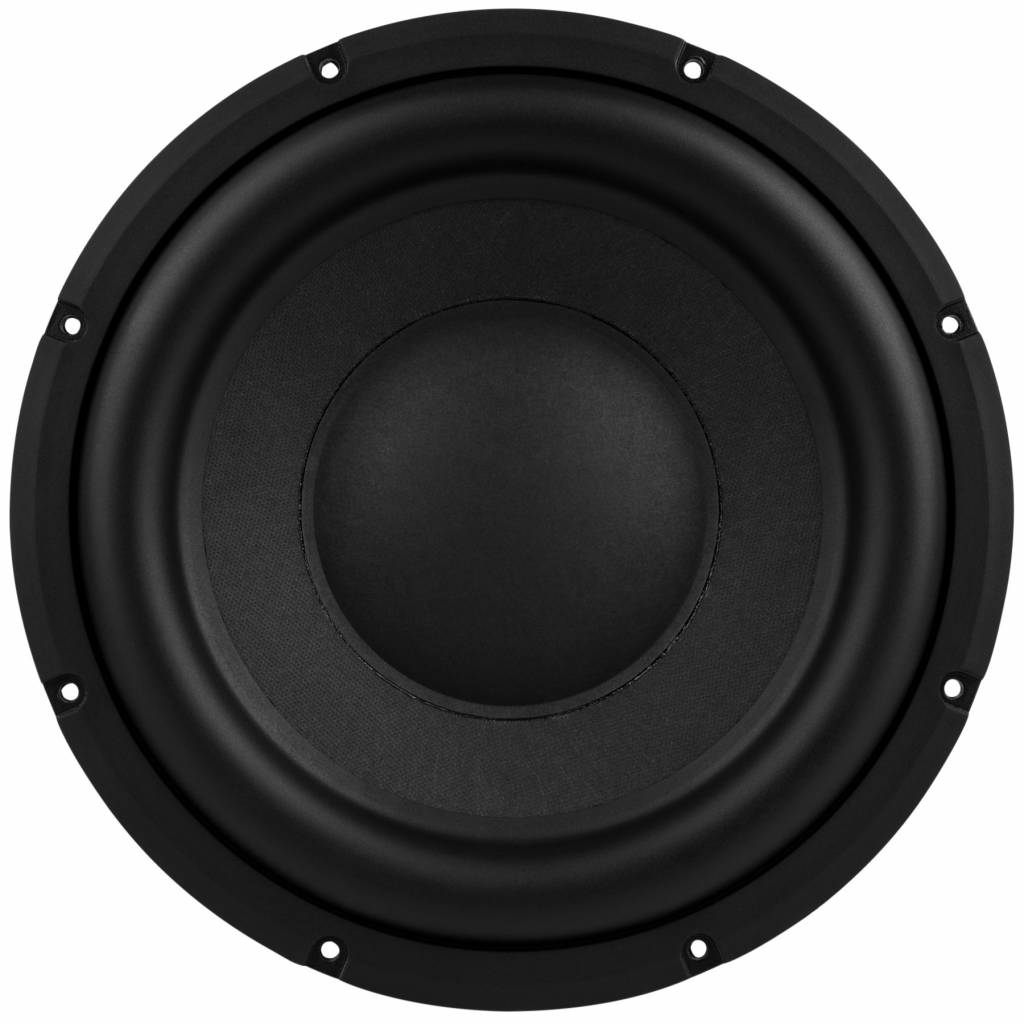

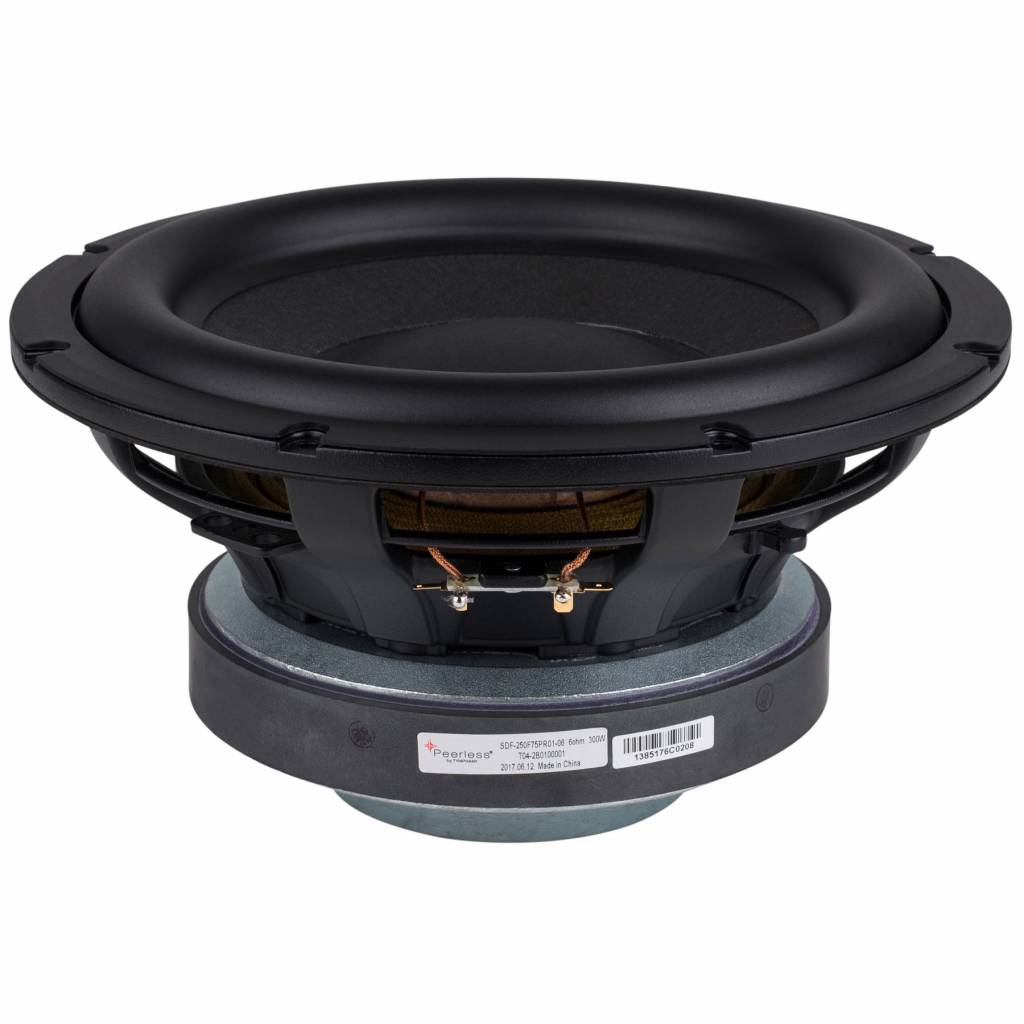

Peerless by Tymphany SDF-250F75PR01-06 10" Paper Cone Subwoofer

€ 165,25€ 199,95 5 Auf Lager: Lieferzeit 1-3 Werktage
For use in compact high output, low distortion subwoofer designs, the 10" Peerless SDF-250F75PR01-06 subwoofer will deliver outstanding performance. Designed to handle power with its 3" voice coil and extensive venting, this driver also includes an advanc... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €189,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

For use in compact high output, low distortion subwoofer designs, the 10" Peerless SDF-250F75PR01-06 subwoofer will deliver outstanding performance. Designed to handle power with its 3" voice coil and extensive venting, this driver also includes an advanced motor design to keep distortion at a minimum.



Highlights

  • Vented cone, frame, and pole piece keeps coil cool while lowering power compression
  • Low-creep rubber surround for longevity and improved damping
  • Extremely extended back plate ensures clearance for high excursion
  • Flexible design works well in smaller sealed and average sized vented enclosures



Product details

Peerless by Tymphany SDF-250F75PR01-06 10" Paper Cone Subwoofer



The 10" 6 ohm SDF-250F75PR01-06 from Peerless by Tymphany has all the design features you can expect from a high performance, high excursion subwoofer. The motor features a strong ferrite magnet with bumped T yoke to support high excursion. In addition, to increase damping and cone control, the motor includes aluminum shorting rings and pole extenders, all of which lowers and linearizes the inductance of the overhung voice coil. The venting under the paper cone and dust cap reduces air compression for more predictable high output performance. The suspension system features a low-creep rubber surround and an optimized spider, ensuring long-term reliability under high power conditions. This subwoofer also features a newly designed, ultra rigid, cast aluminum basket.

Eigenschaften

Artikelnummer:
SDF-250F75PR01-06
Woofer Series
SDF Series
Woofer Type
Subwoofer
Nominal Diameter
10"
Power Handling (RMS)
300 Watts
Power Handling (max)
600 Watts
Impedance
6 ohms
Sensitivity
89.39 dB 2.83V/1m
Frequency Response
25 to 400 Hz
Voice Coil Diameter
3"
DC Resistance (Re)
4.39 ohms
Voice Coil Inductance (Le)
1.02 mH
Resonant Frequency (Fs)
33.5 Hz
Mechanical Q (Qms)
11.7
Electromagnetic Q (Qes)
0.48
Total Q (Qts)
0.46
Diaphragm Mass Inc. Airload (Mms)
103.5g
Mechanical Compliance of Suspension (Cms)
0.218 mm/N
Surface Area of Cone (Sd)
352.6 cm²
BL Product (BL)
14.12 Tm
Compliance Equivalent Volume (Vas)
1.359 ft.³
Maximum Linear Excursion (Xmax)
12.6 mm
Cone / Diaphragm Material
Paper
Surround Material
Rubber
Voice Coil Wire Material
Copper
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
10.6"
Overall Depth
5.35"
Baffle Cutout Diameter
9.5"
# Mounting Holes
8
Sealed Volume
0.518 ft.³
Sealed F3
60 Hz
Vented Volume
1.6 ft.³
Vented F3
32 Hz
