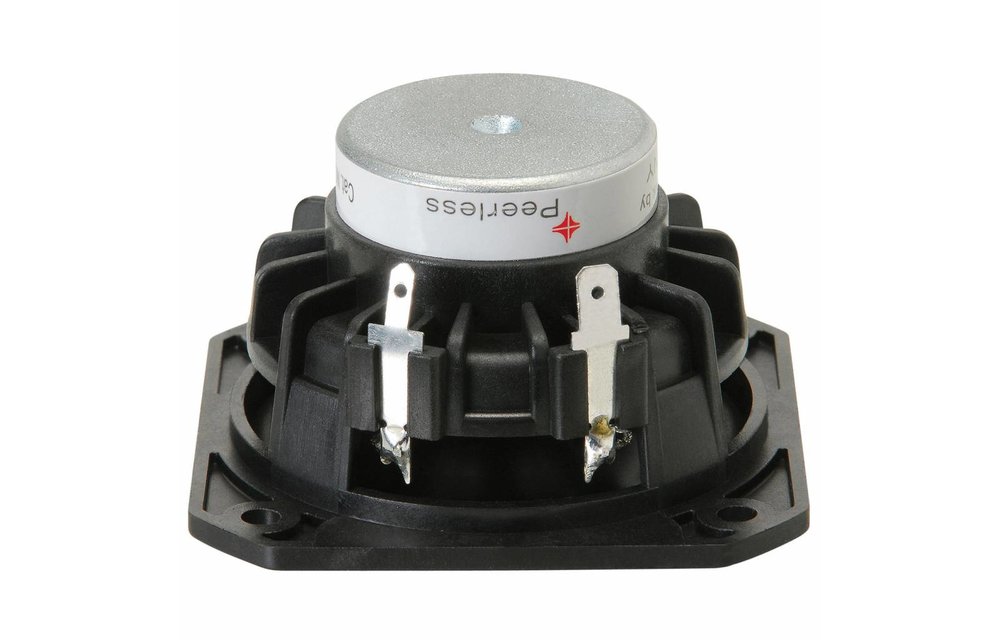

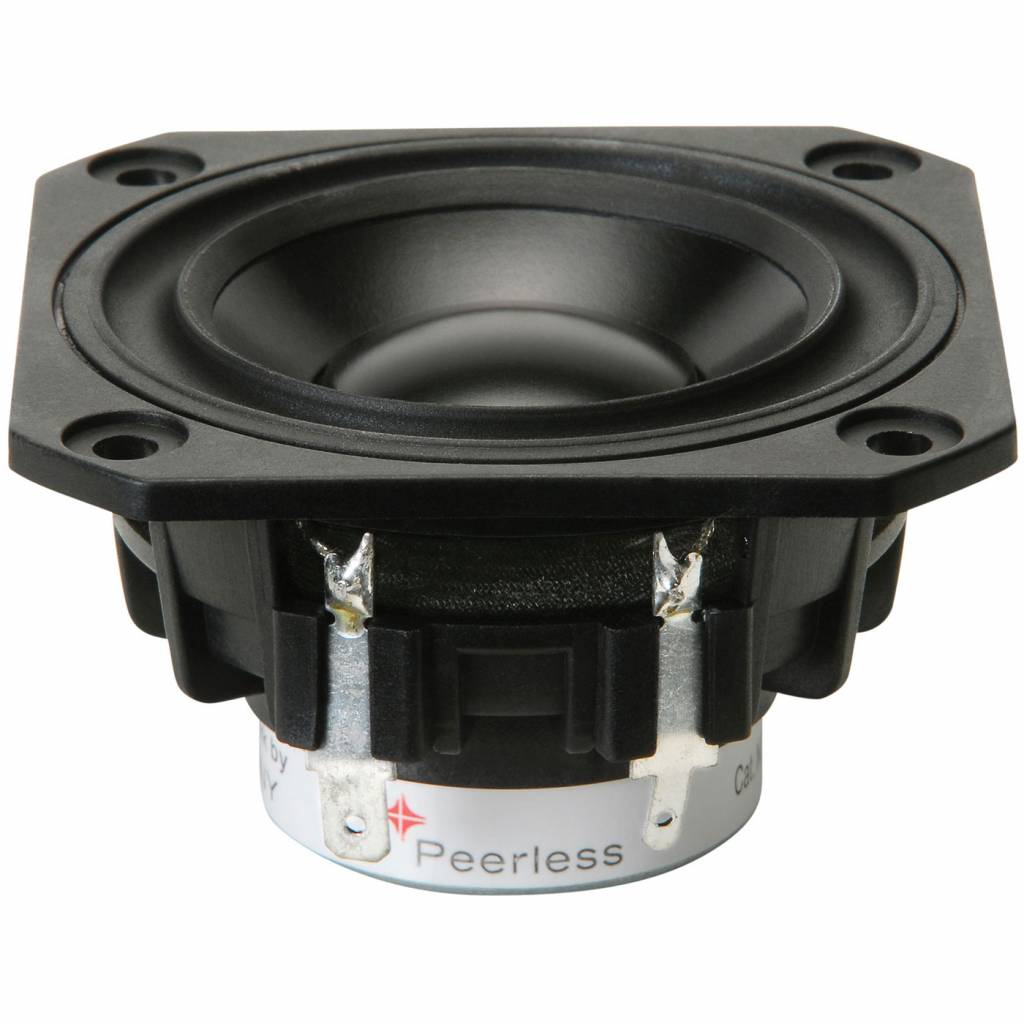

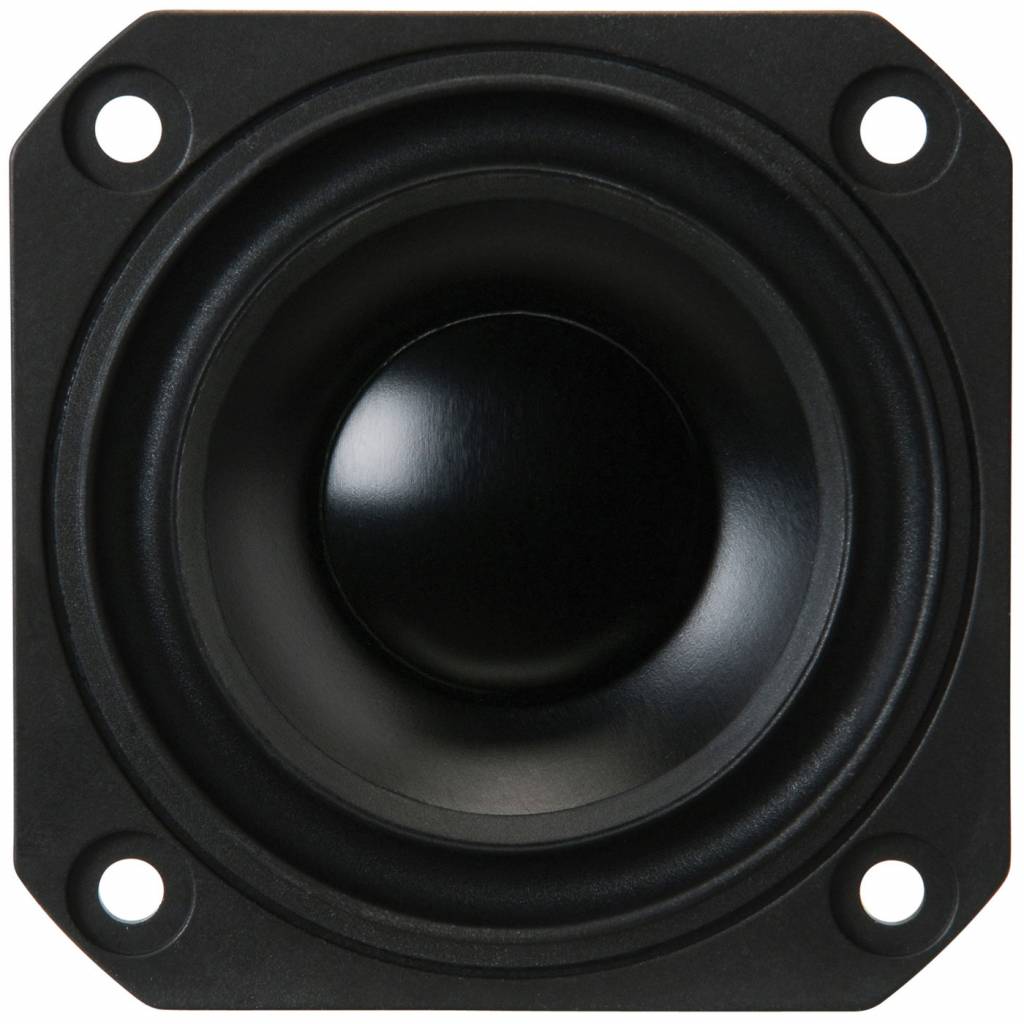

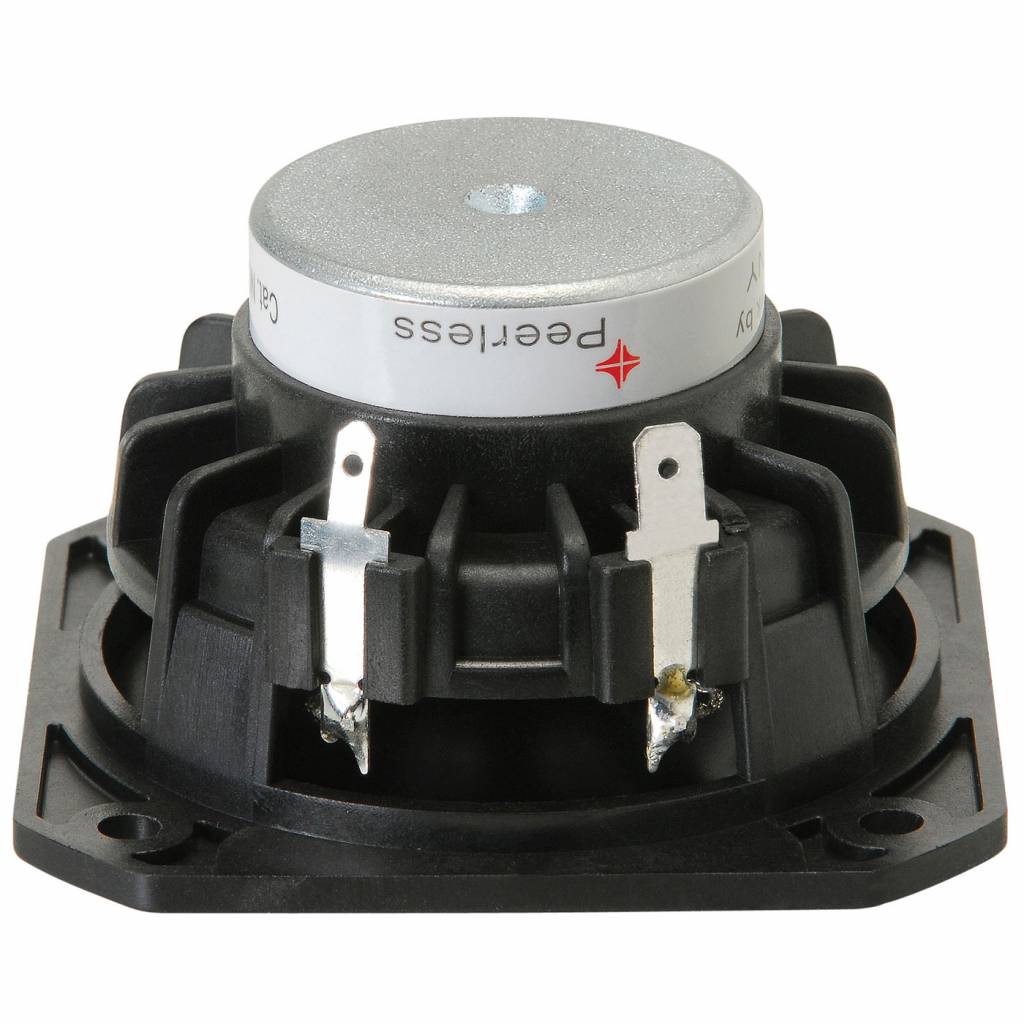

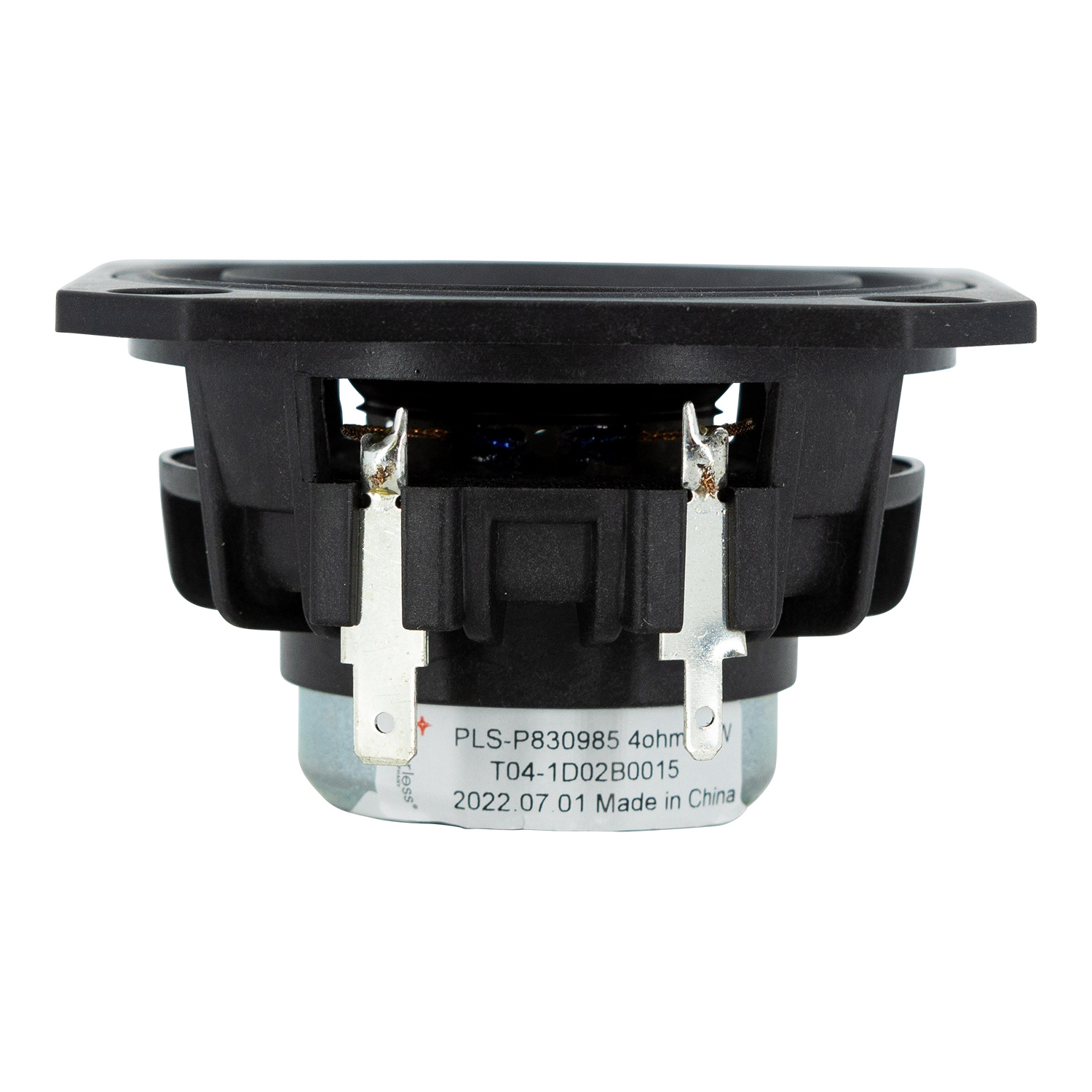

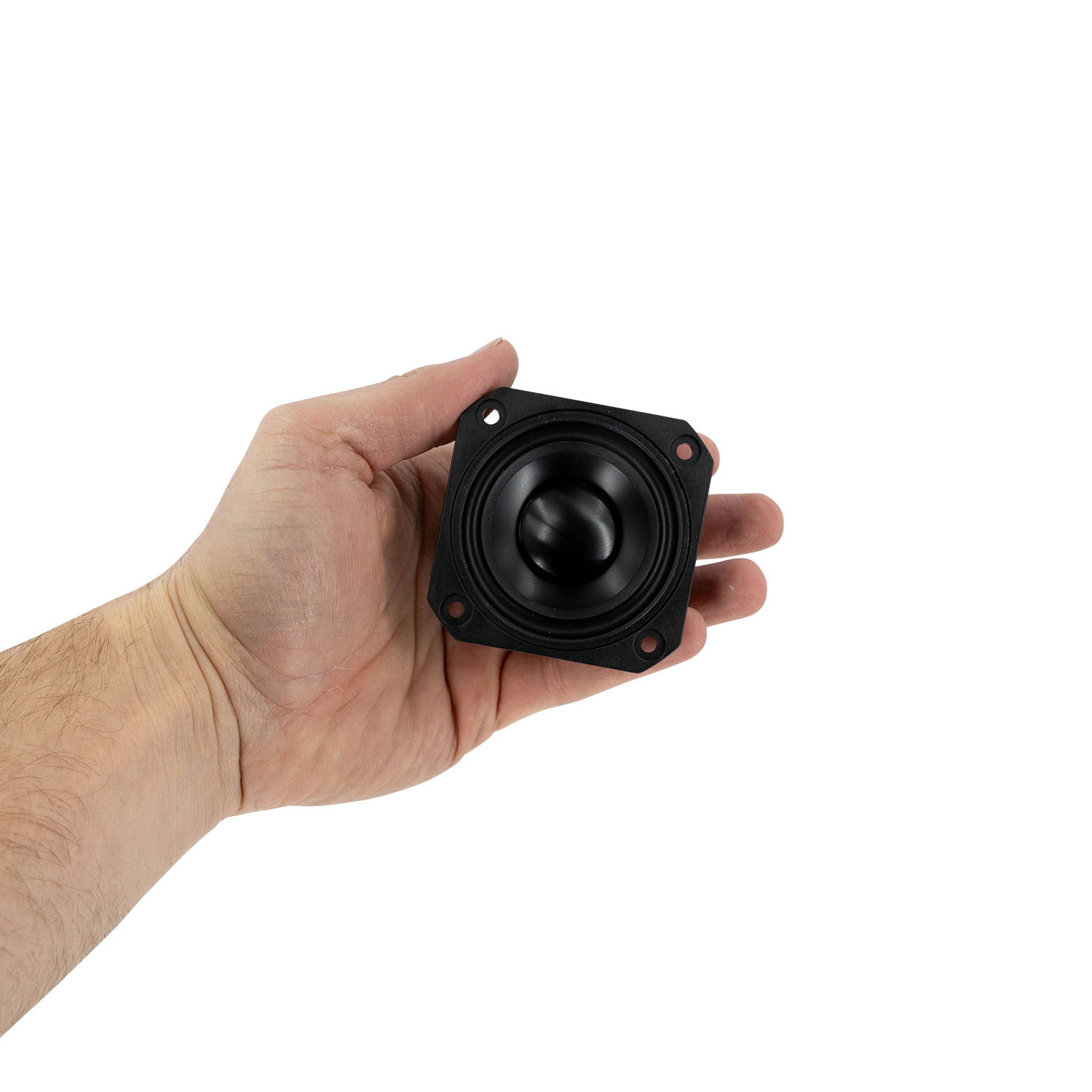

Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer

€ 21,69€ 26,25 4 Auf Lager: Lieferzeit 1-3 Werktage
Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €24,94 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.



Highlights

  • Neodymium magnet
  • Double-vented motor
  • Anodized aluminum center dome
  • Distortion-reducing semi-progressive surround
  • Copper pole piece cap controls impedance



Product details

Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer



This 2.5 inch 4 ohm member of the PLS family sets a high standard for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

Eigenschaften

Artikelnummer:
PLS-P830985
Woofer Series
PLS Series
Woofer Type
Full Range Woofer
Nominal Diameter
2-1/2"
Power Handling (RMS)
30 Watts
Power Handling (max)
60 Watts
Impedance
4 ohms
Sensitivity
86.5 dB 2.83V/1m
Frequency Response
90 to 20,000Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.7 ohms
Voice Coil Inductance (Le)
0.03 mH
Resonant Frequency (Fs)
101.2 Hz
Mechanical Q (Qms)
4.08
Electromagnetic Q (Qes)
0.75
Total Q (Qts)
0.63
Diaphragm Mass Inc. Airload (Mms)
1.9g
Mechanical Compliance of Suspension (Cms)
1.27 mm/N
Surface Area of Cone (Sd)
22 cm²
BL Product (BL)
2.7 Tm
Compliance Equivalent Volume (Vas)
0.02 ft.³
Maximum Linear Excursion (Xmax)
2 mm
Cone / Diaphragm Material
Aluminum
Surround Material
Rubber
Basket / Frame Material
Polymer
Magnet Material
Neodymium
Overall Outside Diameter
2.75"
Overall Depth
2.15"
Baffle Cutout Diameter
2.42"
# Mounting Holes
4
Sealed Volume
0.1 ft.³
Sealed F3
150 Hz
Vented Volume
0.04 ft.³
Vented F3
72 Hz

Bewertungen

4 from 5Based on 2 reviews
Produkt bewerten
3 van 5
No description was given
Durch Christoph J. on 28 März 2020
5 van 5
I bilt a concept speaker. I have changed the tweeter of the Videoton "Musical Encyclopredia" (bookshelf speaker) to this. Than I lowered the crossover frequency from 6.5 kHz to 200 Hz. Thus the Peerless works as a wide range speaker and a previous middle/deep speakers give a help in deep. Perfect! Far much better than the original!
Durch Ferenc S. on 26 Dezember 2019
