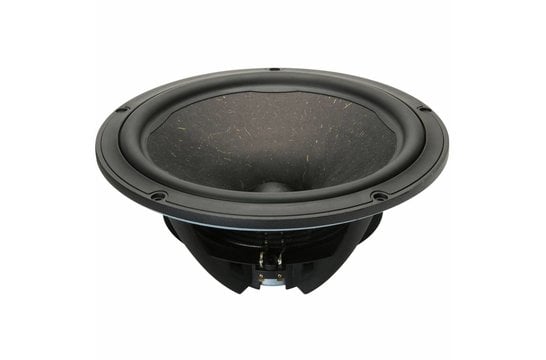

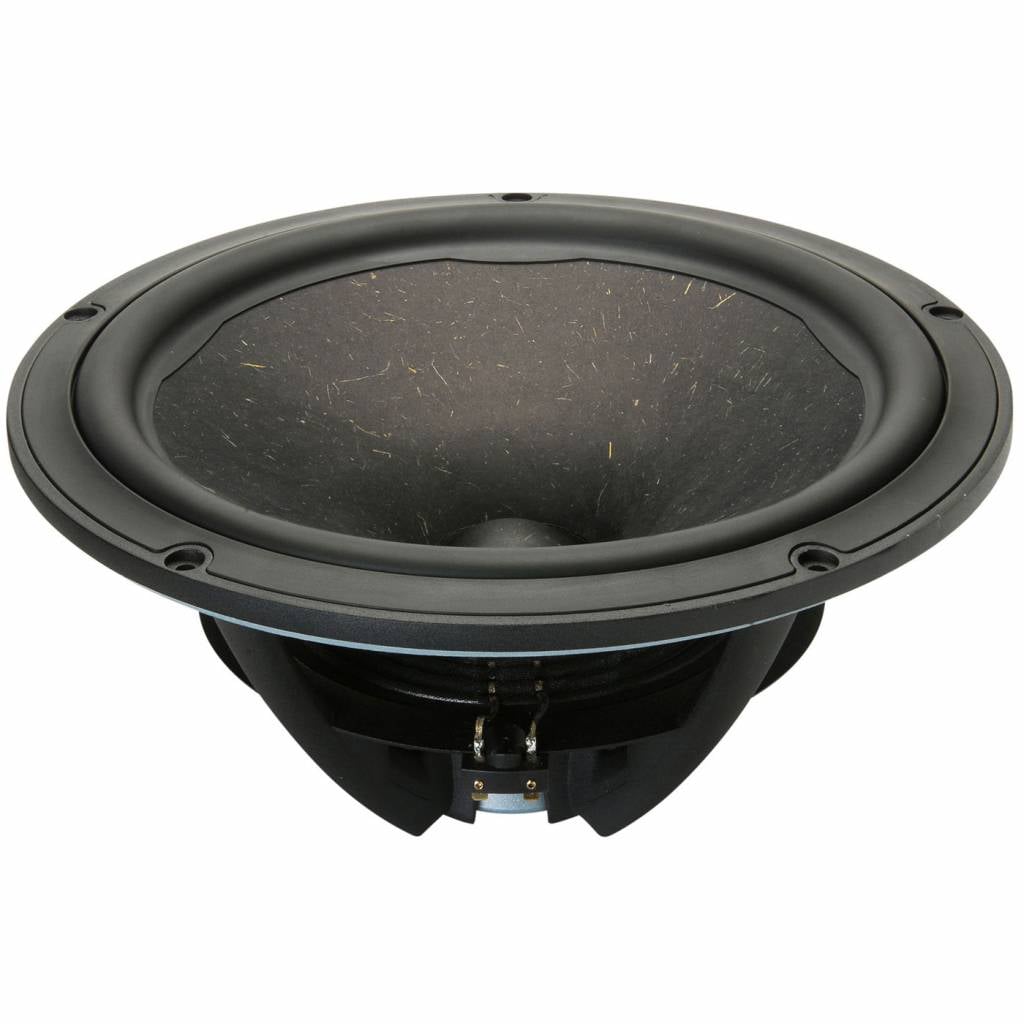

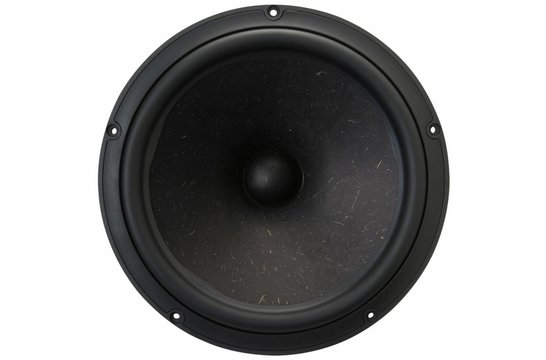

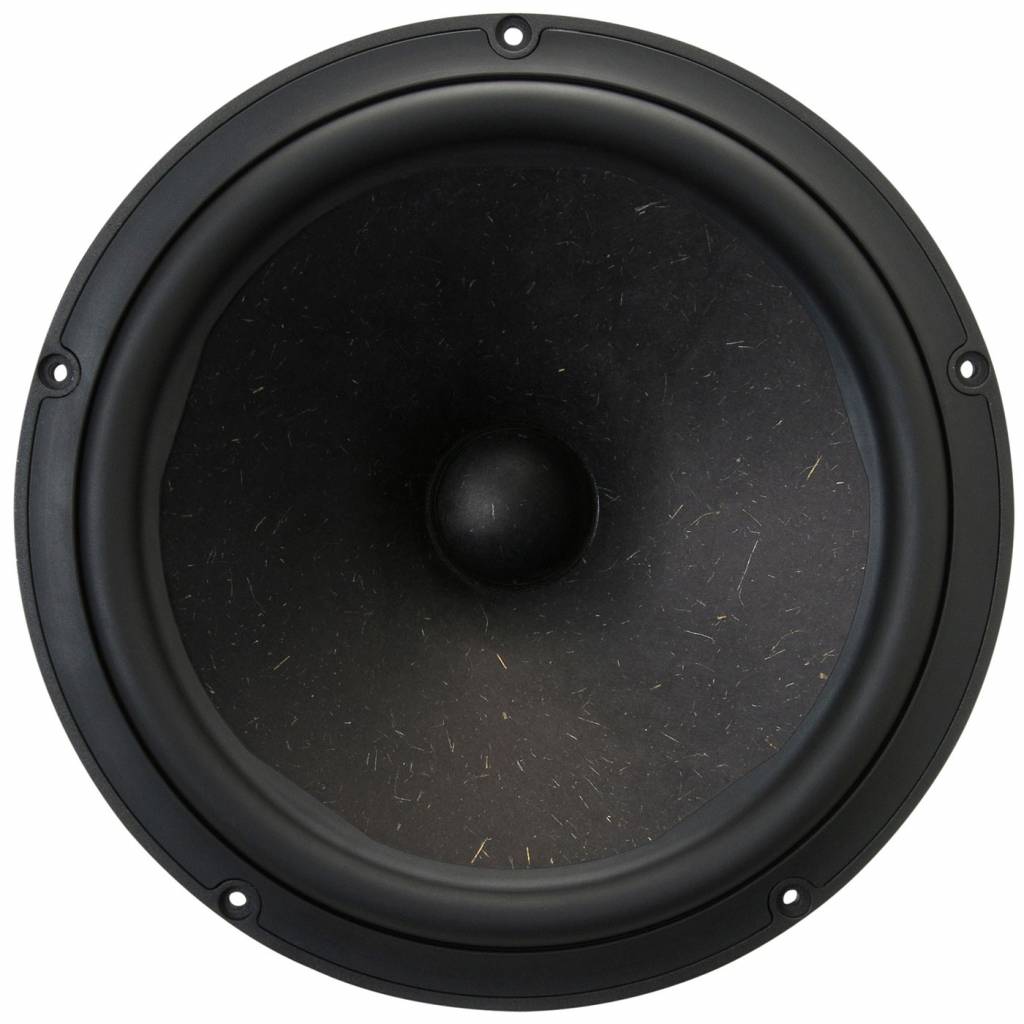

Peerless by Tymphany NE315W-04 12" Subwoofer

€ 223,10€ 269,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Tymphany's NE315W-04 12" neodymium subwoofer features a sophisticated, aerodynamic cast aluminum basket that also serves as a heat sink. The driver's Pentacone diaphragm technology and high-strength neodymium magnet provide incredibly deep, clean bass fun... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €256,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Tymphany's NE315W-04 12" neodymium subwoofer features a sophisticated, aerodynamic cast aluminum basket that also serves as a heat sink. The driver's Pentacone diaphragm technology and high-strength neodymium magnet provide incredibly deep, clean bass fundamentals.



Highlights

  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 2" voice coil on strong, heat resistant titanium former
  • Copper pole piece cap for reduced inductance
  • 4 ohm nominal impedance



Product details

Peerless by Tymphany NE315W-04 12” subwoofer

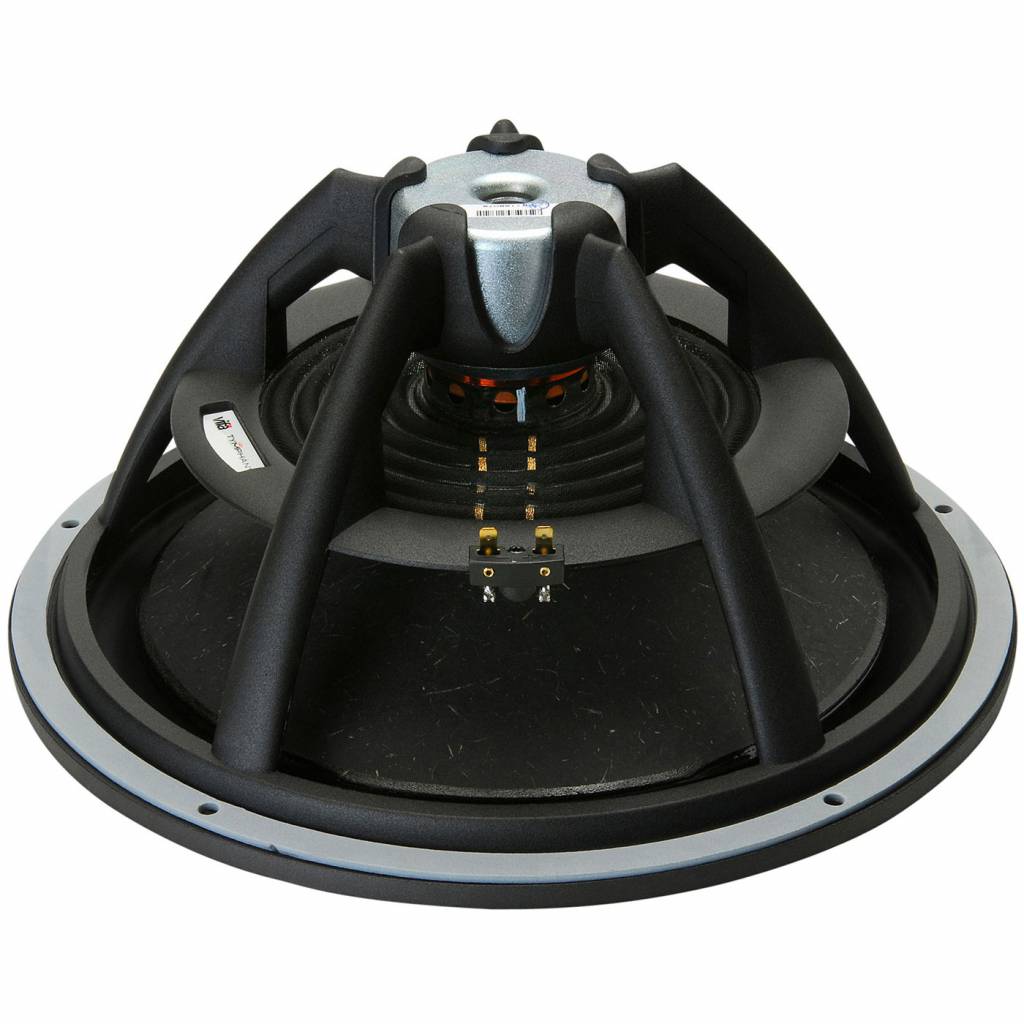

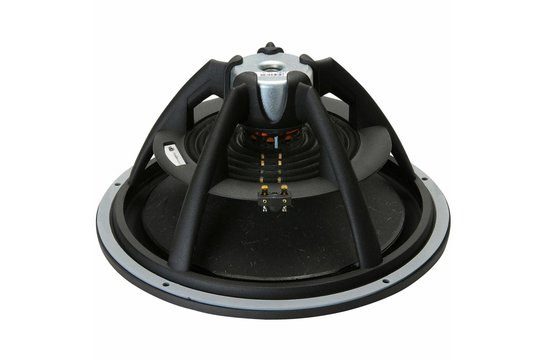

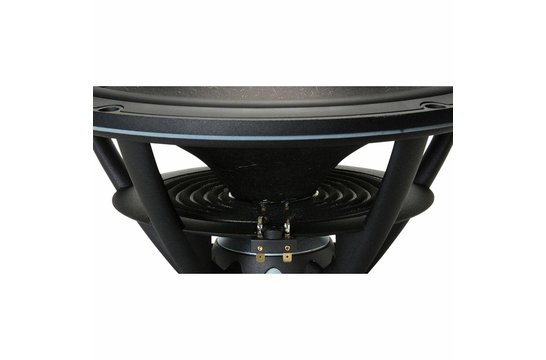

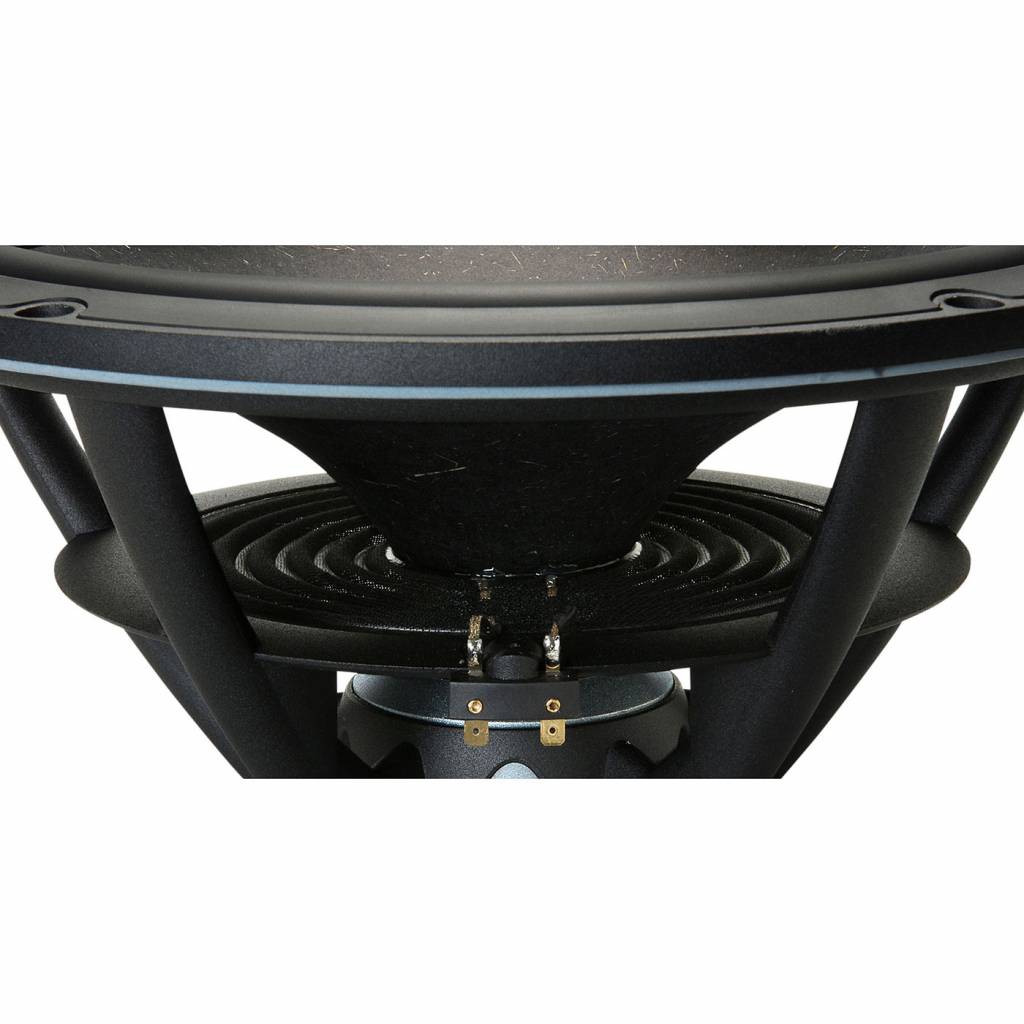

This 12 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The subwoofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the NdFeB motor, so as to improve power handling capacity. An additional heat sink is available to provide extra thermal protection if needed. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas & processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.

Eigenschaften

Artikelnummer:
NE315W-04
Woofer Type
Subwoofer
Nominal Diameter
12"
Power Handling (RMS)
150 Watts
Power Handling (max)
300 Watts
Impedance
4 ohms
Sensitivity
86.5 dB 2.83V/1m
Frequency Response
25 to 1,000Hz
Voice Coil Diameter
2"
DC Resistance (Re)
2.78 ohms
Voice Coil Inductance (Le)
0.38 mH
Resonant Frequency (Fs)
33.15 Hz
Mechanical Q (Qms)
15.6
Electromagnetic Q (Qes)
0.32
Total Q (Qts)
0.31
Diaphragm Mass Inc. Airload (Mms)
113.9
Mechanical Compliance of Suspension (Cms)
0.559 mm/N
Surface Area of Cone (Sd)
506.7 cm²
BL Product (BL)
11.12 Tm
Compliance Equivalent Volume (Vas)
1.58 ft.³
Maximum Linear Excursion (Xmax)
9 mm
Cone / Diaphragm Material
Wood fiber
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
8.82"
Overall Depth
4.21"
Baffle Cutout Diameter
7.36"
# Mounting Holes
5
Sealed Volume
0.013 ft.³
Sealed F3
54.09 Hz
Vented Volume
0.03 ft.³
Vented F3
32.6 Hz
