Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter

€ 32,45 8 Auf Lager: Lieferzeit 1-3 Werktage
The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €30,83 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.



Highlights

  • 3/4" silk dome
  • Advanced design neo motor system
  • Copper caps reduce inductance and extend HF response

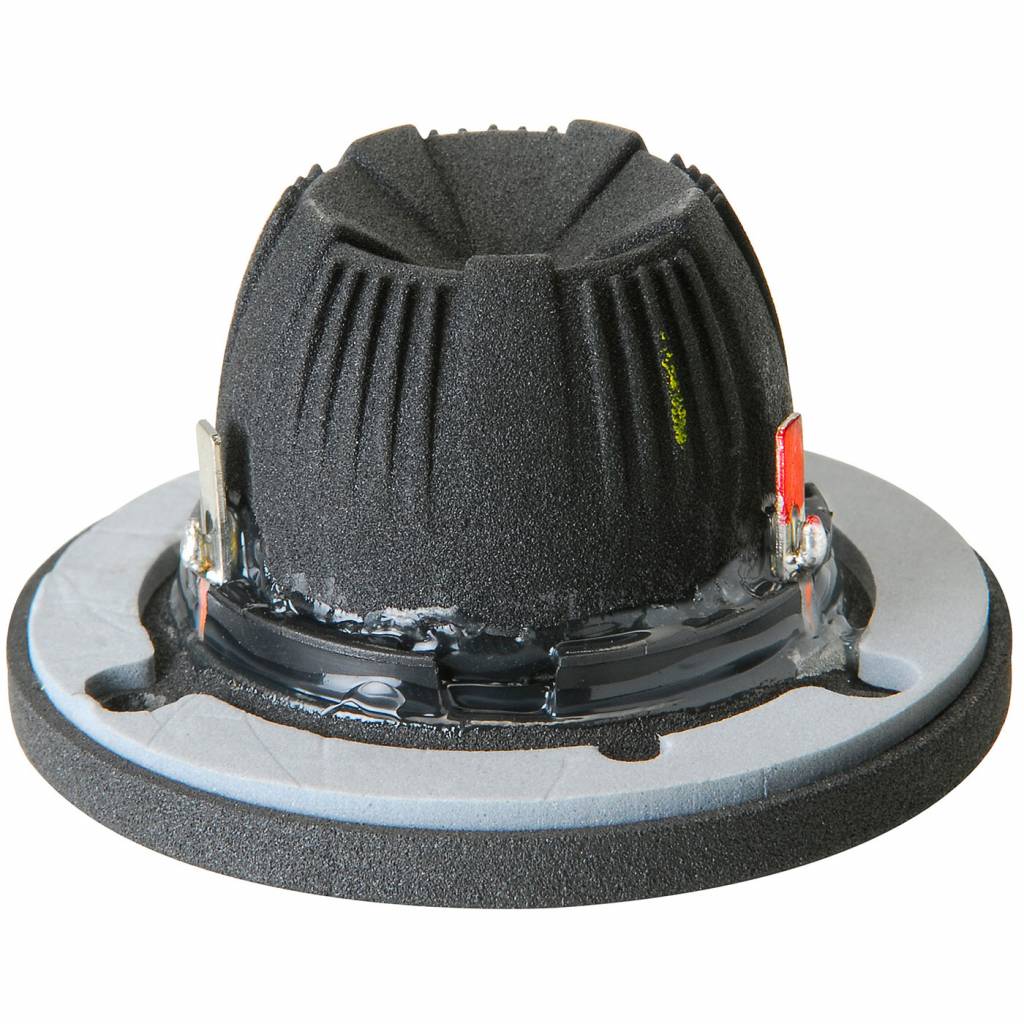

  • Aluminum rear chamber lowers resonance and doubles as a heatsink
  • Aluminum face plate and plastic protective grill



Product details

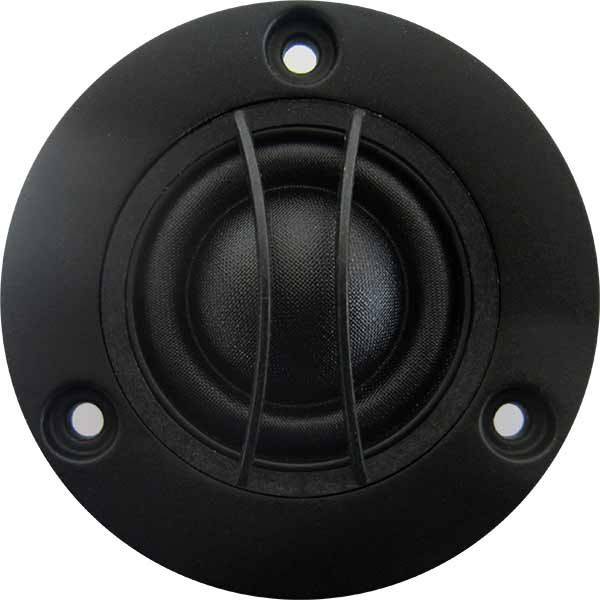

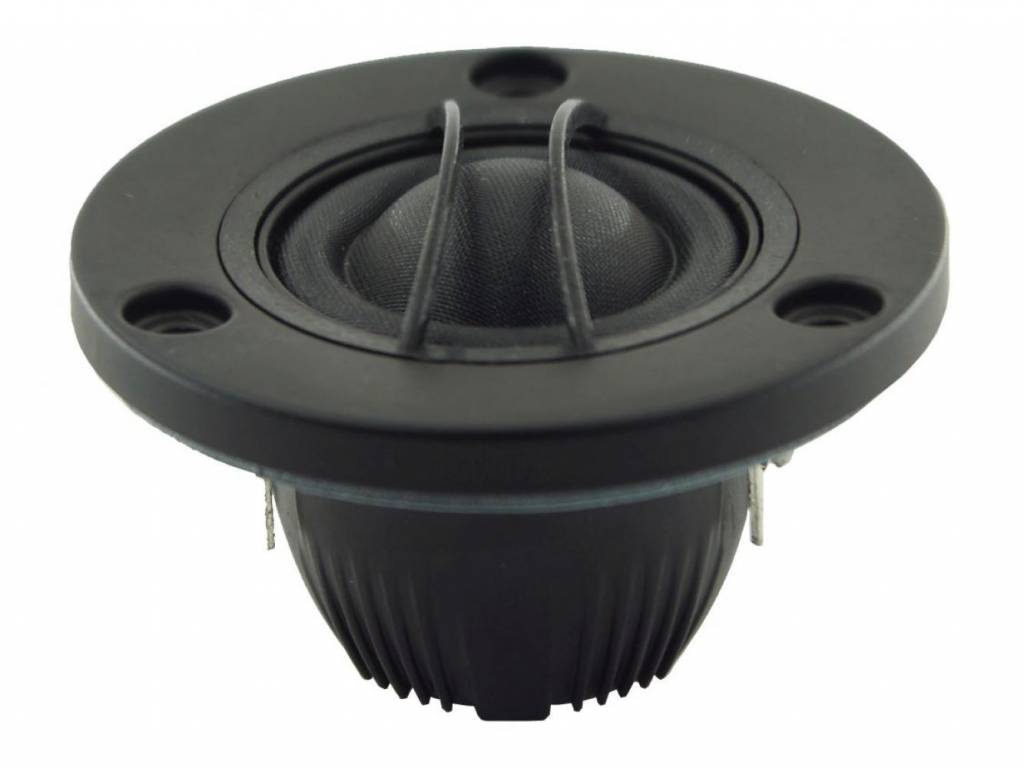

Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter



The 19 mm 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The tweeters in this family feature finite element analysis designed Neodymium-Iron-Boron magnet (NdFeB) motors, with copper caps for extended frequency response and reduced distortion. The aluminium rear chambers offer extended low frequency performance, while doubling as heat sinking. The butterfly supporting the tweeter diaphragm is made of a high temperature plastic, consistent with the products high temperature performance rating, and features supporting terminals. The dome material in this design is silk, and the design has been optimized for sound quality and clarity. Rounding out the design is an aluminium face plate and plastic grille, which offers protection for the tweeter diaphragm.

Eigenschaften

Artikelnummer:
NE19VTS-04
Tweeter Type
Soft Dome
Tweeter Series
NE Series
Cone / Dome Diameter
3/4"
Power Handling (RMS)
80 Watts
Impedance
4 ohms
Sensitivity
90 dB 1W/1m
Frequency Response
1,600 to 25,000 Hz
Resonant Frequency (Fs)
816 Hz
DC Resistance (Re)
2.80 ohms
Voice Coil Inductance (Le)
0.01 mH
Mechanical Q (Qms)
4.60
Electromagnetic Q (Qes)
1.48
Total Q (Qts)
1.12
Overall Outside Diameter
2.04"
Cutout Diameter
1.50"
Depth
1.14"
