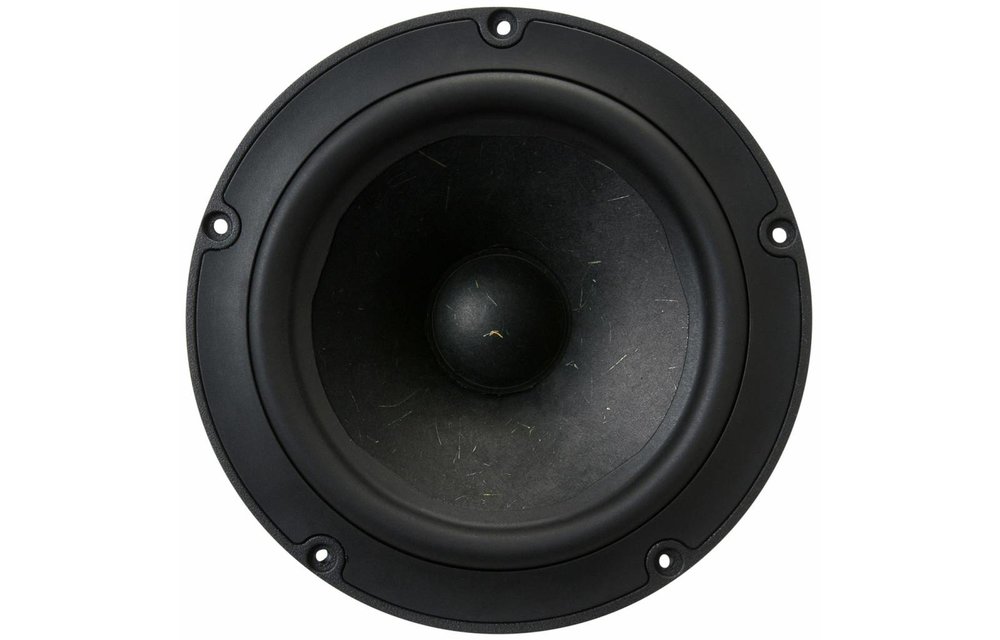

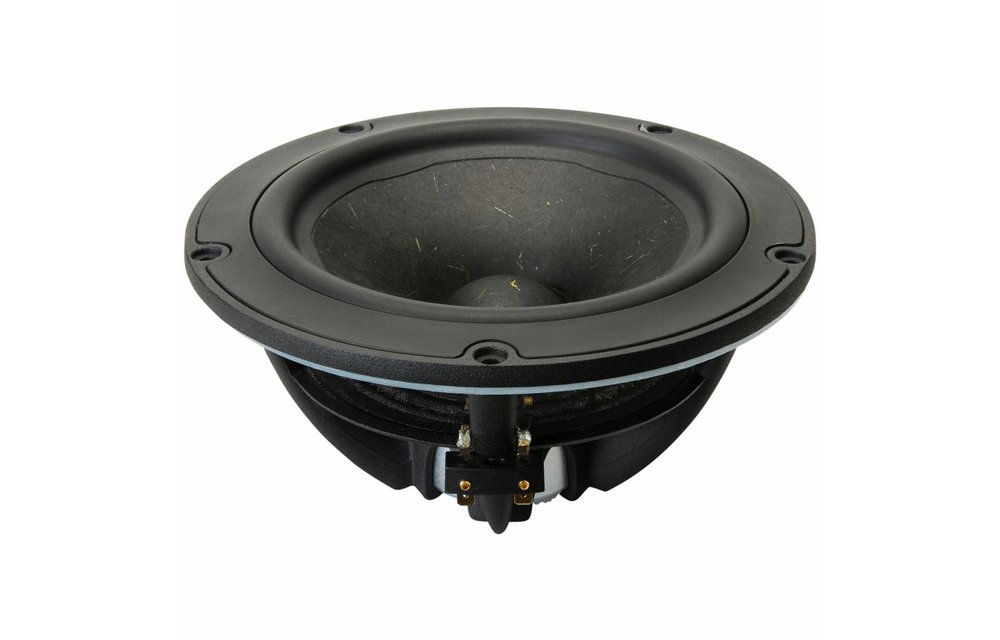

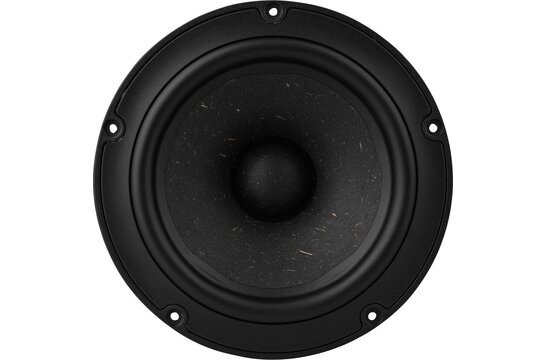

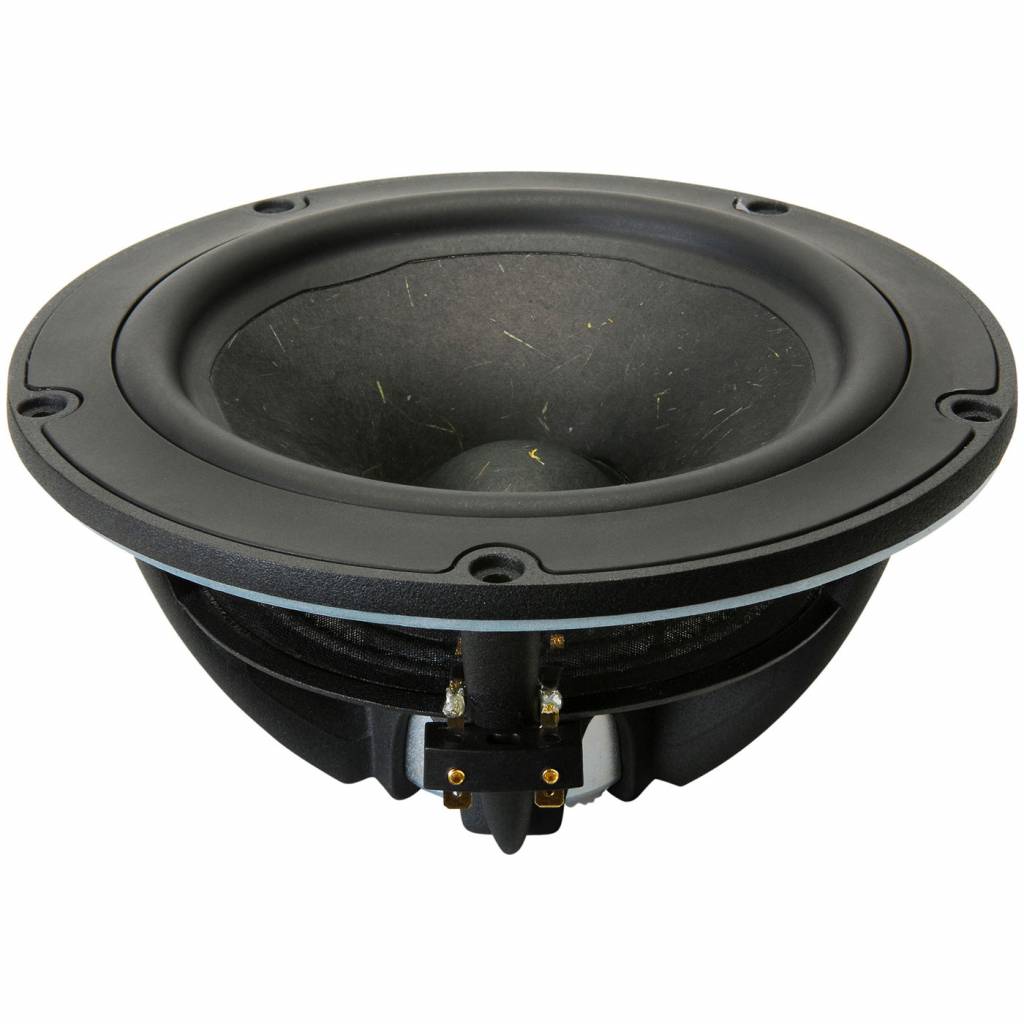

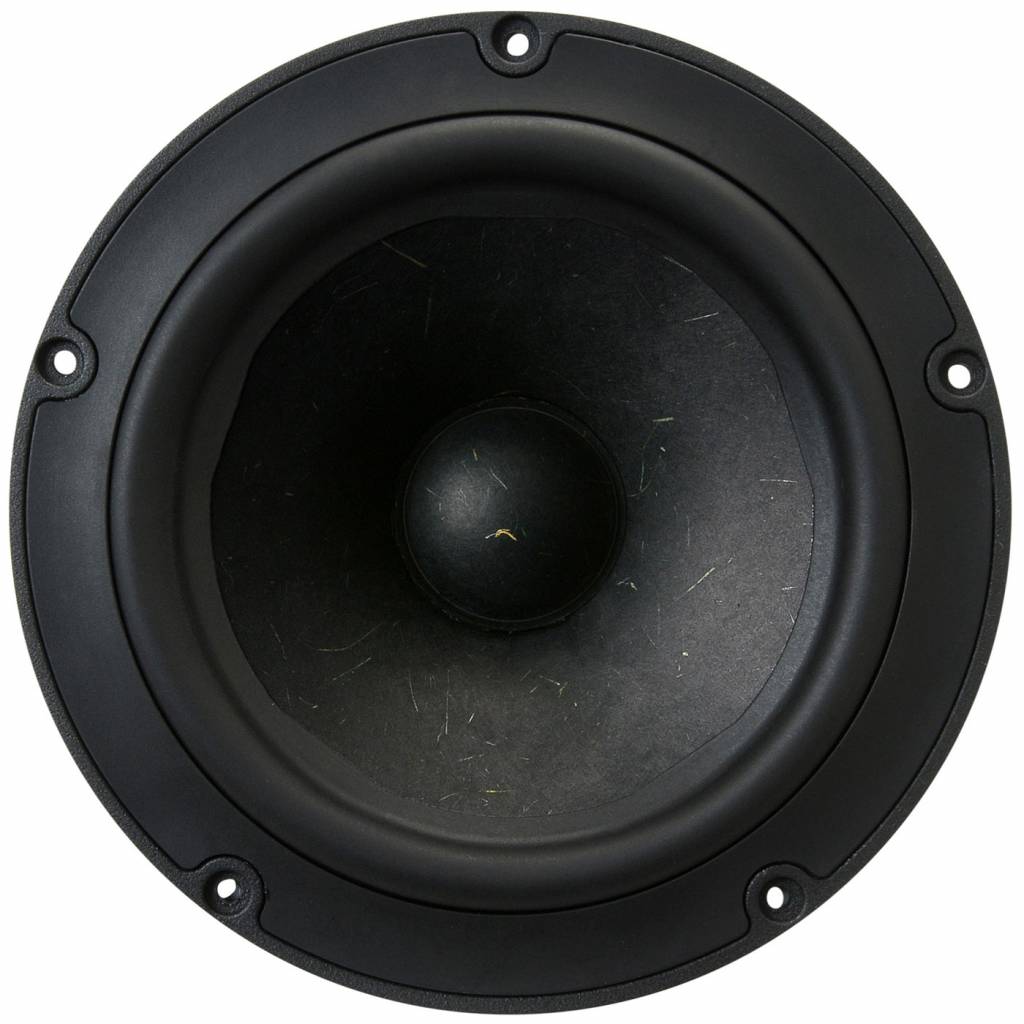

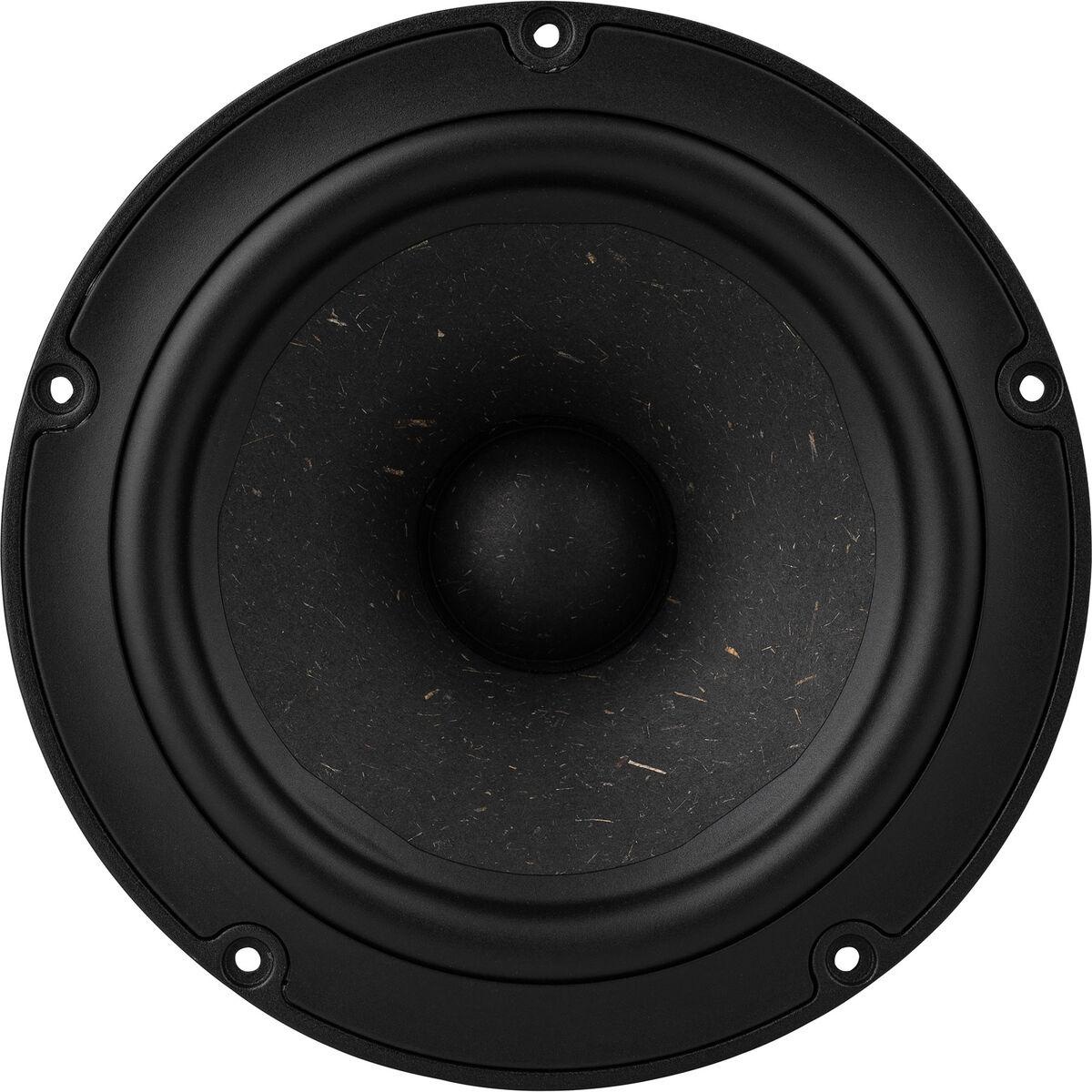

Peerless by Tymphany NE180W-08 6-1/2" Woofer

€ 109,95 5 Auf Lager: Lieferzeit 1-3 Werktage
Tymphany's NE180W-08 6-1/2" speaker is an advanced, well-engineered woofer and midbass driver designed for accurate audio reproduction.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €104,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support


Tymphany's NE180W-08 6-1/2" speaker is an advanced, well-engineered woofer and midbass driver designed for accurate audio reproduction.



  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 1-1/2" voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 8 ohm nominal impedance


Product details

Peerless by Tymphany NE180W-08 6-1/2" Woofer

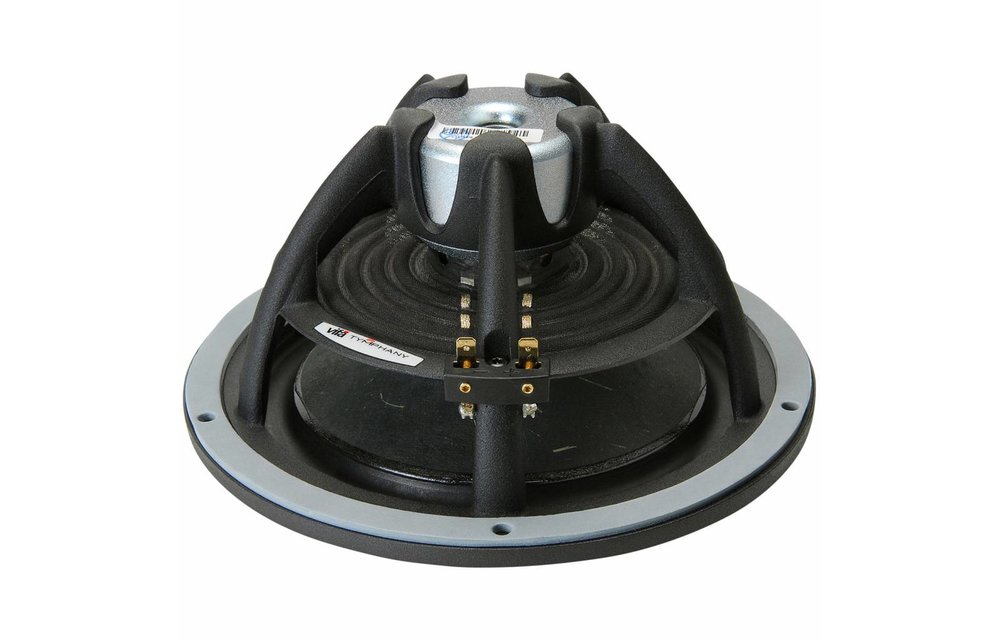

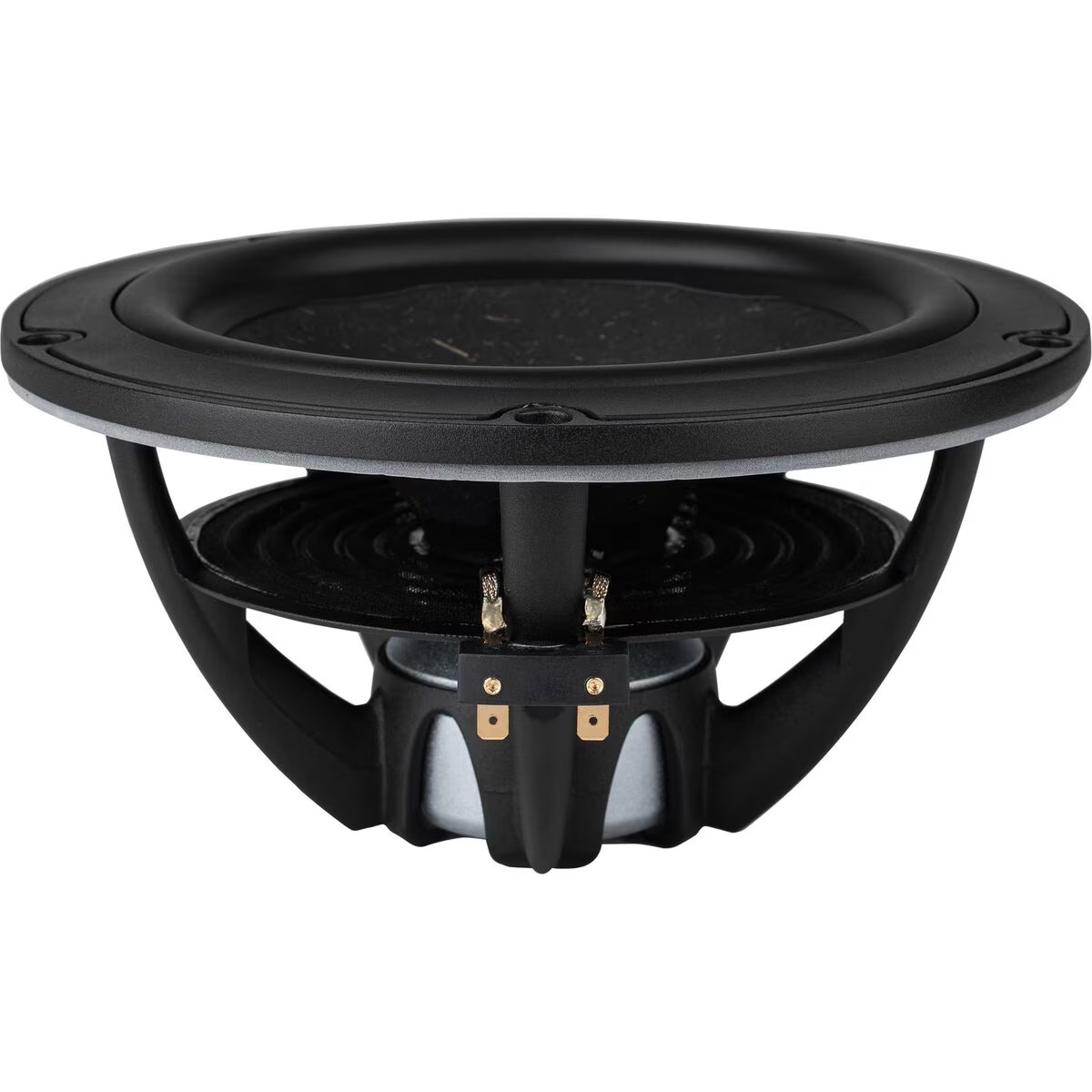

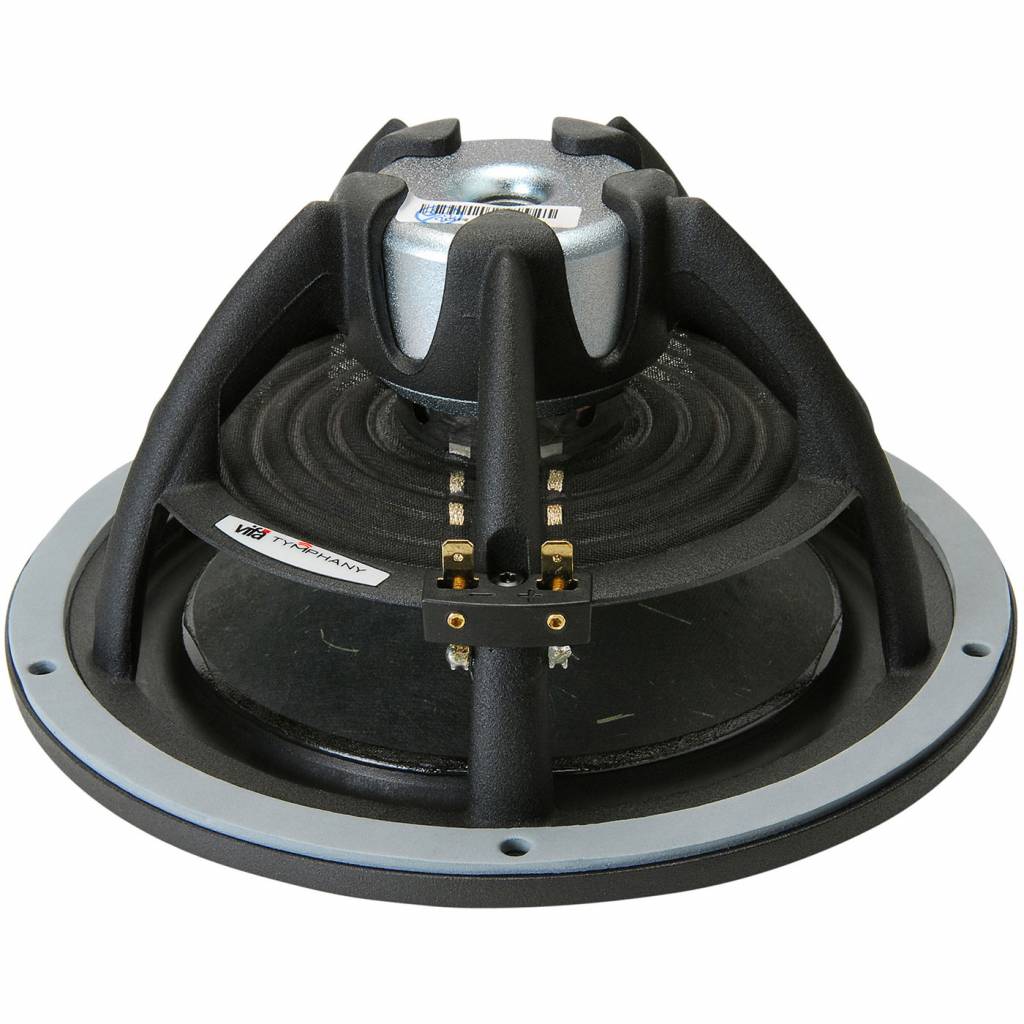

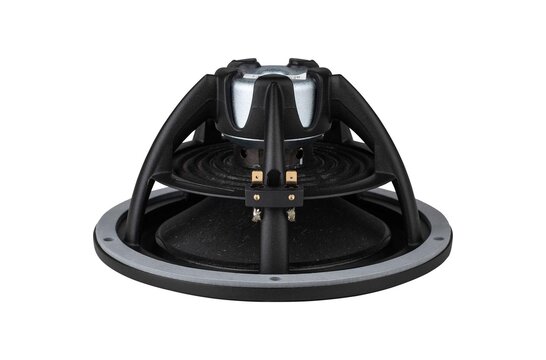

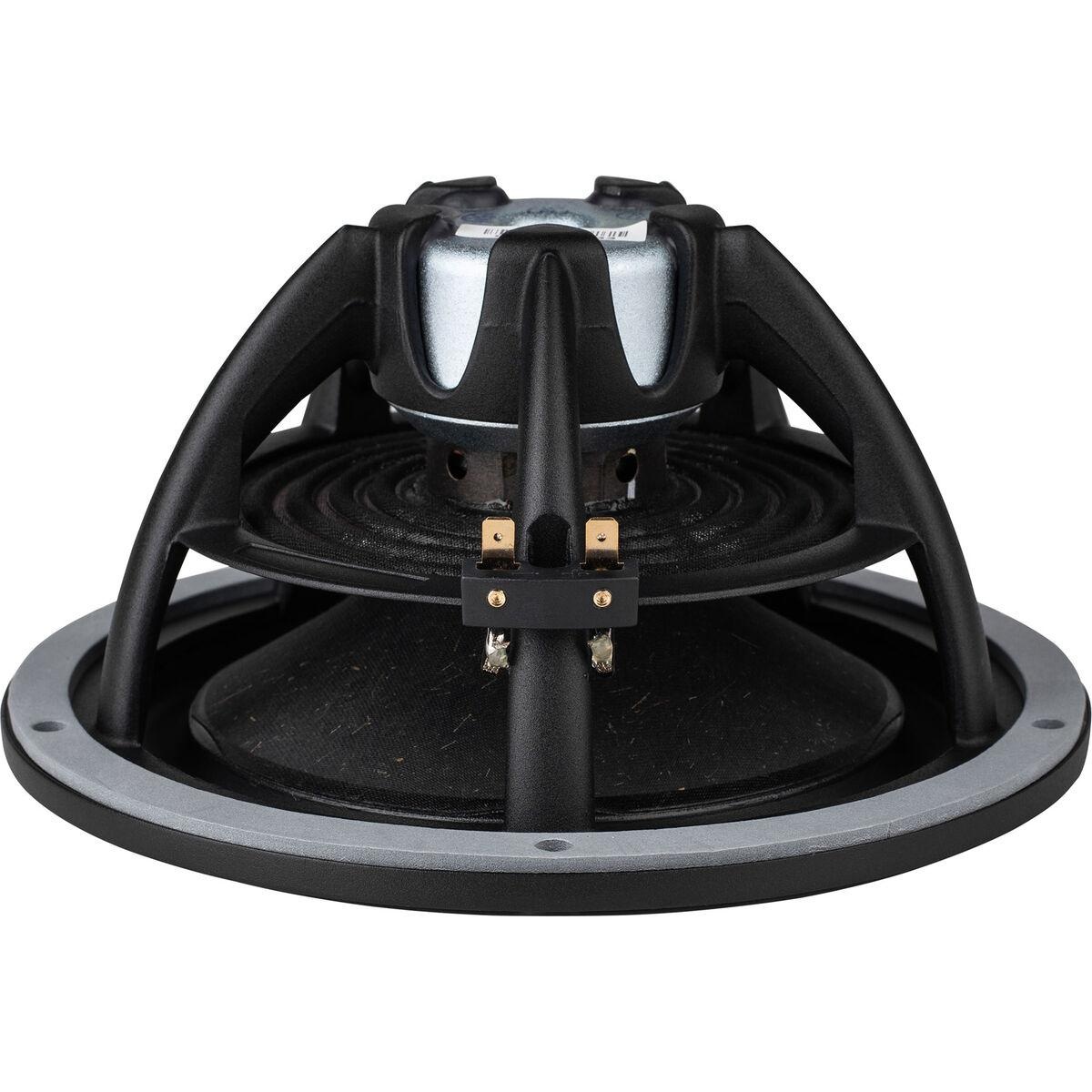

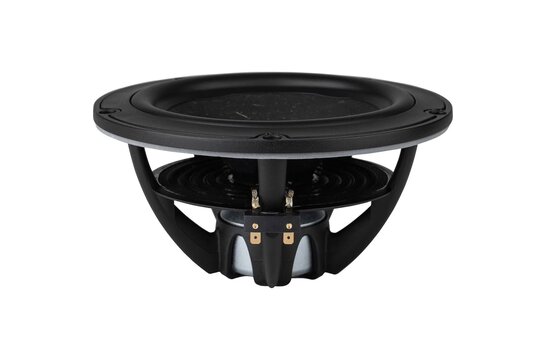

This 6.5 inch 8 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas and processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.


Woofer Type
Nominal Diameter
Power Handling (RMS)
80 Watts
Power Handling (max)
160 Watts
8 ohms
87.4 dB 2.83V/1m
Frequency Response
40 to 4,000 Hz
Voice Coil Diameter
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.12 mH
Resonant Frequency (Fs)
42 Hz
Mechanical Q (Qms)
Electromagnetic Q (Qes)
Total Q (Qts)
Diaphragm Mass Inc. Airload (Mms)
Mechanical Compliance of Suspension (Cms)
0.86 mm/N
Surface Area of Cone (Sd)
136.9 cm²
BL Product (BL)
8.17 Tm
Compliance Equivalent Volume (Vas)
0.8 ft.³
Maximum Linear Excursion (Xmax)
5 mm
Cone / Diaphragm Material
Wood Fiber
Surround Material
Basket / Frame Material
Cast Aluminum
Magnet Material
Overall Outside Diameter
Overall Depth
Baffle Cutout Diameter
# Mounting Holes
Sealed Volume
0.24 ft.³
Sealed F3
86 Hz
Vented Volume
0.58 ft.³
Vented F3
47 Hz


5 from 5Based on 3 reviews
Produkt bewerten
4 van 5
I am going to use this woofer in a 2 way system, with mostly digital components. I.e. miniDSP, Fiio DA, classD amp and a HTPC as digital sound source. I have read tests on the 4ohm sibling, and this looks very promising. I have built, previously, with Peerless 830991, with same components as above, with greate result! In spring I will build with the NE-woofer. Looking forward to that!!!
Durch Tord J. on 10 Februar 2021
5 van 5
Great sounding mid and lightweight. Sounds great with peerless corundum dome tweeter.
Durch Joonas R. on 18 April 2019
