The LCPF2000 is a high-power 4-channel amplifier module with integrated PFC and LLC SMPS, designed for demanding audio applications. Delivering up to 2000 W of total power and equipped with robust monitoring and protection features, it's ideal for professional sound reinforcement systems, musical instrument amplifiers, and powered loudspeakers.

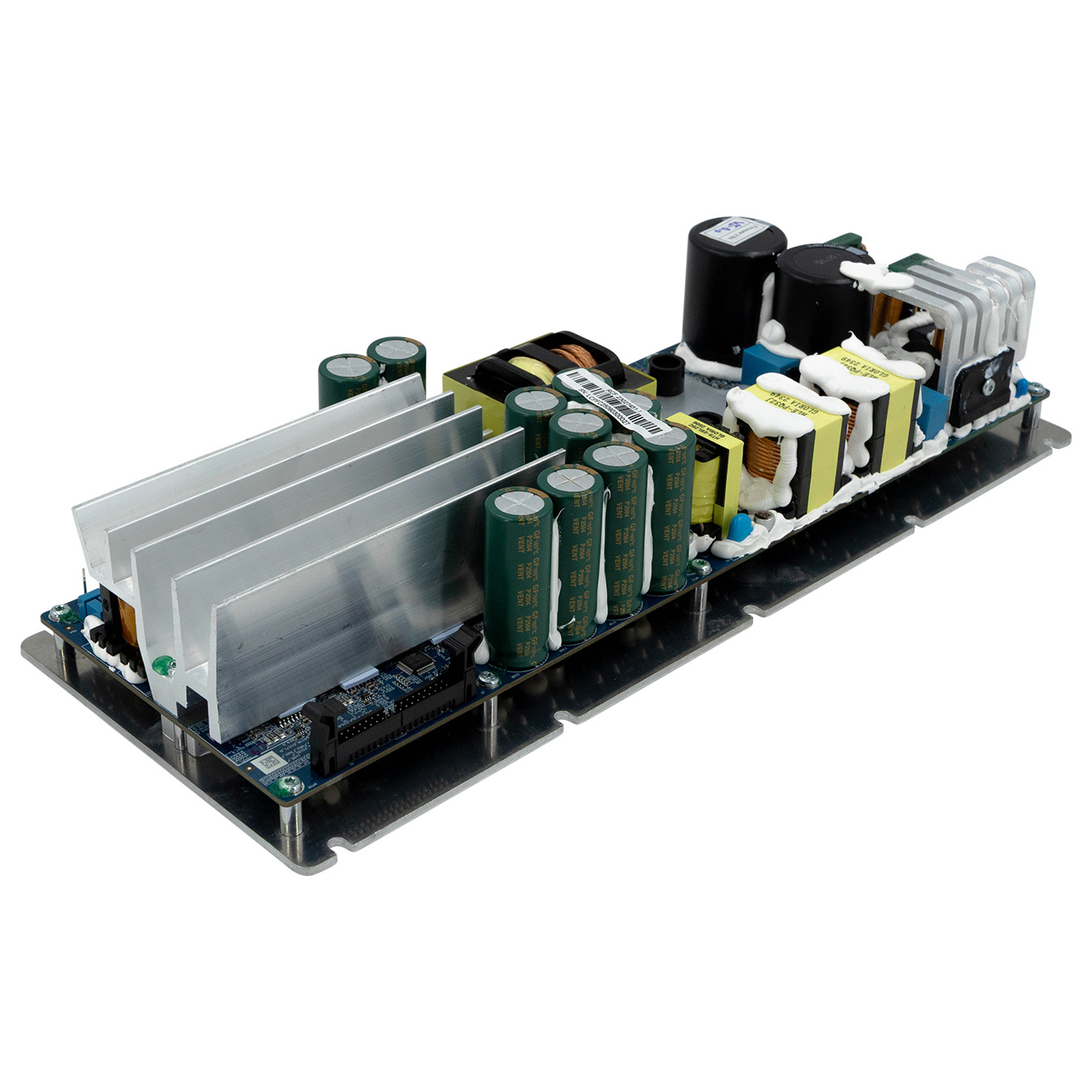

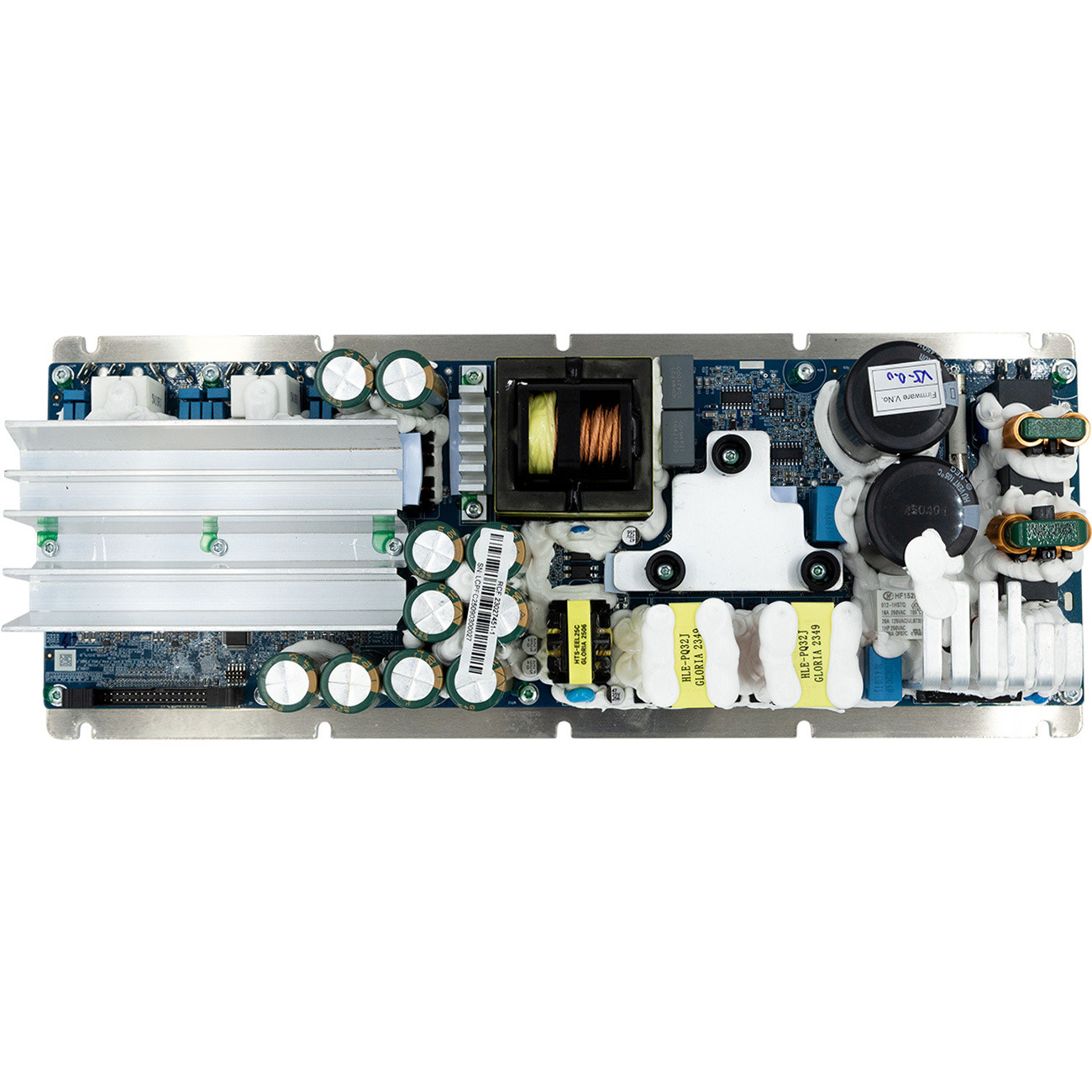

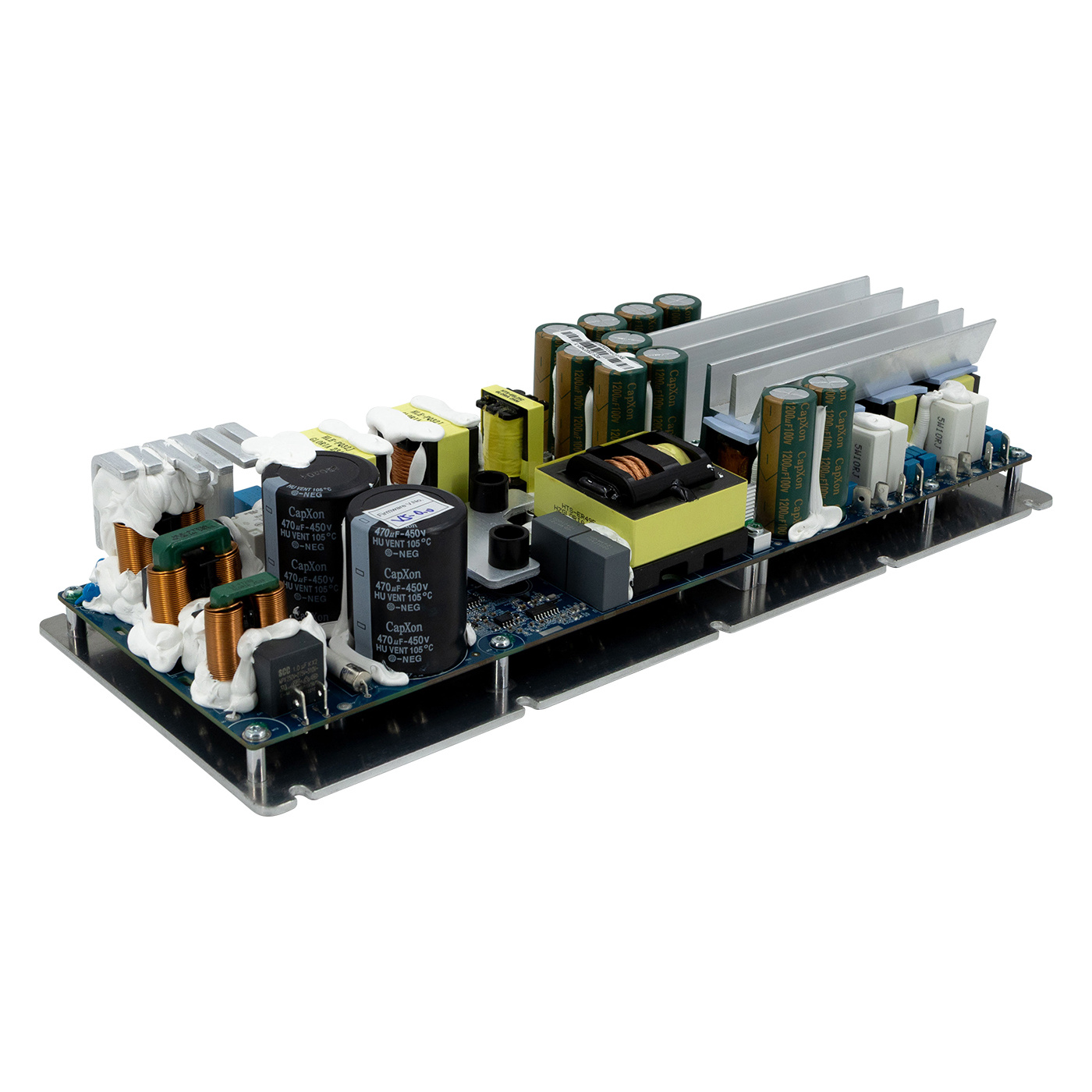

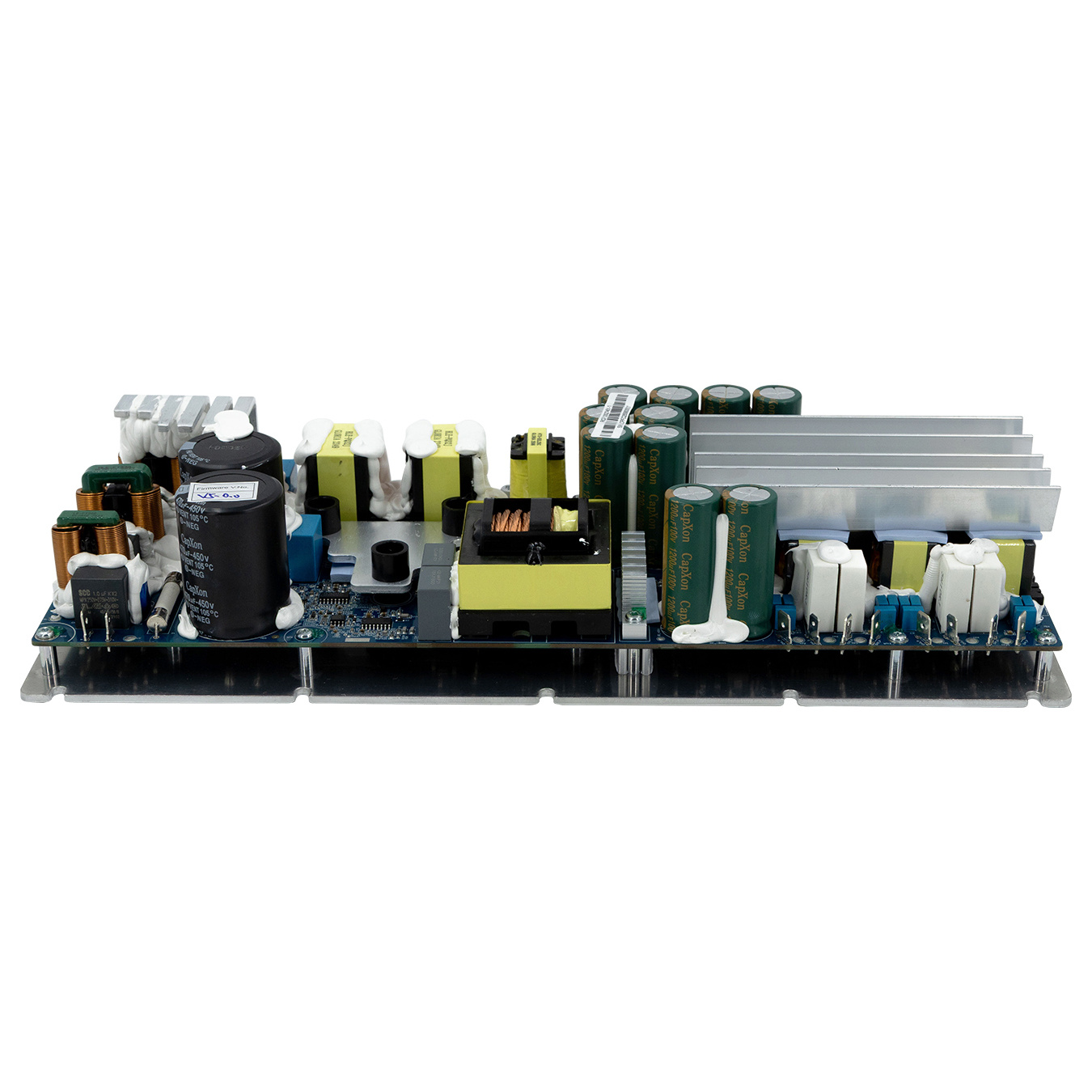

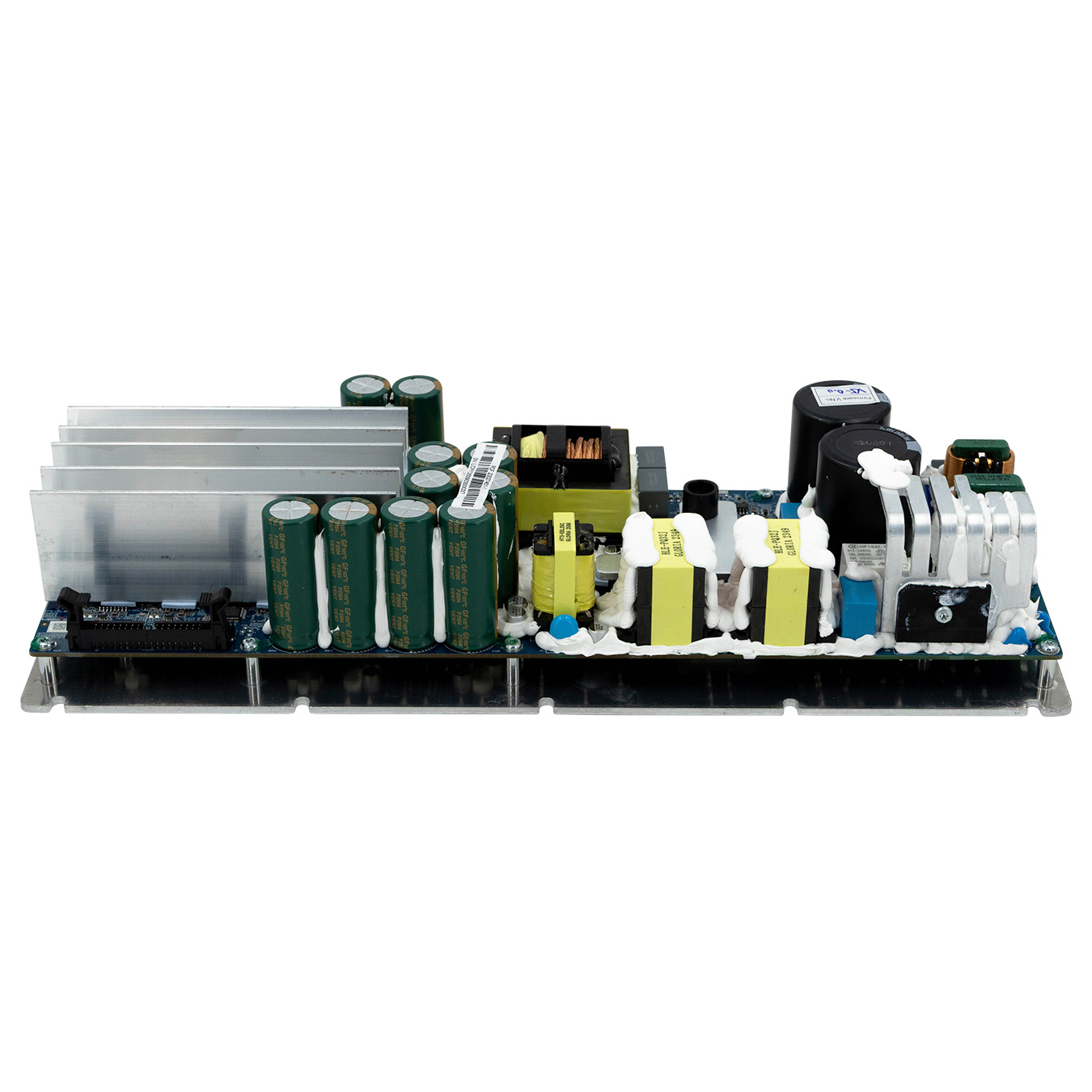

Tymphany LCPF2000 Amplifier Module
The Tymphany LCPF2000 is a 4-channel amplifier module optimized for integration into high-performance audio systems. With a peak system efficiency of 87% and total power output configurable up to 2000 W, it supports multiple operating modes including BTL (Bridge-Tied Load) and SE (Single-Ended). Each channel is designed for robust performance, supporting up to 1500 W BTL into 6 Ω or 700 W SE into 4 Ω.
The LCPF2000 employs a two-phase PFC front-end and an LLC resonant converter to ensure efficient power handling and minimal standby consumption (<0.35 W). Its sophisticated protection suite includes real-time temperature monitoring, short-circuit protection, under/over-voltage protection, and dynamic current limiting — all managed by an advanced MCU.

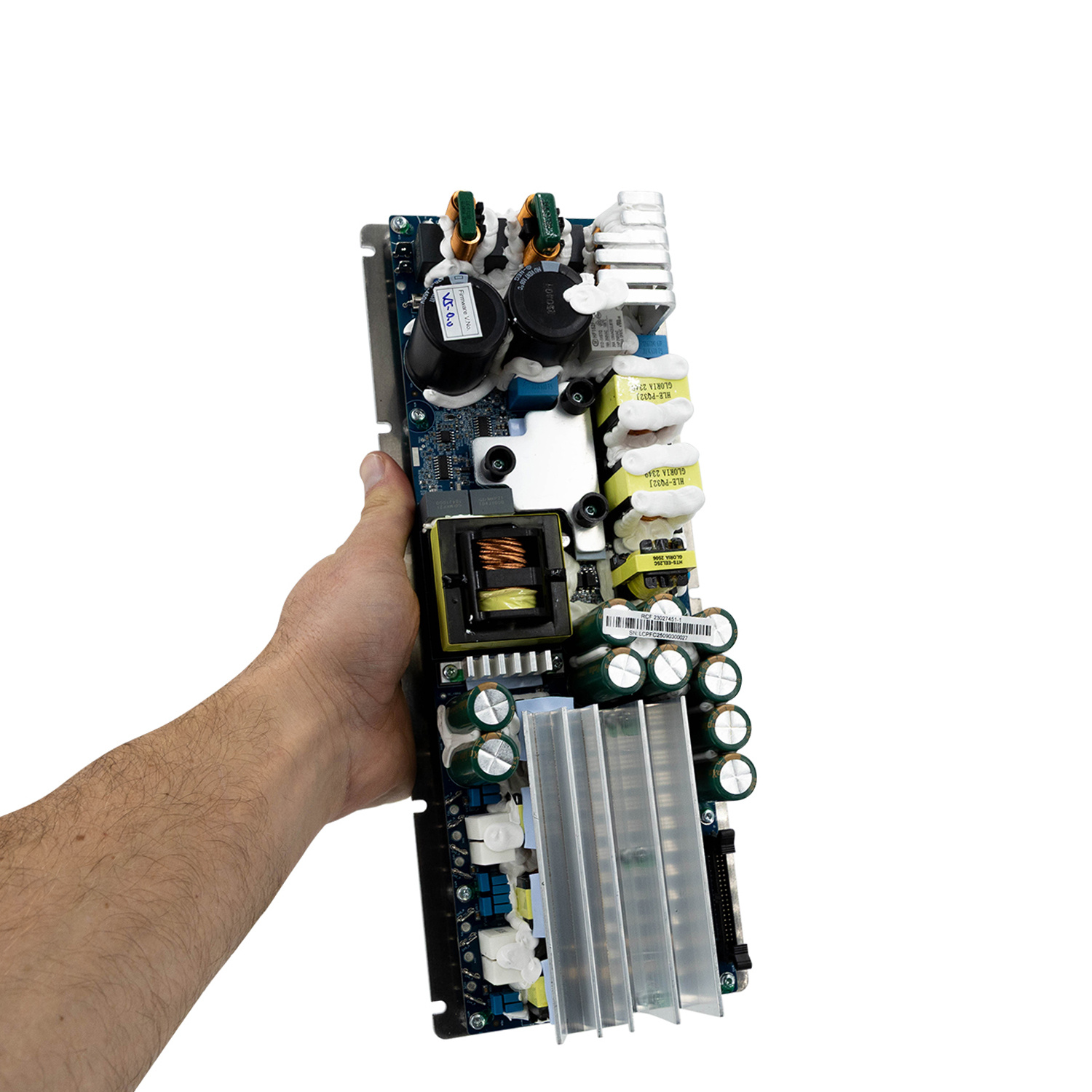

Connectivity is straightforward via a 36-pin ribbon header and Fast-On spade connectors for speaker and AC interfaces. It also includes analog outputs for voltage/current/temp monitoring. The module’s compact 120 x 340 x 65 mm footprint and 1.95 kg weight make it ideal for installation in loudspeakers, PA systems, bass or guitar amps, and rack-mounted audio systems. It's engineered for compliance with safety, EMI, and environmental standards, including RoHS and ErP.
Extra details Peerless LCPF2000
Please note:
The LCPF2000 is an OEM amplifier module with an integrated power supply, intended for integration into custom audio systems. It does not include a built-in audio DSP. Functions such as EQ, crossover filtering, delay and DSP-based limiting require a separate external DSP.
System integration requires suitable wiring, power connections and management of the module’s mute and standby signals. A 36-pin IDC connector with a 2.0 mm pitch provides analog audio inputs, control and monitoring signals, and auxiliary power for external circuitry. Experience with audio electronics and system integration is recommended.
Familiarity with high-power audio electronics and embedded system integration is recommended.
