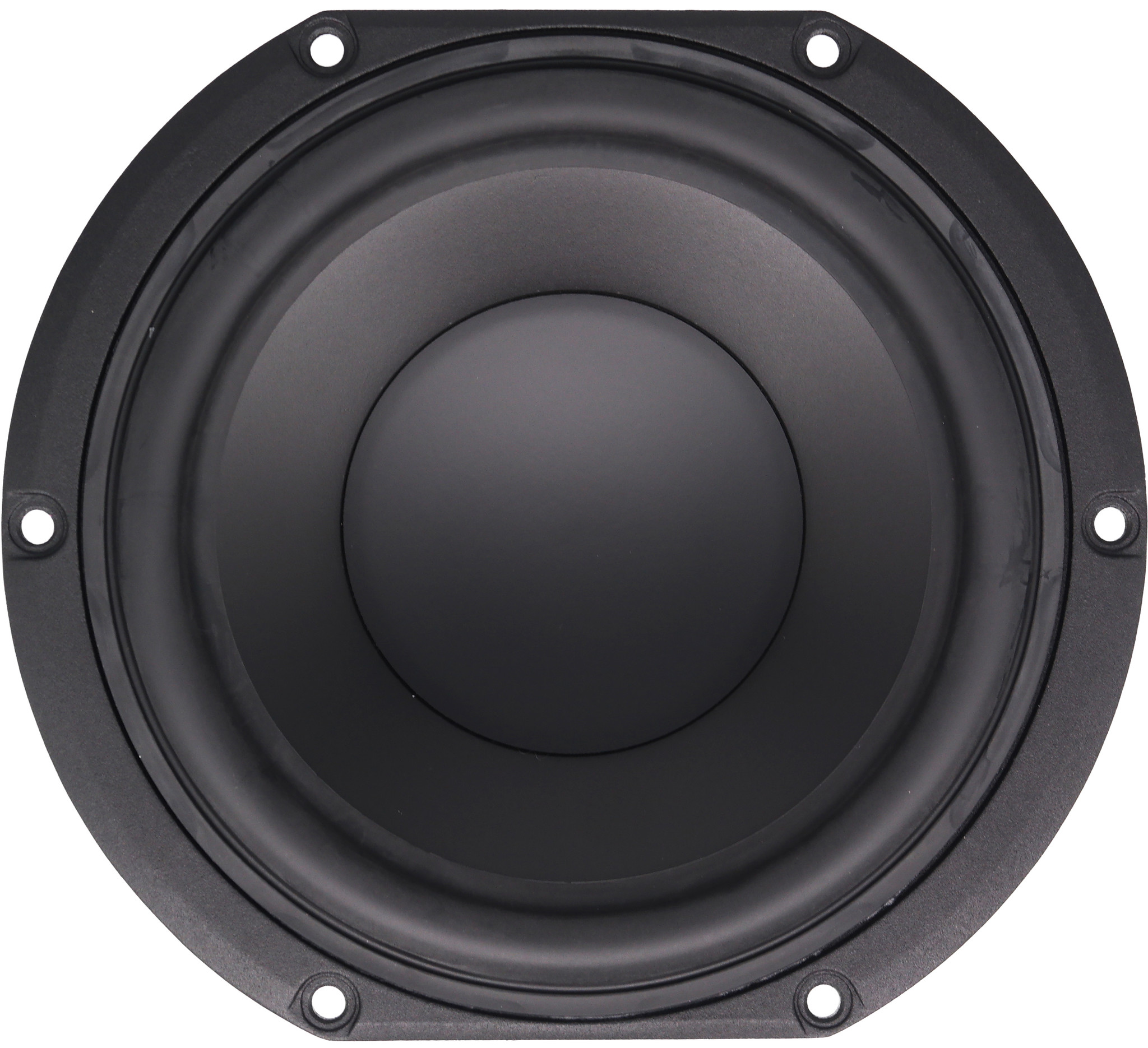

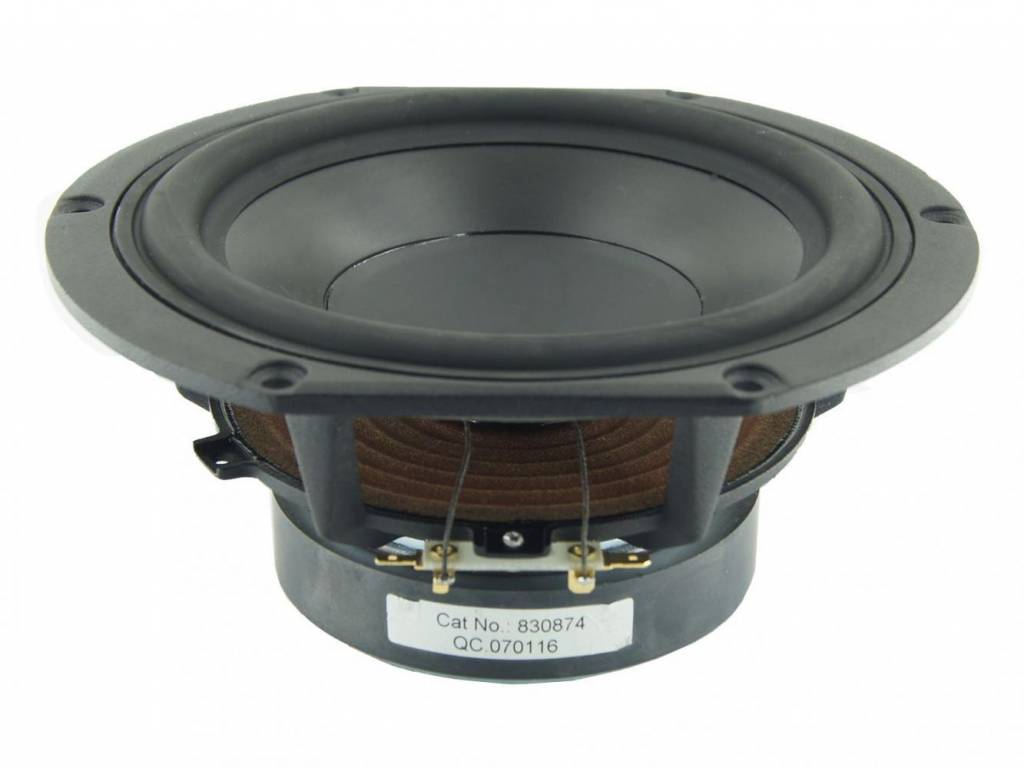

Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer

€ 49,55€ 59,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €56,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments



Highlights

  • Truncated cast aluminum frame
  • PPB polypropylene cone with half-roll rubber surround
  • Long-throw voice coil for high excursion
  • Shorting rings for reduced distortion
  • Under-spider and voice coil ventilation



Product details

Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer



This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is damped black polypropylene, offering a unique visual and acoustic experience.

Eigenschaften

Artikelnummer:
HDS-P830874
Woofer Series
HDS Series
Woofer Type
Midwoofer
Nominal Diameter
6-1/2"
Power Handling (RMS)
50 Watts
Power Handling (max)
100 Watts
Impedance
8 Ohms
Sensitivity
88.5 dB 2.83V/1m
Frequency Response
50 to 4,000Hz
Voice Coil Diameter
1.25"
DC Resistance (Re)
6.5 ohms
Voice Coil Inductance (Le)
0.42 mH
Resonant Frequency (Fs)
58 Hz
Mechanical Q (Qms)
2.3
Electromagnetic Q (Qes)
0.53
Total Q (Qts)
0.43
Diaphragm Mass Inc. Airload (Mms)
17.34g
Mechanical Compliance of Suspension (Cms)
0.43 mm/N
Surface Area of Cone (Sd)
143 cm²
BL Product (BL)
8.82 Tm
Compliance Equivalent Volume (Vas)
0.44 ft.³
Maximum Linear Excursion (Xmax)
5.38 mm
Cone / Diaphragm Material
Poly
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
7.18"
Overall Depth
3.44"
Baffle Cutout Diameter
5.72"
# Mounting Holes
6
Sealed Volume
0.15 ft.³
Sealed F3
101 Hz
Vented Volume
0.45 ft.³
Vented F3
56 Hz
