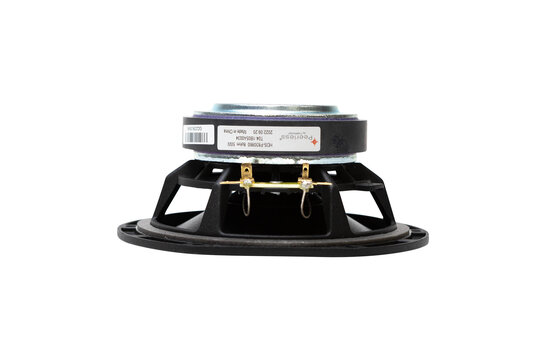

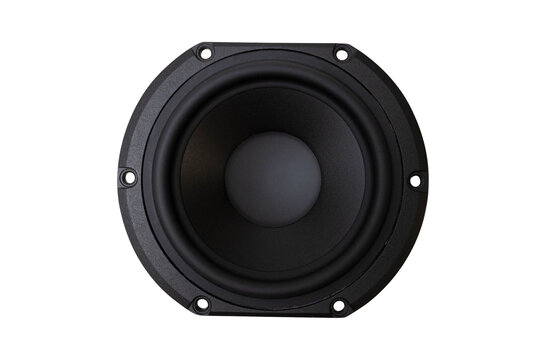

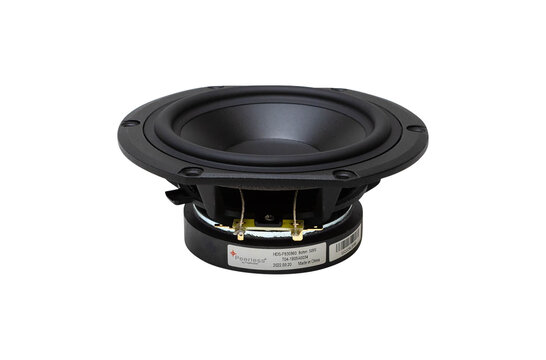

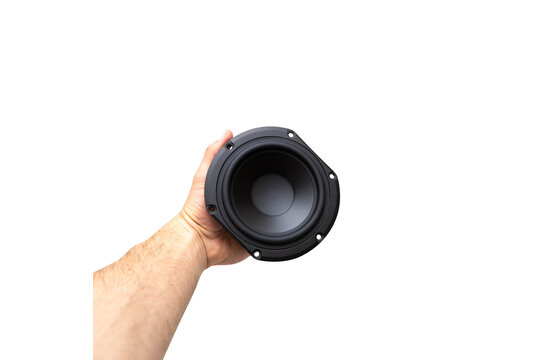

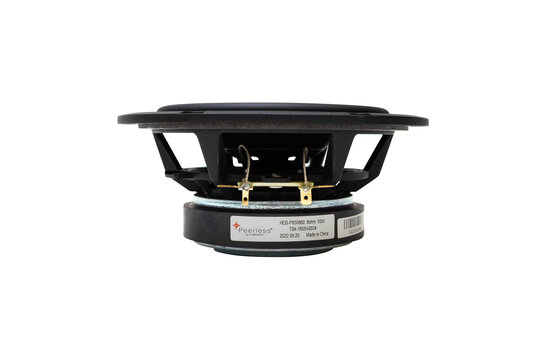

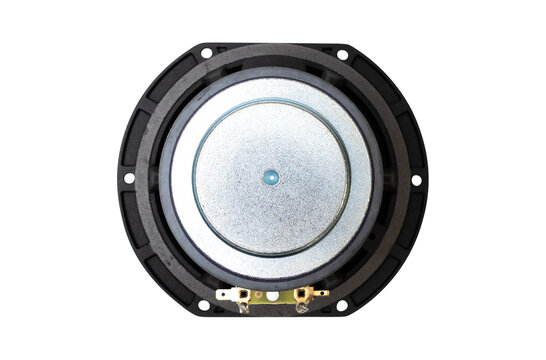

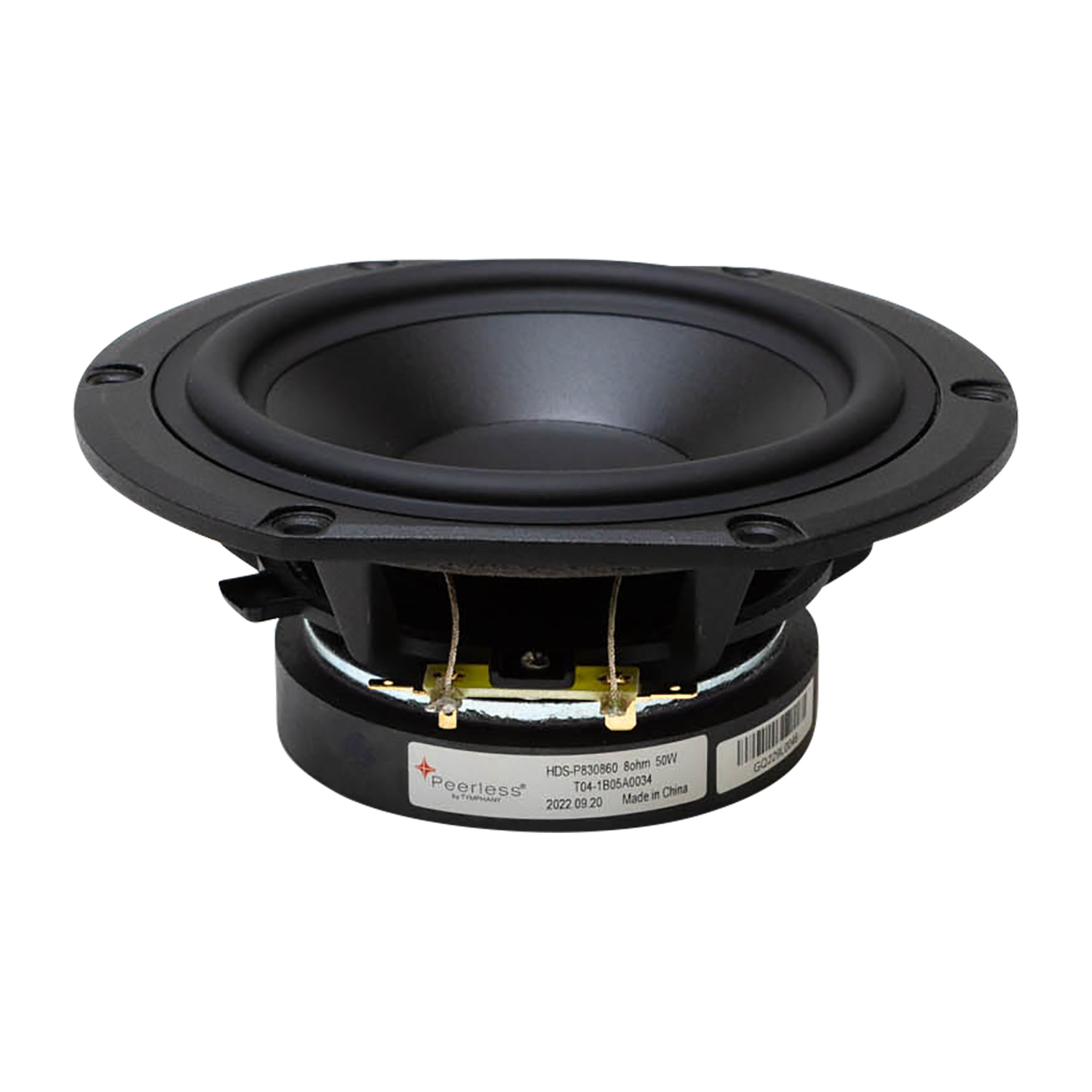

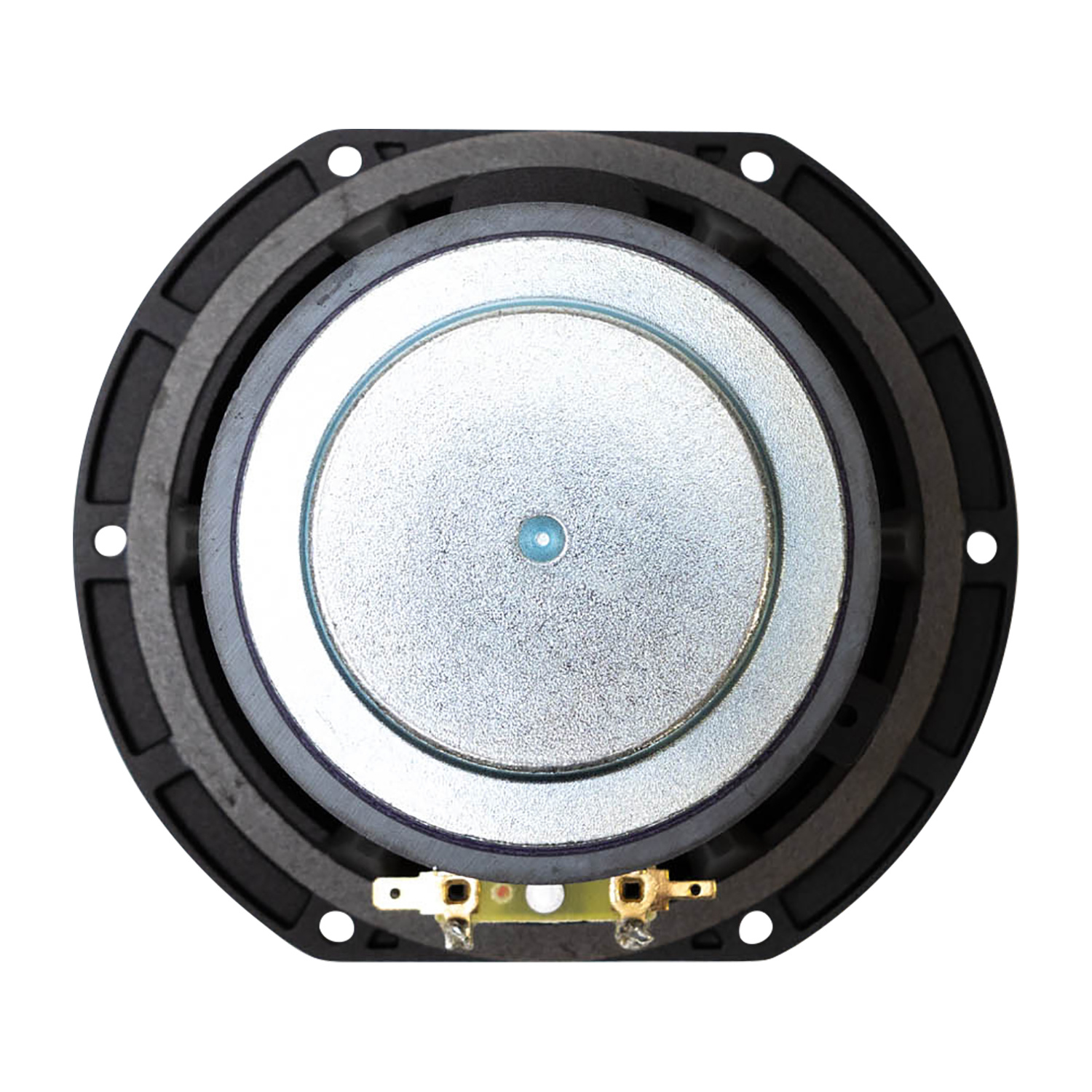

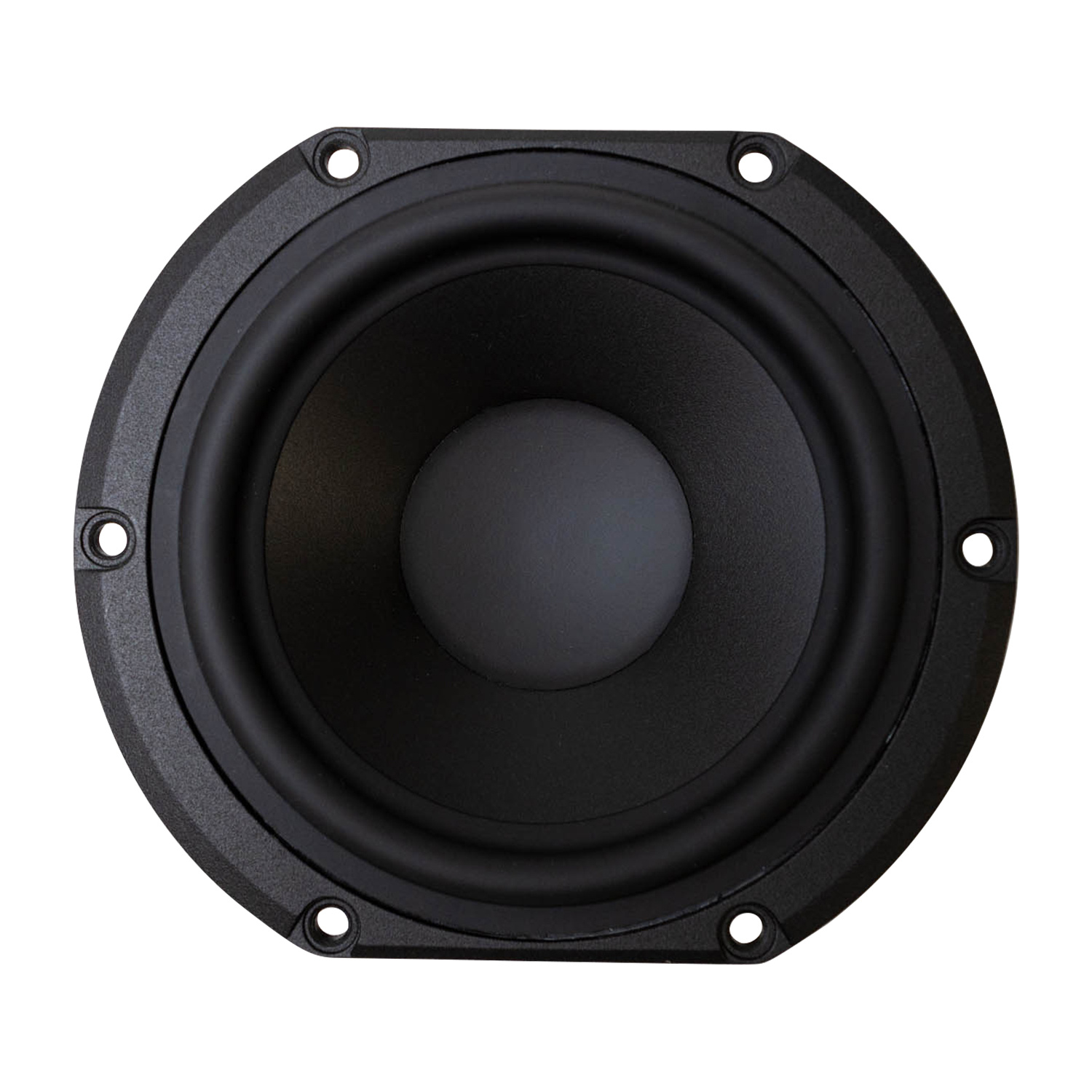

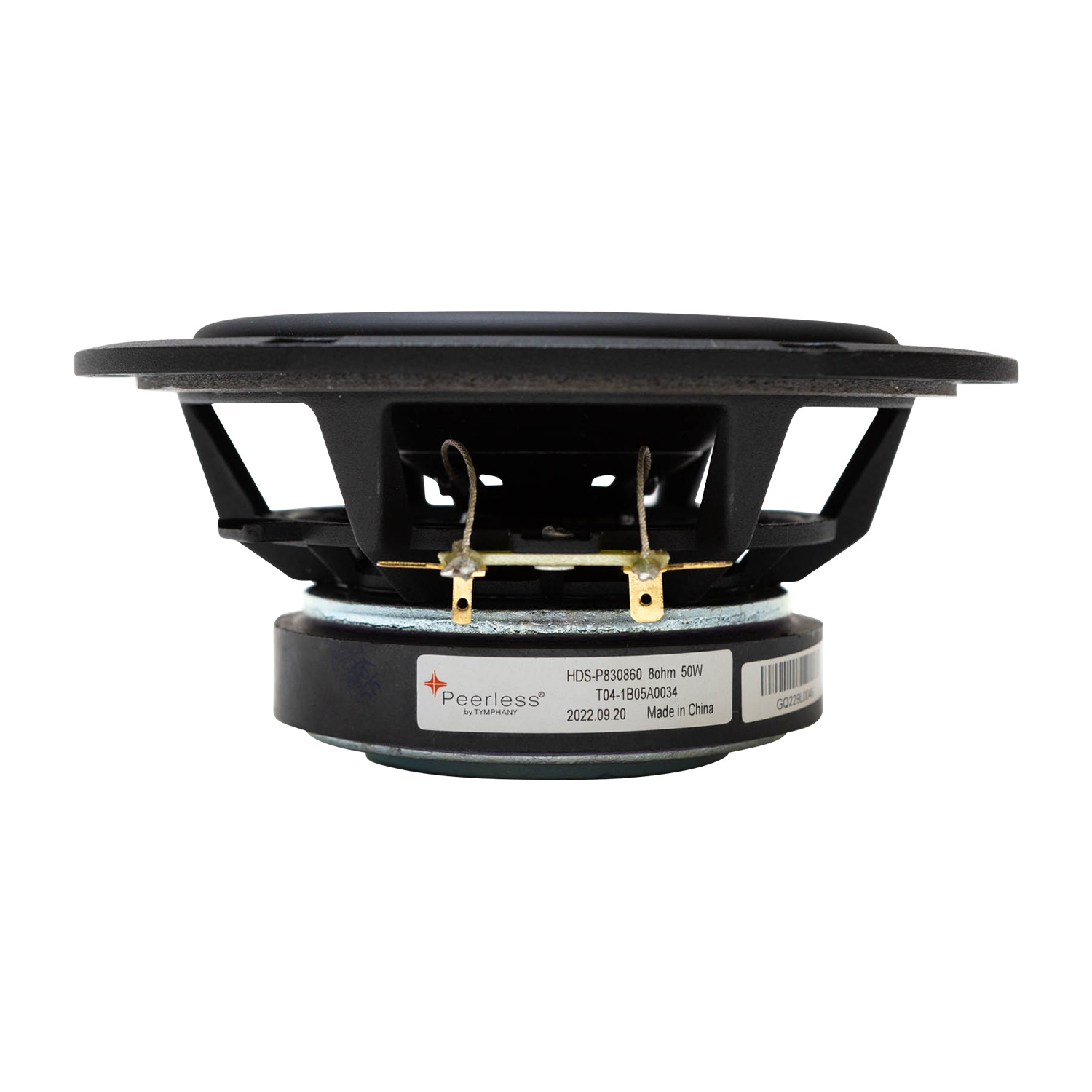

Peerless by Tymphany HDS-P830860 5-1/4" PPB Cone Woofer

€ 49,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €47,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.



Highlights

  • Truncated cast aluminum frame
  • PPB polypropylene cone with half-roll rubber surround
  • Long-throw voice coil
  • Shorting rings for reduced distortion
  • Under-spider and voice coil ventilation



Product details



Peerless by Tymphany 830860 5-1/4" PPB Cone HDS Woofer



The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. Peerless developed the proprietary and highly advanced Polypropylene Black (PPB) cone material used in the HDS PPB Series, creating a stiff but still dampened cone that remains stable even under the greatest sound pressures.

Eigenschaften

Artikelnummer:
HDS-P830860
Woofer Series
HDS Series
Woofer Type
Midwoofer
Nominal Diameter
5-1/4"
Power Handling (RMS)
30 Watts
Power Handling (max)
60 Watts
Impedance
8 Ohms
Sensitivity
85.8 dB 1W/1m
Frequency Response
60 to 5,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
5.9 ohms
Voice Coil Inductance (Le)
0.27 mH
Resonant Frequency (Fs)
62 Hz
Mechanical Q (Qms)
2.21
Electromagnetic Q (Qes)
0.59
Total Q (Qts)
0.47
Diaphragm Mass Inc. Airload (Mms)
9g
Mechanical Compliance of Suspension (Cms)
0.74 mm/N
Surface Area of Cone (Sd)
89.9 cm²
BL Product (BL)
5.9 Tm
Compliance Equivalent Volume (Vas)
0.3 ft.³
Maximum Linear Excursion (Xmax)
3.5 mm
Cone / Diaphragm Material
Poly
Surround Material
Rubber
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
5.99"
Overall Depth
2.76"
Baffle Cutout Diameter
4.72"
# Mounting Holes
6
Sealed Volume
0.1 ft.³
Sealed F3
117 Hz
Vented Volume
0.31 ft.³
Vented F3
64 Hz
