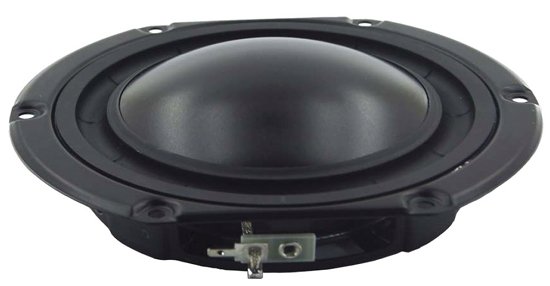

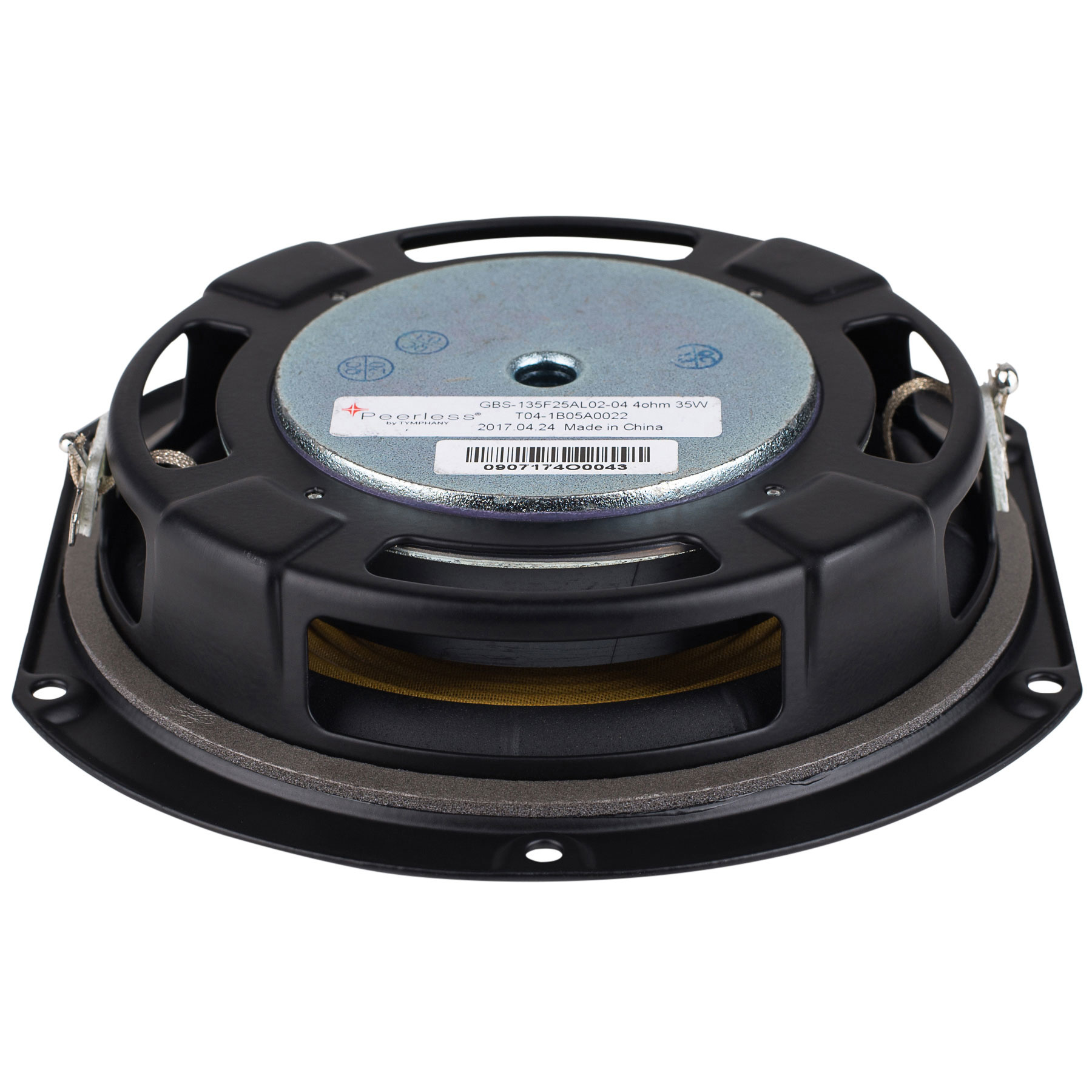

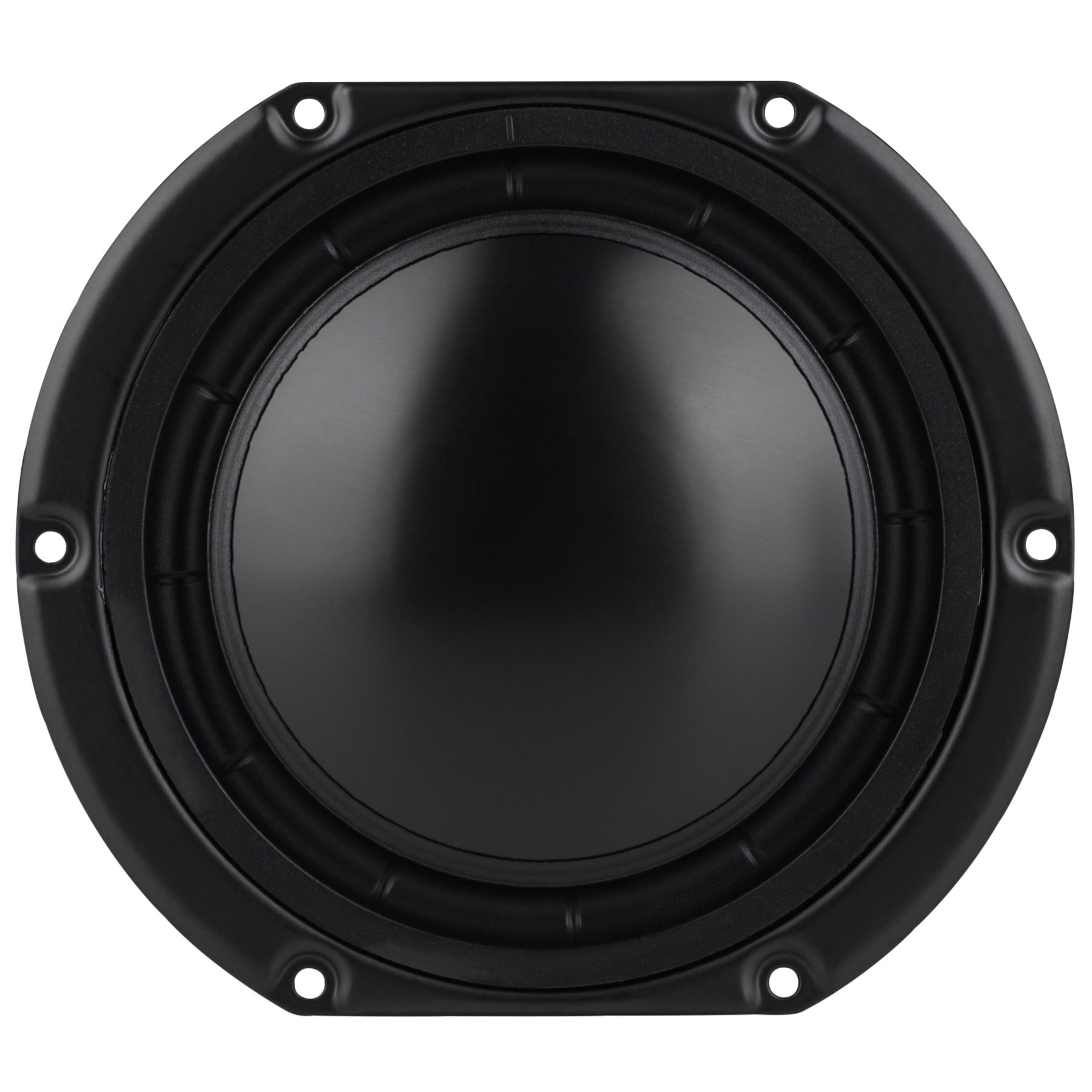

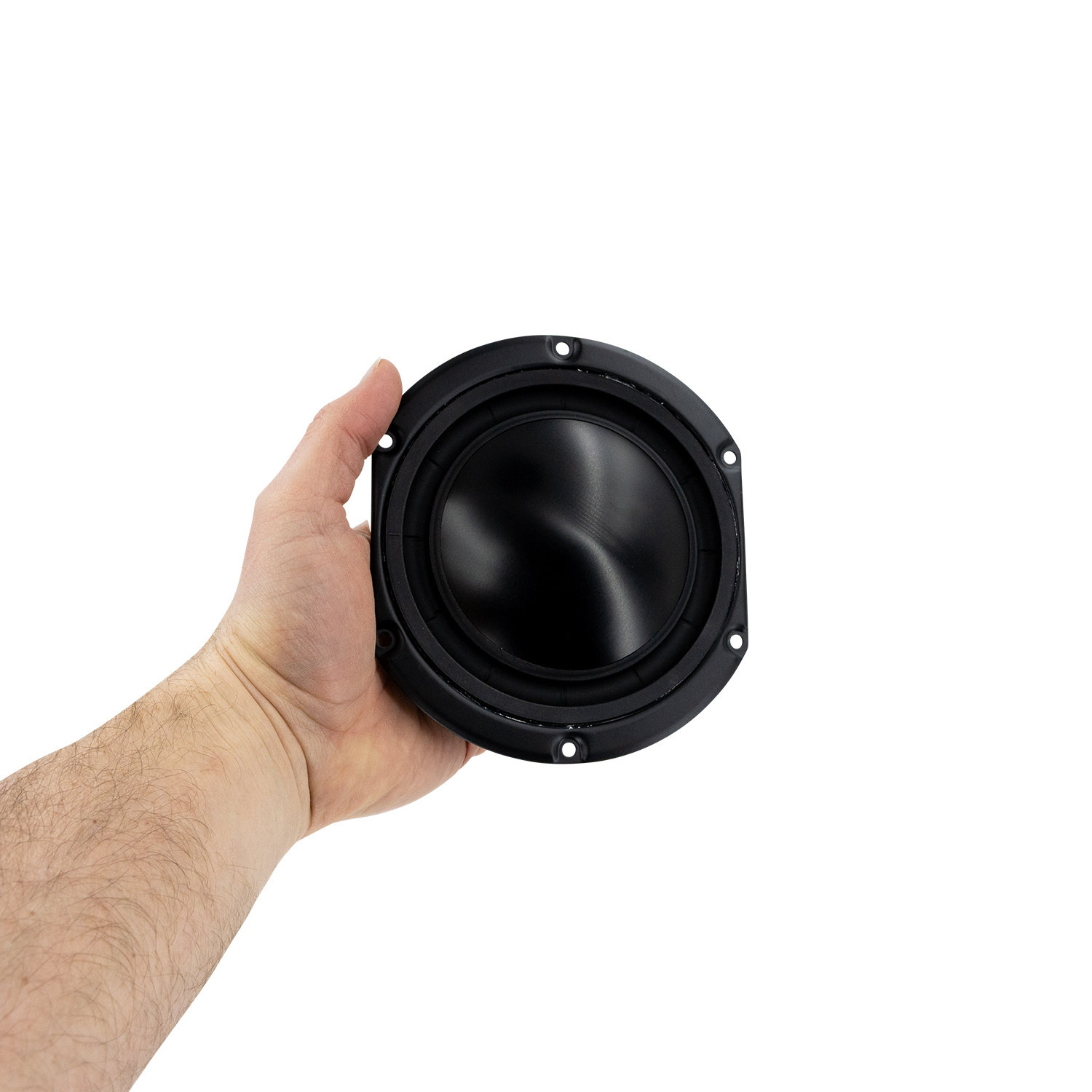

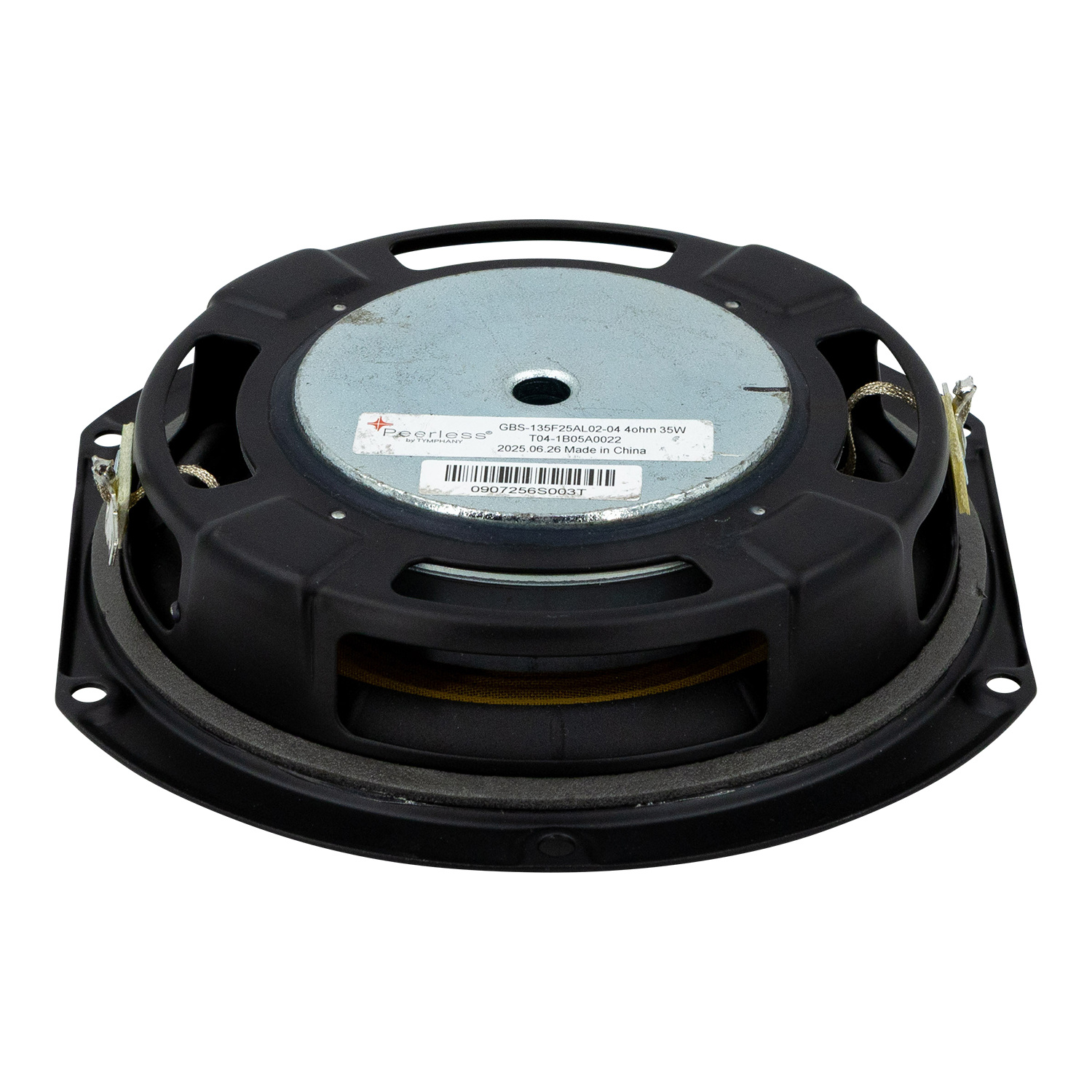

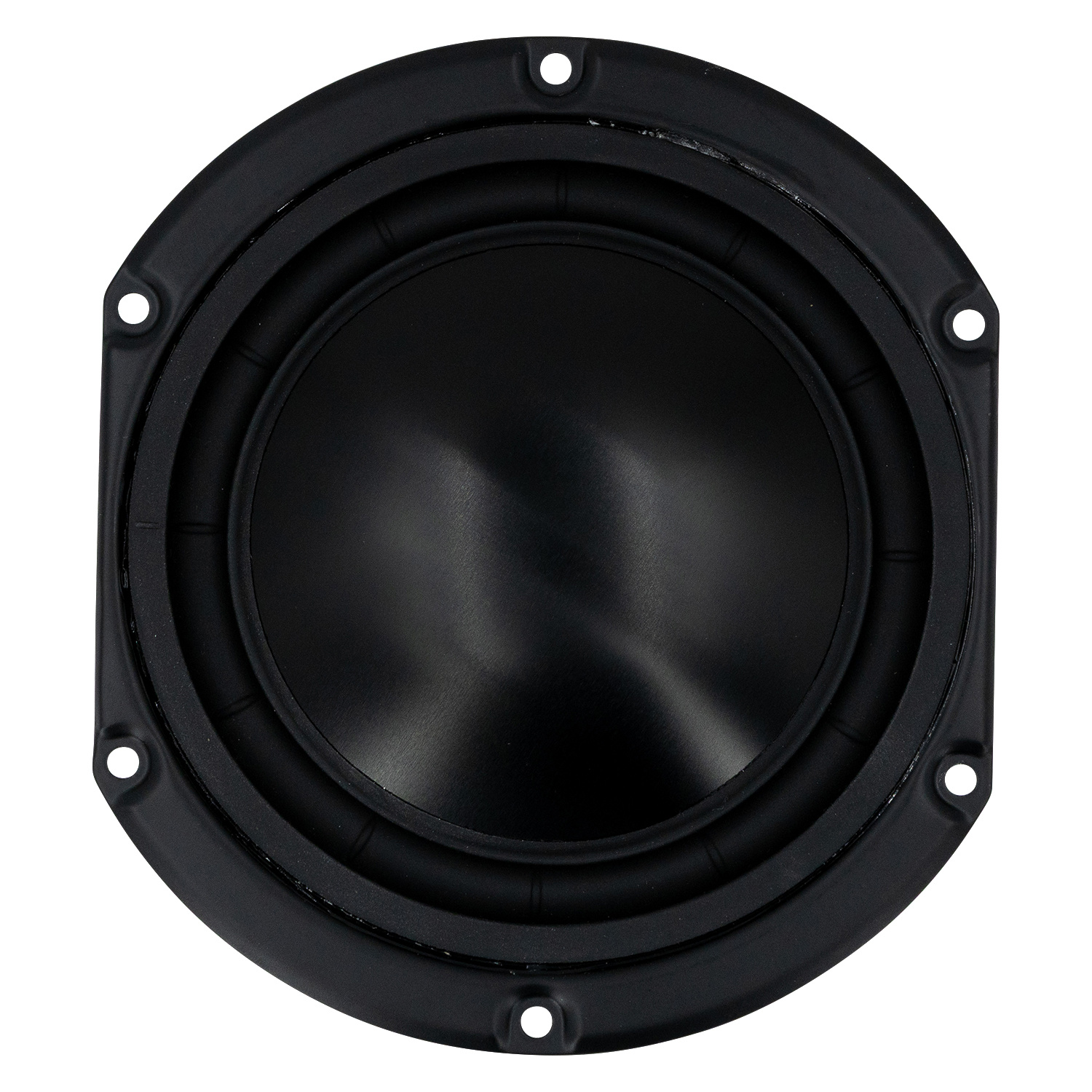

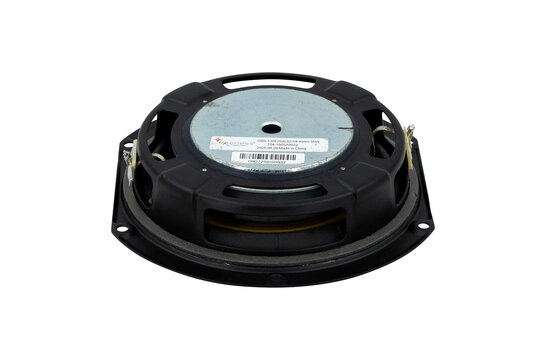

Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer

€ 36,45 4 Auf Lager: Lieferzeit 1-3 Werktage
The low profile GBS-135F25AL02-04 from Peerless can deliver high-end performance even when space is at a minimum. With smooth response up to 3,500 Hz and extremely well controlled dispersion, this unique driver can deliver hi-fi sound from the shallowest... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €34,63 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The low profile GBS-135F25AL02-04 from Peerless can deliver high-end performance even when space is at a minimum. With smooth response up to 3,500 Hz and extremely well controlled dispersion, this unique driver can deliver hi-fi sound from the shallowest designs.



Highlights

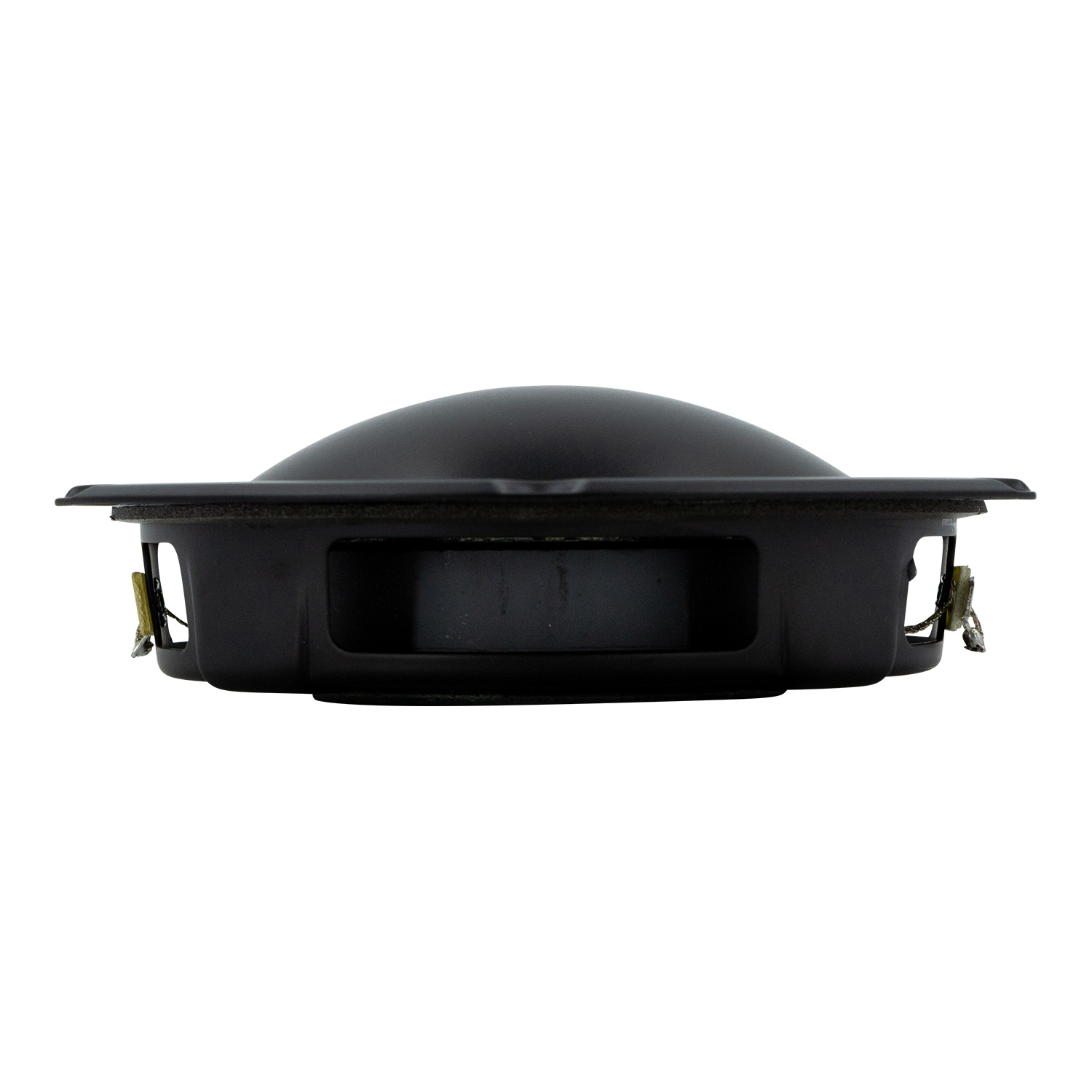

  • Just over 1" mounting depth without sacrificing sound quality
  • Amazing excursion capability for powerful bass response from shallow enclosures
  • Optimized ferrite motor design allows impressive efficiency for a low profile driver
  • Excellent choice for car audio systems where space is at a premium



Product details

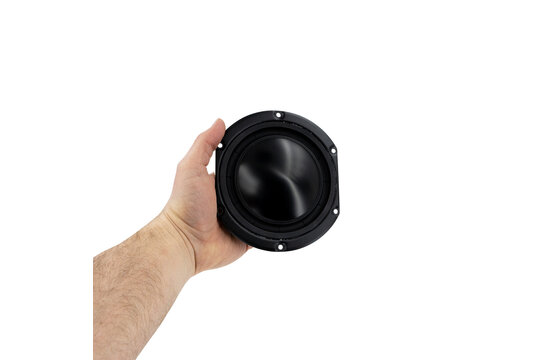

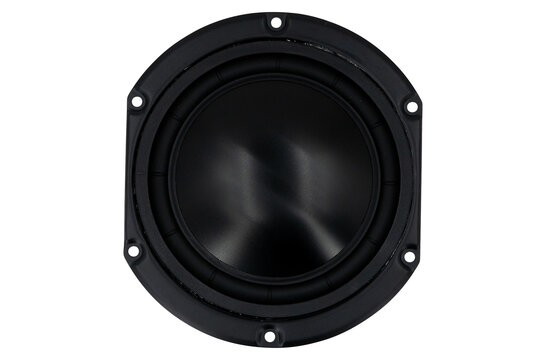

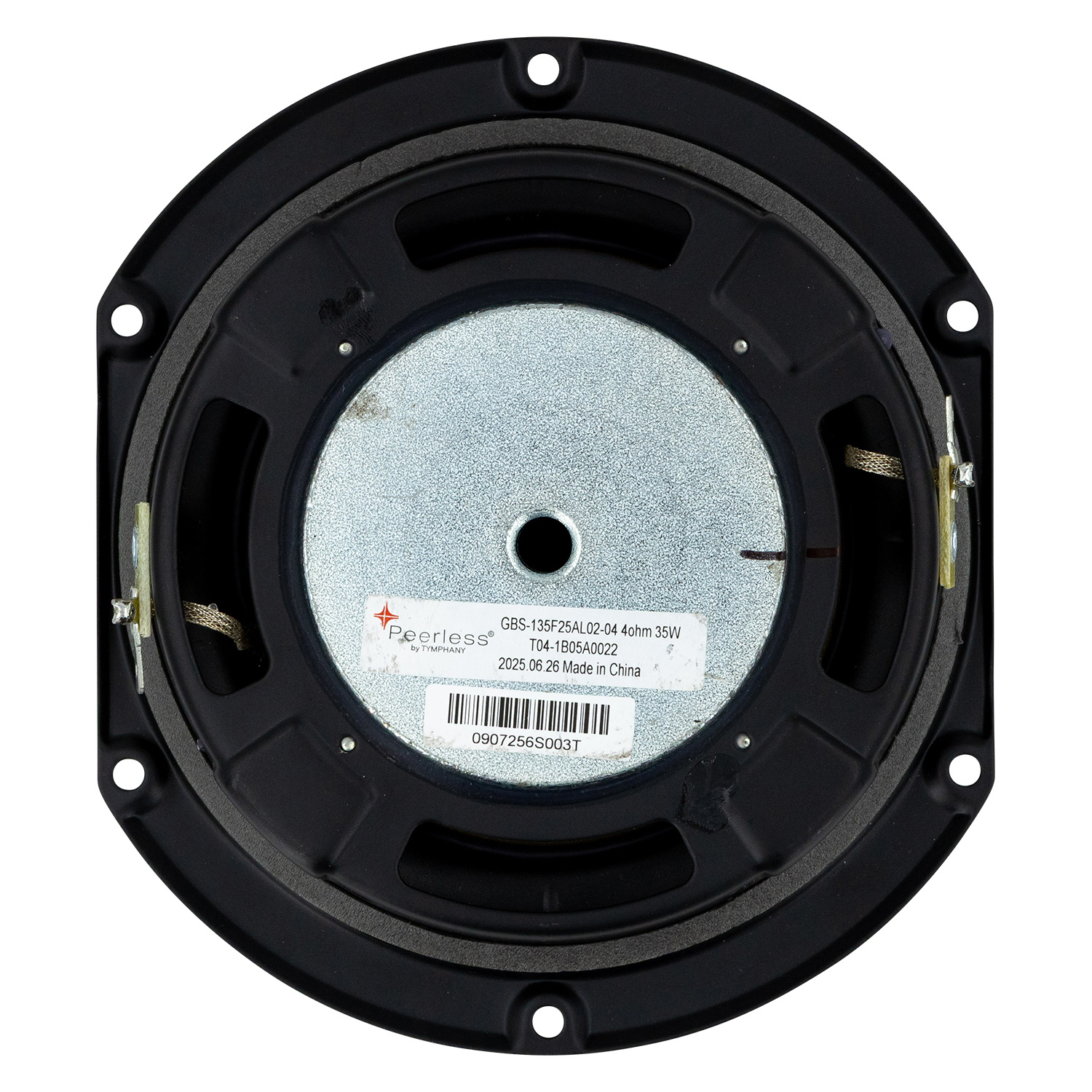

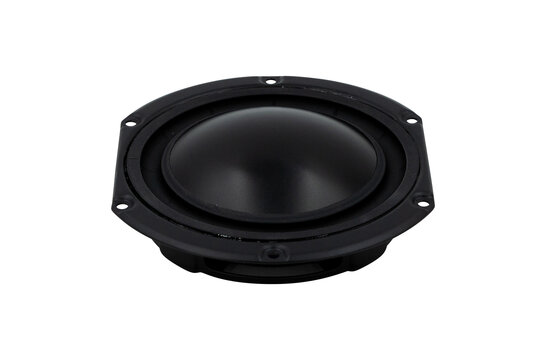

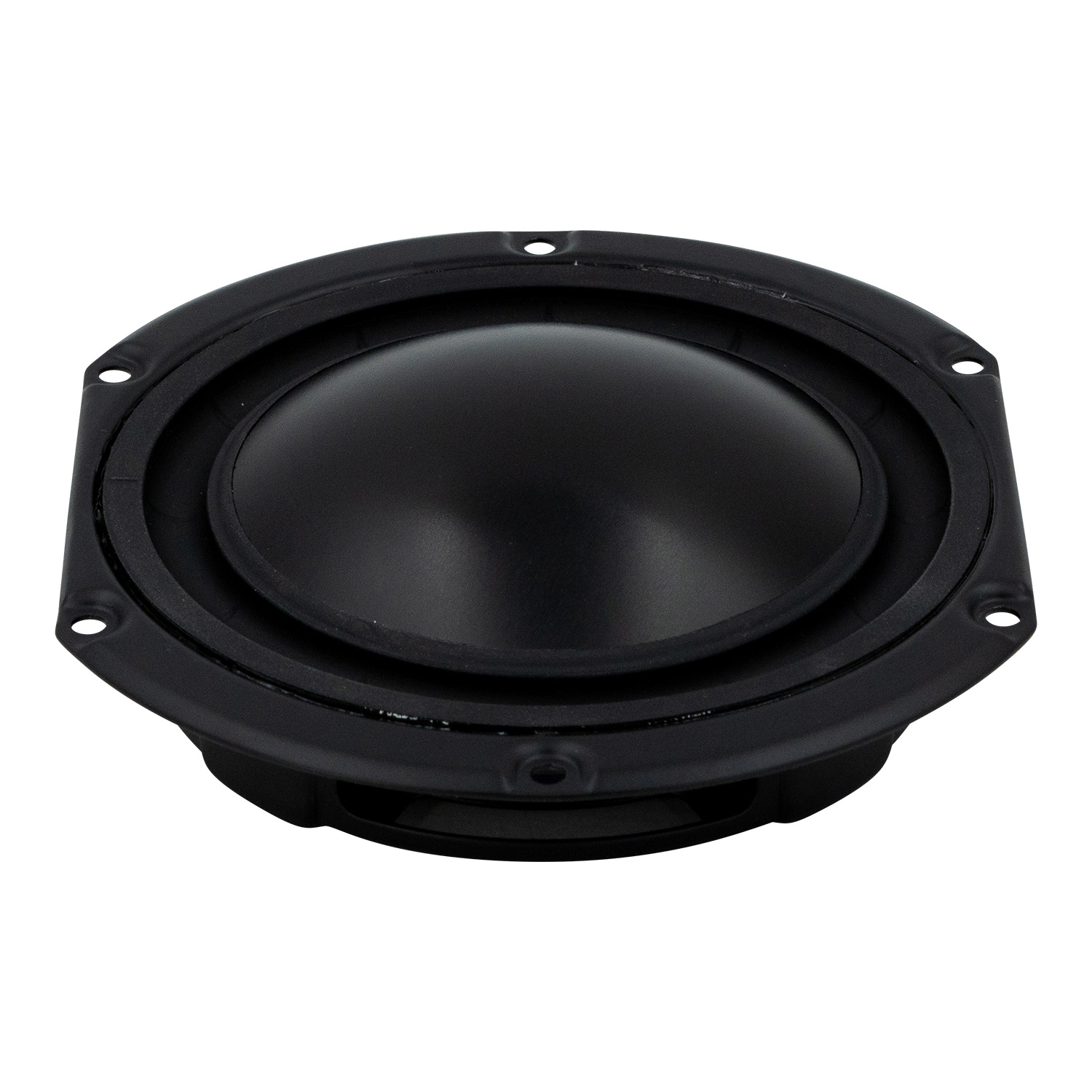

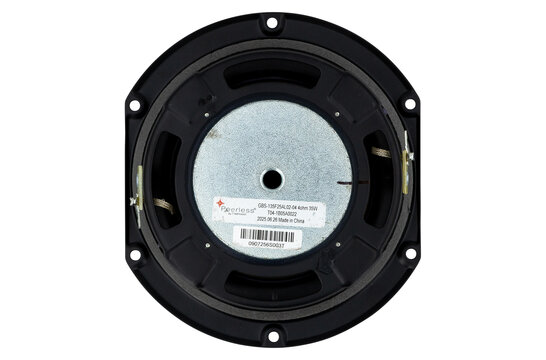

Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Shallow Woofer



The Peerless GBS-135F25AL02-04 5-1/4" 4 ohm woofer provides a very slim profile that is capable of large excursion. An anodized aluminum dome helps to extend the piston bands in the working range to deliver flat response from 55 Hz to 3,500 Hz with remarkable off-axis performance. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.

Eigenschaften

Artikelnummer:
GBS-135F25AL02-04
Woofer Series
GBS Series
Woofer Type
Subwoofer
Nominal Diameter
5-1/4"
Power Handling (RMS)
35 Watts
Power Handling (max)
70 Watts
Impedance
4 ohms
Sensitivity
88.45 dB 1W/1m
Frequency Response
55 to 3,500 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.28 ohms
Voice Coil Inductance (Le)
0.21 mH
Resonant Frequency (Fs)
63 Hz
Mechanical Q (Qms)
4.12
Electromagnetic Q (Qes)
0.66
Total Q (Qts)
0.57
Diaphragm Mass Inc. Airload (Mms)
12.3g
Surface Area of Cone (Sd)
85.22 cm²
BL Product (BL)
4.92 Tm
Compliance Equivalent Volume (Vas)
0.189 ft.³
Maximum Linear Excursion (Xmax)
3.3 mm
Cone / Diaphragm Material
Aluminum
Surround Material
Rubber
Basket / Frame Material
RubberSteel
Magnet Material
Ferrite
Overall Outside Diameter
6" across flats: 5,25”
Overall Depth
1.07"
Baffle Cutout Diameter
4.68"
# Mounting Holes
6
Sealed Volume
0.14 ft.³
Vented Volume
0.376 ft.³
Vented F3
46 Hz

Bewertungen

4 from 5Based on 3 reviews
Produkt bewerten
3 van 5
Das Design ist nicht gerade Handwerker Tauglich aber Klang und Impulsverhalten idt Super.Ich hätte sie gerne Mit Komplettem Aussenring,da sie so auch für hobby Bauer ein Erreichbares Ziel ohne Profiwerkzeuge wären
Durch Peter B. on 21 Oktober 2020
3 van 5
Small, flat, much speaker for the money. One drawback: soldering terminals too large/badly placed, get's in the the way when you try to mount the speaker in a correctly dimensioned cutout. Will write to Peerles/Tymphany about this.
Durch Lennart J. on 12 Oktober 2020
