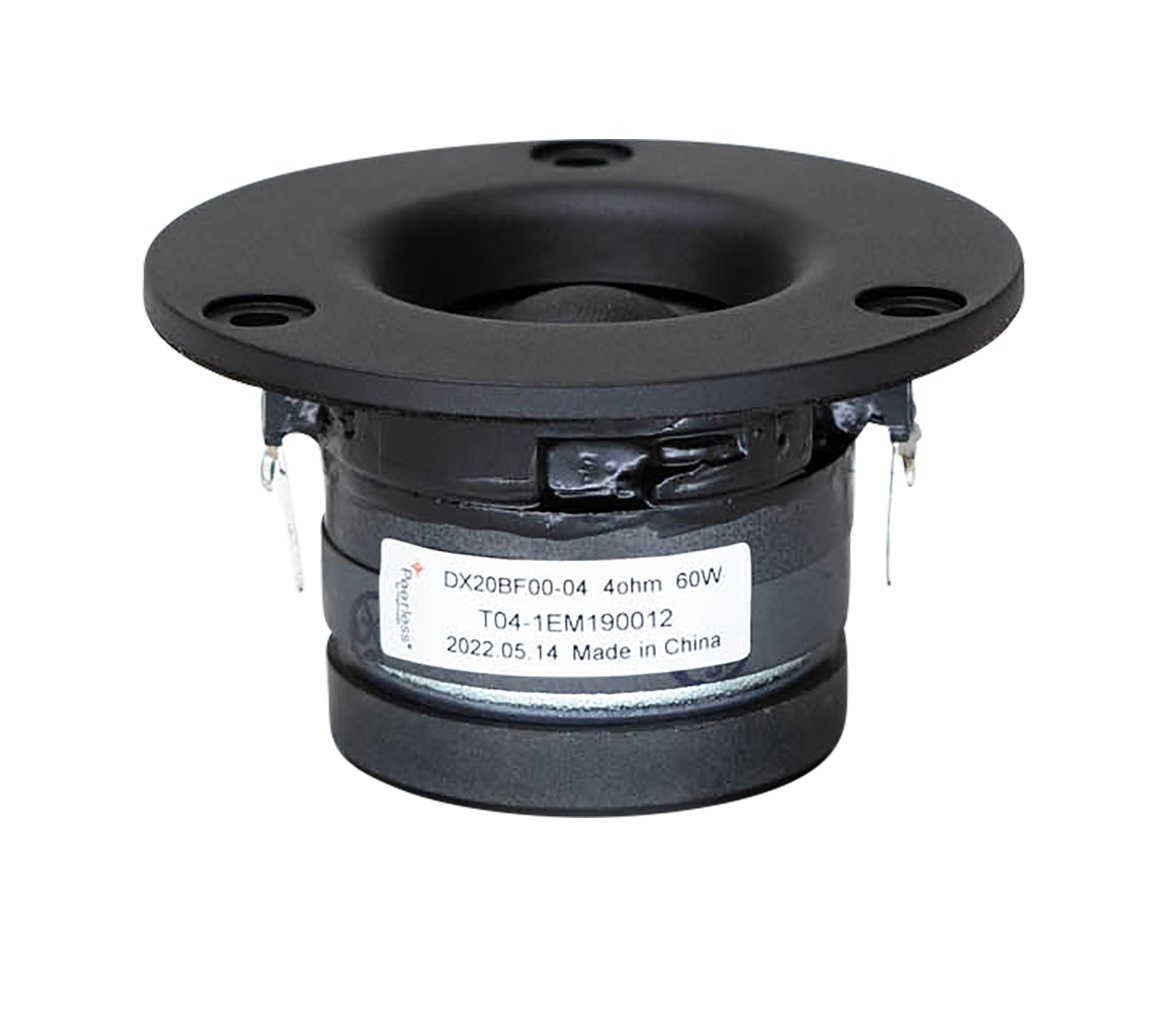

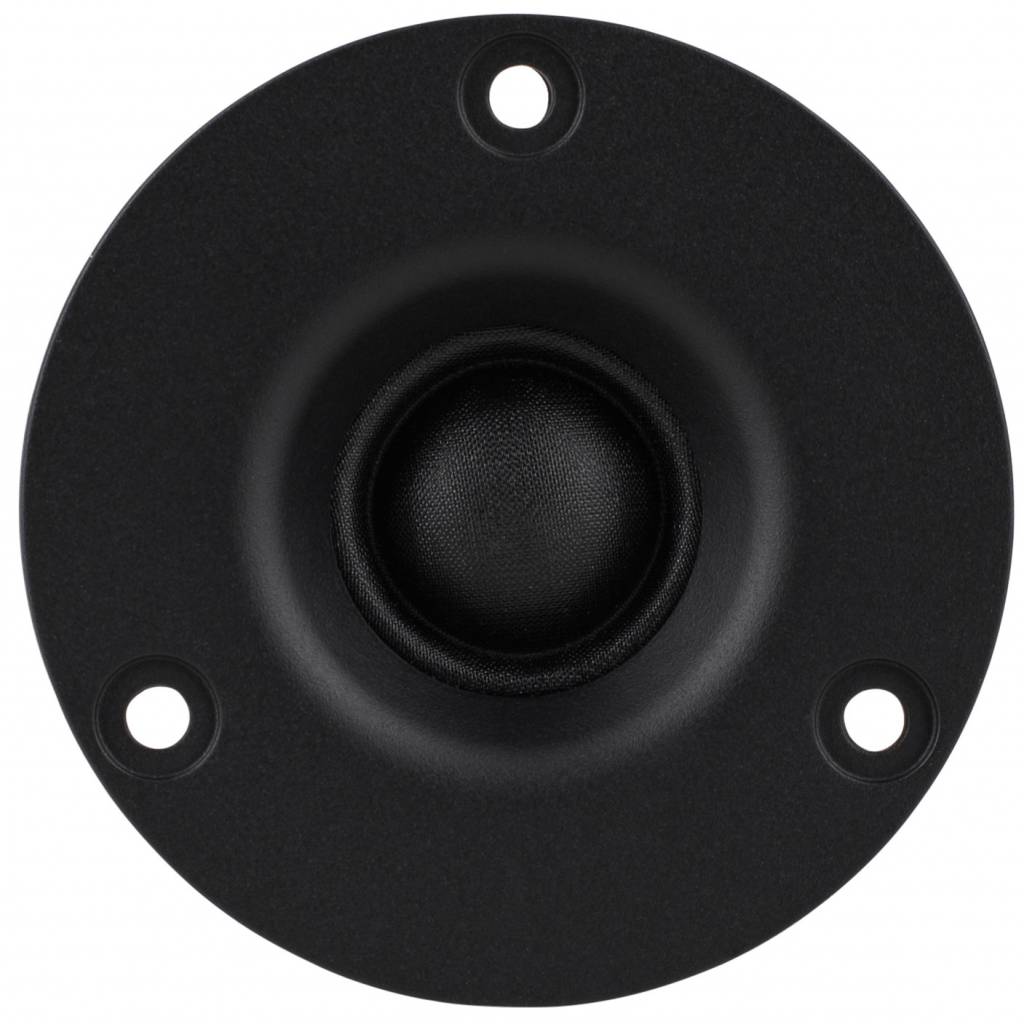

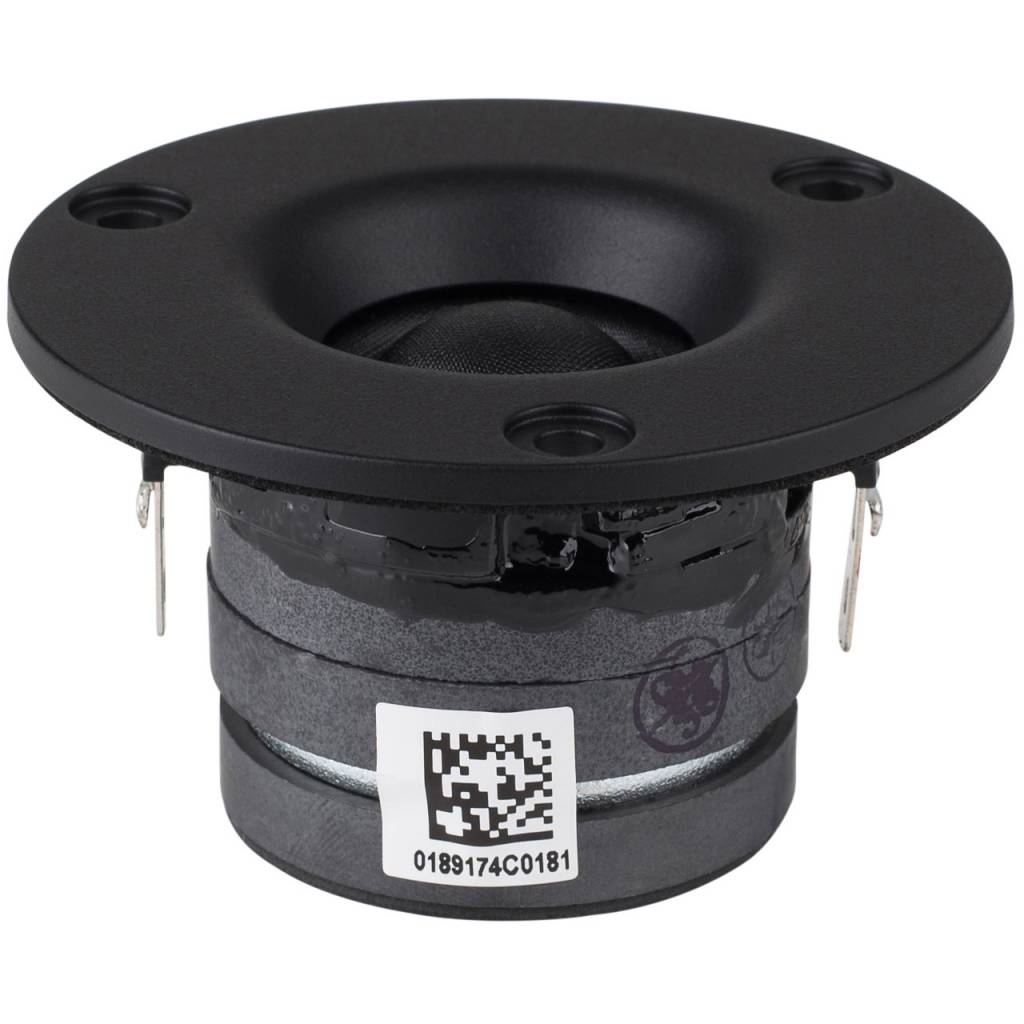

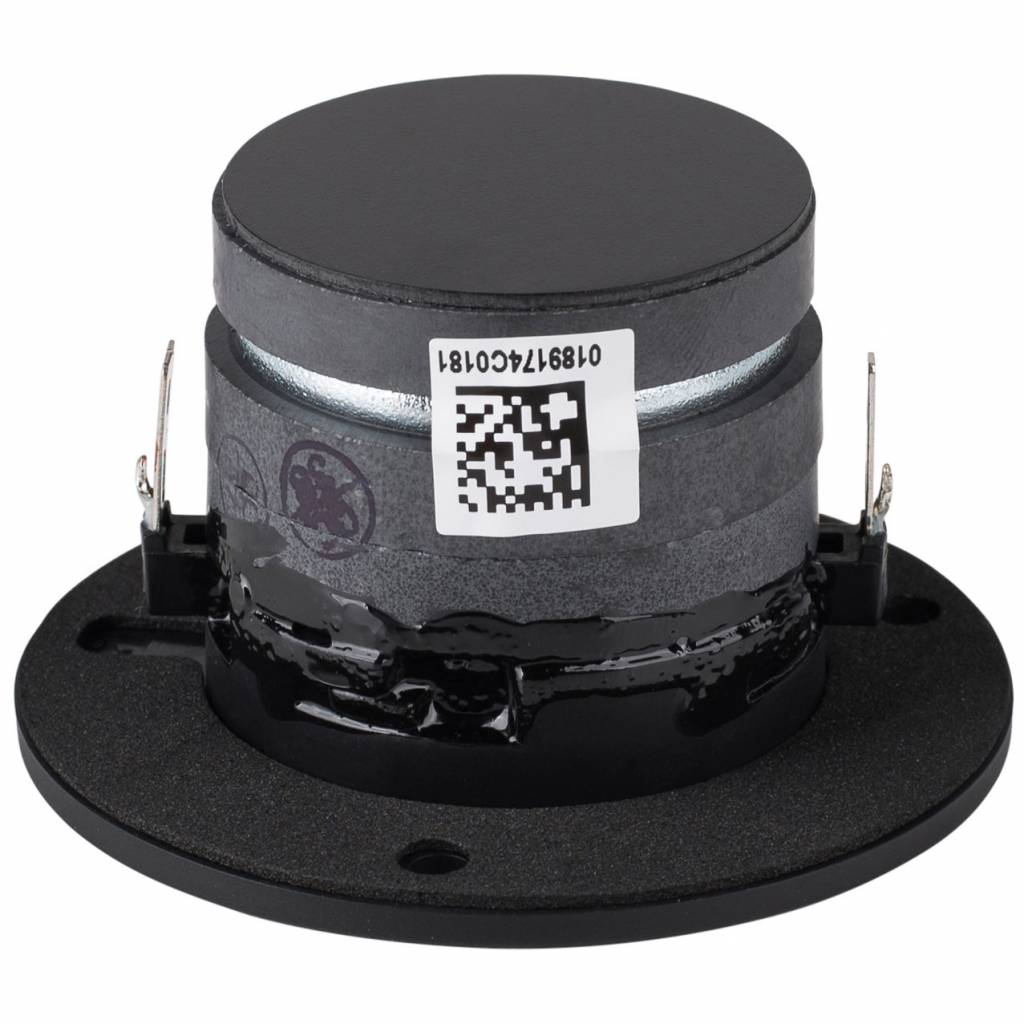

Peerless by Tymphany DX20BF00-04 3/4" Silk Dome Tweeter

€ 16,95 5 Auf Lager: Lieferzeit 1-3 Werktage
The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choi... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €16,10 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choice for smaller 2-way designs and car audio systems.



Highlights

  • Triple ferrite motor improves power handling over similar neodymium designs
  • Extremely flat response from 1,500 Hz to 20,000 Hz up to 30° off axis
  • The deep magnet design creates a large resonant chamber for a lower Fs
  • Semi horn loading the dome improves efficiency and controls dispersion



Product details

Peerless by Tymphany DX20BF00-04 3/4" Silk Dome Tweeter



This DX family tweeter features a 19mm 4 ohm voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.

Eigenschaften

Artikelnummer:
DX20BF00-04
Tweeter Type
Soft Dome
Tweeter Series
DX Series
Cone / Dome Diameter
3/4"
Power Handling (RMS)
60 Watts
Impedance
4 ohms
Sensitivity
86.9 dB 1W/1m
Frequency Response
2500 to 20,000 Hz
Resonant Frequency (Fs)
824 Hz
DC Resistance (Re)
2.81 ohms
Voice Coil Inductance (Le)
0.01 mH
Mechanical Q (Qms)
2.24
Electromagnetic Q (Qes)
2.93
Total Q (Qts)
1.27
Overall Outside Diameter
2.6”
Cutout Diameter
1.91”
Depth
1.38"

Bewertungen

5 from 5Based on 3 reviews
Produkt bewerten
5 van 5
No description was given
Durch FRANCISCO R. on 14 Dezember 2019
5 van 5
I bought them as a replacement for a pair of M800 Grundig. I have another pair of Canton Quintos' and now the Grundigs sound as well if not better with these tweeters. Very well balanced and detailed sound, without beeing too pitchy or too bright. I didn't modify the crossover and I don't think it is needed. Very good product for this price! And they are ferrofluid cooled :)
Durch Marius on 19 November 2018
