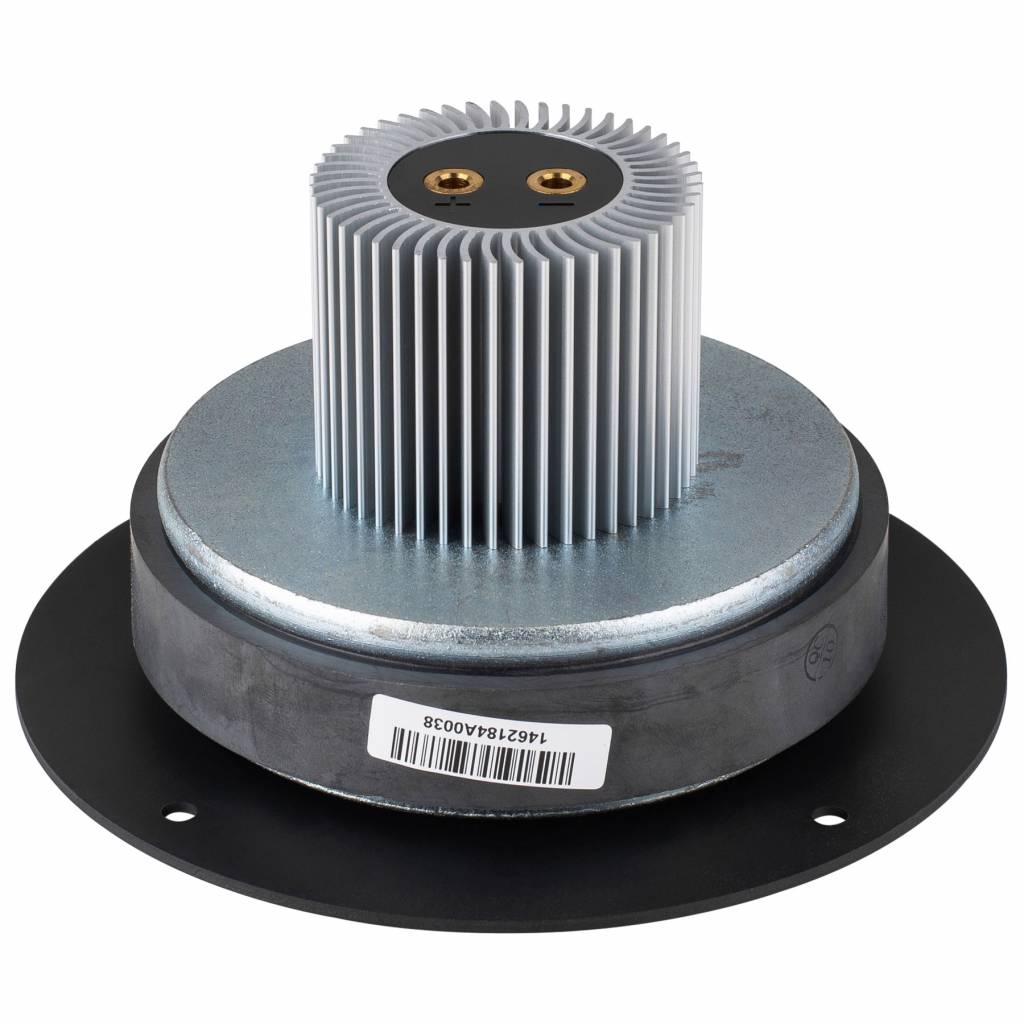

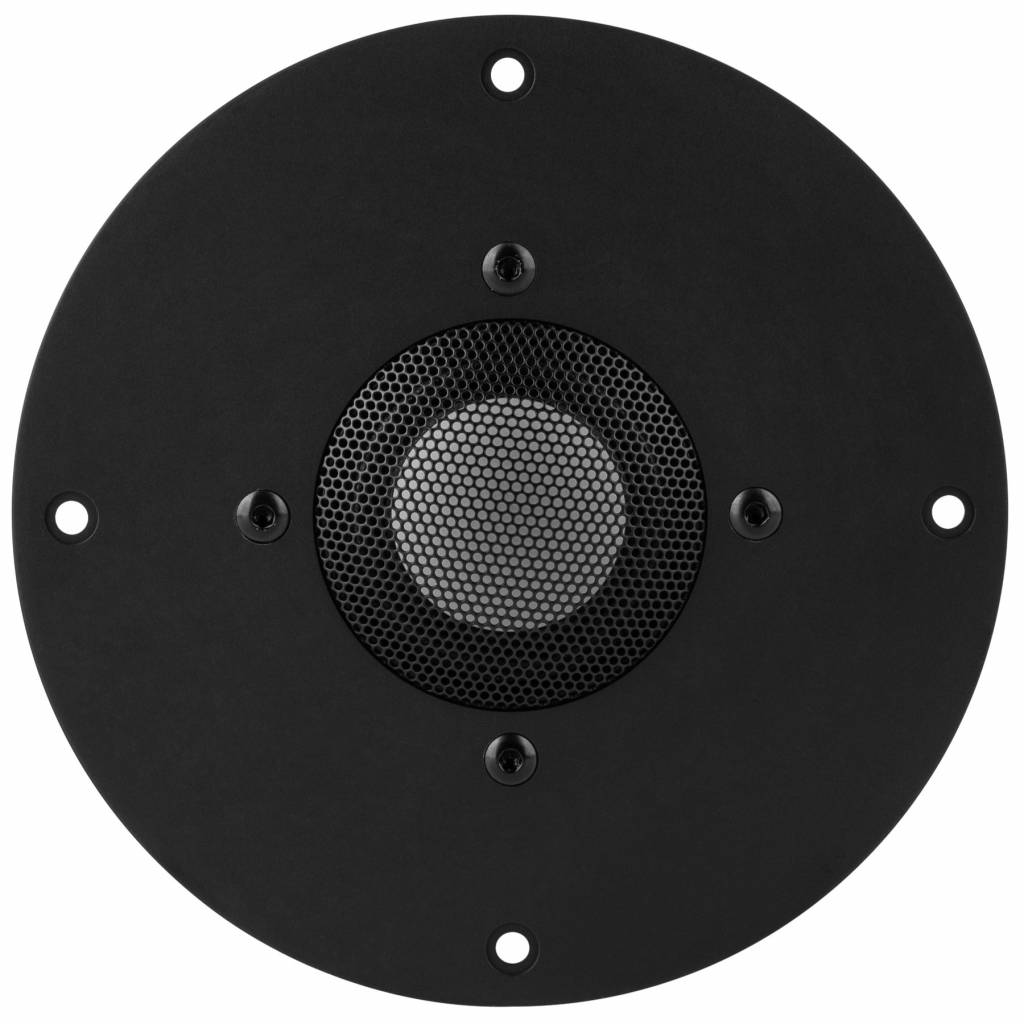

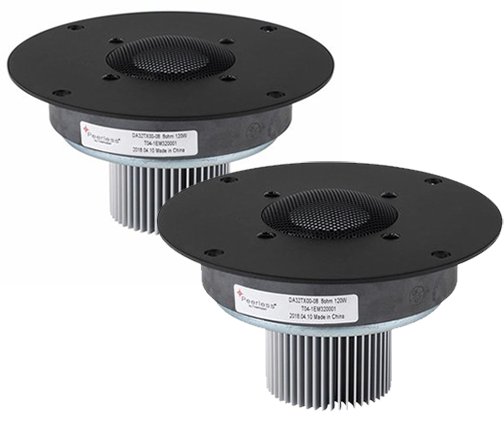

Peerless by Tymphany DA32TX00-08 1-1/4" Corondum Dome Tweeter Matched Pair

€ 174,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
Built for industry leading performance, the Peerless DA32TX-08 1-1/4" corundum dome tweeter delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies whil... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €166,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Peerless DA32TX-08 1-1/4" corundum dome tweeter, built for industry leading performance, delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies while producing minimal distortion. In addition, the on and off-axis response is so smooth this tweeter will be right at home in any reference quality system.



Highlights

  • Large 1-1/4" dome and a hughe excursion of 1mm makes a low crossover frequency possible
  • Corondum dome material for ultimate resolution
  • Low Fs of 498 Hz can accommodate crossovers as low as 1,400 Hz
  • Includes foam gasket to ensure a good seal to your enclosure
  • High-strength Ferrit motor with a large aluminium heatsink



Product details

Peerless DA32TX00-08 1-1/4" Corondum Dome Tweeter Matched Pair



Peerless designed the DA32TX00-08 1-1/4" corundum dome tweeters for both hi-fi and professional applications. With their unique material and design enhancements, these tweeters are built for industry-leading performance and reliability. Corundum, one of natured hardest substances (9 out of 10 on the MOHS hardness scale), is extremely rigid with excellent damping which pushes any dome resonance well outside of the audible range keeping frequency response flat to 22,000 Hz and beyond. The DA32TX00-08 incorporates a unique rear chamber that lowers the resonant frequency and serves as a heatsink for improved power handling and negligible power compression. The massive FEA optimized underhung motor assembly provides incredible control for impressive dynamics, and includes a thick copper cap on the pole piece for lower inductance with minimal distortion. In addition, the optional metal grill (held in place magnetically) protects the fragile dome from foreign objects and curious fingers. Capable of handling crossover frequencies as low as 1,200 Hz, the DA32TX00-08 will present outstanding performance in almost any 2 or 3-way speaker designs.



Specifications: Maximum Linear Excursion (Xmax): 1 mm • Surface Area of Cone (Sd): 12 cm2 • Diaphragm Mass Inc. Airload (Mms): 0.5 g

Eigenschaften

Artikelnummer:
DA32TX00-08
Tweeter Type
Dome
Cone / Dome Diameter
1-1/8"
Power Handling (RMS)
120 Watts
Impedance
8 ohms
Sensitivity
89.8 dB 1W/1m
Frequency Response
1,400 to 40,000 Hz
Resonant Frequency (Fs)
498 Hz
DC Resistance (Re)
6.8 ohms
Voice Coil Inductance (Le)
0.02 mH
Mechanical Q (Qms)
2.43
Electromagnetic Q (Qes)
0.72
Total Q (Qts)
0.56
Overall Outside Diameter
5.2"
Cutout Diameter
4.57"
Depth
2.72"

Bewertungen

5 from 5Based on 4 reviews
Produkt bewerten
5 van 5
My existing Visaton MHT 12 tweeters were sounding harsh in my diy speakers (I suspect they were struggling with being crossed over at 3500hz + had higher sensitivity than the rest of the drivers). DA32TX00 made an instant improvement to the sound - the overall presentation is more natural and (unexpectedly) the bass is now more extended and the sound fuller (I suspect that these are a better match for my off the shelf crossover and Satori drivers compared to Visatons, which were great, but dominated the sound signature due to their high sensitivity). If you like neutral to warm tweeters then these will serve you well (if you like dry, analytical tweeters, then go for Visatons).
Durch Davor on 21 Dezember 2020
5 van 5
Sehr gute Hochtöner !! Sie geben Ratschläge trotz der geringen Effizienz, die ich empfehle !!!
Durch Dariusz R. on 13 Juni 2020
