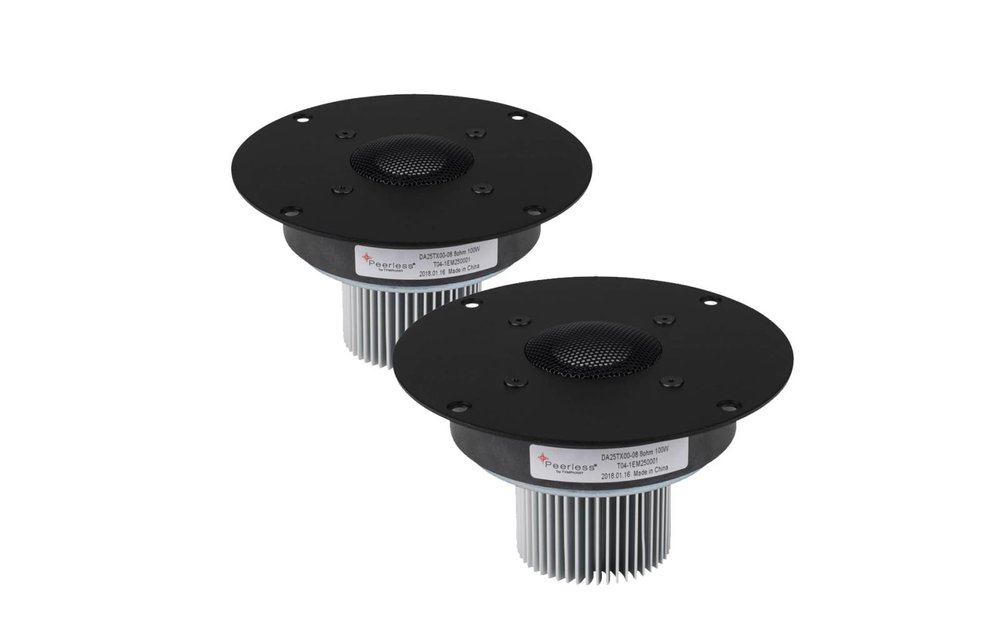

Peerless by Tymphany DA25TX00-08 1" Corundum Dome Tweeter Matched Pair

€ 139,95 2 Auf Lager: Lieferzeit 1-3 Werktage
Built for industry leading performance, the Peerless DA25TX-08 1" corundum dome tweeter delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies while pr... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €132,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Built for industry leading performance, the Peerless DA25TX-08 1" corundum dome tweeter delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies while producing minimal distortion. In addition, the on and off-axis response is so smooth this tweeter will be right at home in any reference quality system.



Highlights

  • Remarkably flat response from 1,000 thru 20,000 Hz (± 1.5 dB)
  • Large copper cap lowers inductance and minimizes distortion
  • Underhung copper voice coil on a vented aluminum former with ample excursion capability
  • Deep rear chamber with integrated heatsink for low Fs and high power handling
  • Corundum dome is extremely rigid with excellent damping
  • Huge motor assembly provides excellent control and high efficiency
  • Sold as matched pair



Product details

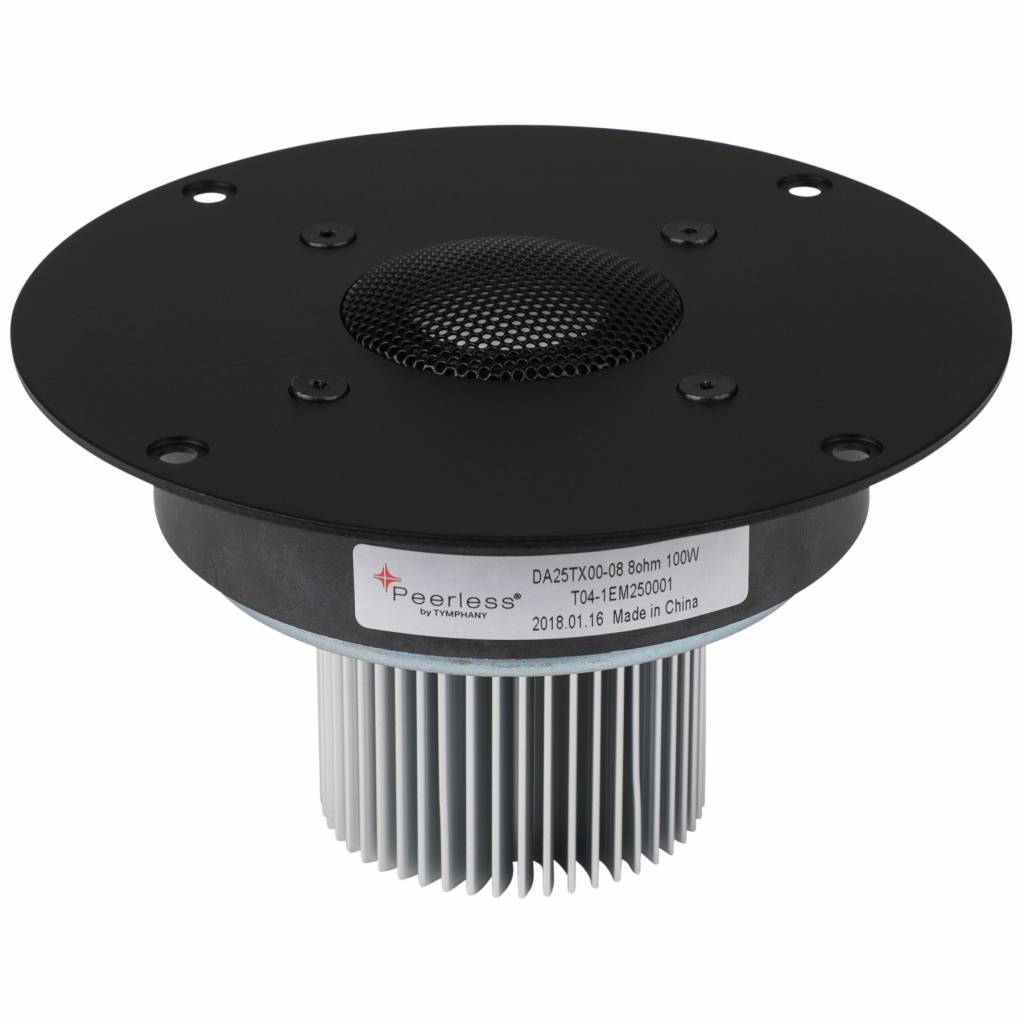

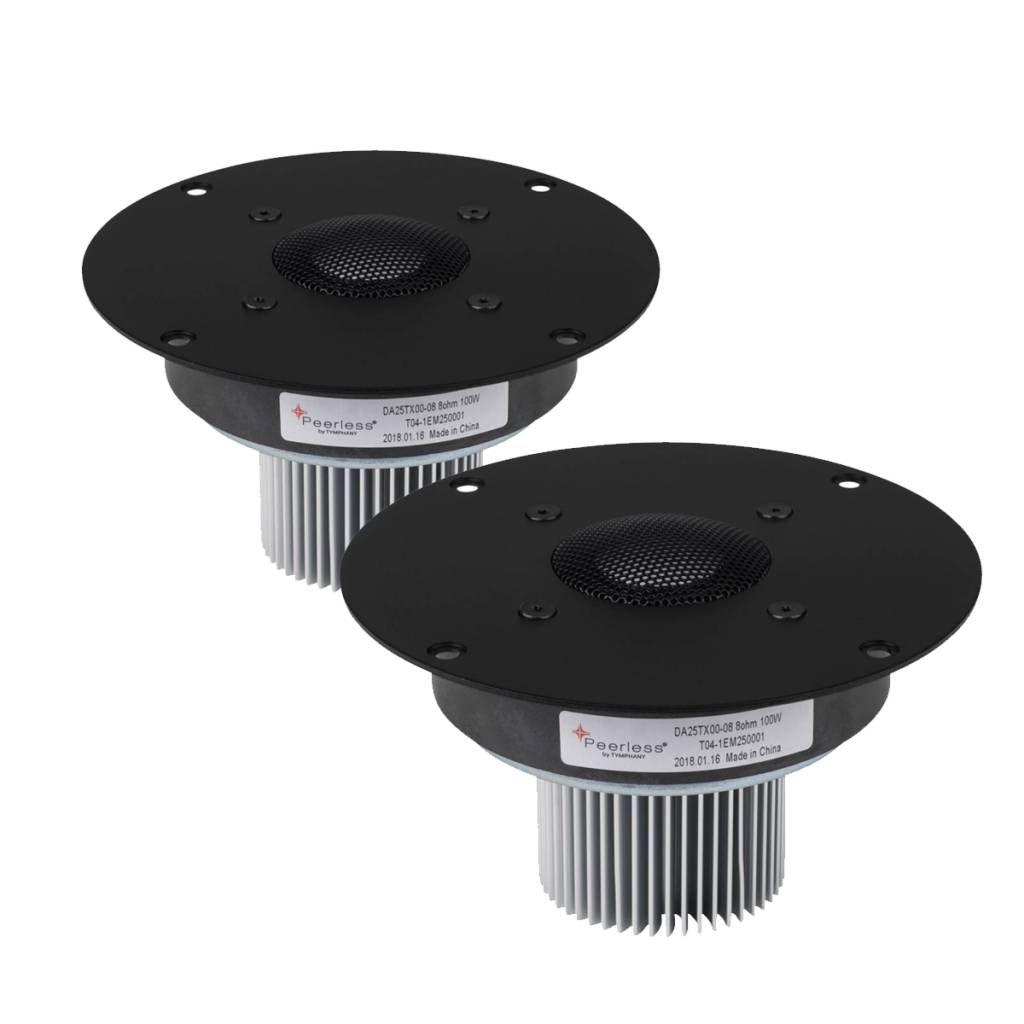

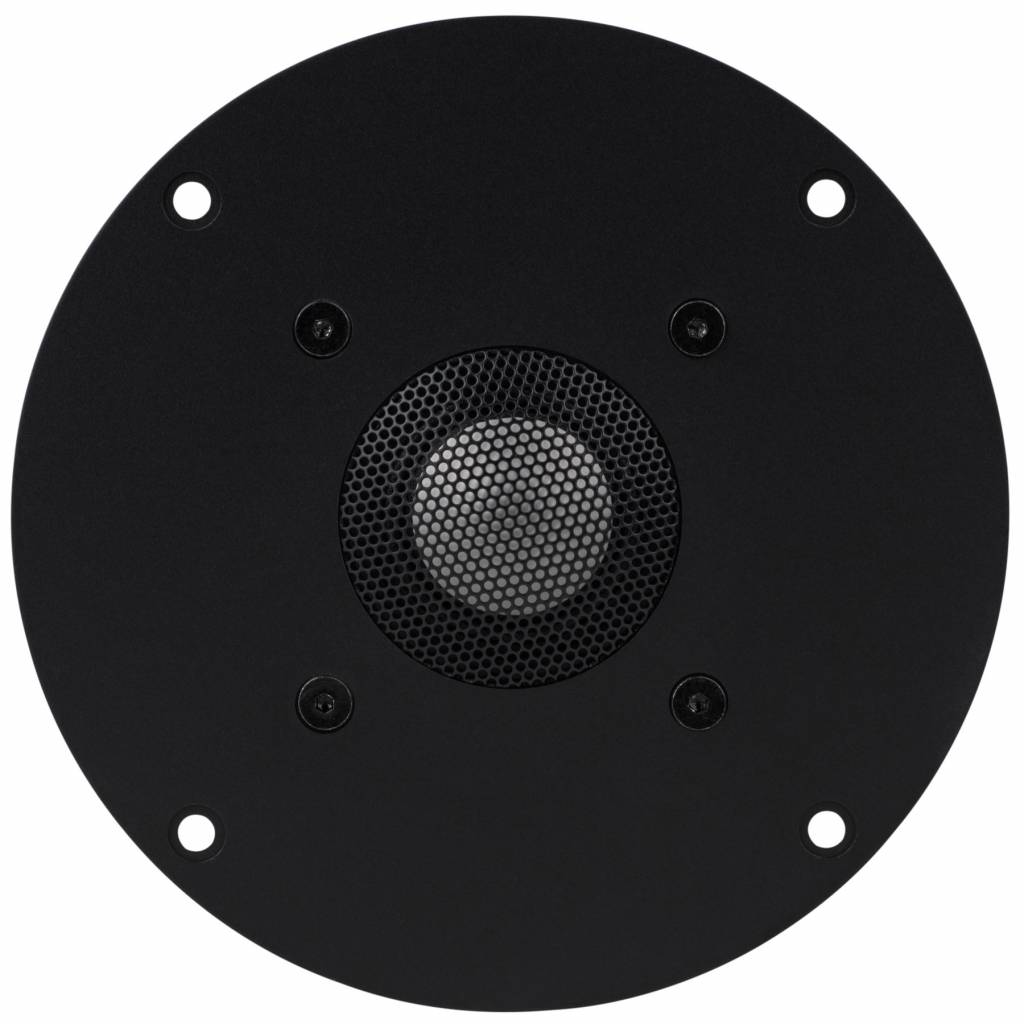

Peerless by Tymphany DA25TX00-08 1" Corundum Dome Tweeter Matched Pair



Peerless designed the DA25TX00-08 1" corundum dome tweeters for both hi-fi and professional applications. With their unique material and design enhancements, these tweeters are built for industry-leading performance and reliability. Corundum, one of natured hardest substances (9 out of 10 on the MOHS hardness scale), is extremely rigid with excellent damping which pushes any dome resonance well outside of the audible range keeping frequency response flat to 20,000 Hz and beyond.



The DA25TX00-08 incorporates a unique rear chamber that lowers the resonant frequency and serves as a heatsink for improved power handling and negligible power compression. The massive FEA optimized underhung motor assembly provides incredible control for impressive dynamics and includes a thick copper cap on the pole piece for lower inductance with minimal distortion. In addition, the optional metal grill (held in place magnetically) protects the fragile dome from foreign objects and curious fingers. Capable of handling crossover frequencies as low as 1,200 Hz, the DA25TX00-08 will present outstanding performance in almost any 2 or 3-way speaker designs.



Sold as matched pair.

Eigenschaften

Artikelnummer:
DA25TX00-08
Tweeter Type
Corundum Dome
Tweeter Series
DA Series
Cone / Dome Diameter
1"
Power Handling (RMS)
100 Watts
Impedance
8 ohms
Sensitivity
88.7 dB 1W/1m
Frequency Response
1,000 to 40,000 Hz
Resonant Frequency (Fs)
633 Hz
DC Resistance (Re)
6.89 ohms
Voice Coil Inductance (Le)
0.01 mH
Mechanical Q (Qms)
1.98
Electromagnetic Q (Qes)
0.85
Total Q (Qts)
0.6
Overall Outside Diameter
4.8125"
Cutout Diameter
3.5"
Depth
2.75"
