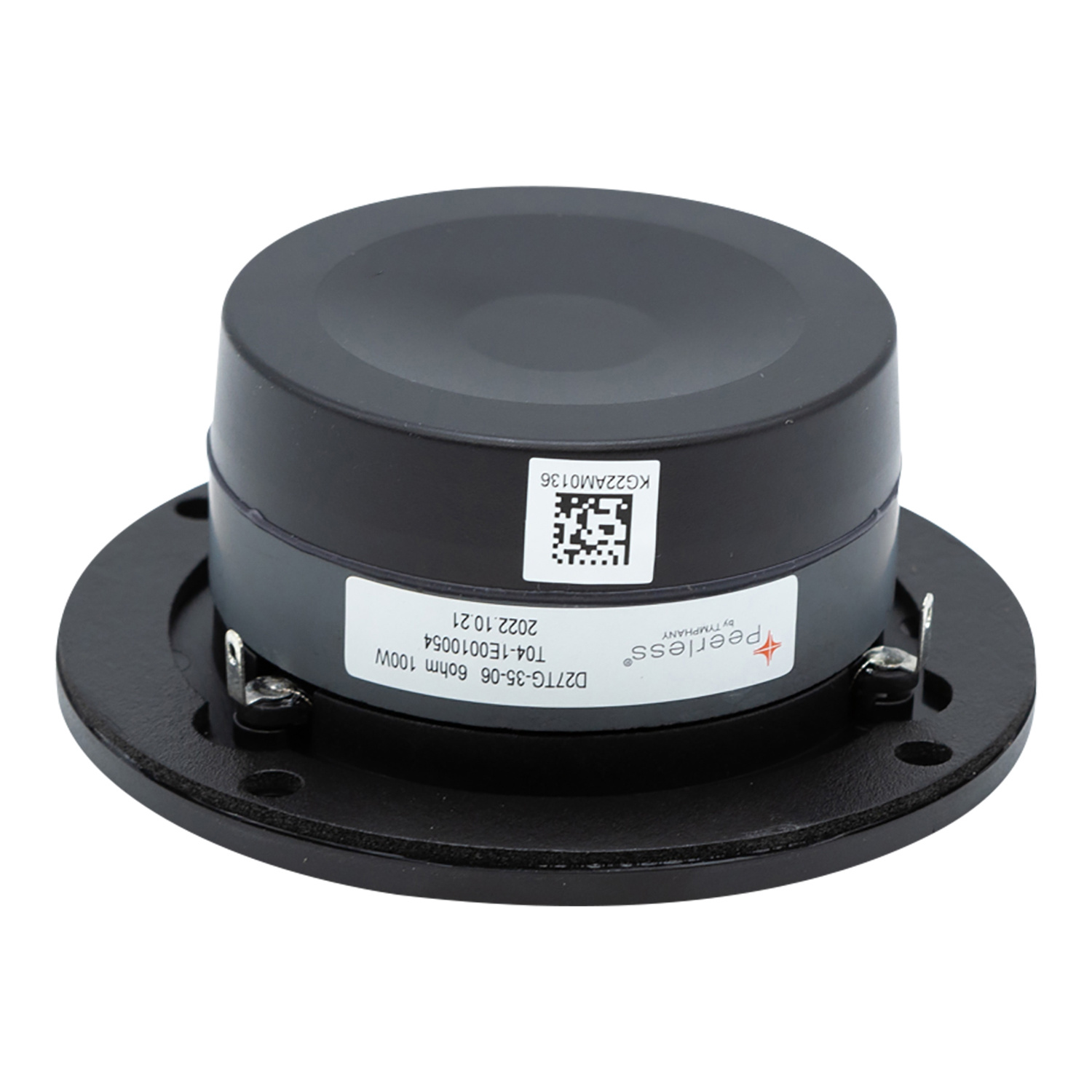

Peerless by Tymphany D27TG35-06 1" Silk Dome Tweeter

Name: Peerless by Tymphany D27TG35-06 1" Silk Dome Tweeter
Brand: Peerless by Tymphany
Price: 33.45 EUR
Availability: InStock
Rating: 4.3 (7 reviews)

Marke: Peerless by Tymphany

Alle anzeigen Audio-Komponenten

Vergleichen

1" | 6 Ω

€ 33,45 1 Auf Lager: Lieferzeit 1-3 Werktage

The Tymphany high performance D27TG35-06 1" coated silk dome tweeter features ferrofluid cooling, linear response faceplate, braided tinsel leads, and a double chamber for lower resonance.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

The Tymphany high performance D27TG35-06 1" coated silk dome tweeter features ferrofluid cooling, linear response faceplate, braided tinsel leads, and a double chamber for lower resonance.

Highlights

Linear response faceplate
1" treated soft dome
Double chamber lowers resonance
Frequency response extends past 30 kHz

Product details

Peerless by Tymphany D27TG35-06 1" Silk Dome Tweeter

This D family tweeter features an 6 ohm 25 mm voice coil, a treated silk dome, large rear chamber for low resonant frequency, and a ferrofluid-cooled ferrite magnet motor. The large motor and rear chamber allow for robust power handling capacity. The tweeter comes with a faceplate with recessed mounting holes, for easy installation into the desired application.

Eigenschaften

Artikelnummer:: D27TG35-06
Tweeter Type: Soft Dome
Tweeter Series: D Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance: 6 ohms
Sensitivity: 91.1 dB 1W/1m
Frequency Response: 2500 to 20,000 Hz
Resonant Frequency (Fs): 1,657 Hz
DC Resistance (Re): 4.9 ohms
Voice Coil Inductance (Le): 0.04 mH
Mechanical Q (Qms): 1.21
Electromagnetic Q (Qes): 1.01
Total Q (Qts): 0.55
Overall Outside Diameter: 4.09”
Cutout Diameter: 3.18”
Depth: 1.69"

Data sheet
