Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

Name: Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter
Brand: Peerless by Tymphany
Price: 20.25 EUR
Availability: InStock
Rating: 4 (1 reviews)

Marke: Peerless by Tymphany

Alle anzeigen Audio-Komponenten

Vergleichen

1" | 4 Ω

€ 20,25 3 Auf Lager: Lieferzeit 1-3 Werktage

The smooth-sounding BC25 SC55-04 1" compact soft dome tweeter from Tymphany features high output and response past 30 kHz thanks to a high-strength neodymium motor with heatsink fins.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

The smooth-sounding BC25 SC55-04 1" compact soft dome tweeter from Tymphany features high output and response past 30 kHz thanks to a high-strength neodymium motor with heatsink fins.

Highlights

Polymer faceplate with recessed waveguide loading
1" treated soft dome
Neodymium magnet for high output and compact size
Truncated faceplate permits optimal driver spacing
Rear heatsink increases thermal management
Frequency response extends past 30 kHz

Product details

Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

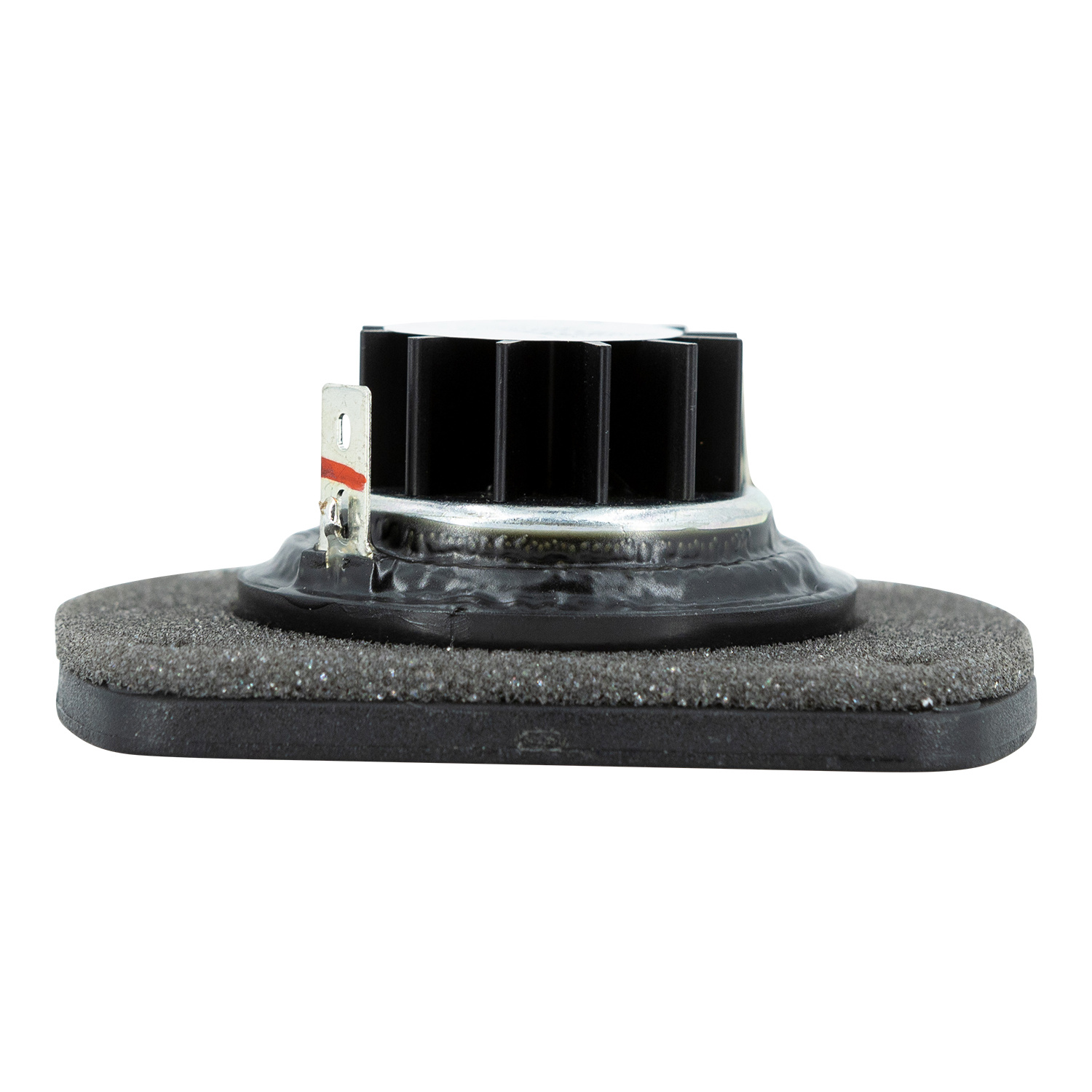

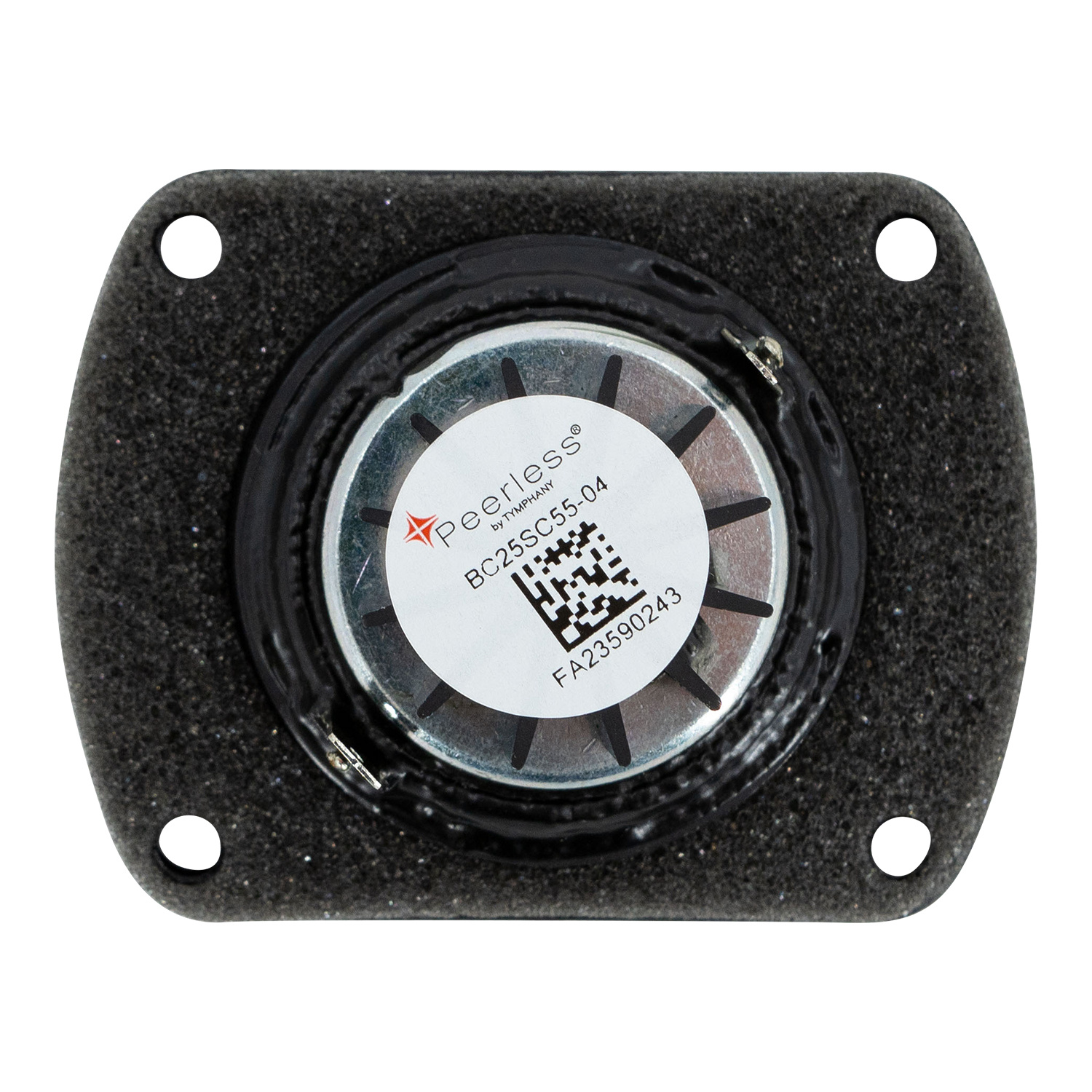

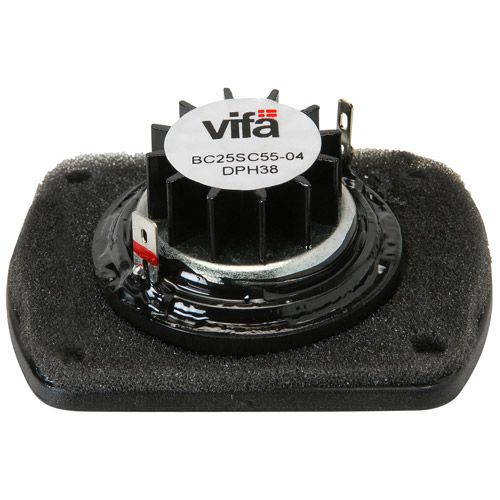

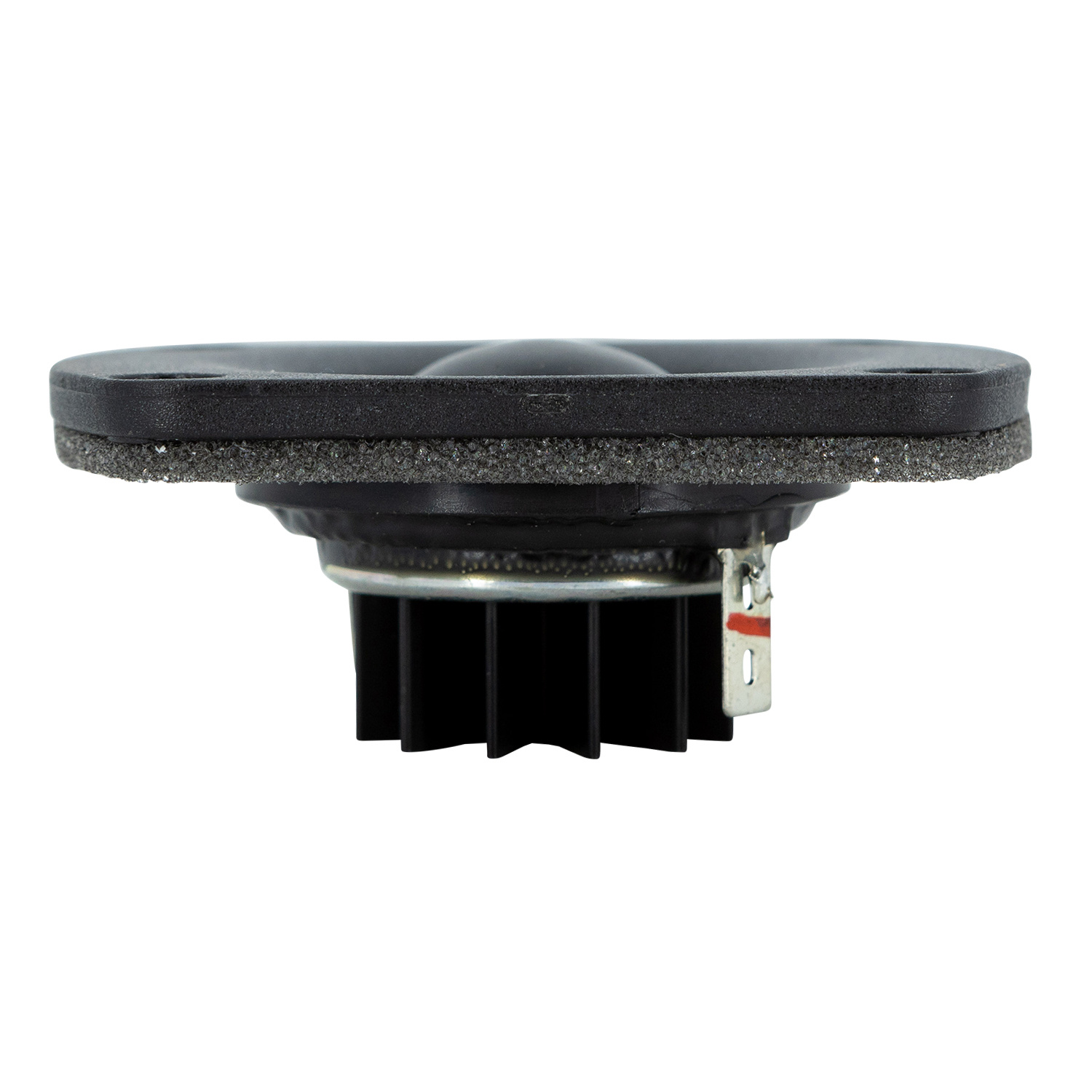

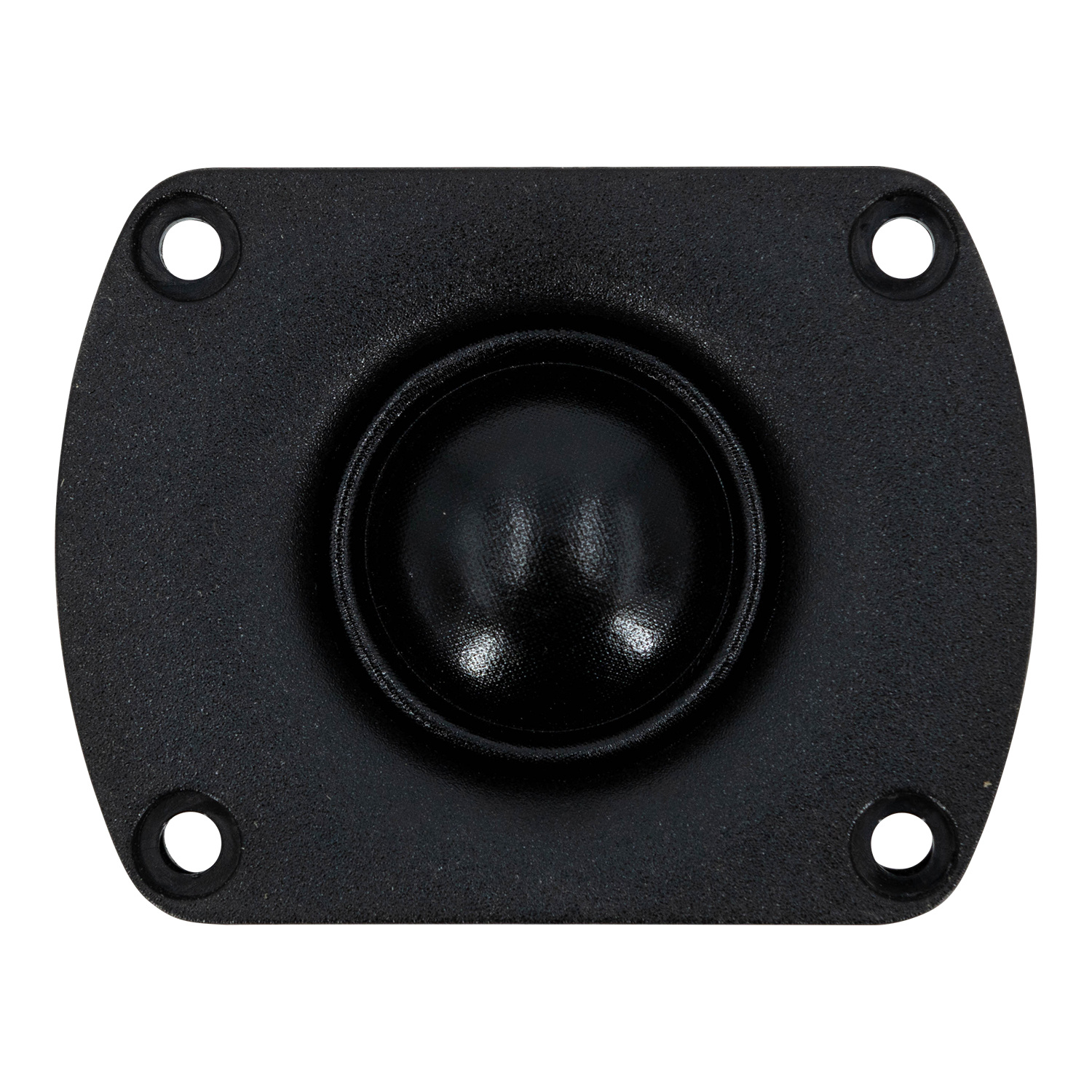

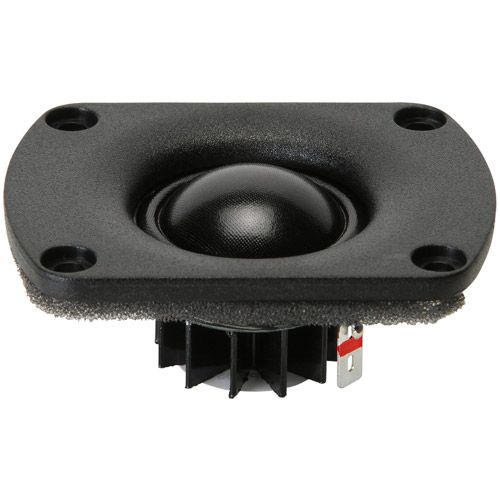

This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the neodymium magnet motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes, complete with sealing gasket which helps in reducing vibration between baffle and driver. A finned heat sink has been added for improved power handling.

Eigenschaften

Artikelnummer:: BC25SC55-04
Tweeter Type: Soft Dome
Tweeter Series: BC Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 25 Watts
Impedance: 4 ohms
Sensitivity: 94 dB 1W/1m
Frequency Response: 2200 to 28,000 Hz
Resonant Frequency (Fs): 1,320 Hz
DC Resistance (Re): 3 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 3.82
Electromagnetic Q (Qes): 1.83
Total Q (Qts): 1.24
Overall Outside Diameter: 2.74”x 2.13”
Cutout Diameter: 1.70”
Depth: 1.10"

Data sheet

Bewertungen

4 from 5Based on 1 reviews

Produkt bewerten

4 van 5

Prima tweeter, zeker voor dat geld. Ik gebruik ze in een stel B&W DM603S1 boxen ter vervanging van de originele tweeters, die schel klonken en niet echt helder. Gemonteerd met een zelfgemaakt montageplaatje klinken ze een stuk beter dan de originele tweeters, die €89 per stuk kosten. Klasse spul, dit.

Durch Rob d. on 5 Juli 2019
