Overnight Sensations MT Speaker Kit Pair /w Cabinet
Build your own high-end near-field monitors with the highly regarded Overnight Sensations MT speaker pair kit designed by Paul Carmody. This kit includes nearly everything to build a pair of speakers, including: a pair of knock-down cabinets, drivers, ports, and crossover components.
- Quick, economical build that delivers surprisingly big sound from a small box
- 1/2" Baltic birch cabinets have been precisely CNC cut for perfect fit-and-finish
- Perfect size for use as small monitors and computer speakers
- This kit is an excellent choice for an amateur speaker building hobbyist
Overnight Sensations MT Speaker Kit Pair
When Paul Carmody first listened to the Overnight Sensations speakers that he designed he exclaimed, "I wish I had a time machine. I would go back to my bedroom when I was in Jr. High or High School and give these to myself. These are the little bookshelf speakers I imagined I had: huge soundstage, deep bass, and tiny box. In reality, back then all I had were some impish Minimus-7s."
The Overnight Sensations are designed to be a quick, economical build that can put out a surprisingly big sound in a small box. Could be a weekender project for an addict, a gift for a teenager (see above), or—in Paul's case—a set of small, full-bodied monitors that he could listen to while grading papers.
To start a do-it-yourself’er off right, this kit includes a pair of high-grade 1/2" Baltic birch cabinets that have been precisely CNC cut and rabbeted for perfect fit-and-finish when assembling the cabinet, as well as perfect driver fit.
For the Overnight Sensations' driver arrangement, Paul selected the versatile Dayton Audio ND20FA-6 3/4" neodymium silk dome tweeter and mated it to the attractive HiVi B4N 4" aluminum midbass woofer. To extract as much bass as possible, Paul decided upon a cabinet size of roughly 0.16 cubic feet (4.5 liters) which is tuned to 53 Hz using a 1-3/8" diameter port that is 6" long.

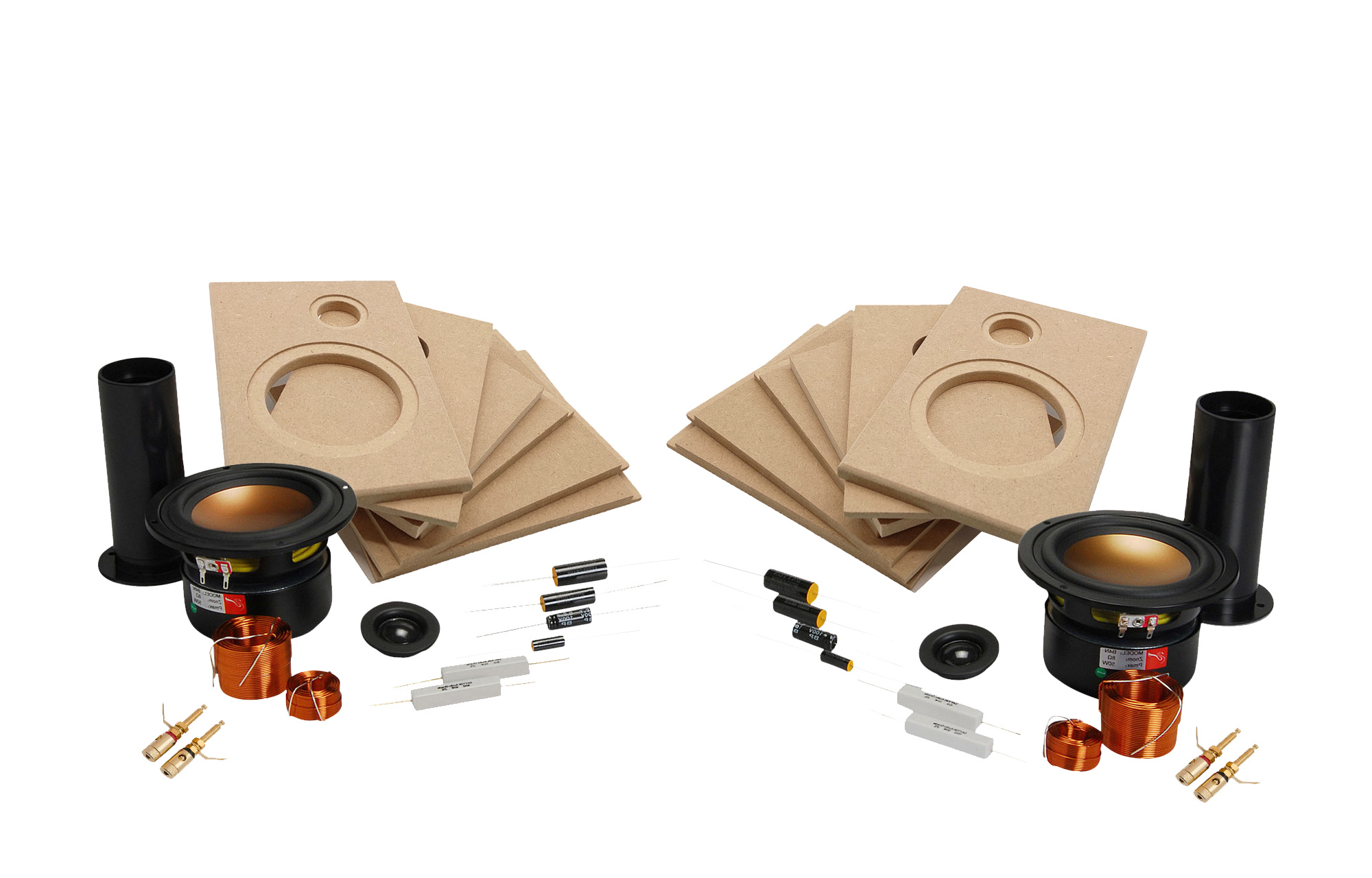

This kit includes nearly everything you need to build a top-notch pair of speakers in no time flat, including: a pair of knock-down cabinets, drivers, ports, and crossover components.
|2||DNR-10||Dayton Audio 10.0 Ω | 10 W | 2% | Precision Audio Grade Resistor|
|2||DNR-6.0||Dayton Audio 6.0 Ω | 10 W | 2% | Precision Audio Grade Resistor|
|2||DMPC-0.22||Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor|
|2||DMPC-1.5||Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor|
|2||DMPC-2.2||Dayton Audio DMPC-2.2 2.2uF 250V Polypropylene Capacitor|
|2||DMPC-6.8||Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor|
|2||000-1204||Jantzen 000-1204 0.35mH 20 AWG Air Core Inductor|
|2||000-1079||Jantzen 000-1078 1.1mH 18 AWG Air Core Inductor|
|1||260-388||Port Tube 1-3/8" ID Adjustable|
|2||ND20FA-6||Dayton Audio ND20FA-6 3/4" Neodymium Dome Tweeter|
|2||B4N||HiVi B4N 4" Aluminum Midbass Round Frame|
|1||Cabinet||Overnight Sensations Denovo Audio Cabinet pair|
Note: Screws, binding posts, and speaker wire are not included.
• Power handling: 25 watts RMS/50 watts max
• Frequency response: 45-20,000 Hz (-3 dB)
• Impedance: 8 ohms
• Sensitivity: 83 dB 1W/1m
• Dimensions: 9" H x 6" W x 8-3/8" D
