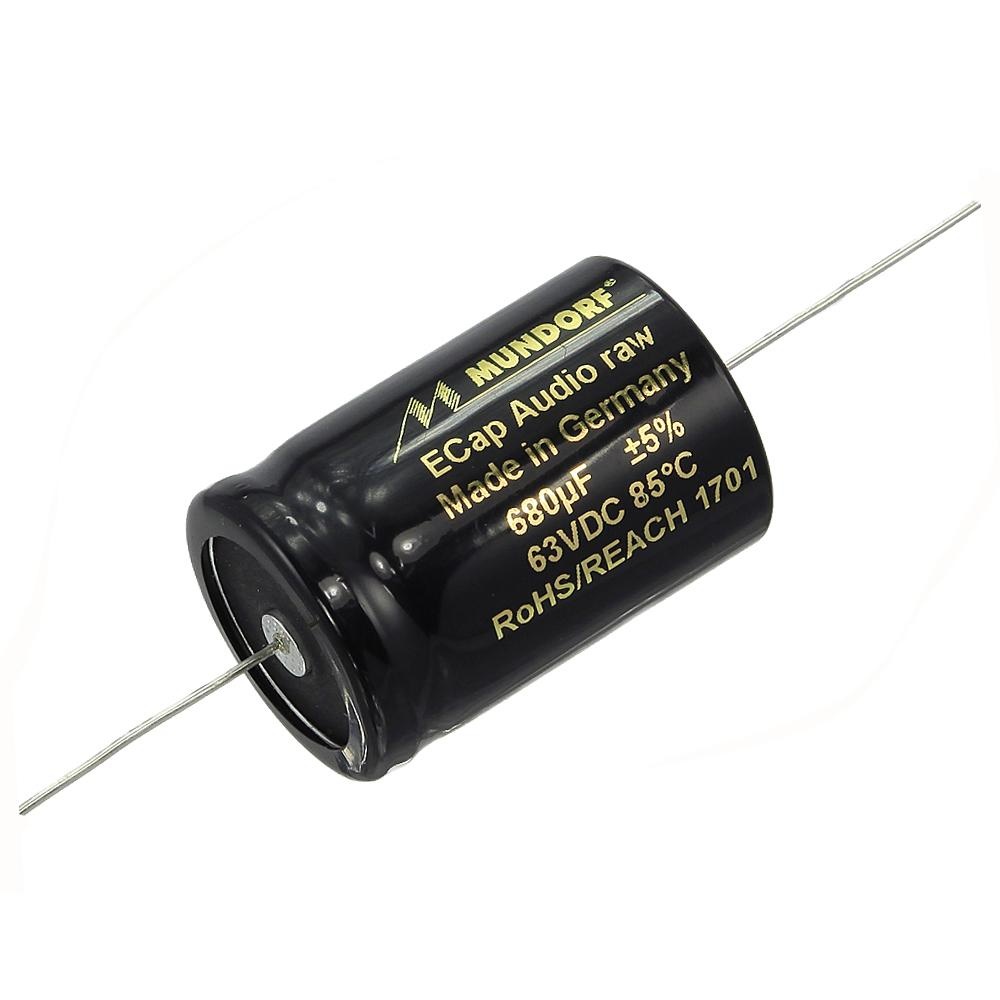

Mundorf ECap RAW | ECAP63-680 | 680 µF | 5% | 63 V | Electrolytic Non-Polarized Cap

Name: Mundorf ECap RAW | ECAP63-680 | 680 µF | 5% | 63 V | Electrolytic Non-Polarized Cap
Brand: Mundorf
Price: 7.95 EUR

0 reviews

Marke: Mundorf

Alle anzeigen Elektrolyt-Kondensatoren

Vergleichen

ECap RAW | ECAP63-680 | 680 µF | 5% | 63 V | Electrolytic Non-Polarized Cap

€ 6,57€ 7,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche

Backorder

Aluminium electrolytic capacitors are used in applications for which film capacitors are not suitable for reasons of space and/or cost. Polarized electrolytic capacitors which have the most compact design and are therefore used for very high capacities (e... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

Highlights

Manufactured in Germany
Temperature range: -40°C/ -40°F to 85°C/+185°F
Service life: [UR · R~] 3000 hours at +85°C/+185°F
Loss angle: tan ∂ = [email protected]

Product details

Mundorf ECap RAW | ECAP63-680 | 680 µF | 5% | 63 V | Electrolytic Non-Polarized Cap

The bipolar electrolytic capacitors of the ECap AC Audio Coupling & Signal Cap RAW series have foils with surfaces which are roughened by a special etching process, enlarging the surface. As the capacity of capacitors is proportional to their surface, this process provides the smallest and cheapest Mundorf audio capacitors. However, this process also weakens the sound quality comparing to non-etched versions.

Specifications: Value: 680 µF • Rated: 23 / 63 VAC / VDC • Tolerance: ±5% • Dimensions Body: 25 mm Dia. x 38 mm L. • Dimensions Wire: 0.8 mm Dia. x 40 mm L.
