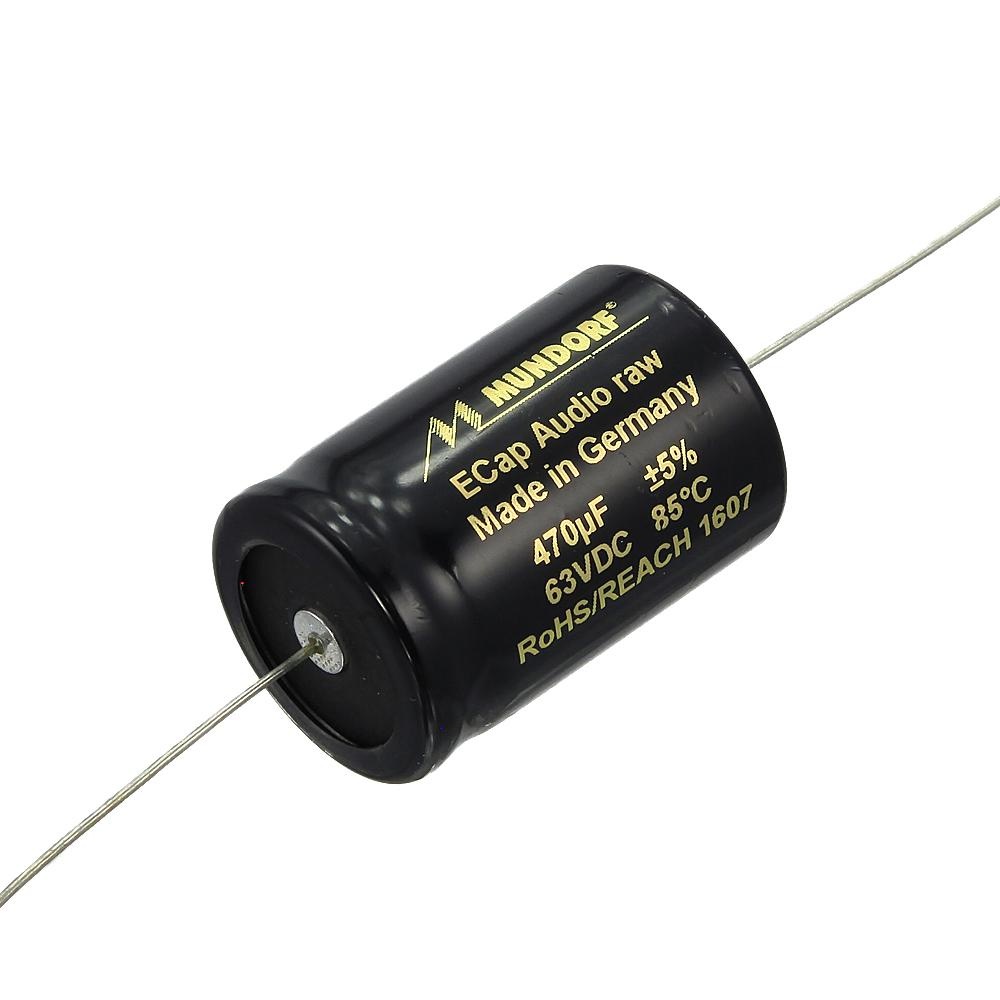

Mundorf ECap RAW | ECAP63-470 | 470 µF | 5% | 63 V | Electrolytic Non-Polarized Cap

Name: Mundorf ECap RAW | ECAP63-470 | 470 µF | 5% | 63 V | Electrolytic Non-Polarized Cap
Brand: Mundorf
SKU: ECAP63-470
Price: 7.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Marke: Mundorf

Alle anzeigen Kondensatoren

Vergleichen

ECap RAW | ECAP63-470 | 470 µF | 5% | 63 V | Electrolytic Non-Polarized Cap

€ 6,57€ 7,95 9 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

Highlights

Manufactured in Germany
Temperature range: -40°C/ -40°F to 85°C/+185°F
Service life: [UR · R~] 3000 hours at +85°C/+185°F
Loss angle: tan ∂ = [email protected]

Product details

Mundorf ECap RAW | ECAP63-470 | 470 µF | 5% | 63 V | Electrolytic Non-Polarized Cap

The bipolar electrolytic capacitors of the ECap AC Audio Coupling & Signal Cap RAW series have foils with surfaces which are roughened by a special etching process, enlarging the surface. As the capacity of capacitors is proportional to their surface, this process provides the smallest and cheapest Mundorf audio capacitors. However, this process also weakens the sound quality comparing to non-etched versions.

Specifications: Value: 470 µF • Rated: 23 / 63 VAC / VDC • Tolerance: ±5% • Dimensions Body: 25 mm Dia. x 38 mm L. • Dimensions Wire: 0.8 mm Dia. x 40 mm L.
