      Ultimate UW1054 10" Tieftöner 4 Ohm

      Morel Ultimate UW1054 10" Tieftöner 4 Ohm

      €649,95

      1 Auf Lager

      Morel Ultimate UW1054 10" Tieftöner 4 Ohm

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Morel
      537,15 €649,95 € 1 Auf Lager
      • -5% Bestelle 4 für nur 617,45 je Stück

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Vor 16:00 Uhr bestellt, heute versandt
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung Morel UW1054 Tieftöner

      The Morel UW 1054 is a 10” subwoofer from the Ultimate Subwoofer Line by Morel. It has a massive 5.1" aluminum hexatech voice coil that can handle extreme amounts of power. The subwoofer has a paper/carbon conus and is 10" in size. It has an impedance of 4 Ohm.



      Highlights

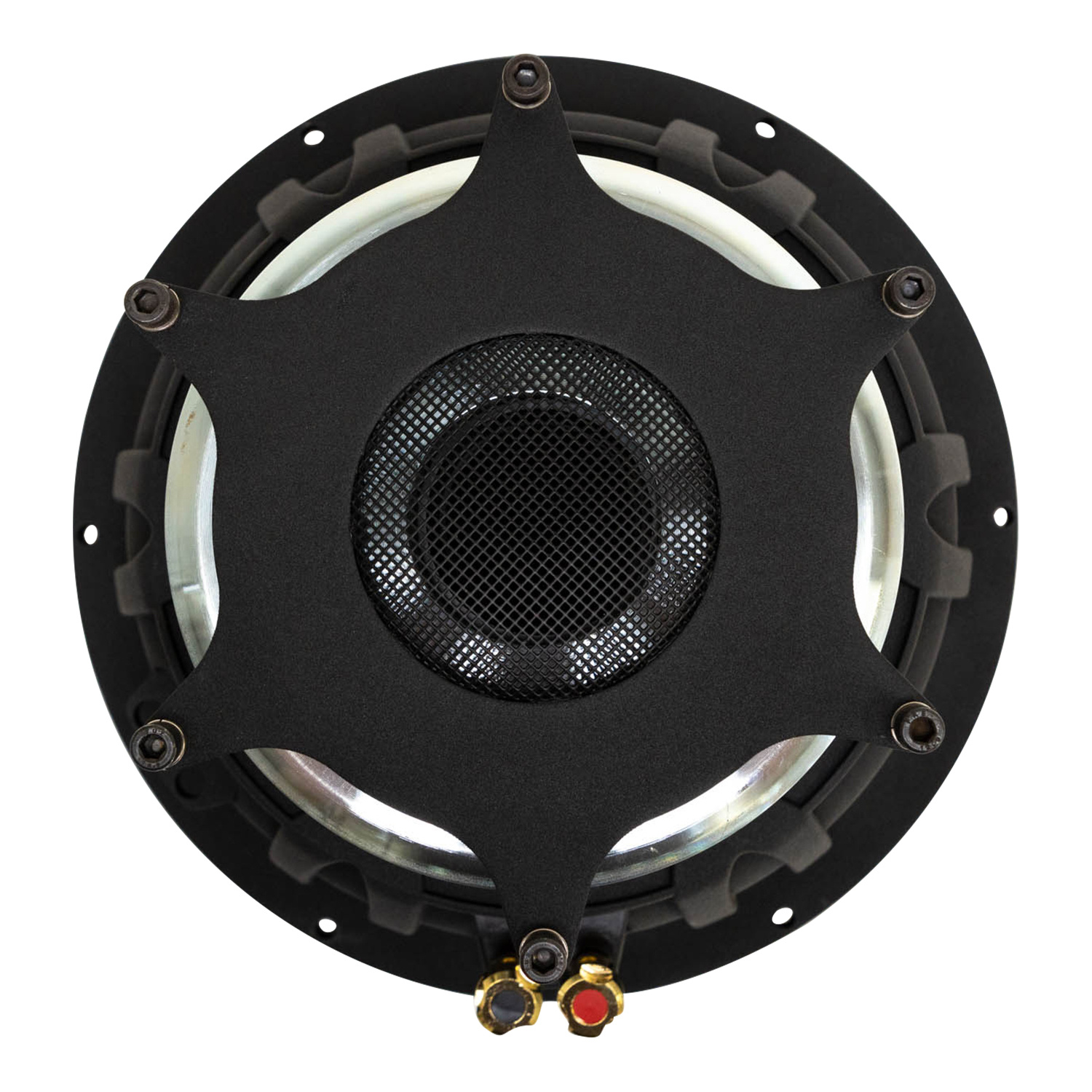

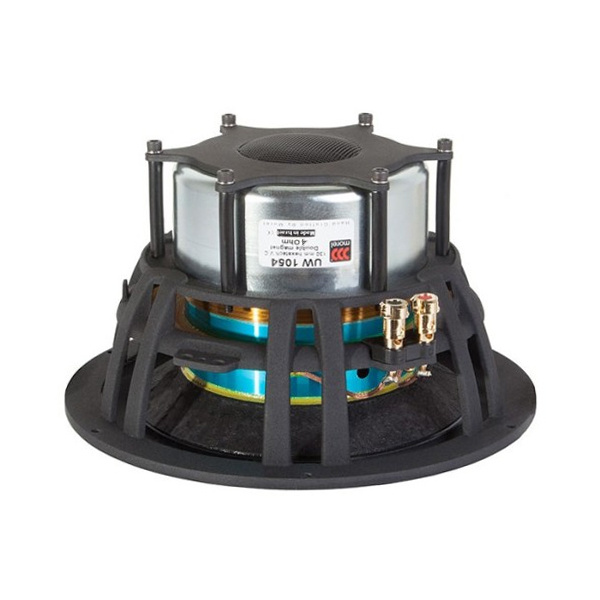

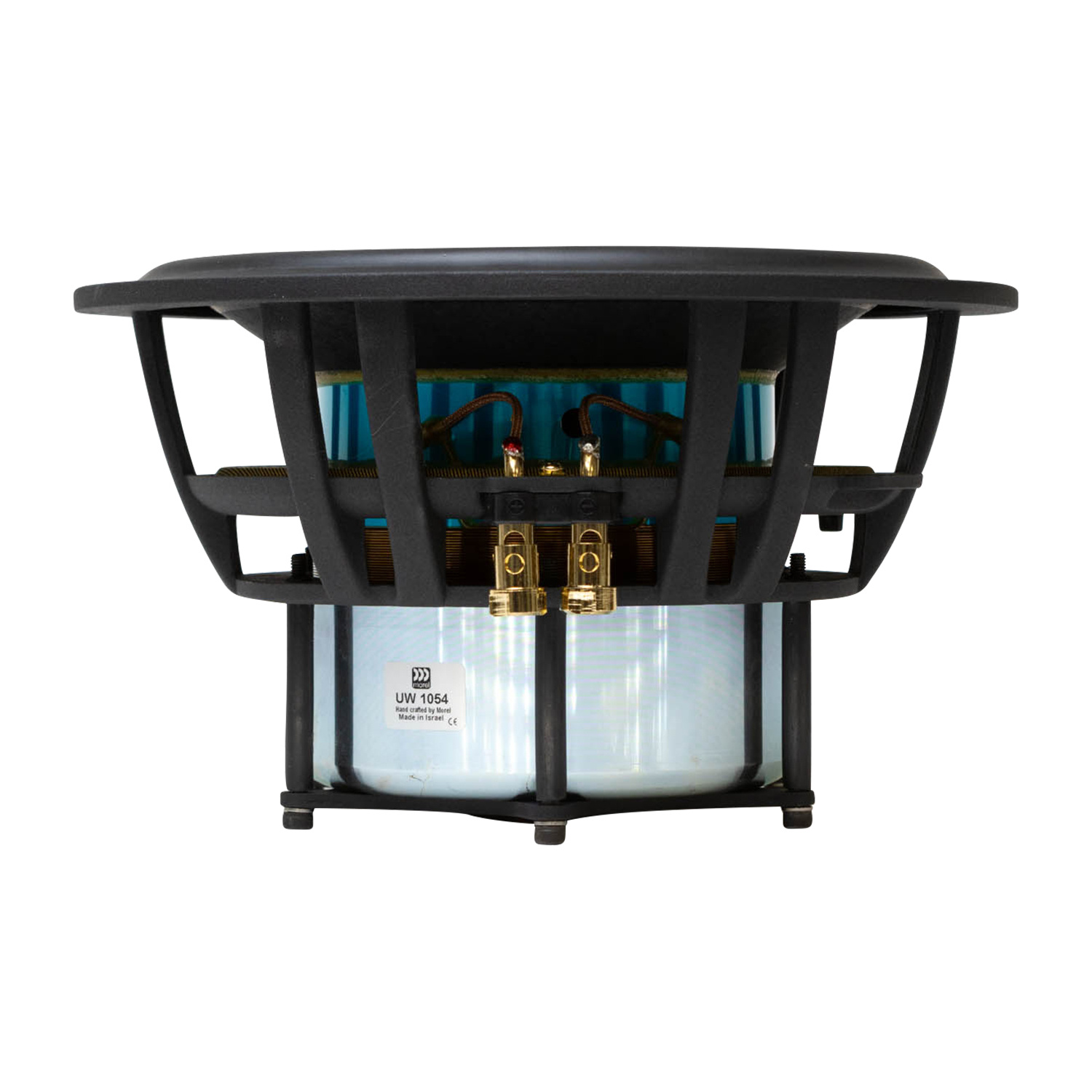

      • Uniflow™aluminum diecast chassis
      • High-flux double ferrite magnet system
      • 5.1" Hexatech™aluminum voice coil with 1-1/2" winding length
      • Very high Xmax for extended bass response

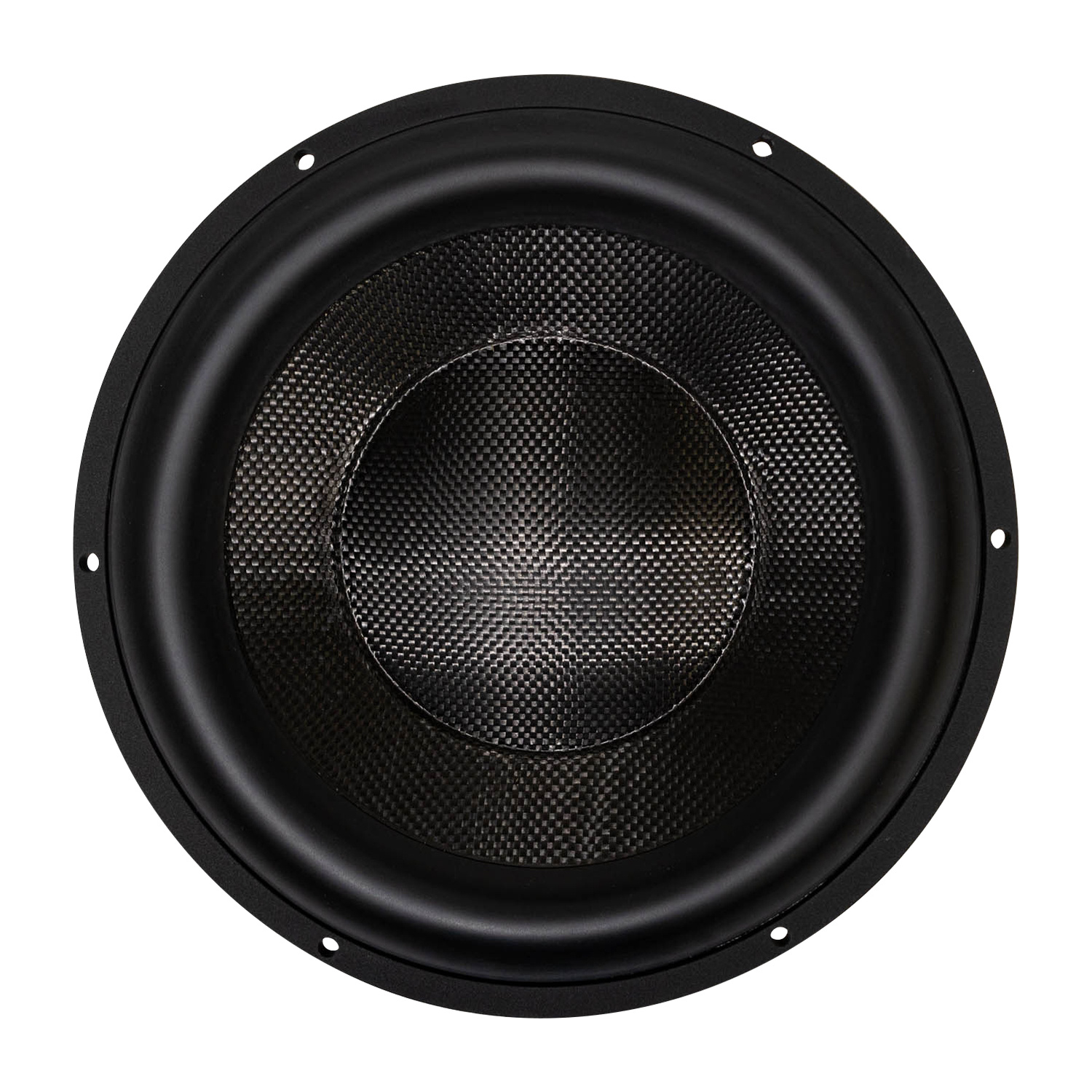

      • One piece paper cone/center dome
      • Accucenter™ self-centering cone assembly
      • PFS™ Progression Field Symmetry spider/surround engineering



      Product details

      Morel Ultimate UW1054 10" Subwoofer 4 Ohm



      The Morel Ultimate UW1054 is a high-performance subwoofer that is designed for demanding audio enthusiasts. It features a 10-inch paper cone with a 5.1-inch aluminum voice coil, which is powered by a double ferrite magnet system. This combination of components allows the UW1054 to produce deep, accurate bass with minimal distortion.



      The UW1054 is also built to last. It features a die-cast aluminum chassis that is both lightweight and rigid, and it is protected by a dustcap and rubber surround. The subwoofer is also equipped with a Progressive Field Symmetry spider, which helps to improve its linearity and reduce distortion.



      In terms of performance, the UW1054 is capable of delivering up to 500 watts of RMS power and 1,500 watts of peak power. This makes it a good choice for a variety of applications, including home theater, car audio, and professional sound reinforcement.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      UW1054
      EAN
      8785256847679
      Tieftöner-Serie
      Morel Ultimate Subwoofer series
      Tieftönertyp
      Subwoofer
      Nenndurchmesser
      10"
      Belastbarkeit (QMW)
      500 Watts
      Belastbarkeit (max)
      1500 watts (10 ms)
      Impedanz (Z)
      4 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      88 dB
      Frequenzgang
      22 - 1.500 Hz
      Schwingspulendurchmesser
      130 mm
      Gleichstromwiderstand (Re)
      3.55 Ω
      Schwingspuleninduktion (Le)
      1.0 mH
      Mechanische Güte (Qms)
      1.43
      Elektrische Güte (Qes)
      0.35
      Gesamtgüte (Qts)
      0.29
      Bewegliche Masse (Mms)
      102 g
      Membranfläche (Sd)
      346 cm²
      Kraftfaktor (BL)
      11.8 Tm
      Äquivalentvolumen (Vas)
      86.5 Liters
      Maximale Auslenkung (Xmax)
      +/- 12 mm
      Driver's Mechanical Losses (Rms)
      9.78 kg/s
      Schwingspulendrahtmaterial
      Hexatech™ Aluminum
      Schwingspulenformmaterial
      Aluminium
      Magnetmaterial
      Ferrite
      Außendurchmesser
      263 mm
      Gesamttiefe
      148.5 mm
      Ausschnittdurchmesser
      241 mm
      Bolt Circle Diameter
      253 mm
      # Befestigungsbohrungen
      6
      Durchmesser Befestigungslochs
      5 mm
