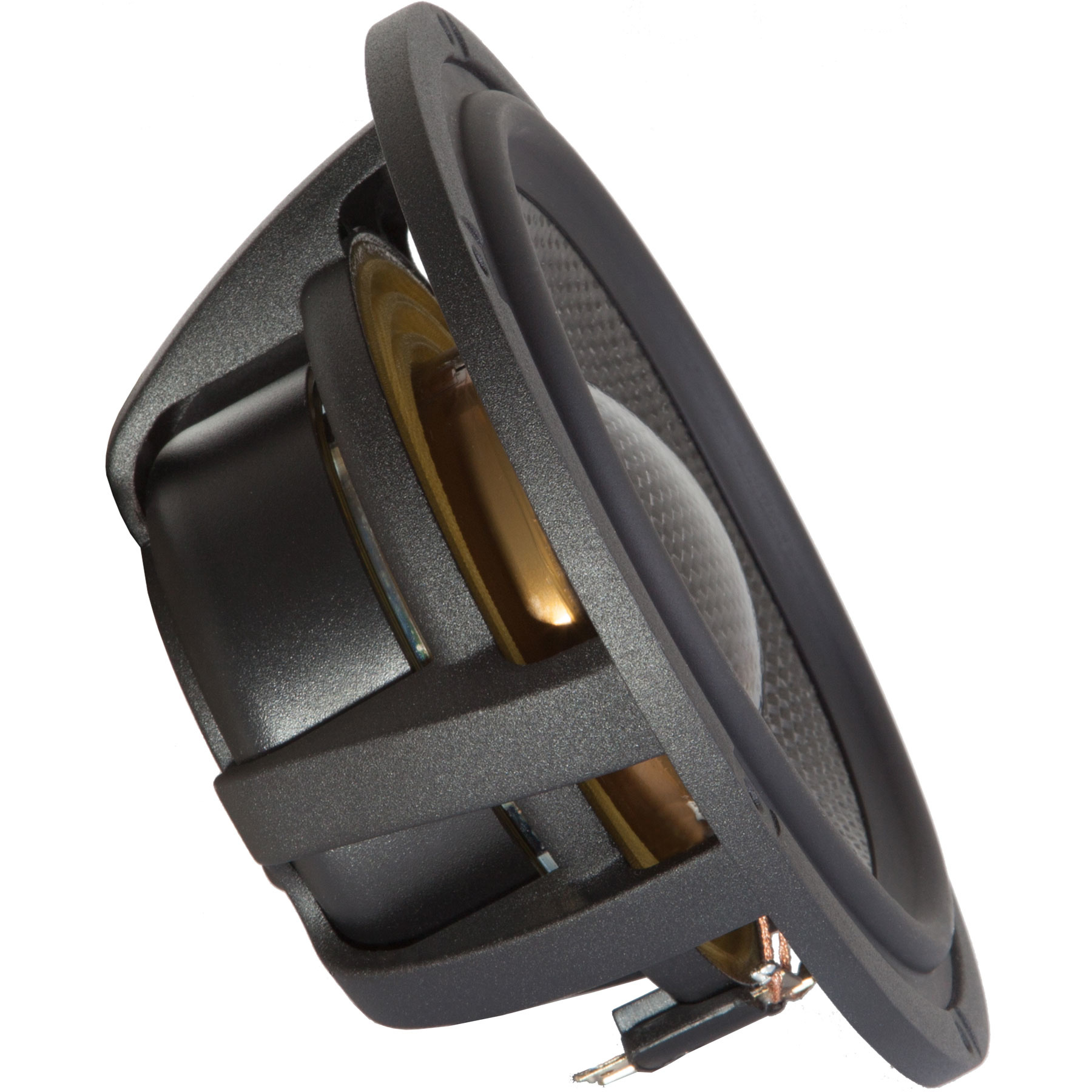

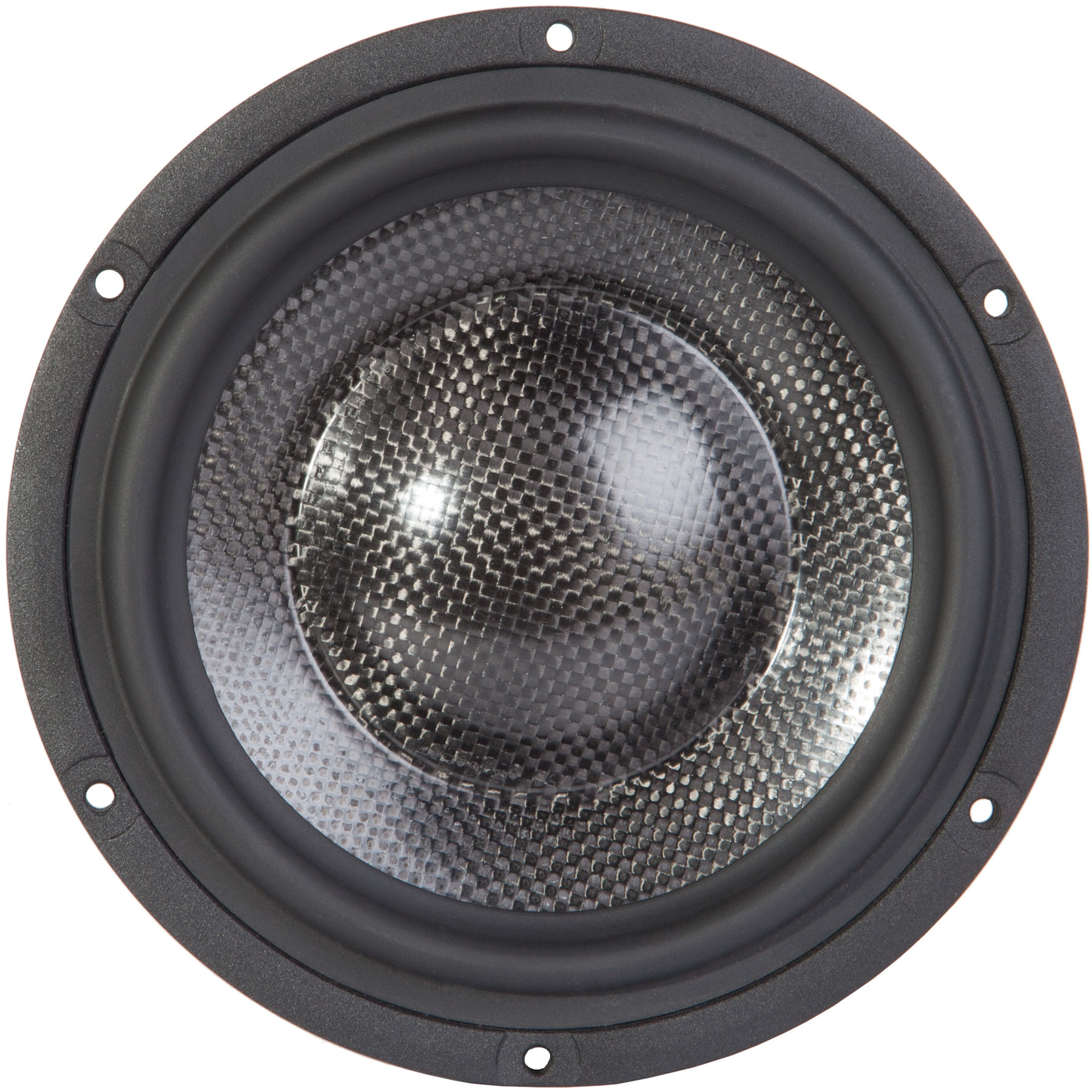

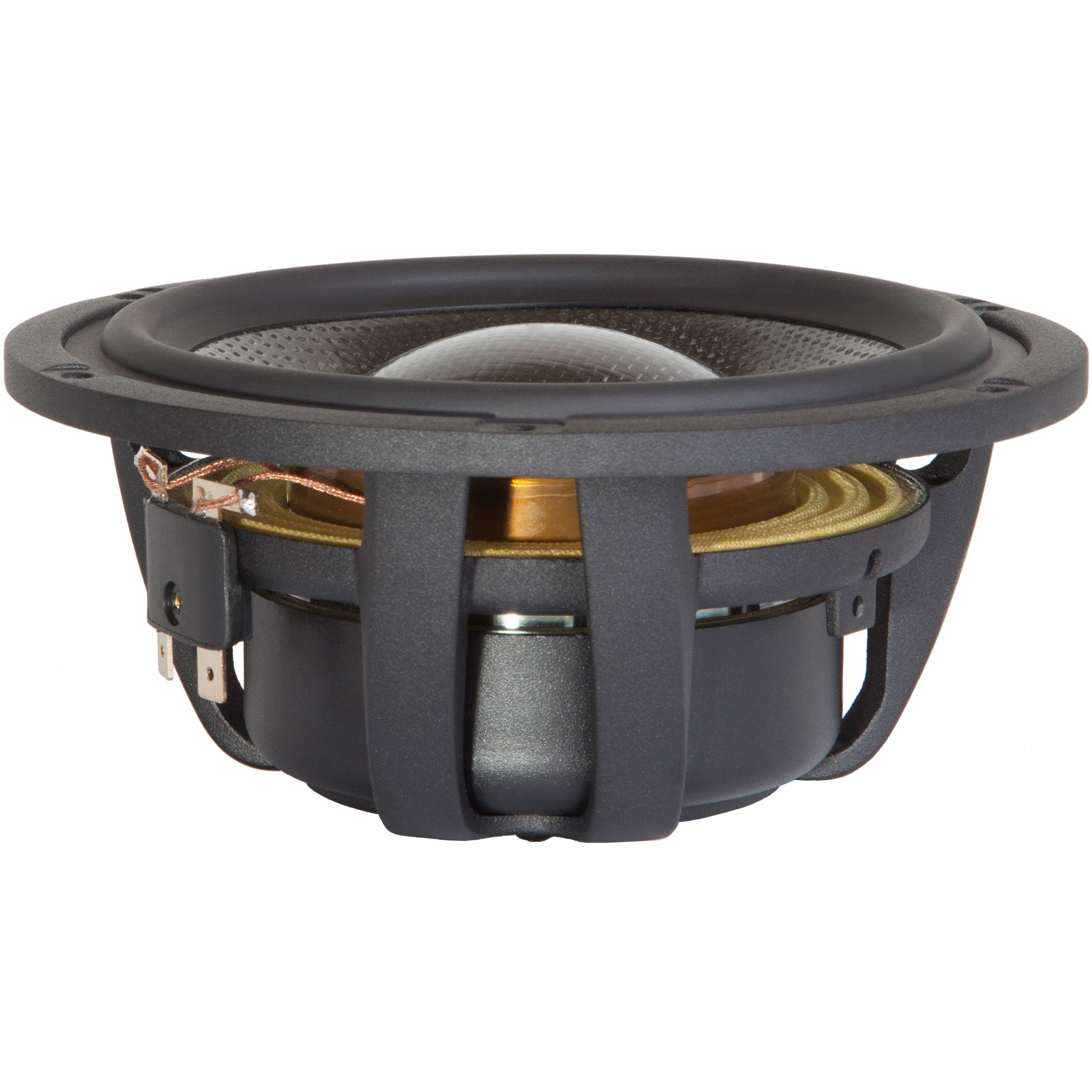

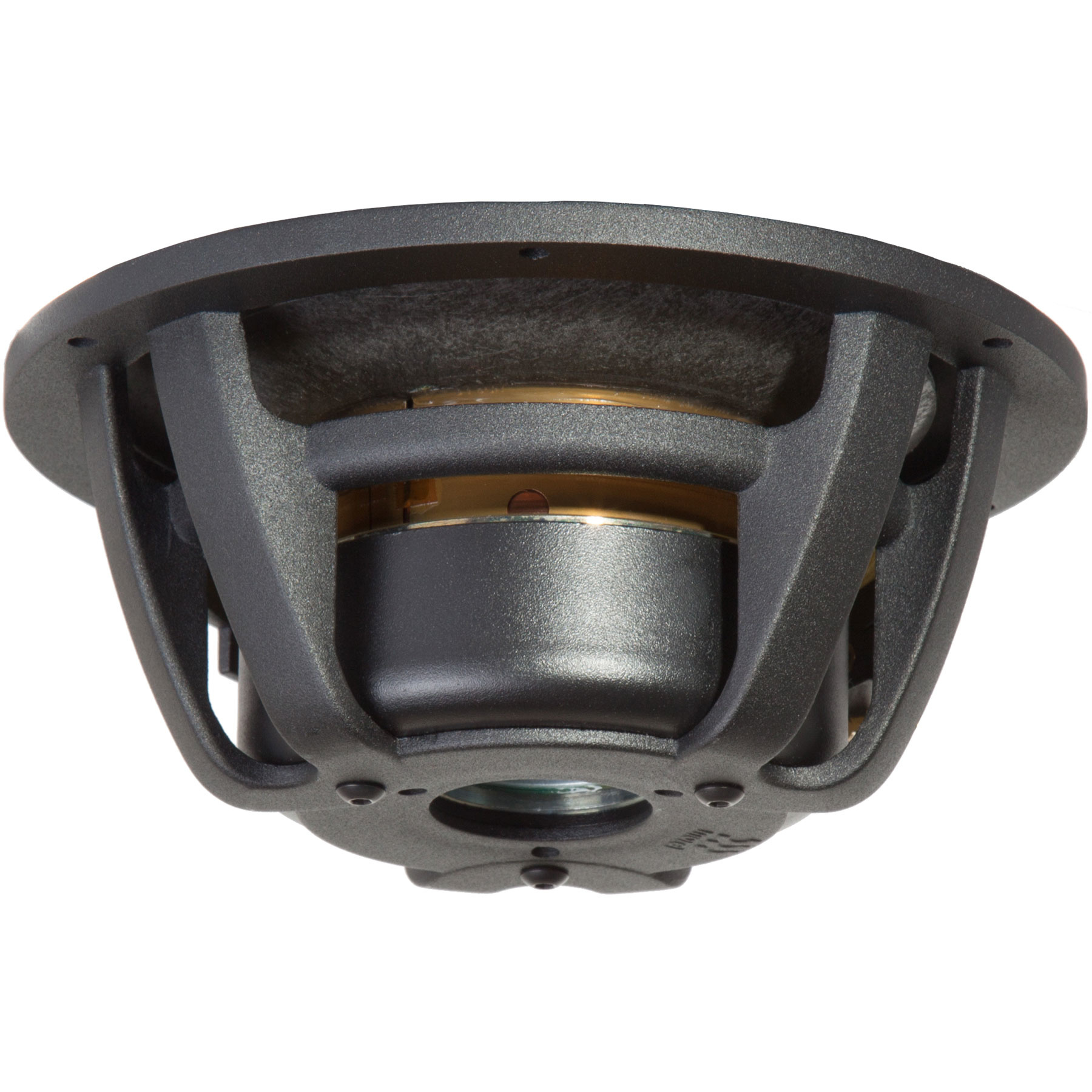

Morel TSCW 636 Titanium Supreme Series 6" Woofer 6 Ohm

€ 305,74€ 369,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The 6" TSCW 636 features an underhung 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response, a Uniflow chassis for reduced power compression, and a copper-sleeved pole piece for reduced inductance.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €351,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Supreme series woofer. The 6,5" TSCW 636 features an underhung 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response, a Uniflow chassis for reduced power compression, and a copper-sleeved pole piece for reduced inductance.



Highlights

  • Hybrid neodymium-ferrite motor with 3" Hexatech underhunge voice coil
  • Copper sleeve pole piece and titanium coil bobbin for low energy storage
  • High 1,000 Watt instantaneous power handling
  • Open Uniflow aluminum diecast chassis for reduced reflections
  • Unique carbon fiber-Rohacell cone



Product details

Morel TSCW 636 Titanium Supreme Series 6" Woofer 6 Ohm



Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



Morel Titanium Supreme Series

The Titanium Supreme woofers from Morel are the latest leap forward in design. Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.



Uniflow­™ Aluminum Diecast Chassis

All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



The 6" TSCW 636 midrange features a 6-ohm impedance, and a unique, carbon fiber-Rohacell® composite cone offers flat frequency response from 43 Hz to 6,000 Hz on-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

Eigenschaften

Artikelnummer:
TSCW 636
Woofer Series
Titanium Supreme Series
Woofer Type
Midwoofer
Nominal Diameter
6,
Power Handling (RMS)
150 Watts
Power Handling (max)
1000 Watts
Impedance
6 ohms
Sensitivity
88.5 dB 2.83V/1m
Frequency Response
43 to 6,000 Hz
Voice Coil Diameter
3"
DC Resistance (Re)
4.5 ohms
Voice Coil Inductance (Le)
0.26 mH
Mechanical Q (Qms)
3.8
Electromagnetic Q (Qes)
0.39
Total Q (Qts)
0.36
Diaphragm Mass Inc. Airload (Mms)
19.0g
Mechanical Compliance of Suspension (Cms)
0.67 mm/N
Surface Area of Cone (Sd)
119 cm²
BL Product (BL)
7.9 Tm
Compliance Equivalent Volume (Vas)
0.47 ft.³
Maximum Linear Excursion (Xmax)
5 mm
Cone / Diaphragm Material
Carbon Fiber Composite
Surround Material
Rubber
Voice Coil Wire Material
Aluminum
Voice Coil Former
Titanium
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
6.3"
Overall Depth
2.72"
Baffle Cutout Diameter
5.51"
# Mounting Holes
6
Sealed Volume
0.12 ft.³
Sealed F3
94 Hz
Vented Volume
0.27 ft.³
Vented F3
54 Hz
