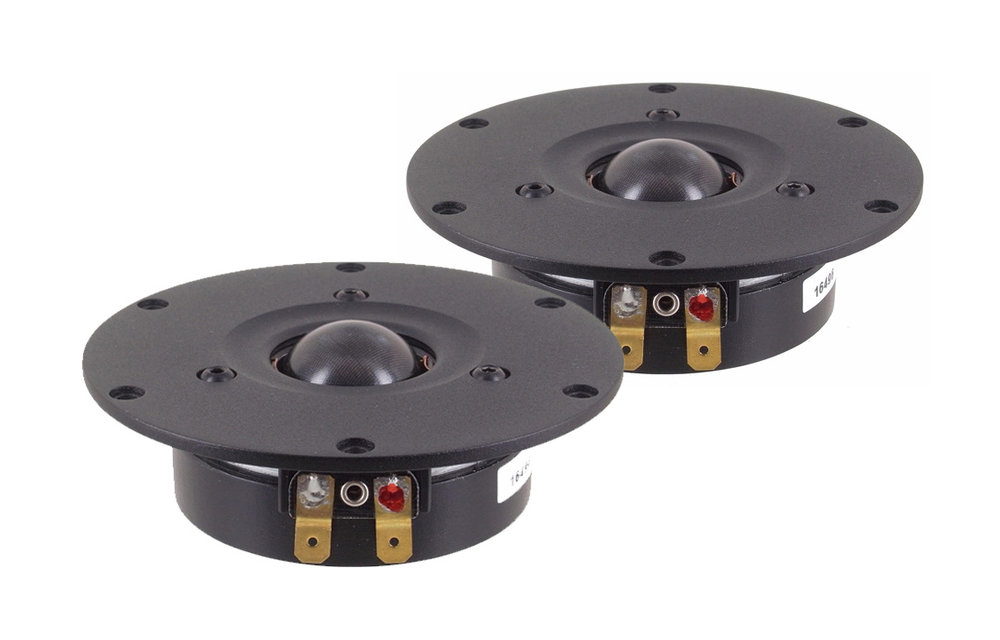

Morel Supreme TSCT 1104 1" Dome Tweeter Matched Pair

€ 545,41€ 659,95 1 Auf Lager: Lieferzeit 1-3 Werktage
Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €626,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.



Highlights

  • Underhung voice coil, 4 ohm
  • Acoustically matched pair
  • 1⅛” Large Hexatech™ Aluminum voice coil
  • Neodymium flat pancake magnet
  • High power handling
  • 110mm IDR™ (Improved Dispersion Recess)
  • Titanium Voice Coil Former
  • Replaceable Acuflex™ dome/coil assembly
  • Aluminum die-cast rear chamber
  • Copper shorting ring (in & out)



Product details

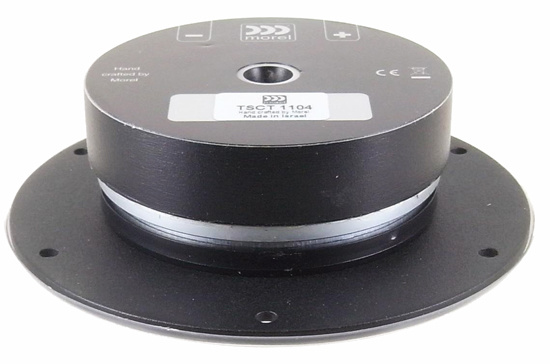

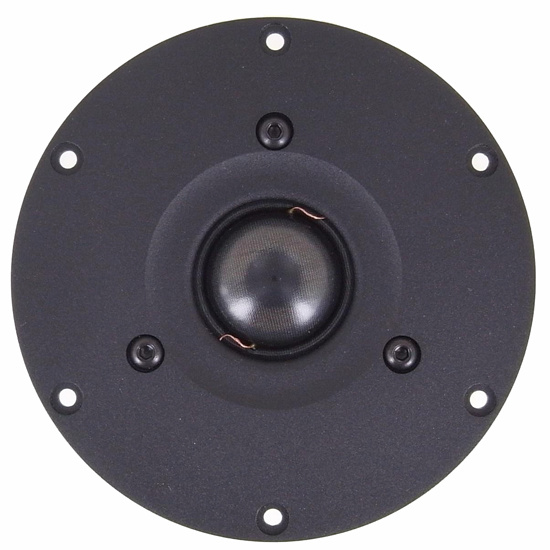

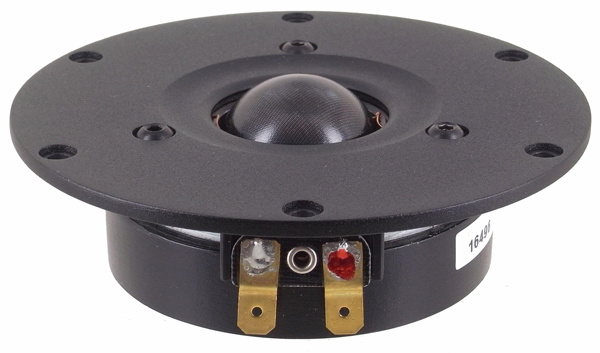

Morel Supreme TSCT 1104 1" Dome Tweeter Matched Pair



Sold as each but packaged in matched pairs.  Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high-performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there always during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.



Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.

Eigenschaften

Artikelnummer:
TSCT 1104
Tweeter Type
Dome Tweeter
Tweeter Series
Morel Supreme
Cone / Dome Diameter
1"
Power Handling (RMS)
200 Watts
Impedance
4 ohms
Sensitivity
95 dB
Resonant Frequency (Fs)
573 Hz
DC Resistance (Re)
4.19 ohms
Voice Coil Inductance (Le)
0.047 mH
Mechanical Q (Qms)
2.41
Electromagnetic Q (Qes)
0.53
Total Q (Qts)
0.41
Overall Outside Diameter
110 mm
Cutout Diameter
72.8 mm
Depth
29.6 mm (basket depth)
