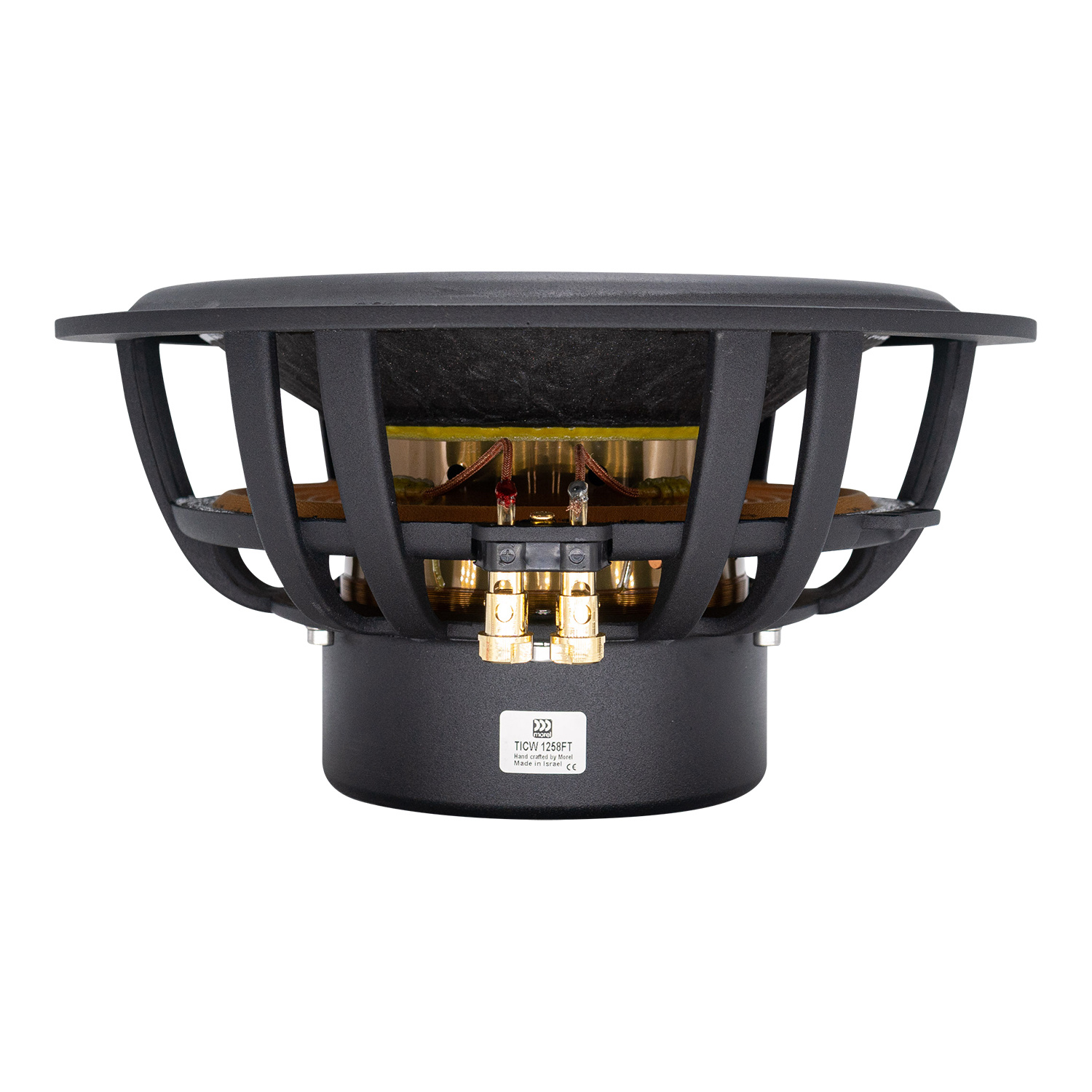

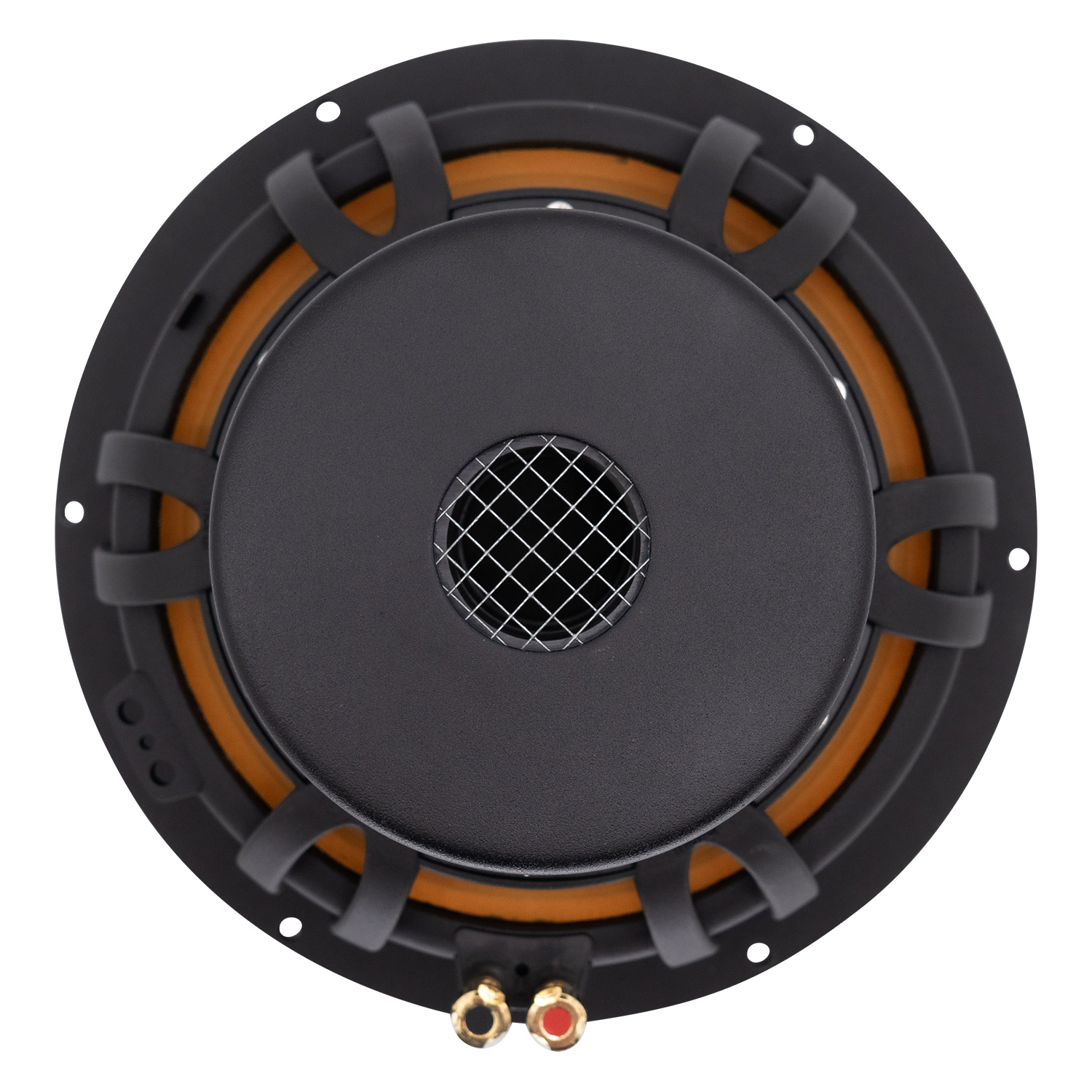

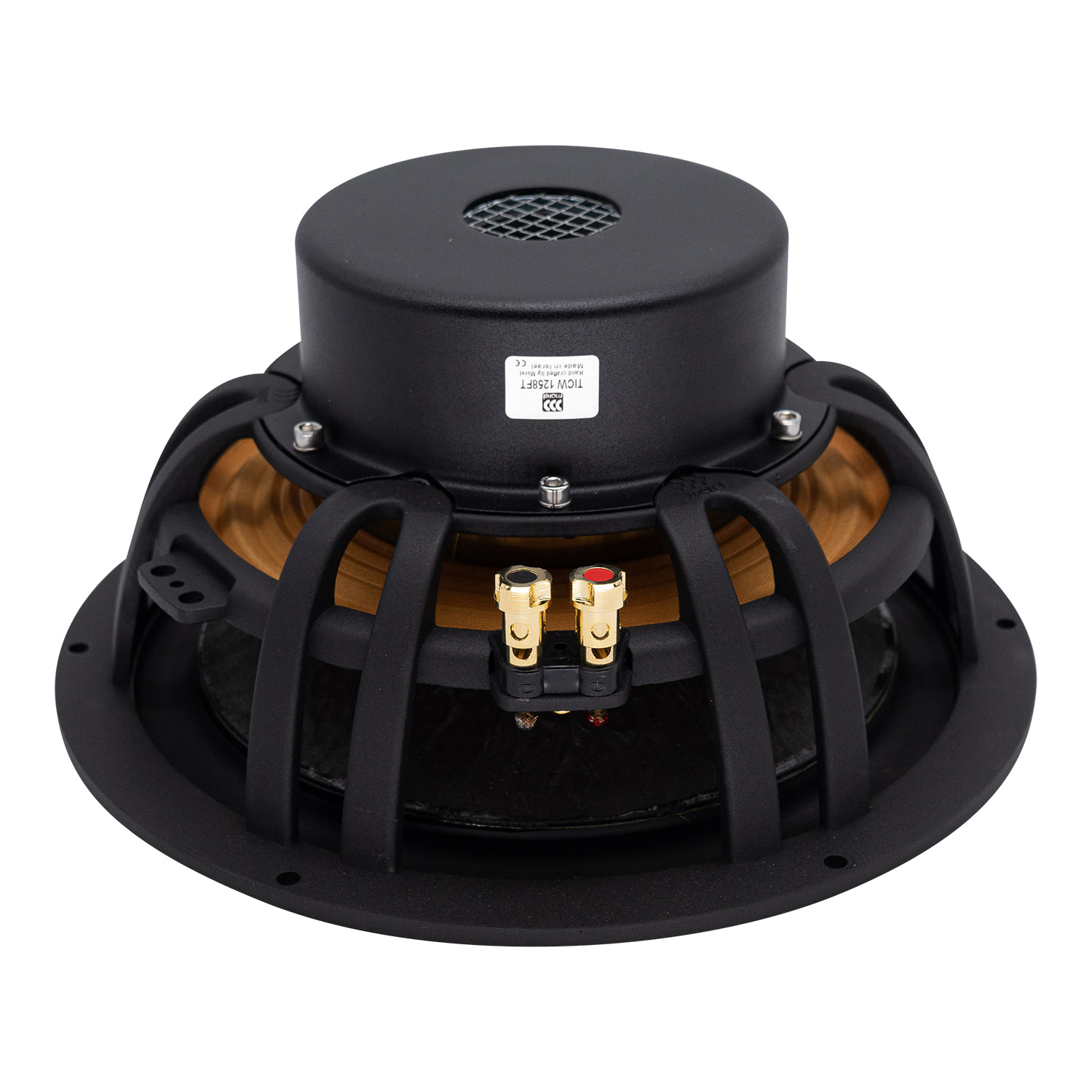

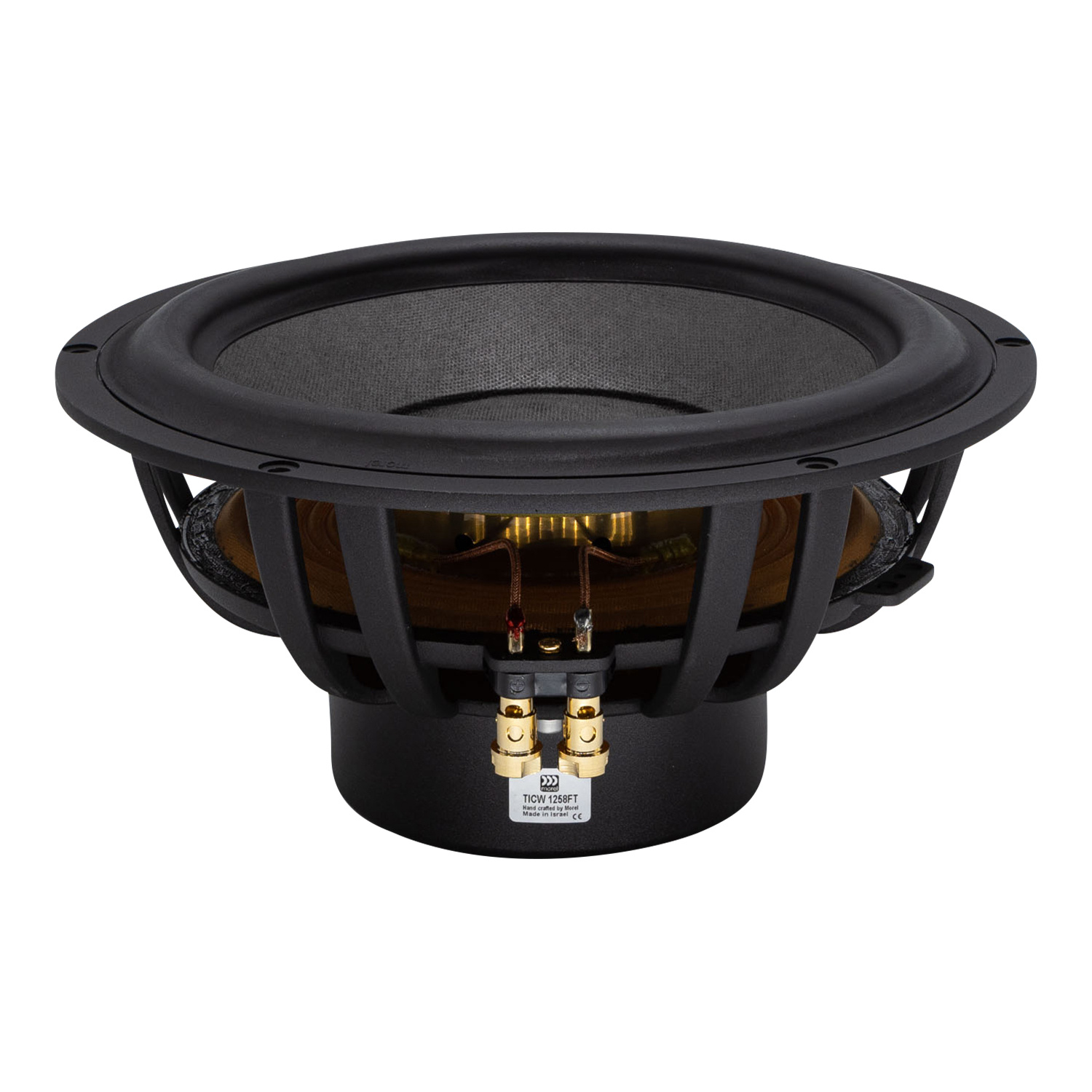

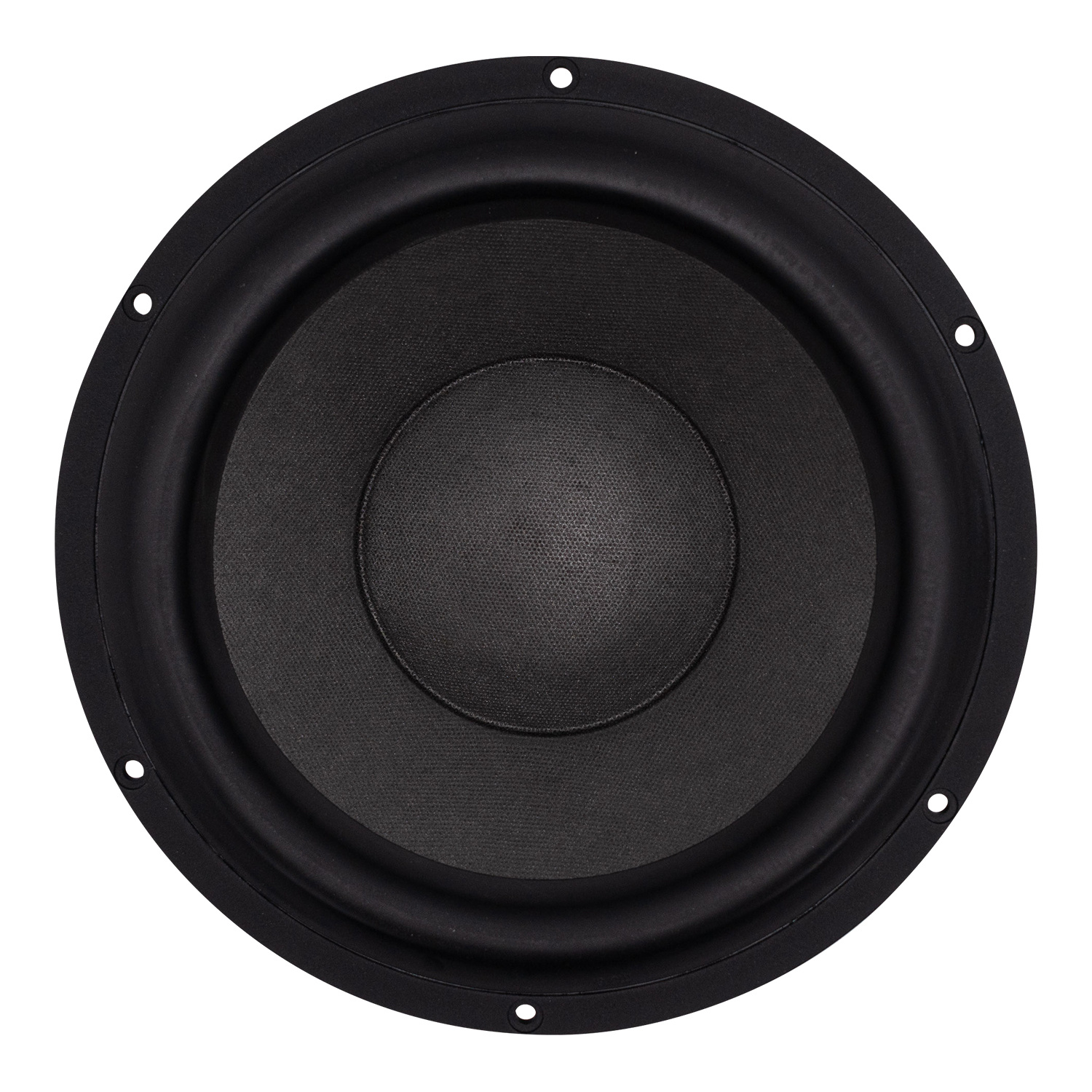

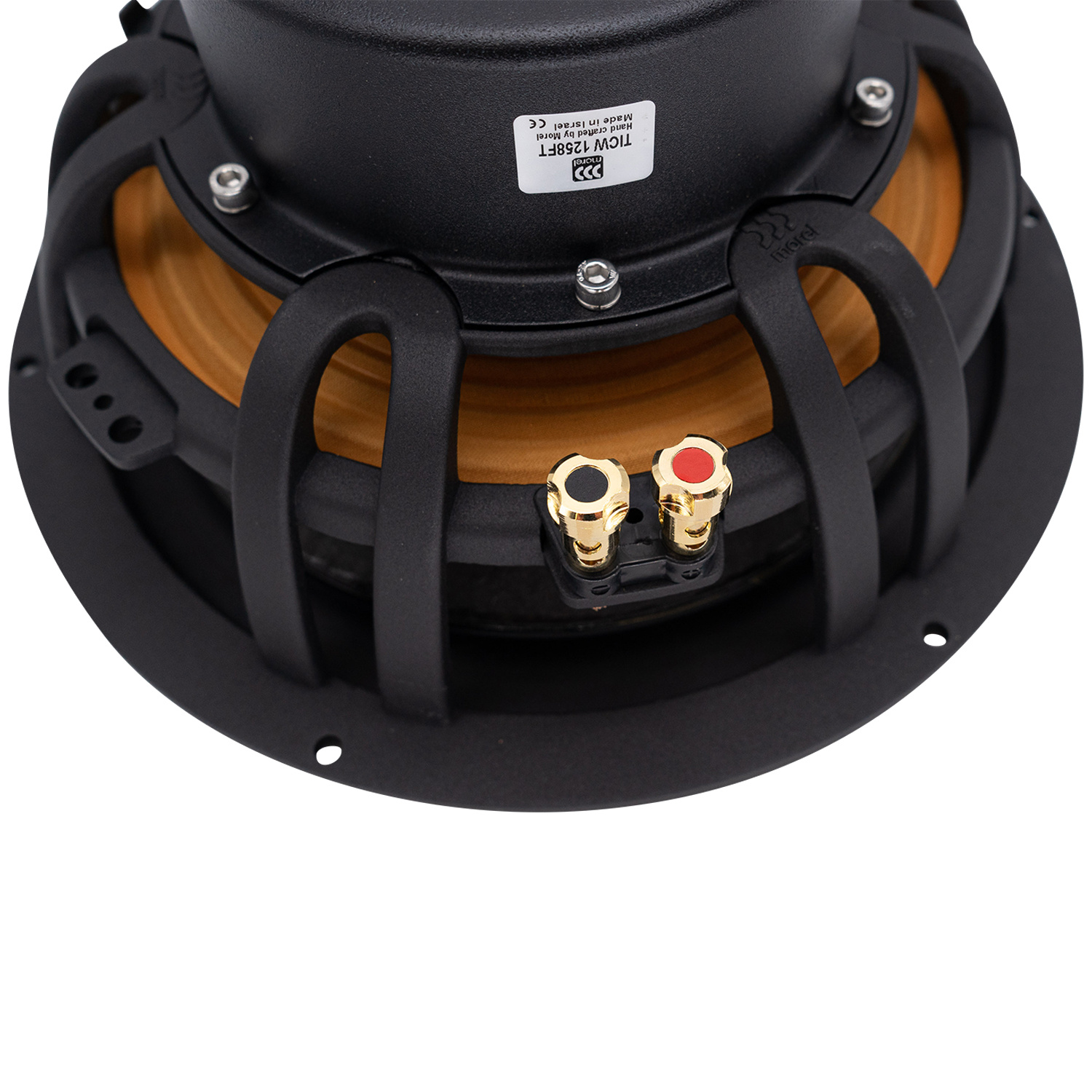

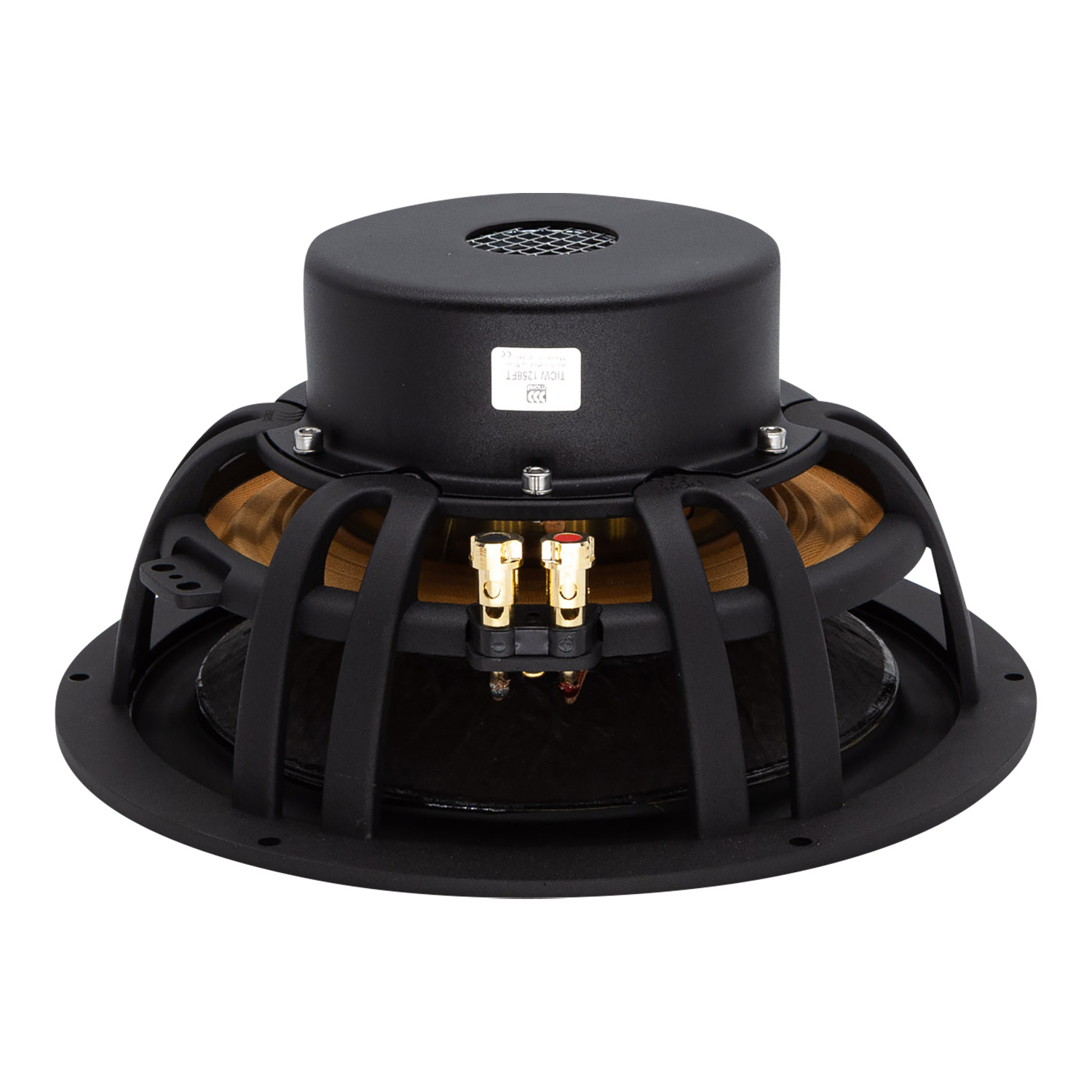

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm

€ 454,50€ 549,95 1 Auf Lager: Lieferzeit 1-3 Werktage
To create their Titanium Ultimate high fidelity 12" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel us... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €522,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 12" subwoofer.



Highlights

  • Copper-sleeved pole piece and titanium former reduce speed-depleting inductance
  • 8 ohm impedance for a high damping factor and more amplifier control
  • 5.1" Hexatech voice coil for 600 watts RMS power handling
  • Accucenter self-centering, one-piece paper cone assembly



Product details

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm



To create their Titanium Ultimate high fidelity 12" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.



Speed-robbing energy storage is reduced to an insanely low 0.62 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.

Eigenschaften

Artikelnummer:
TiCW 1258Ft
Woofer Series
Titanium Series
Woofer Type
Subwoofer
Nominal Diameter
12"
Power Handling (RMS)
600 Watts
Power Handling (max)
3,000 Watts
Impedance
8 ohms
Sensitivity
88 dB 2.83V/1m
Frequency Response
19 to 2,000 Hz
Voice Coil Diameter
5.1"
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.62 mH
Resonant Frequency (Fs)
19 Hz
Mechanical Q (Qms)
4.03
Electromagnetic Q (Qes)
0.38
Total Q (Qts)
0.34
Diaphragm Mass Inc. Airload (Mms)
110g
Surface Area of Cone (Sd)
437 cm²
BL Product (BL)
15.25 Tm
Compliance Equivalent Volume (Vas)
6.02 ft.³
Maximum Linear Excursion (Xmax)
10.5 mm
Cone / Diaphragm Material
Paper
Surround Material
Rubber
Voice Coil Wire Material
Aluminum
Voice Coil Former
Titanium
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
12"
Overall Depth
5.9"
Baffle Cutout Diameter
10.6"
# Mounting Holes
6
Sealed Volume
1.35 ft.³
Sealed F3
44 Hz
Vented Volume
2.88 ft.³
Vented F3
26 Hz
