      MW1258 Classic Series 12" Paper/Carbon Fiber Kegel Tieftöner 8 Ohm

      MW1258 Classic Series 12" Paper/Carbon Fiber Kegel Tieftöner 8 Ohm

      €329,95

      Morel MW1258 Classic Series 12" Paper/Carbon Fiber Kegel Tieftöner 8 Ohm

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Morel
      272,69 €329,95 € 4 Auf Lager
      • -5% Bestelle 4 für nur € 313,45 je Stück

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Vor-und Nachteile

      Laut unserer Spezialisten
      • The cone is a unique hybrid of carbon fiber composite laminated on paper to achieve an impressive mix of rigidity and damping for extraordinary musicality.
      • The MW 1258 is optimized to deliver powerful low frequencies when used in small enclosures. This driver is suitable for use in both hi-end home and car audio systems

      Produktbeschreibung

      With a huge 5.1" voice coil, double inside magnet assembly, and woven carbon fiber / paper laminate cone, Morel's MW1258 is a very powerful and unique subwoofer. Optimized for use in compact enclosures this high-end sub is suitable for both home and car audio designs.



      Highlights

      • Massive 5.1" aluminum Hexatech voice coil handles extreme amounts of power
      • One of a kind stamped steel frame provides extensive venting for noise free operation
      • Rigid woven carbon fiber laminated paper cone for incredible damping
      • Huge spider and smooth transition surround keeps excursion as linear as possible



      Product details

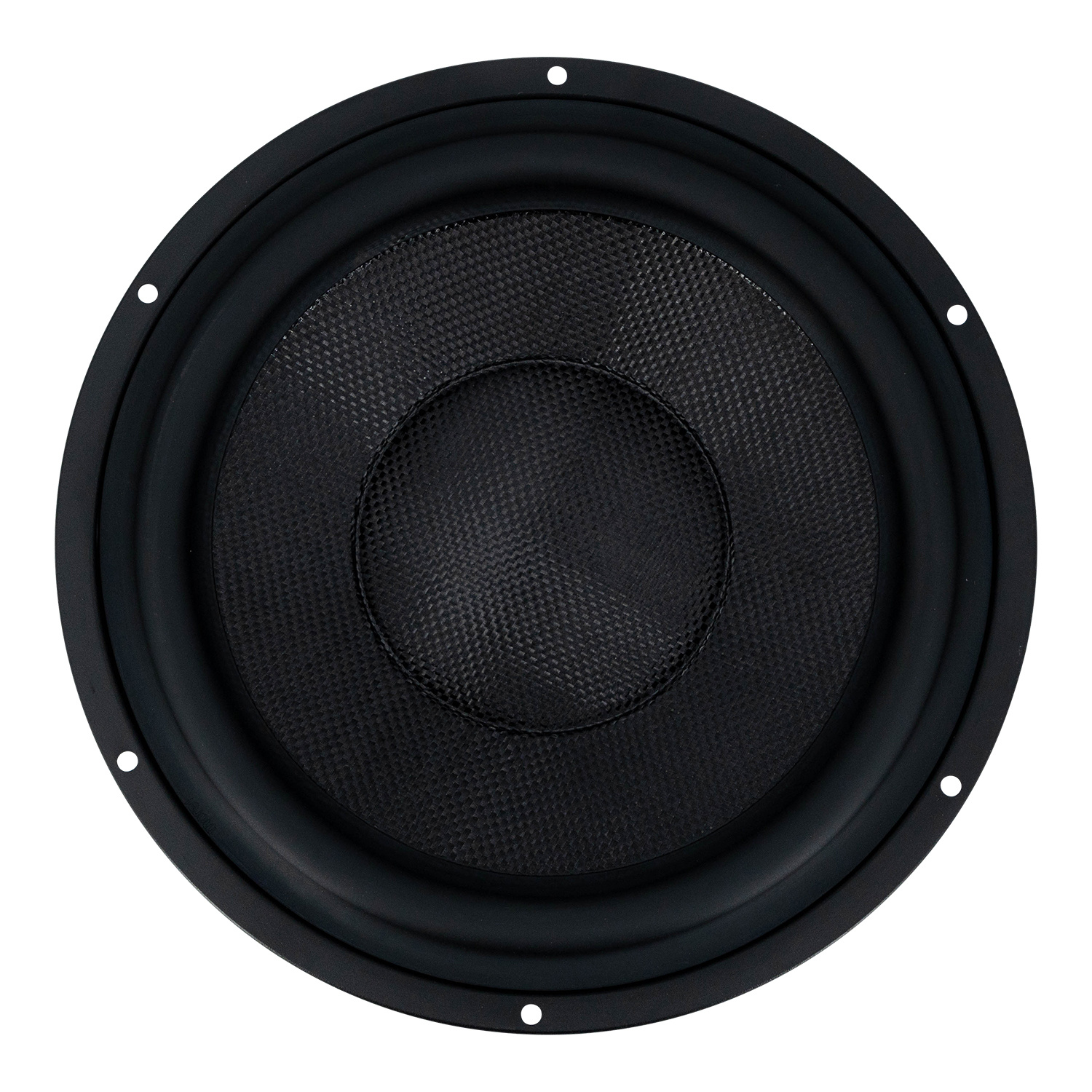

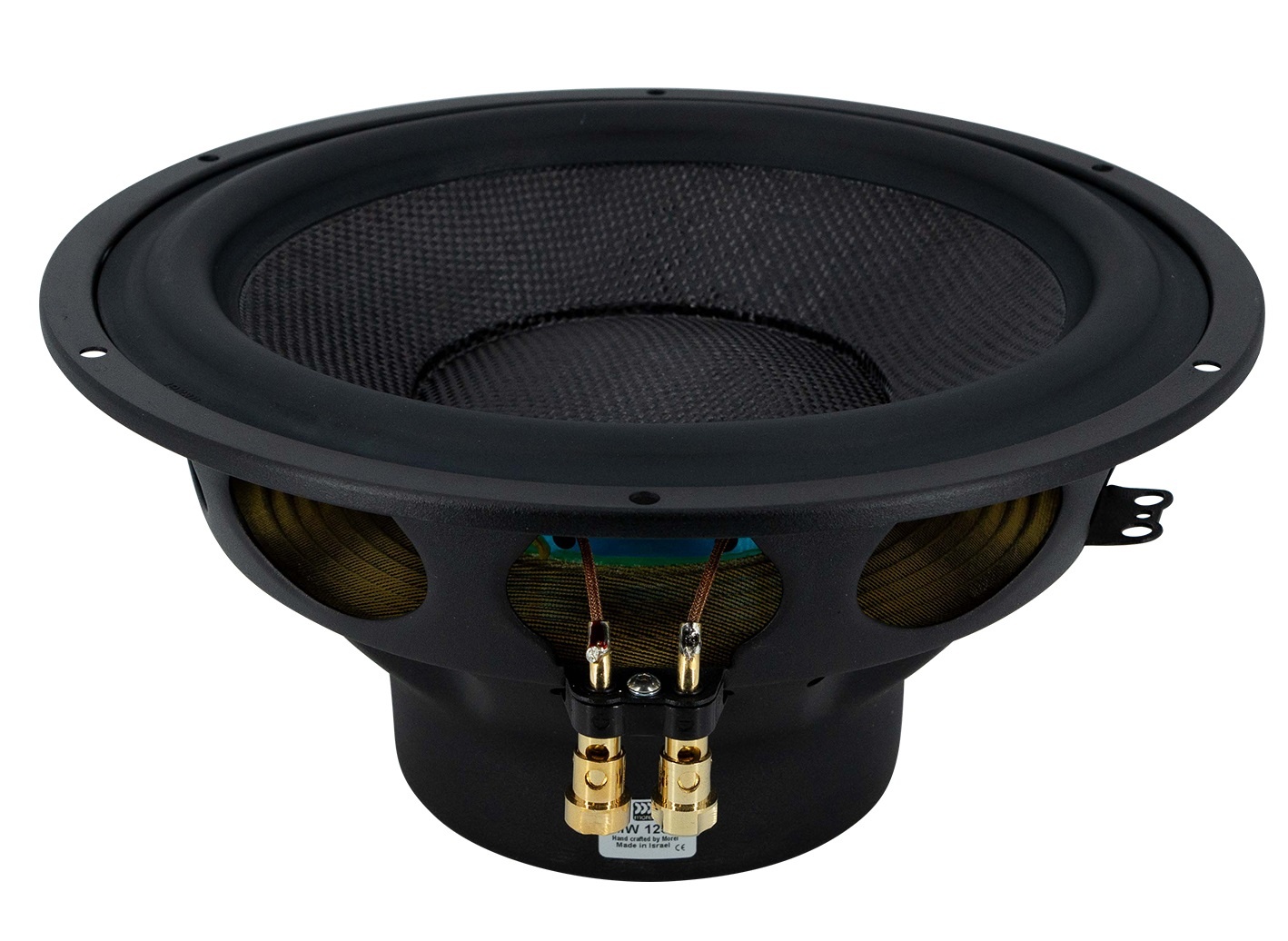

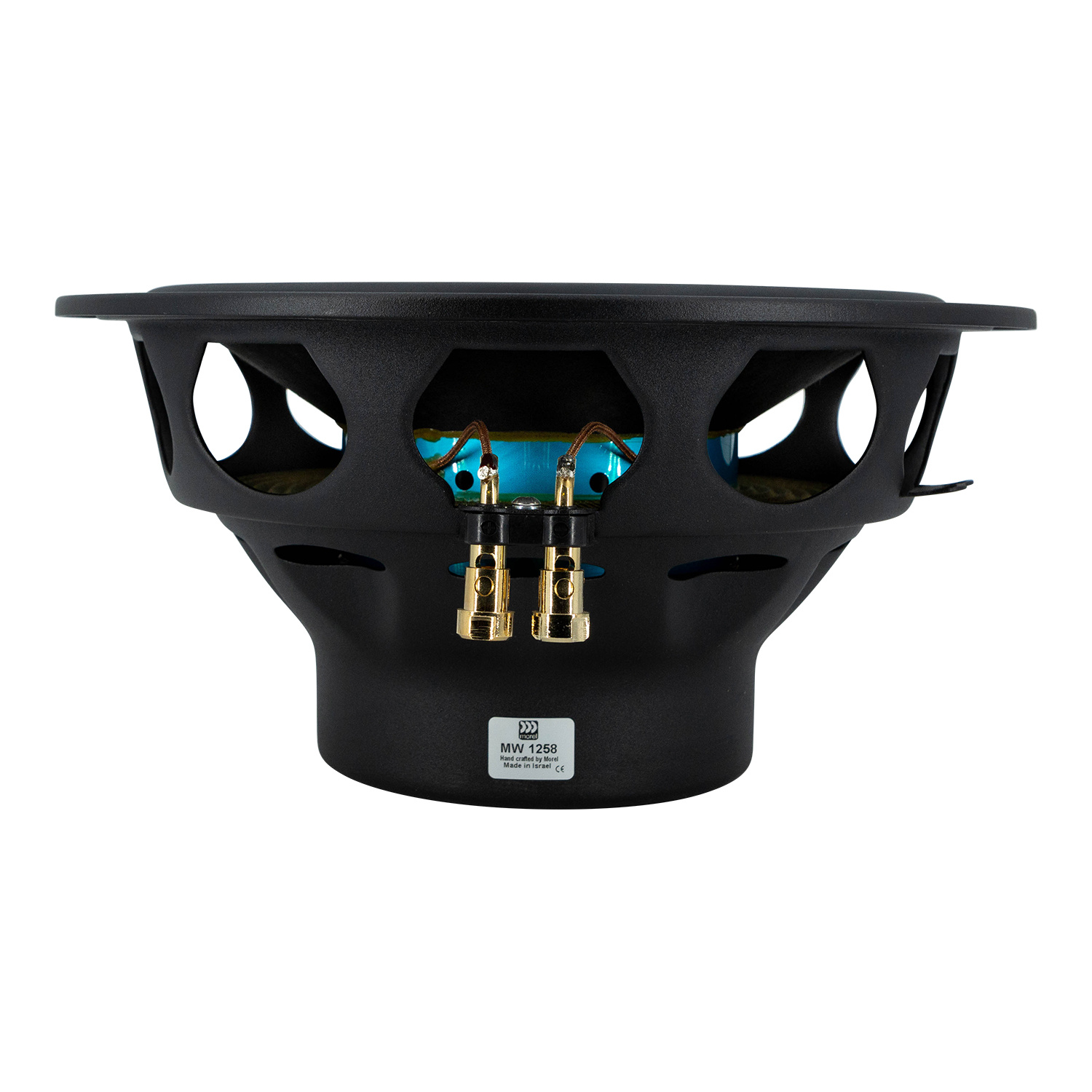

      Morel MW1258 Classic Series 12" Paper/Carbon Fiber Cone Subwoofer 8 Ohm



      Morel's innovative engineering on the MW1258 results in an extraordinary combination of audiophile quality bass and high power output for a great value. Featuring a gigantic 5.1” Hexatech external voice coil (hexagonal-shaped aluminum wire), the MW1258 was created for accurate music reproduction, superior durability, and high power handling. A highly efficient double magnet ferrite motor maximizes the magnetic field to apply as much force to the coil as possible.



      The cone is a unique hybrid of carbon fiber composite laminated on paper to achieve an impressive mix of rigidity and damping for extraordinary musicality. Holding everything together is a solid stamped steel frame that provides extensive venting for the coil (under spider and pole piece venting) for minimal compression and quiet operation.



      The MW1258 is optimized to deliver powerful low frequencies when used in small enclosures. This driver is suitable for use in both hi-end home and car audio systems.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      MW1258
      Nenndurchmesser
      305 mm, 12 inch
      Belastbarkeit (QMW)
      500 Watt
      Belastbarkeit (max)
      1500 Watt (10 ms)
      Impedanz (Z)
      8 ohm
      Empfindlichkeit (SPL bei 1m / 2,83V)
      87.1 dB
      Frequenzgang
      20-700 Hz
      Schwingspulendurchmesser
      5.1 inch
      Gleichstromwiderstand (Re)
      5.89 Ohm
      Schwingspuleninduktion (Le)
      1.98 mH
      Resonanzfrequenz (Fs)
      33.6 Hz
      Mechanische Güte (Qms)
      2.29
      Elektrische Güte (Qes)
      0.63
      Gesamtgüte (Qts)
      0.49
      Membranfläche (Sd)
      457.5 cm²
      Äquivalentvolumen (Vas)
      1.98 ft³
      Maximale Auslenkung (Xmax)
      10 mm
      Driver's Mechanical Losses (Rms)
      7.98 Kg/s
      Cone / Diaphragm Material
      Composite cellular
      Schwingspulendrahtmaterial
      Aluminium
      Schwingspulenformmaterial
      Aluminium
      Korb- / Rahmenmaterial
      Steel
      Magnetmaterial
      Ferrite
      Außendurchmesser
      305 mm, 12 inch
      Gesamttiefe
      151.5 mm, 6 inch
      Ausschnittdurchmesser
      10.375 inch
      # Befestigungsbohrungen
      6
      Durchmesser Befestigungslochs
      5.2
      Geschlossenes Volumen
      1.2 ft³
      Geschlossenes F3
      54.5 Hz
      Bassreflex Volumen
      2 ft³
      Bassreflex F3
      32 Hz

      Mehr anzeigen
