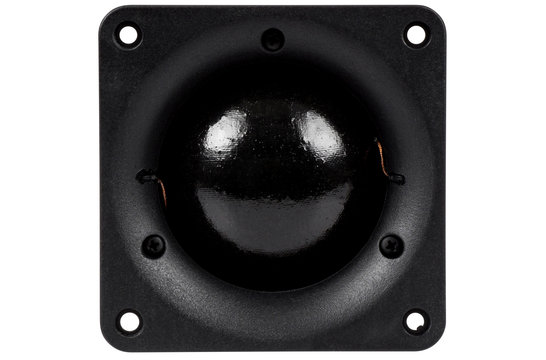

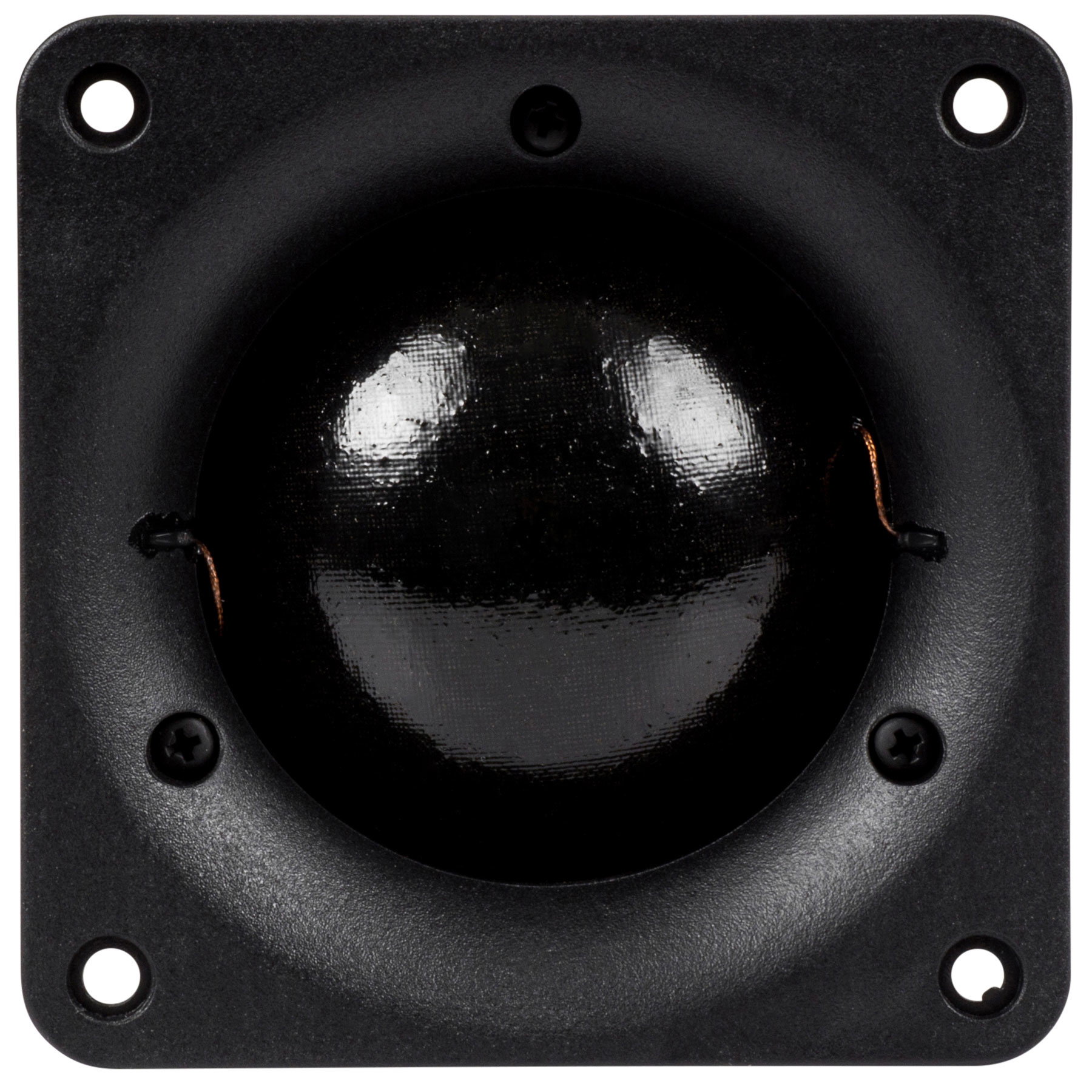

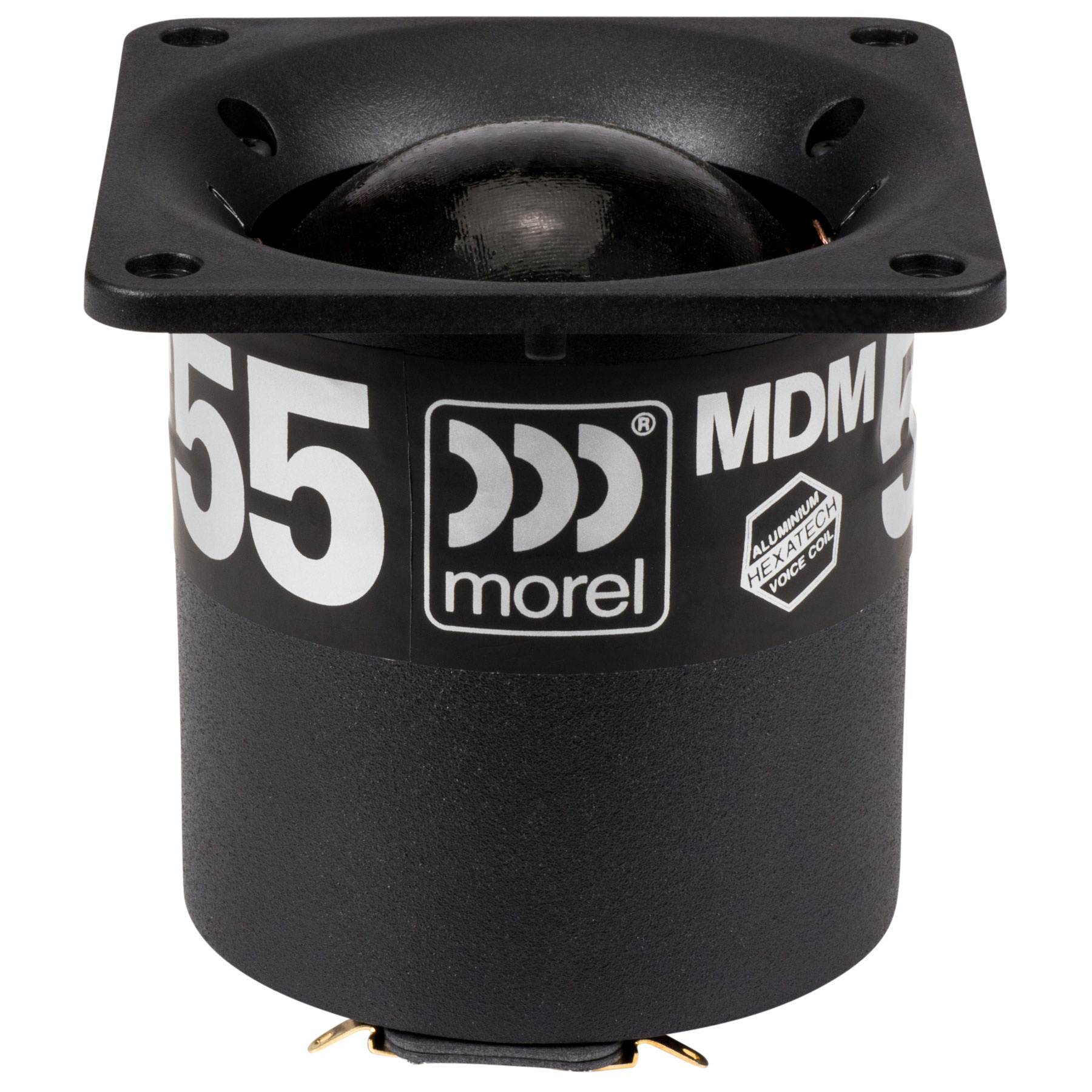

Morel Classic MDM 55 2" Mid-Dome

€ 88,45 6 Auf Lager: Lieferzeit 1-3 Werktage
No compromise 2" treated soft dome midrange designed for high end multiple speaker systems. It employs a powerful neodymium magnet (22 times stronger than ferrite!) enabling this unit to be both compact and ultra-lightweight.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €84,03 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

No compromise 2" treated soft dome midrange designed for high end multiple speaker systems. It employs a powerful neodymium magnet (22 times stronger than ferrite!) enabling this unit to be both compact and ultra-lightweight.



Highlights

  • Soft dome design for natural response with wide dispersion
  • Neodymium magnet makes this midrange very compact
  • Large 2-1/8" Hexatech voice coil allows high power handling
  • Smooth response makes transition to woofer and tweeter very predictable



Product details

Morel Classic MDM 55 2" Mid-Dome



No compromise 2" treated soft dome midrange designed for high end multiple speaker systems. It employs a powerful neodymium magnet (22 times stronger than ferrite!) enabling this unit to be both compact and ultra-lightweight. It features Hexatech aluminum voice coil technology, rear chamber loading, gold plated terminals, and is fully shielded to allow A/V use. This fine midrange retains the natural "warmth" and "body" of sounds.

Eigenschaften

Artikelnummer:
MDM 55
Woofer Series
Morel Classic
Woofer Type
Soft Dome Midrange
Power Handling (RMS)
200 Watts
Power Handling (max)
400 Watts
Impedance
8 ohms
Sensitivity
90.5 dB 2.83V/1m
Frequency Response
500 to 6,500 Hz
Voice Coil Diameter
2.125"
DC Resistance (Re)
6.3 ohms
Voice Coil Inductance (Le)
0.19 mH
Resonant Frequency (Fs)
380 Hz
Mechanical Q (Qms)
1.13
Electromagnetic Q (Qes)
1.75
Total Q (Qts)
0.68
Diaphragm Mass Inc. Airload (Mms)
2.8 g
Surface Area of Cone (Sd)
28 cm²
BL Product (BL)
5.2 Tm
Maximum Linear Excursion (Xmax)
1 mm
Cone / Diaphragm Material
Soft Dome
Voice Coil Wire Material
Aluminum
Voice Coil Former
Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
3.43"
Overall Depth
3.39"
Baffle Cutout Diameter
3"
# Mounting Holes
4
Mounting Hole Diameter
4 mm

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
The sound keeps very crystal clear. Especially at high volumes!. It can handle high volumes very well. This was what I was searching for. No bundling at high volumes as normale mid range attempts to do. Also stays in balance with the high and low speakers combined.
Durch Karsten W. on 28 Januar 2021
