Integra 424 Hybrid Series 4" Point Source Koaxiallautsprecher

€199,95

Zum Warenkorb hinzufügen

Morel Integra 424 Hybrid Series 4" Point Source Koaxiallautsprecher

Name: Morel Integra 424 Hybrid Series 4" Point Source Koaxiallautsprecher
Brand: Morel
SKU: Integra 424
Price: 199.95 EUR
Availability: InStock

0 reviews

Marke: Morel

Zeige alle Neue Produkte

4" | 4 Ω

Integra 424 Hybrid Series 4" Point Source Koaxiallautsprecher

165,25 €199,95 € 5 Auf Lager

Kostenloser Versand (DE & A)
Jetzt bestellt, heute versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Vor-und Nachteile

Laut unserer Spezialisten

Acuflexﾙ Hand Coated Soft Dome, Time aligned tweeter-woofer configuration.

Produktbeschreibung

Morel designed the Integra 424 4" driver from the ground up to push the limits of what is possible with coaxial drivers. By using a huge 2.1" voice coil on the woofer, Morel concentrically mounted the 1.1" soft dome tweeter allowing for near perfect time-alignment with amazing off axis consistency.

Highlights

Time aligned woofer and tweeter configuration minimizes off axis anomalies
1.1" Accuflex™ soft dome tweeter produces little distortion even at high output
Huge 2.1" Hexatech™ voice coil is driven by a powerful hybrid neodymium/ferrite motor
Uniflow™ frame allows ample airflow to minimize compression and cool the voice coils

Product details

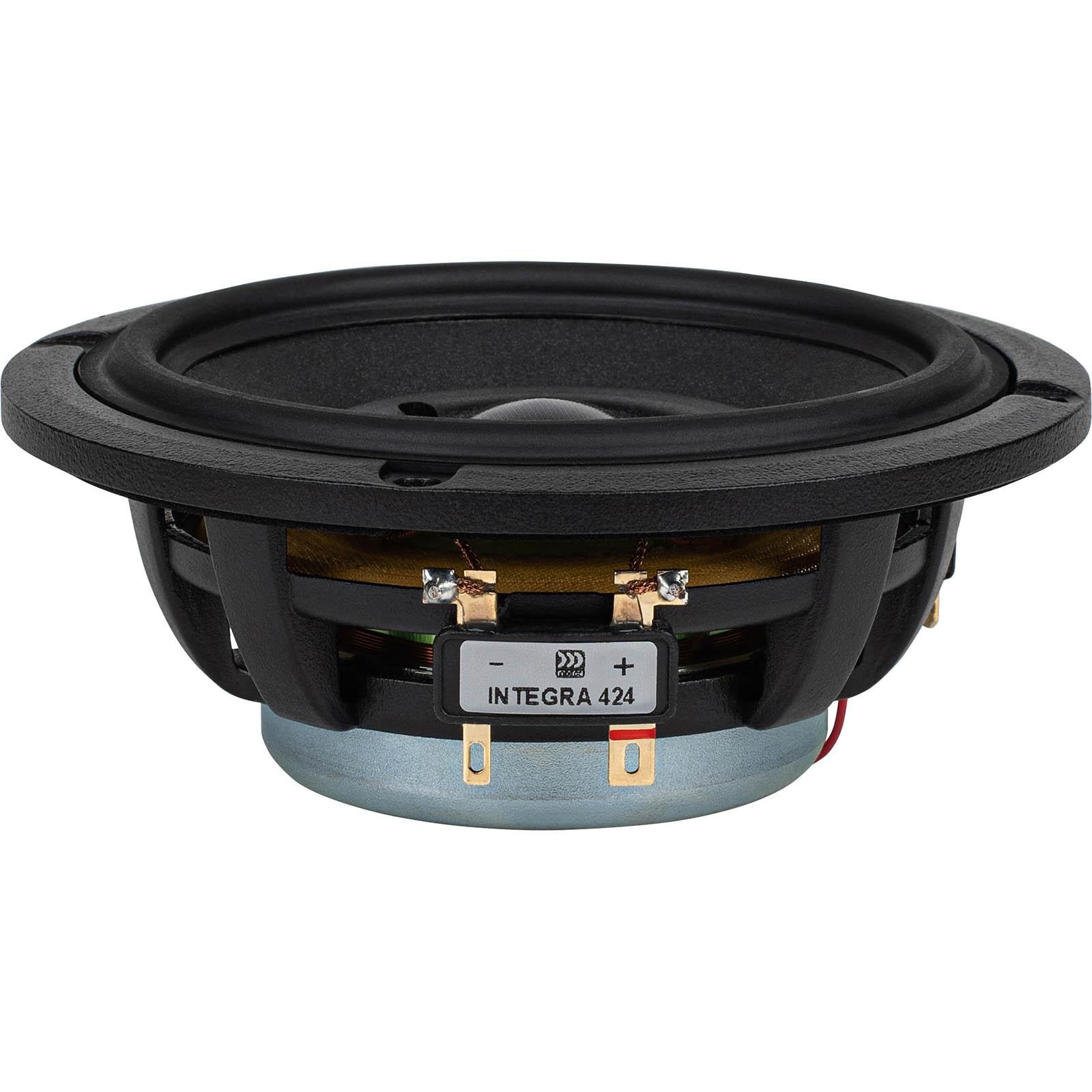

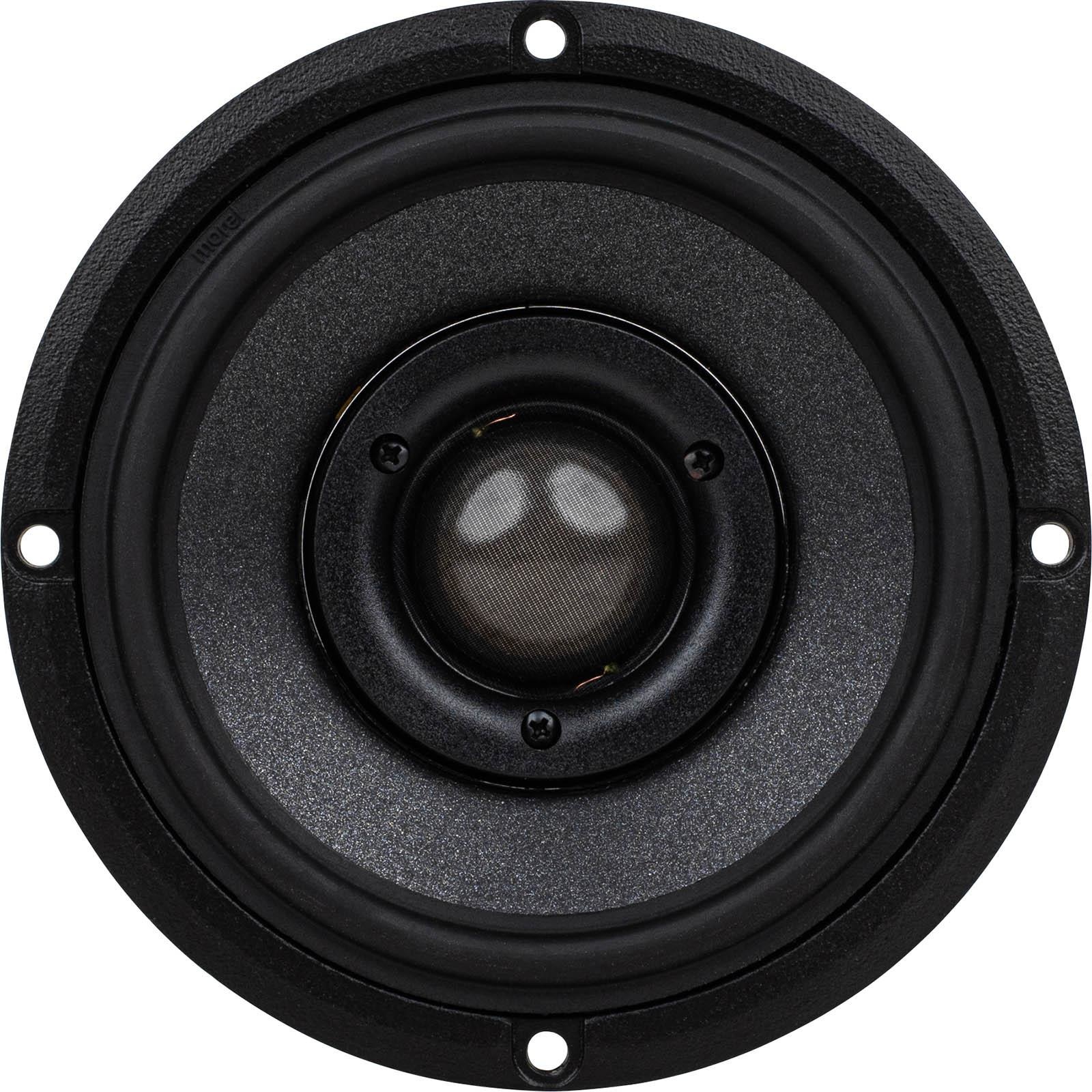

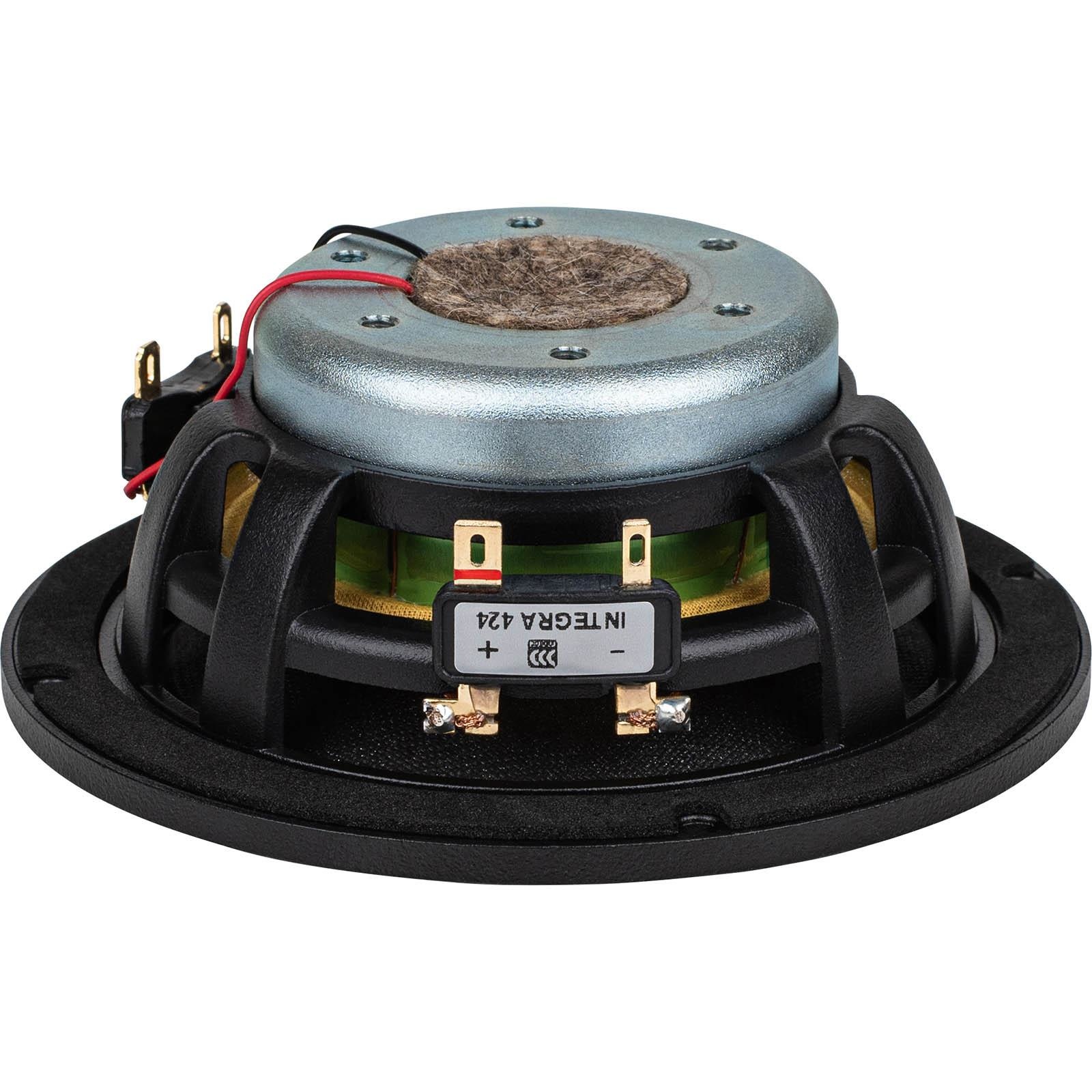

Morel Integra 424 Hybrid Series 4" Point Source Coaxial Full-Range

Morel's Integra 424 4" coaxial driver is unlike any other coaxial driver. By using a large voice coil on the woofer, Morel was able to mount the 1.1" Accuflex™ soft dome tweeter concentrically within the woofer cone. This results in minimal phase errors compared to conventional coaxial designs and allows the combined response to be ideal in all directions resulting from the near perfect time-alignment.

The Integra 424 features a large 28 mm Acuflex™ soft dome tweeter. Morel's innovative Acuflex™ is a specially engineered damping compound that allows for controlled accurate flexing, meaning each break-up mode is counteracted by another in the opposite direction. This action allows for the natural pure sound that has made Morel tweeters famous. The woofer uses a large 2.1" Hexatech™ aluminum voice coil to drive the low profile composite paper cone that excels in both on and off axis response.

The motor designed for the Integra 424 driver is an unconventional, innovative and highly effective Hybrid™ magnet system that uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size.

Specifications (Woofer): • Power handling: 60 watts RMS/500 watts max • VC dia: 2.1" • Le: 0.15 mH • Impedance: 4 ohms • Re: 3.0 ohms • Frequency response: 100-6,500 Hz • Fs: 120 Hz • SPL: 88 dB 2.83V/1m • Vas: 0.07 cu. ft. • Qms: 2.47 • Qes: 0.6 • Qts: 0.48 • Xmax: 3 mm.

Specifications (Tweeter): • Power handling: 60 watts RMS/200 watts max (with recommended crossover of 2,500 Hz/12 dB slope) • VCdia: 1.1" • Le: 0.24 mH • Impedance: 4 ohms • Re: 3.5 ohms • Frequency response: 2,200-20,000 Hz • Fs: 1100 Hz • SPL: 89 dB 2.83V/1m.
