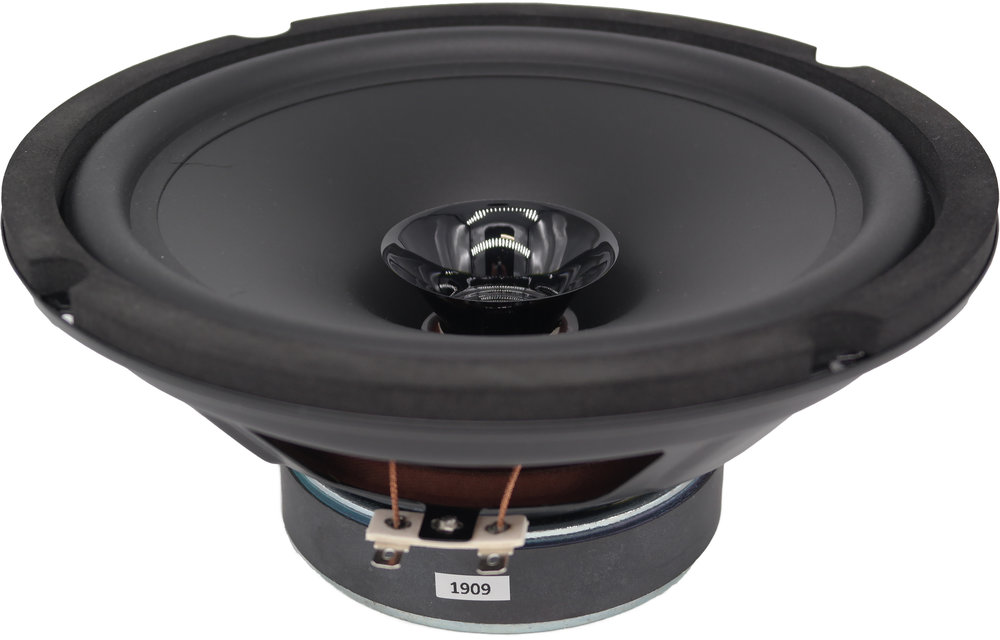

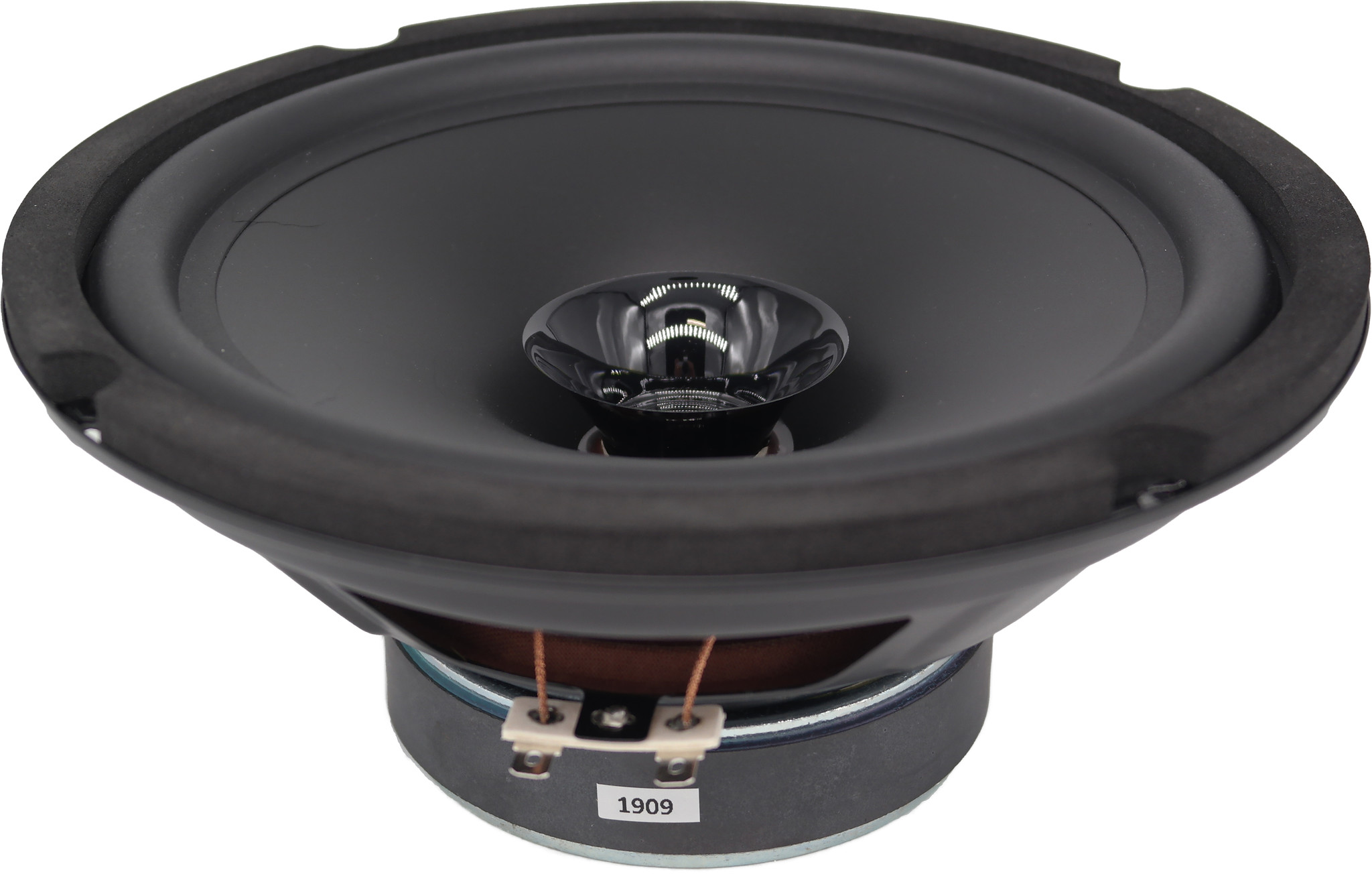

Monacor SPX-200WP 8'' Waterproof Full Range Driver 8 Ohm

€ 36,45 3 Auf Lager: Lieferzeit 1-3 Werktage
A waterproof full range woofer with improved high frequency dispersion thanks to the whizzer cone and good bass reproduction in sealed enclosures... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €34,63 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

A waterproof full range woofer with improved high frequency dispersion thanks to the whizzer cone and good bass reproduction in sealed enclosures



Highlights

  • Excellent sound quality
  • Very wide frequency range, slightly rising towards the high frequencies
  • Improved high frequency dispersion thanks to the whizzer cone
  • Very good bass reproduction



Product details

Monacor SPX-200WP 8'' Waterproof Full Range Driver 8 Ohm



As the name implies, the SPX-200WP is a waterproof full range woofer. It has a low-resonance and weatherproof polypropylene cone with rubber surround. It has a surprisingly good bass reproduction and is ideally suited for use in sealed enclosures.



Furthermore it exhibits all the positive characteristics of a full range speaker, such as the point source reproduction, with reduced beaming in the highs thanks to the well-integrated whizzer cone: The best of both worlds!

Eigenschaften

Artikelnummer:
SPX-200WP
Woofer Type
Full-range
Nominal Diameter
8''
Power Handling (RMS)
50 Watts
Power Handling (max)
100 Watts
Impedance
8 Ohms
Sensitivity
89 dB 1W/m
Frequency Response
40-18,000 Hz
Voice Coil Diameter
25 mm
Magnet Weight
564 g
DC Resistance (Re)
7.6 Ohms
Voice Coil Inductance (Le)
0.35 mH
Mechanical Q (Qms)
4.18
Electromagnetic Q (Qes)
0.69
Total Q (Qts)
0.59
Diaphragm Mass Inc. Airload (Mms)
19.7 g
Mechanical Compliance of Suspension (Cms)
0.95 mm/N
Surface Area of Cone (Sd)
213 cm2
BL Product (BL)
6.79 Tm
Compliance Equivalent Volume (Vas)
60.5 l
Maximum Linear Excursion (Xmax)
2 mm
Cone / Diaphragm Material
Polypropylene
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton
Basket / Frame Material
Stamped steel
Magnet Material
Ferrite
Overall Outside Diameter
203 mm
Overall Depth
89 mm
Baffle Cutout Diameter
180 mm
# Mounting Holes
4
Mounting Hole Diameter
5 x 7 mm
