Monacor SPH-450TC 18'' DVC Subwoofer

€ 330,54€ 399,95 Nicht auf Lager: Lieferzeit beträgt 3 Werktage
An extremely powerful dual voice coil subwoofer that is capable of incredible bass reproduction in a relatively small cabinet.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €379,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

An extremely powerful dual voice coil subwoofer that is capable of incredible bass reproduction in a relatively small cabinet making it suitable for both PA and home theater use.



Highlights

  • Dual voice coil
  • Relatively small volume requirements
  • excellent dynamic response
  • Extra long excursion



Product details

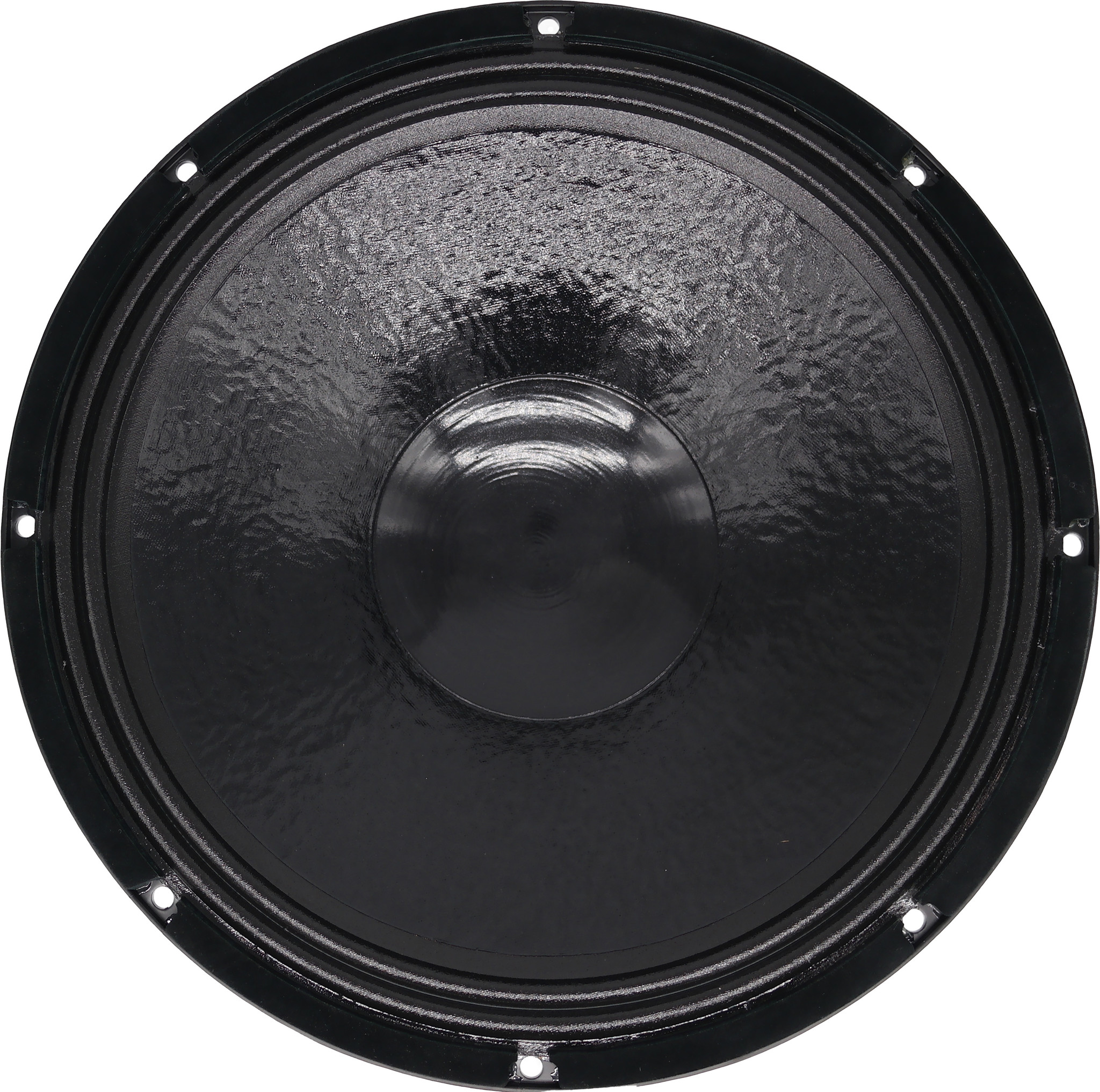

Monacor SPH-450TC 18'' DVC Subwoofer



The SPH-450TC has a non-pressed paper cone manufactured with a new approach to cone geometry for highest rigidity and excellent dynamic response. The powerful motor structure is extensively ventilated and thanks to its large magnetic field and double centering spider it can handle extra-long excursion without audible distortion.



The subwoofer was designed with massive output in mind, resulting in a woofer that is capable of incredible sound pressure levels at the lowest of frequencies in relatively small cabinets.

Eigenschaften

Artikelnummer:
SPH-450TC
Woofer Type
Subwoofer
Nominal Diameter
18''
Power Handling (RMS)
2 x 350 Watts
Power Handling (max)
2 x 500 Watts
Impedance
4+4 Ohm
Sensitivity
93 dB 1W/m
Frequency Response
20-500 Hz
Voice Coil Diameter
99.3 mm
Magnet Weight
5.7 kg
DC Resistance (Re)
2 x 3.7 Ohms / 1 x 7.4 Ohms
Voice Coil Inductance (Le)
2 x 1.1 mH/1 x 4.6 mH
Resonant Frequency (Fs)
20 Hz
Mechanical Q (Qms)
2.97
Electromagnetic Q (Qes)
0.27
Total Q (Qts)
0.25
Diaphragm Mass Inc. Airload (Mms)
305 g
Mechanical Compliance of Suspension (Cms)
0.22 mm/N
Surface Area of Cone (Sd)
1,250 cm2
BL Product (BL)
32.40 Tm
Compliance Equivalent Volume (Vas)
480 l
Maximum Linear Excursion (Xmax)
12.9 mm
Cone / Diaphragm Material
Paper
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Dual Voice Coil
Yes
Basket / Frame Material
Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
460 mm
Overall Depth
220 mm
Baffle Cutout Diameter
425 mm
# Mounting Holes
8
Mounting Hole Diameter
8.5 mm
