Monacor SPH-380TC 15'' DVC Subwoofer

€ 210,70€ 254,95 1 Auf Lager: Lieferzeit 1-3 Werktage
An extremely powerful dual voice coil subwoofer that is capable of bass reproduction in very small bass reflex enclosures allowing for tremendous bass in endless applications.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €242,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

An extremely powerful dual voice coil subwoofer that is capable of bass reproduction in very small bass reflex enclosures allowing for tremendous bass in endless applications.



Highlights

  • Dual voice coil
  • Extra small volume requirements
  • excellent dynamic response
  • Extra long excursion



Product details

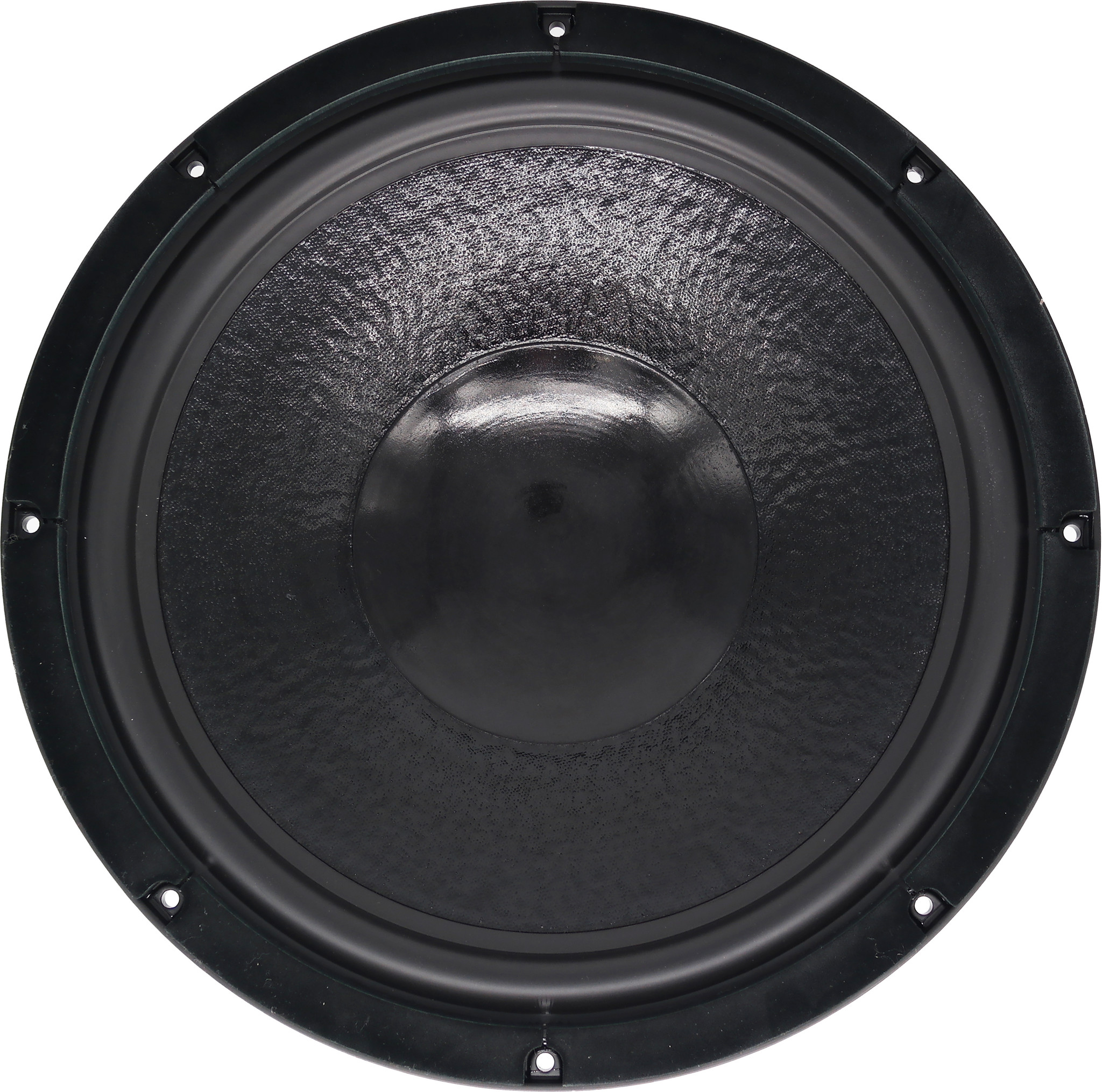

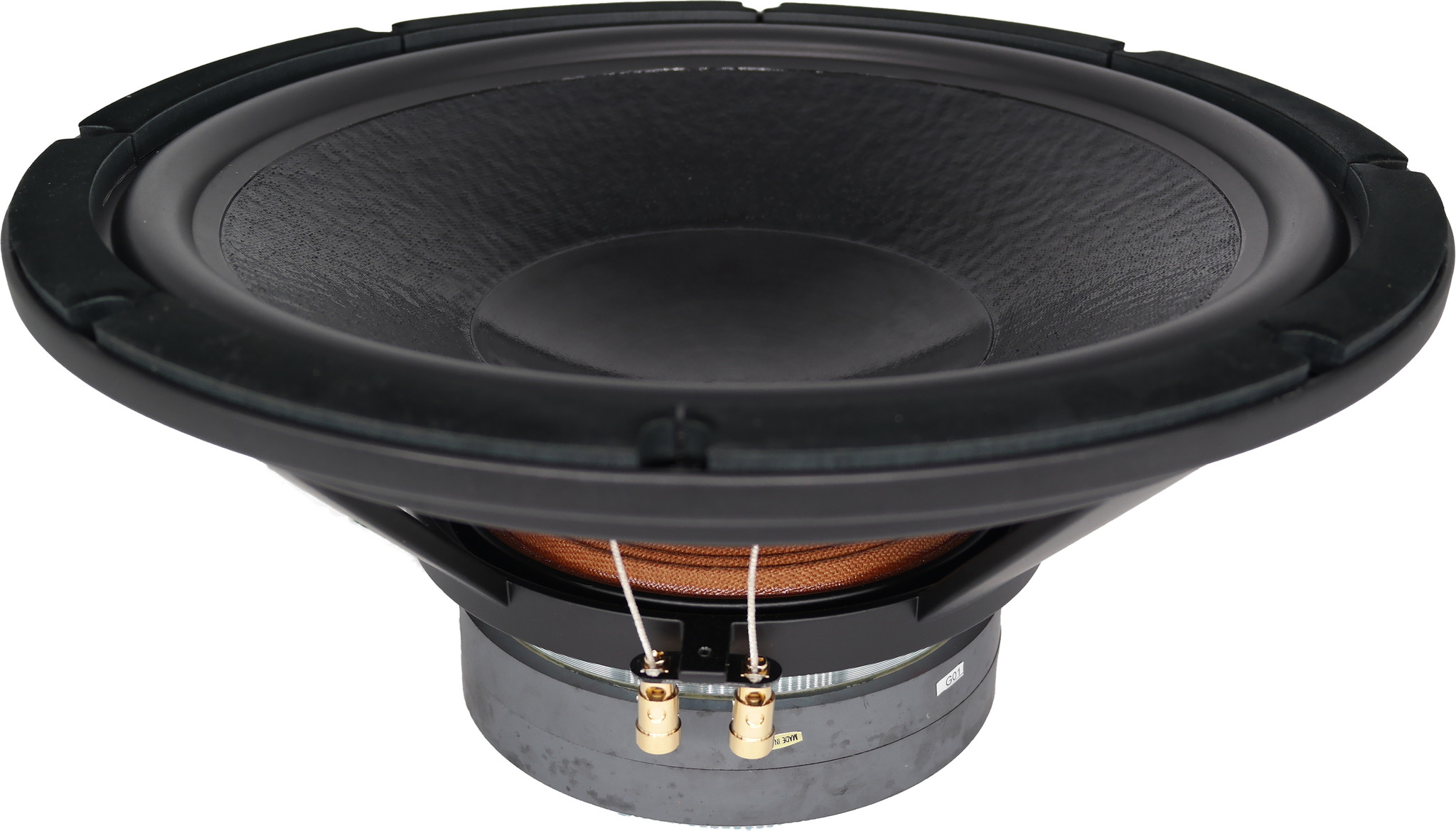

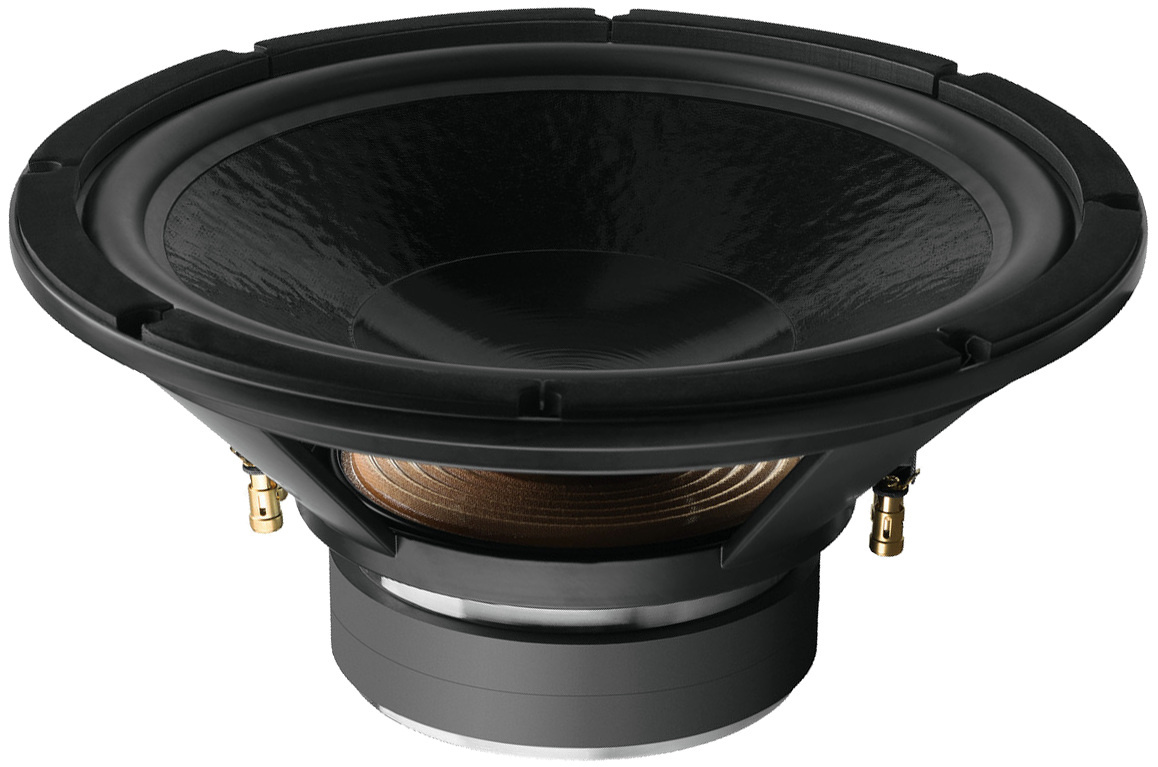

Monacor SPH-380TC 15'' DVC Subwoofer



The SPH-380TC has a non-pressed paper cone manufactured with a new approach to cone geometry for highest rigidity and excellent dynamic response. The powerful motor structure is extensively ventilated and thanks to its large magnetic field it can handle extra-long excursion without audible distortion.



The subwoofer is designed with general subwoofer applications in mind, making it suitable for both home theater and small live venue use.

Eigenschaften

Artikelnummer:
SPH-380TC
Woofer Type
Subwoofer
Nominal Diameter
15''
Power Handling (RMS)
2 x 250 W
Power Handling (max)
2 x 400 W
Impedance
4+4 Ohms
Sensitivity
89 dB 1W/m
Frequency Response
25-800 Hz
Voice Coil Diameter
75.5 mm
Magnet Weight
3.7 kg
DC Resistance (Re)
2 x 3.6 Ohms / 1 x 7.2 Ohms
Voice Coil Inductance (Le)
2 x 1.1 mH/1 x 4.4 mH
Resonant Frequency (Fs)
21.5 Hz
Mechanical Q (Qms)
2.81
Electromagnetic Q (Qes)
0.31
Total Q (Qts)
0.28
Diaphragm Mass Inc. Airload (Mms)
199.5 g
Mechanical Compliance of Suspension (Cms)
0.28 mm/N
Surface Area of Cone (Sd)
845 cm2
BL Product (BL)
25 Tm
Compliance Equivalent Volume (Vas)
275 l
Maximum Linear Excursion (Xmax)
11.1 mm
Cone / Diaphragm Material
Paper
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Dual Voice Coil
Yes
Basket / Frame Material
Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
402 mm
Overall Depth
180 mm
Baffle Cutout Diameter
356 mm
# Mounting Holes
8
Mounting Hole Diameter
6 mm
