Monacor SPH-300KE 12" Kevlar Cone Woofer 8 Ohm

€ 115,66€ 139,95 1 Auf Lager: Lieferzeit 1-3 Werktage
High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €132,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures



Highlights

  • Kevlar cone
  • Low loss T/S parameters
  • High excursion capabilities



Product details

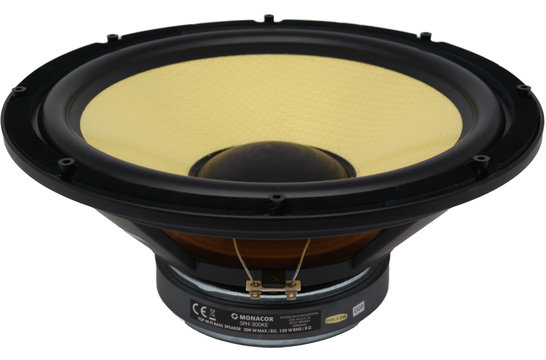

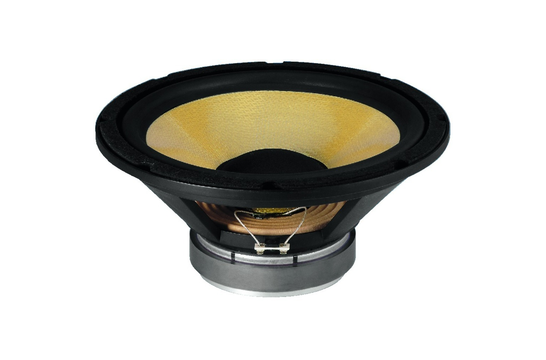

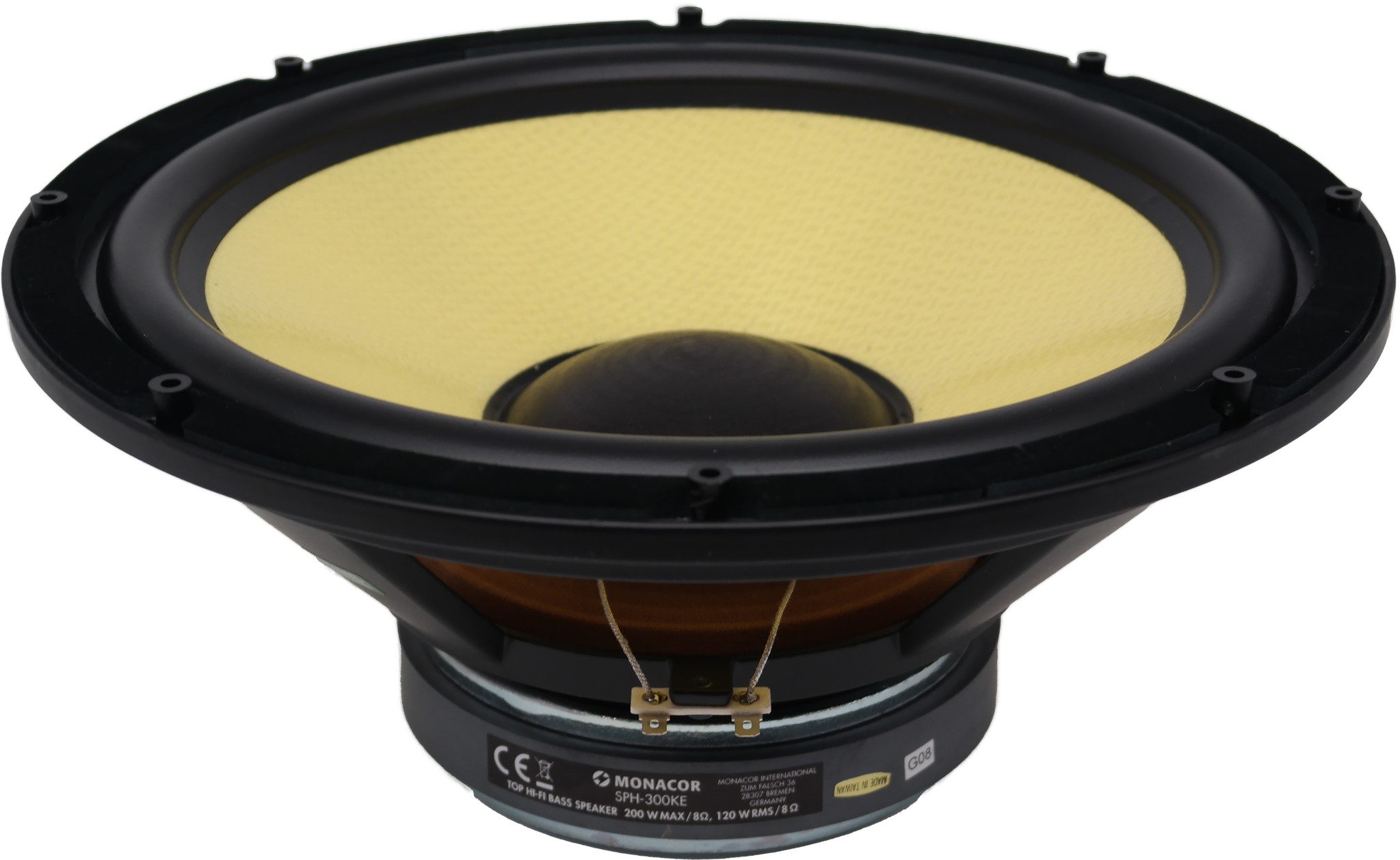

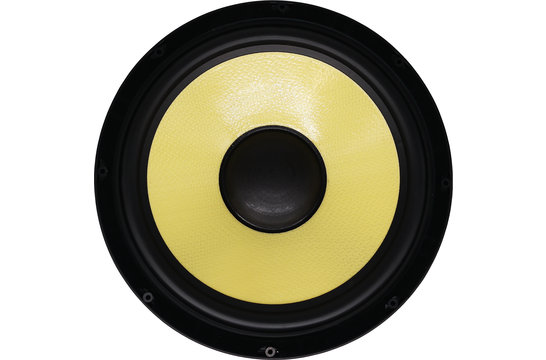

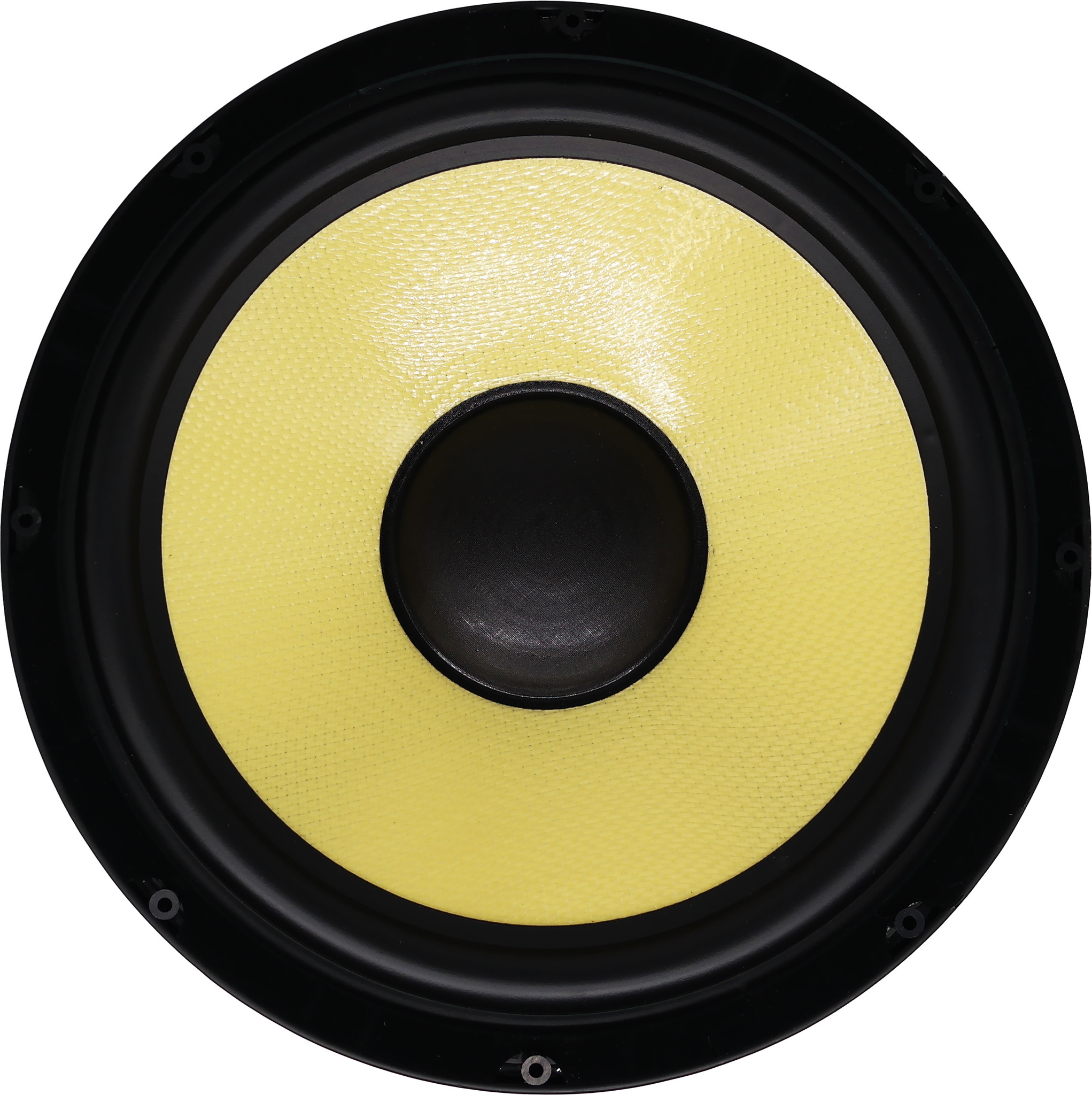

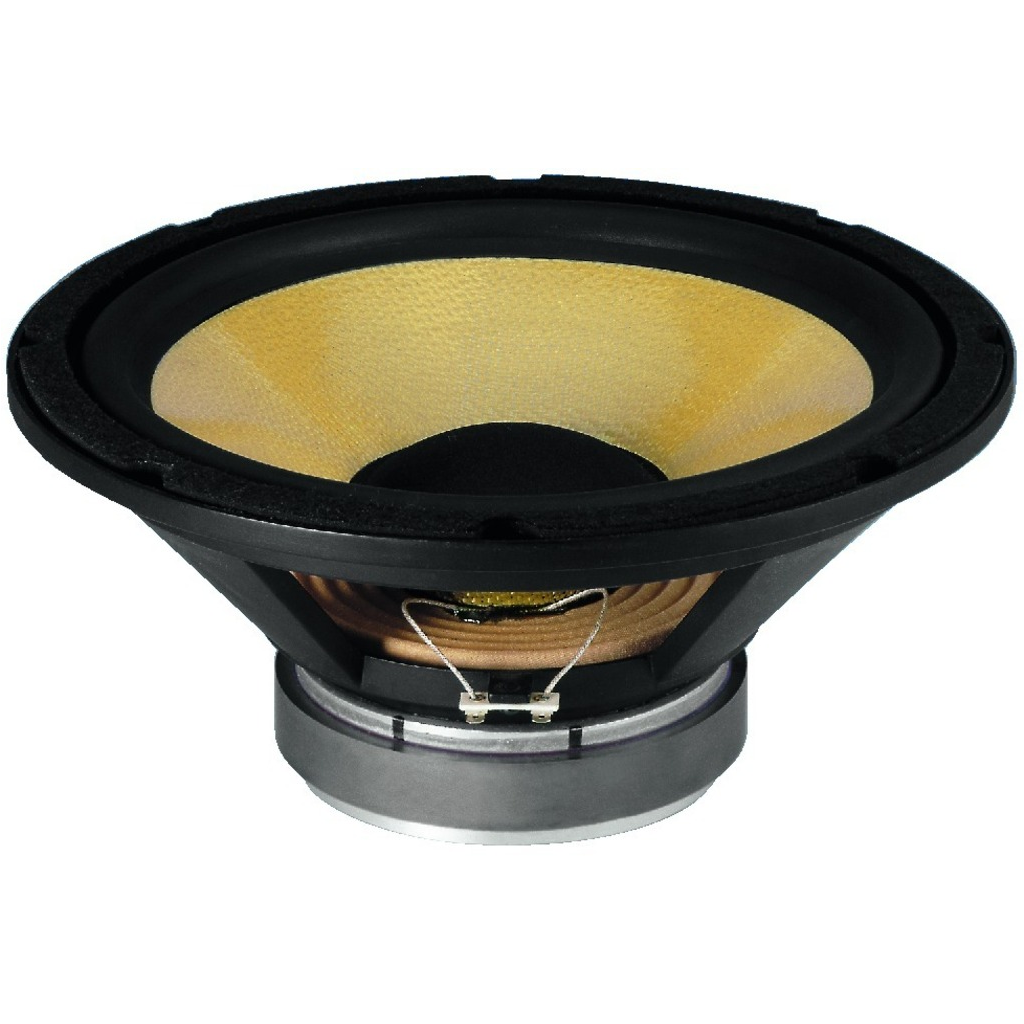

Monacor SPH-300KE 12" Kevlar Cone Woofer 8 Ohm



The Monacor SPH-300KE is a very competent woofer with modern engineering and looks thus making it very suitable as the woofer in high-end multi-way speakers or a compact subwoofer. The beautiful finely woven kevlar cone draws plenty of attention and its performance won’t disappoint the listener either. The low loss T/S parameters are tailored towards bass-reflex designs, meaning that deep bass reproduction is possible from vented enclosures but a simple sealed enclosure will still reproduce impressive low-end.

Eigenschaften

Artikelnummer:
SPH-300KE
Woofer Type
Woofer
Nominal Diameter
12''
Power Handling (RMS)
120 Watts
Power Handling (max)
200 Watts
Impedance
8 Ohms
Sensitivity
90 dB 1W/m
Frequency Response
22-2,000 Hz
Voice Coil Diameter
65.5 mm
Magnet Weight
1.2 kg + 79 g
DC Resistance (Re)
6.2 mH
Resonant Frequency (Fs)
22 Hz
Mechanical Q (Qms)
4.15
Electromagnetic Q (Qes)
0.36
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
65 g
Mechanical Compliance of Suspension (Cms)
0.81 mm/N
Surface Area of Cone (Sd)
496 cm2
BL Product (BL)
12.50 Tm
Compliance Equivalent Volume (Vas)
250 l
Maximum Linear Excursion (Xmax)
6.5 mm
Cone / Diaphragm Material
Kevlar
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
glass fiber
Basket / Frame Material
Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
309 mm
Overall Depth
130 mm
Baffle Cutout Diameter
272 mm
# Mounting Holes
8
Mounting Hole Diameter
5.5 mm
