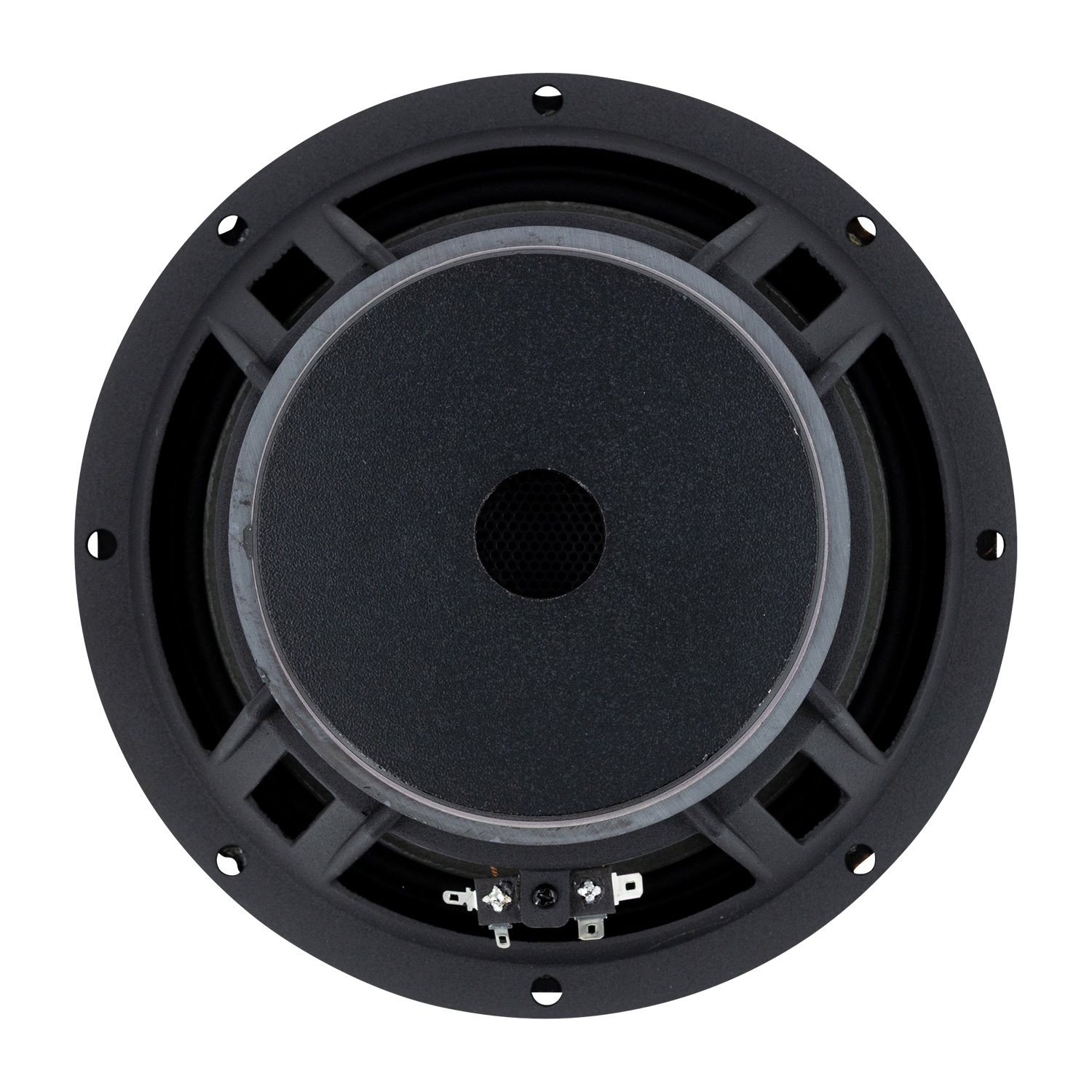

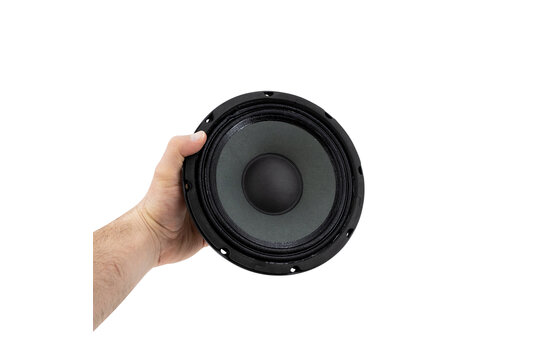

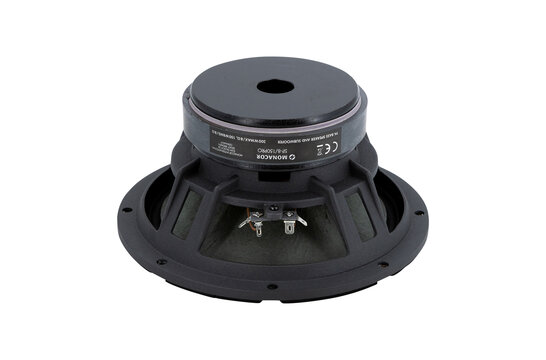

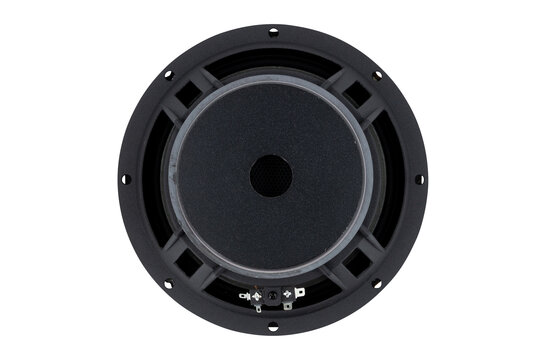

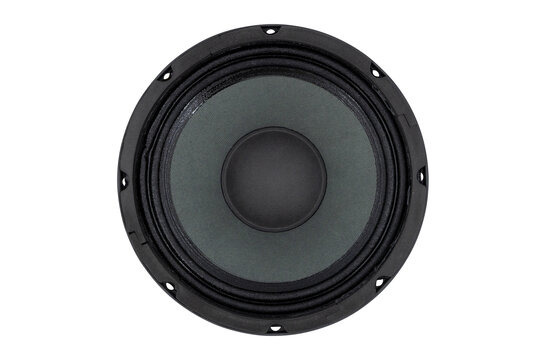

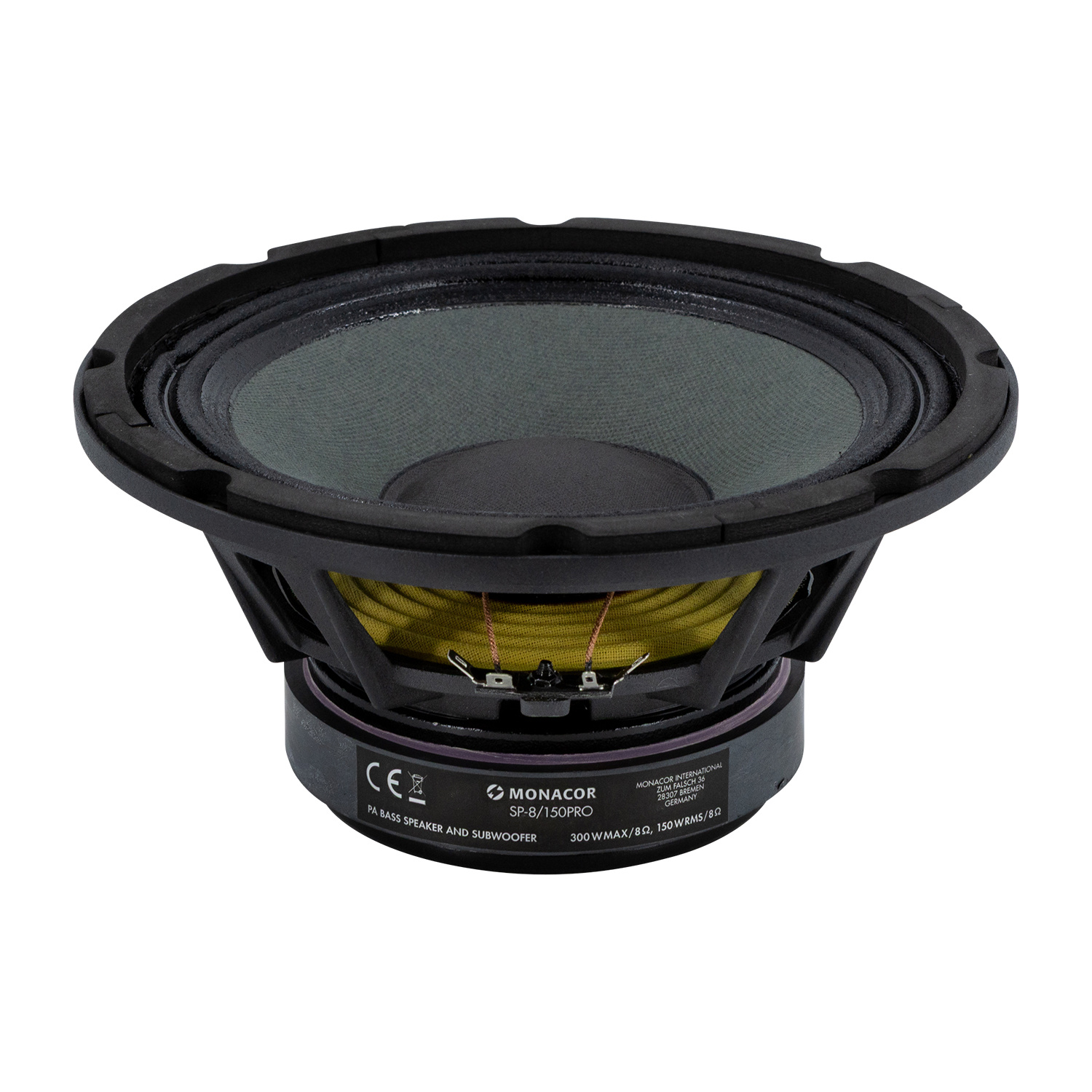

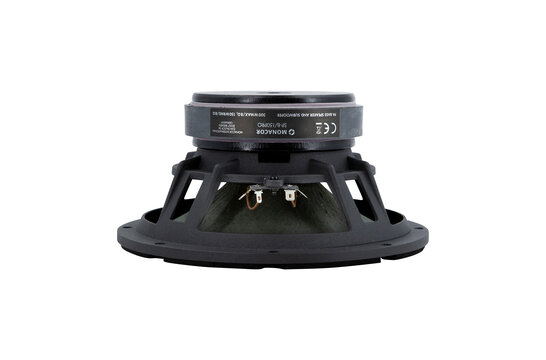

Monacor SP-8/150PRO PA Midbass Woofer

€ 54,95 4 Auf Lager: Lieferzeit 1-3 Werktage
8’’ PA Midbass woofer, ideally suited as a Midbass or PA subwoofer in small to medium sized vented enclosures.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €52,20 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

8’’ PA Midbass woofer, ideally suited as a Midbass or PA subwoofer in small to medium sized vented enclosures.



Highlights

  • Extra-long excursion for a deep bass reproduction of high volumes
  • Progressive cone suspension for a high operating reliability
  • Ideally suited for 2-way systems and compact subwoofers



Product details

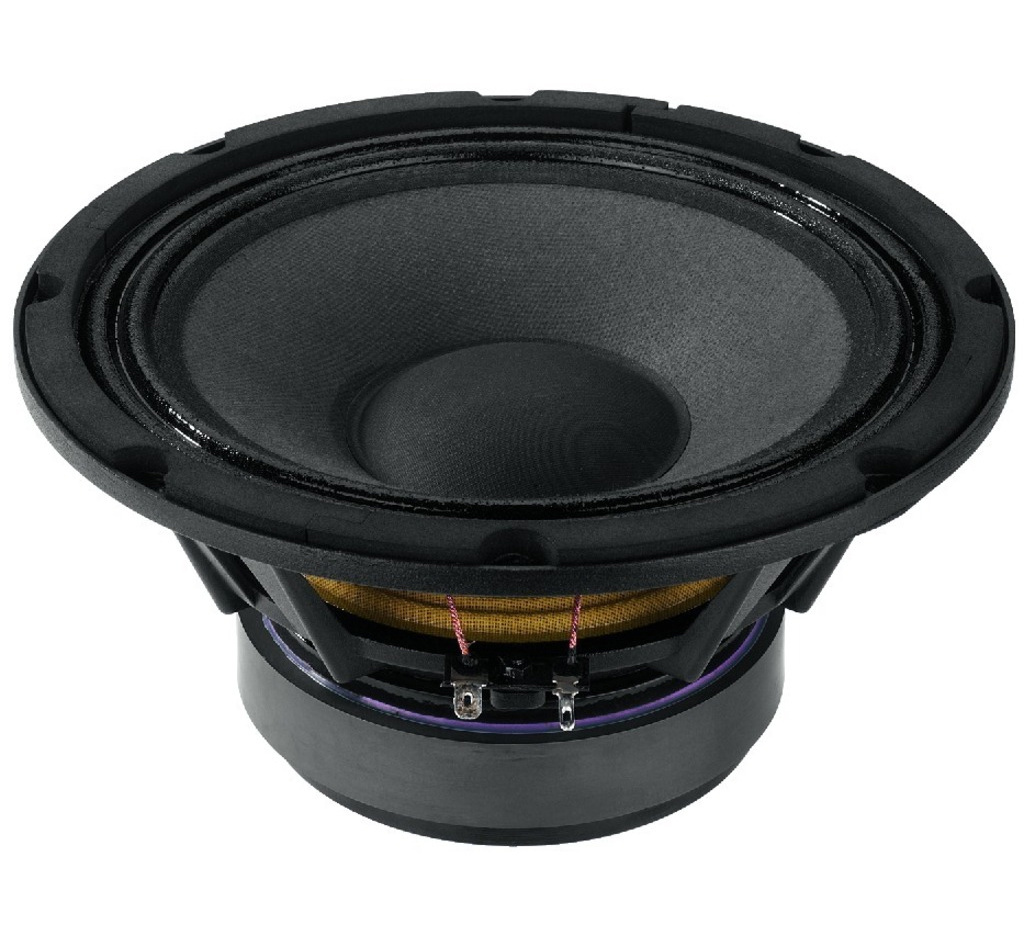

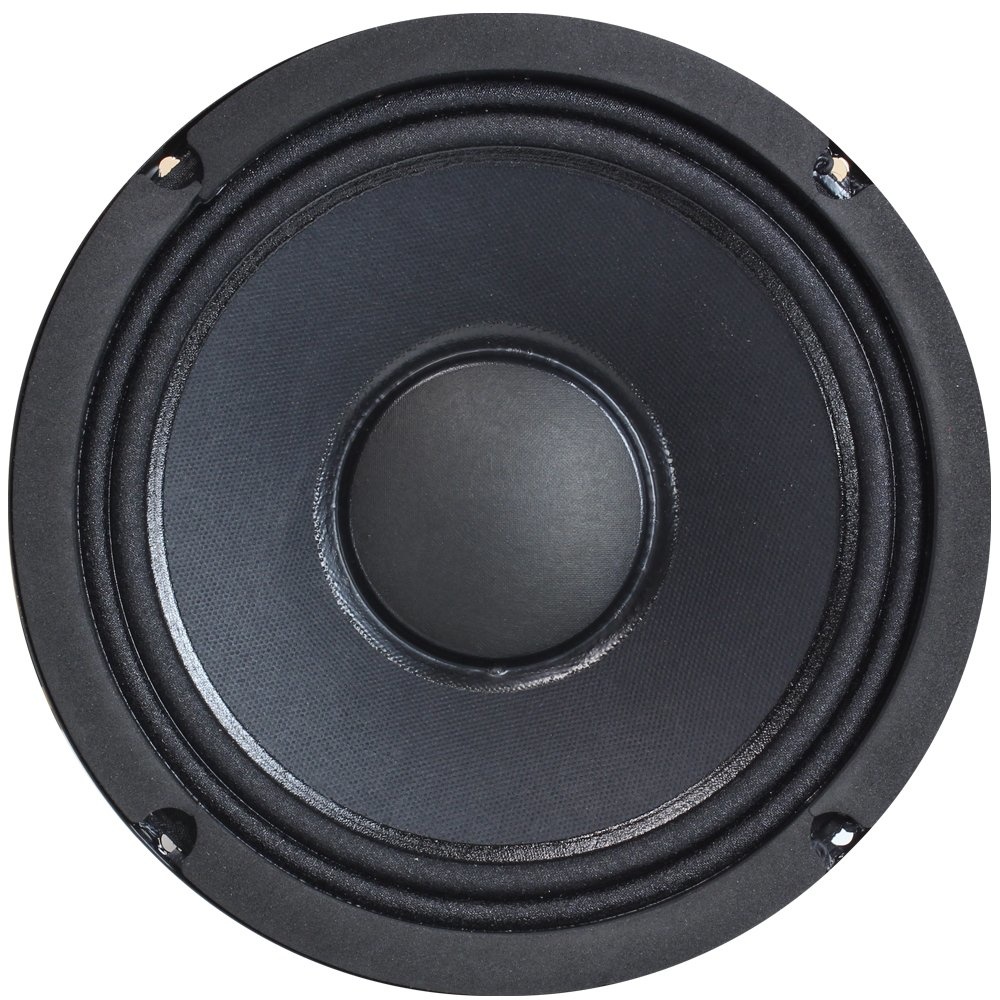

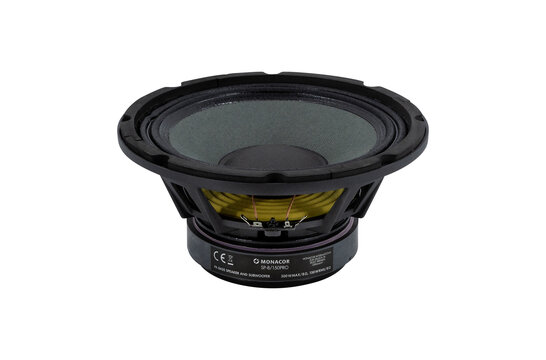

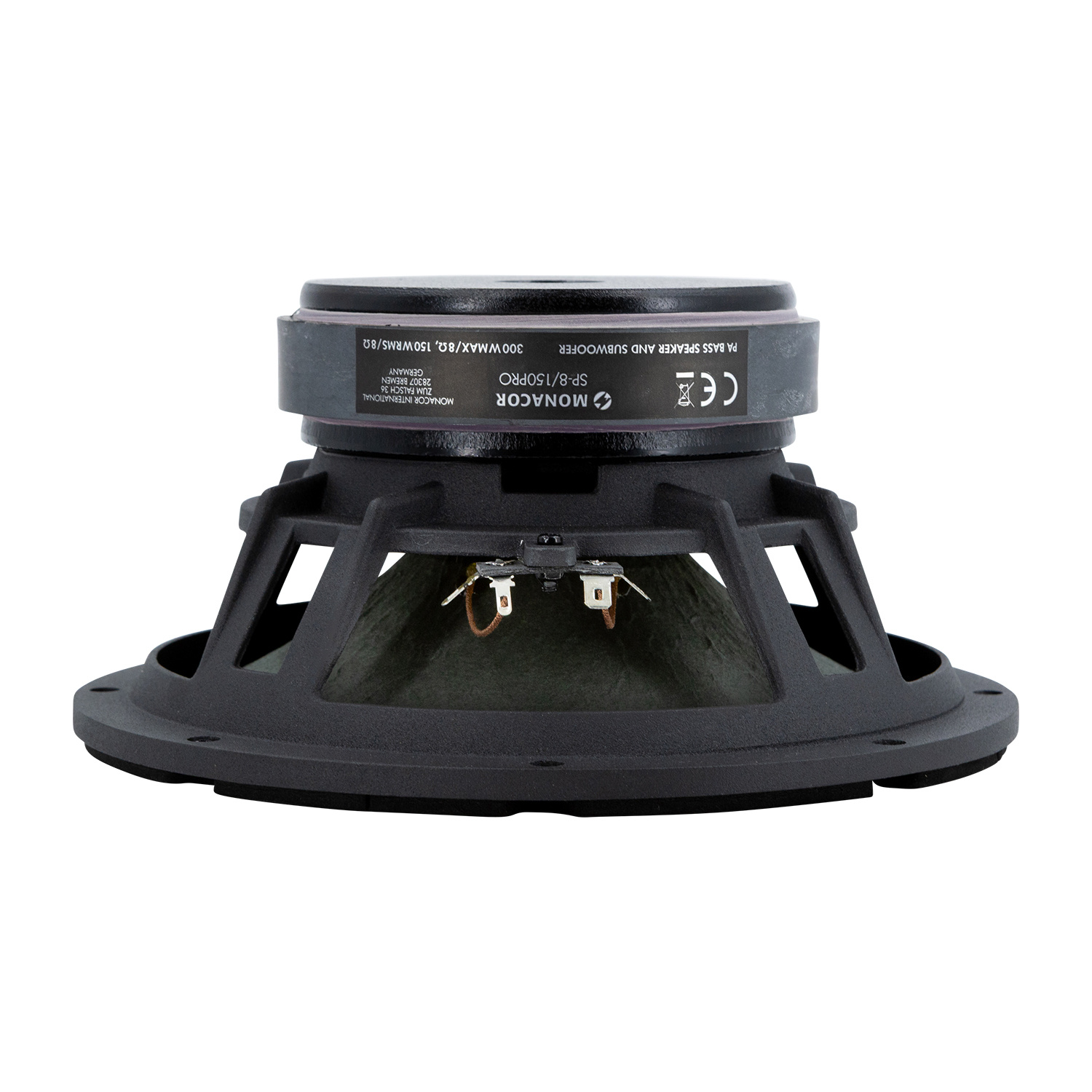

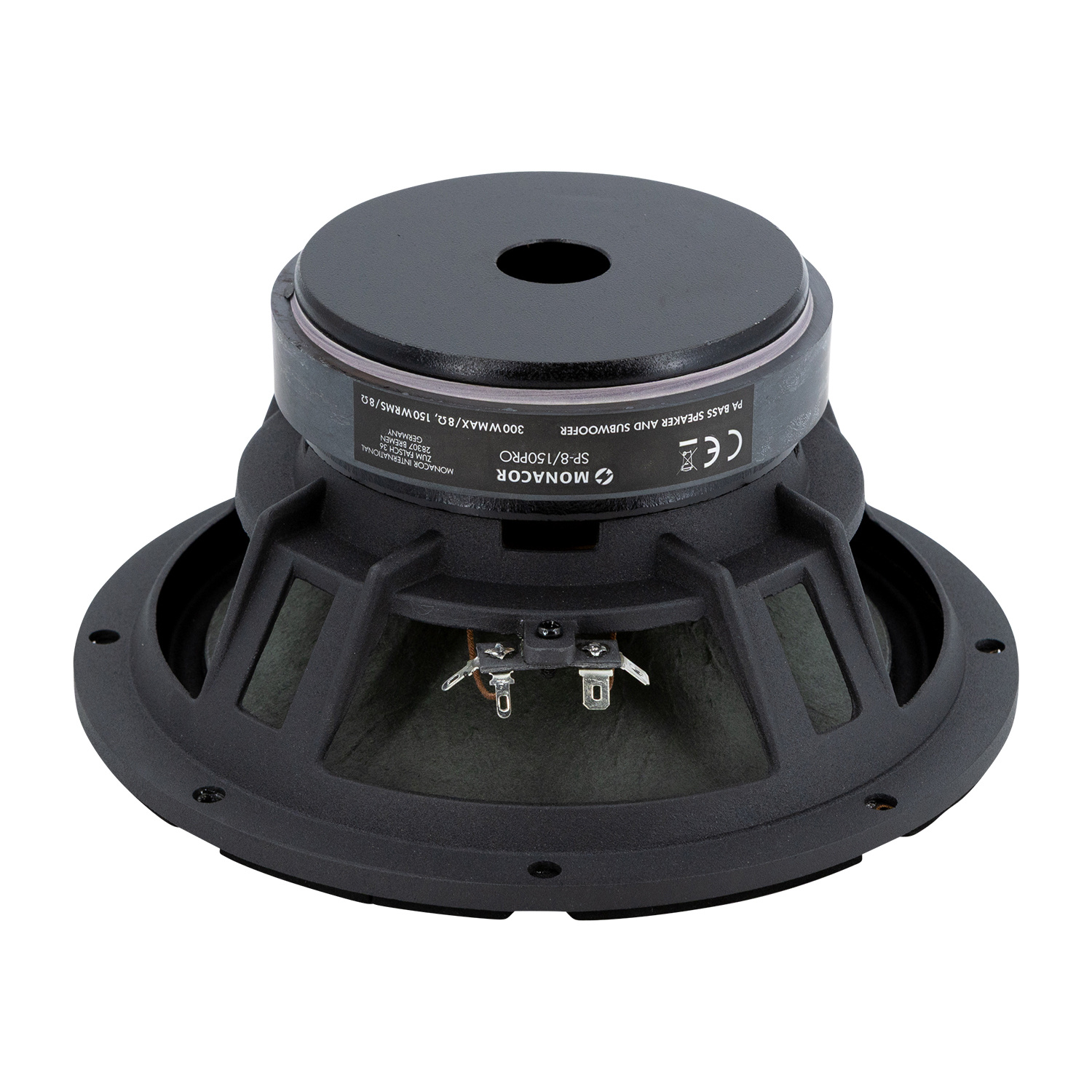

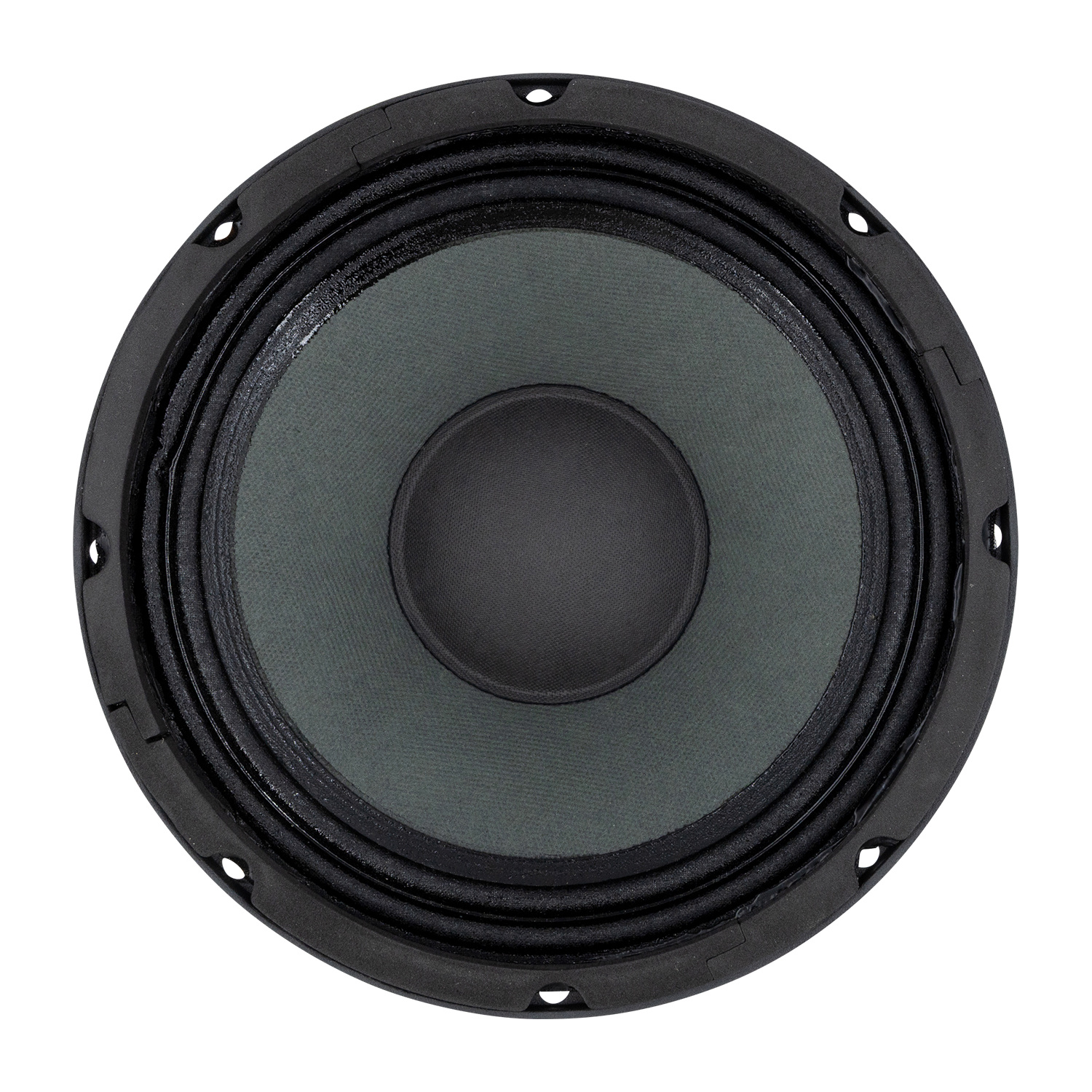

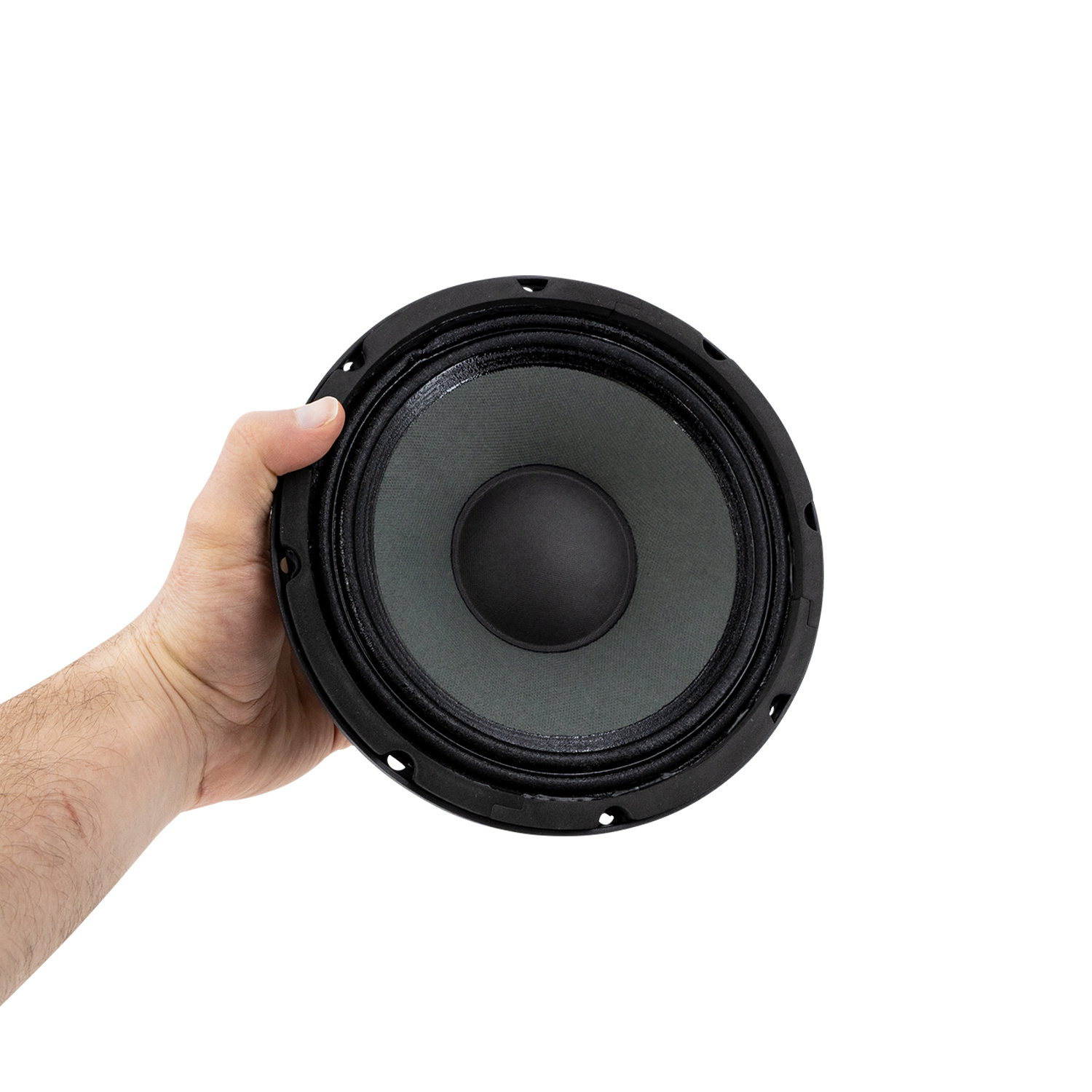

Monacor SP-8/150PRO PA Midbass Woofer

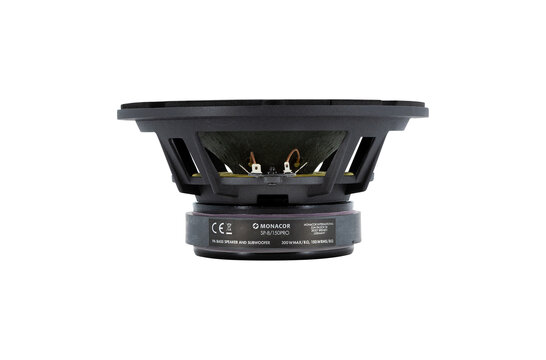

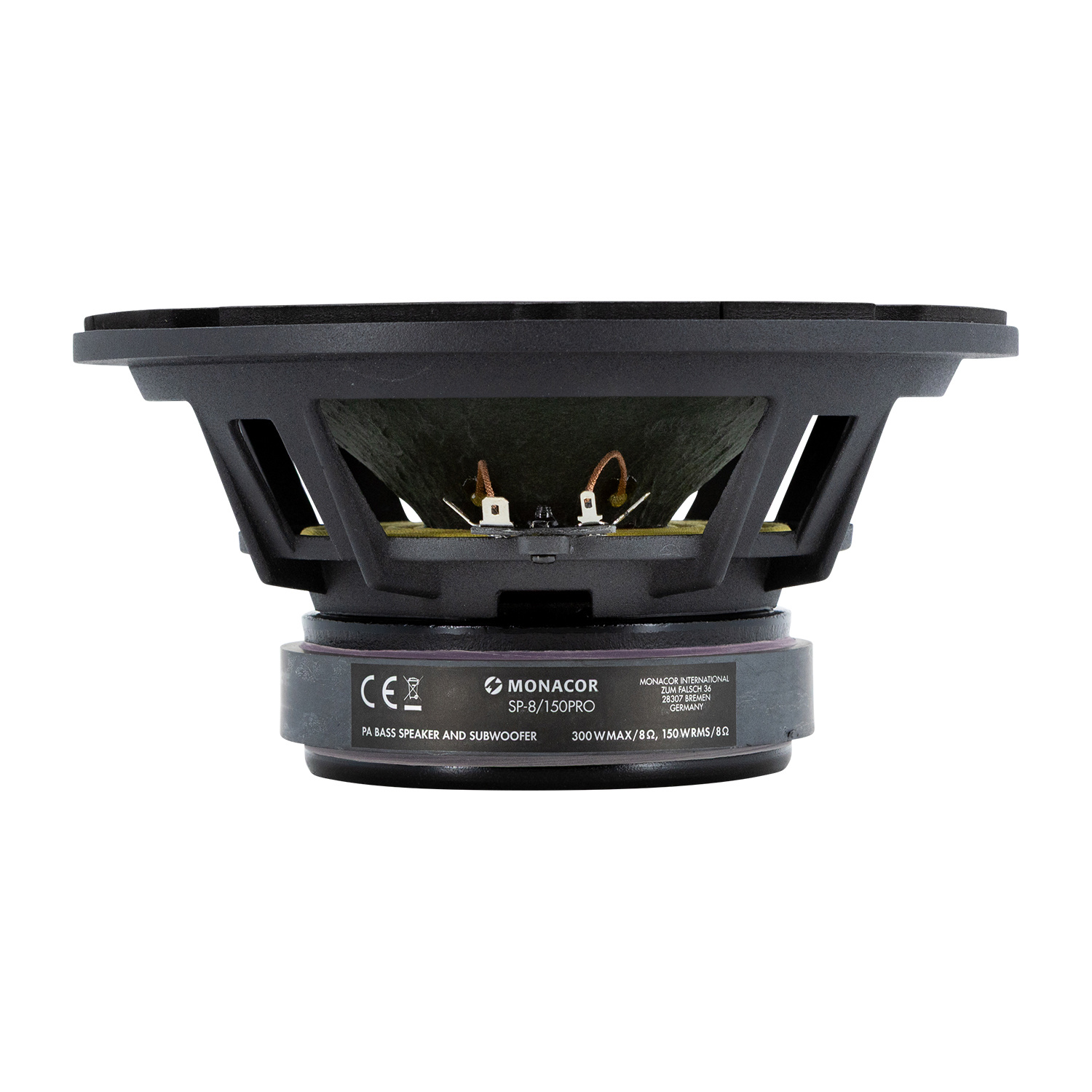

For the ultimate high-output 2-way systems and compact PA subwoofers, the Monacor SP-8/150PRO PA Bass-Midrange Woofer is one of the best contestants. The 8" bass speaker features a robust diecast aluminum basket, progressive cone suspension for a high operating reliability, a heat-resistant voice coil and ventilated drive system. Making it a very potent Midbass Woofer and subwoofer with high output capability,



Eigenschaften

Artikelnummer:
SP-8/150PRO
Woofer Type
Midwoofer
Nominal Diameter
8''
Power Handling (RMS)
150 Watts
Power Handling (max)
300 Watts
Impedance
8 Ohms
Sensitivity
93dB 1W/m
Frequency Response
56-3,000Hz
Voice Coil Diameter
50 mm
Magnet Weight
850 g
DC Resistance (Re)
7.2 Ohms
Voice Coil Inductance (Le)
2.0 mH
Resonant Frequency (Fs)
56 Hz
Mechanical Q (Qms)
1.52
Electromagnetic Q (Qes)
0.41
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
22.8 g
Mechanical Compliance of Suspension (Cms)
0.35 mm/N
Surface Area of Cone (Sd)
213 cm2
BL Product (BL)
11.96 Tm
Compliance Equivalent Volume (Vas)
22 l
Maximum Linear Excursion (Xmax)
6 mm
Cone / Diaphragm Material
Paper
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
210 mm
Overall Depth
100 mm
Baffle Cutout Diameter
185 mm
# Mounting Holes
8
