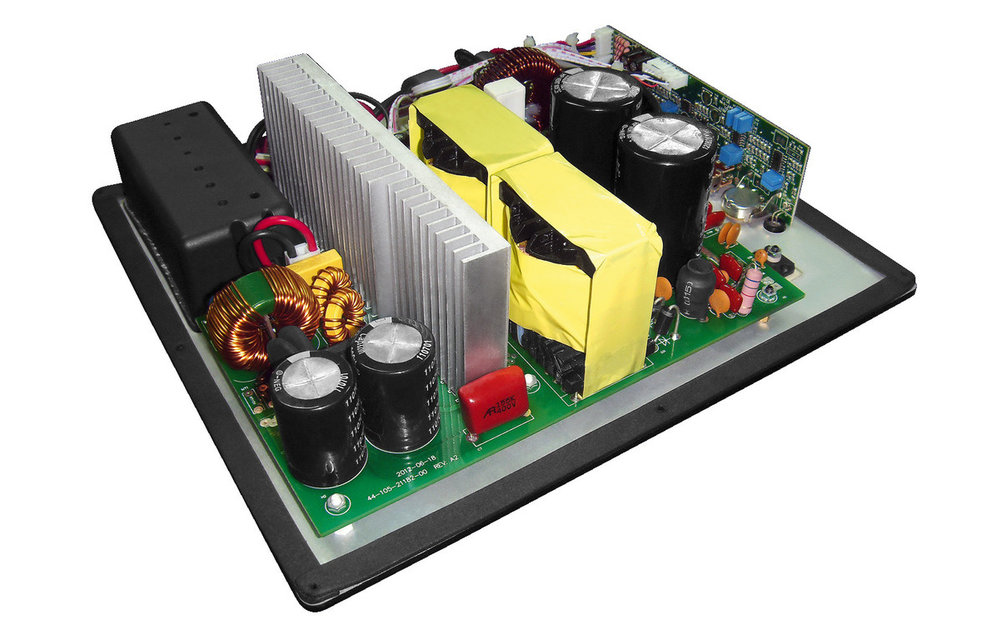

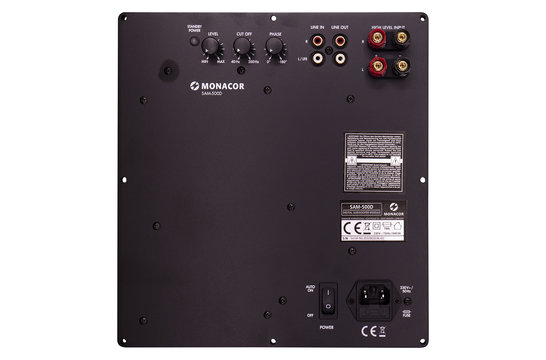

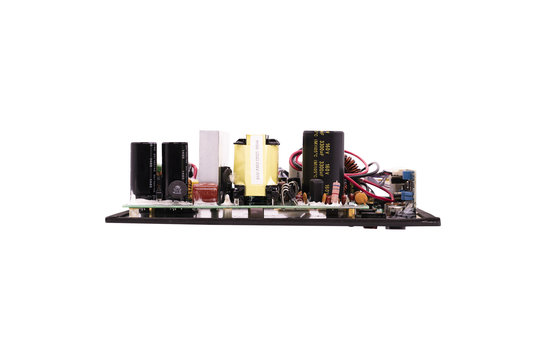

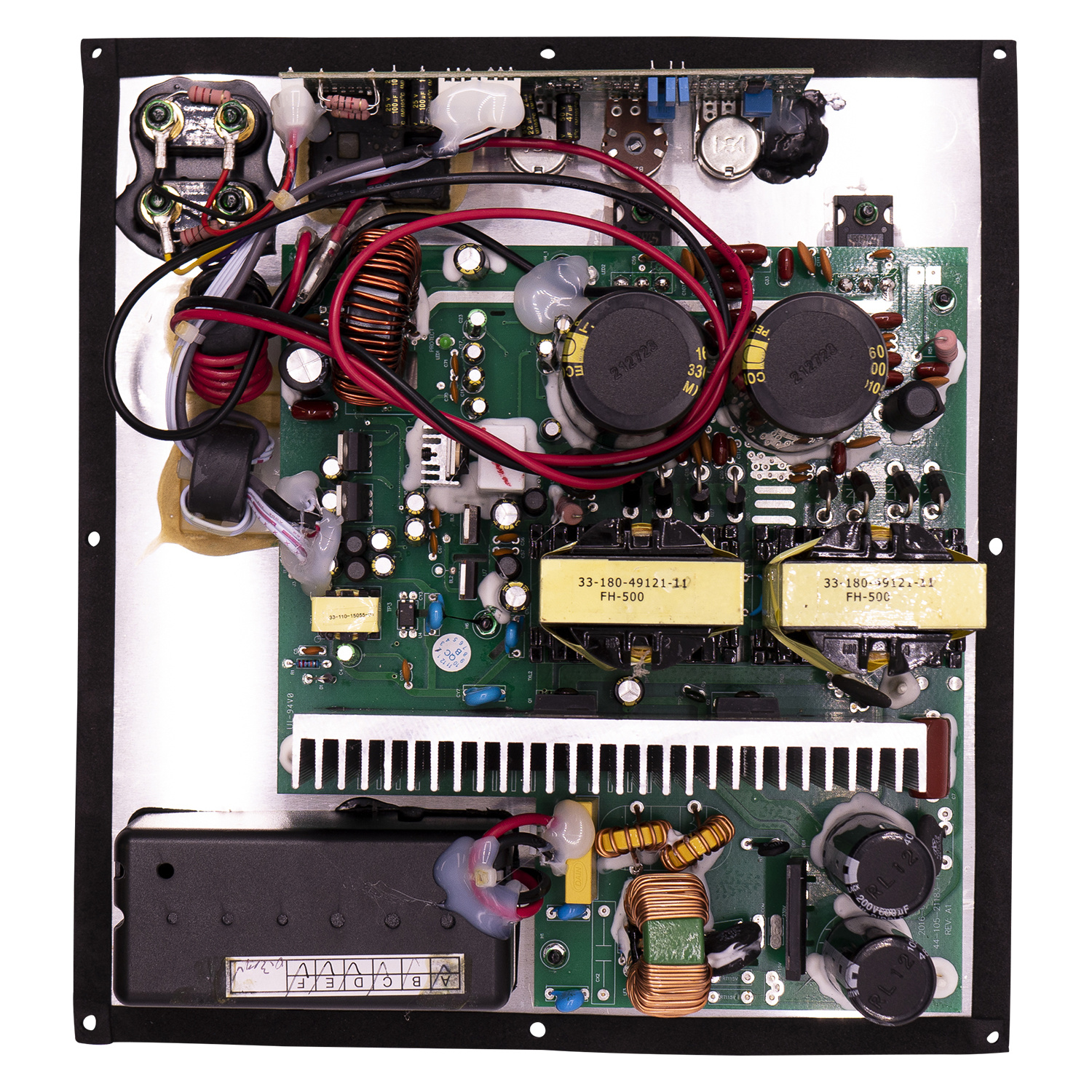

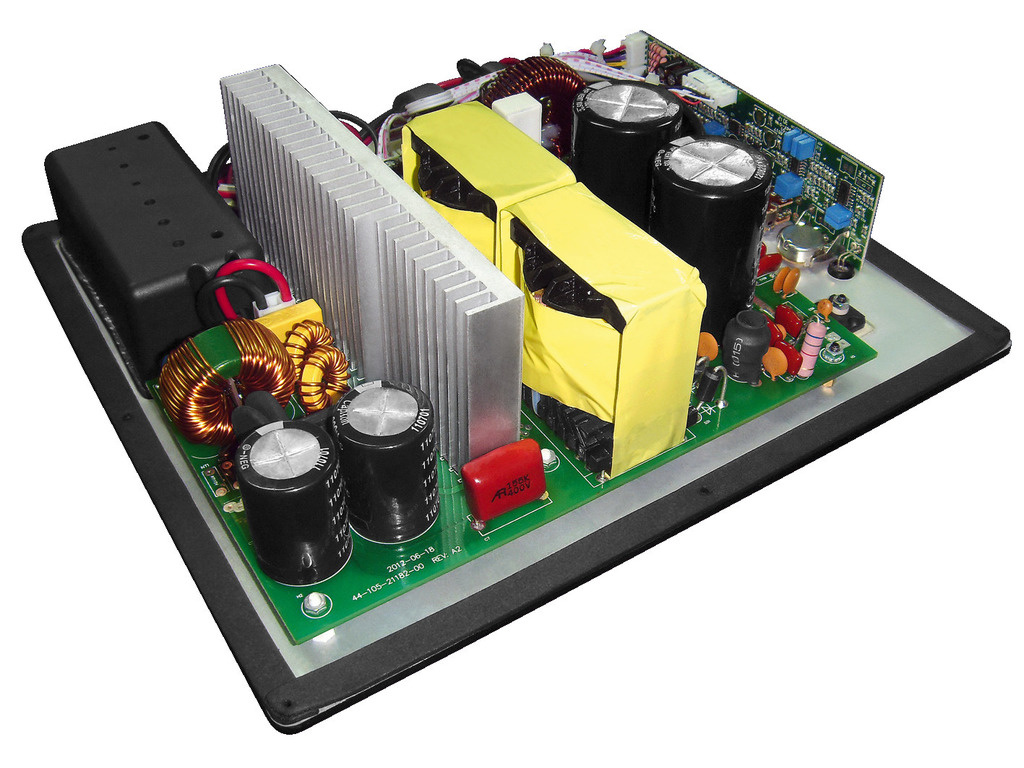

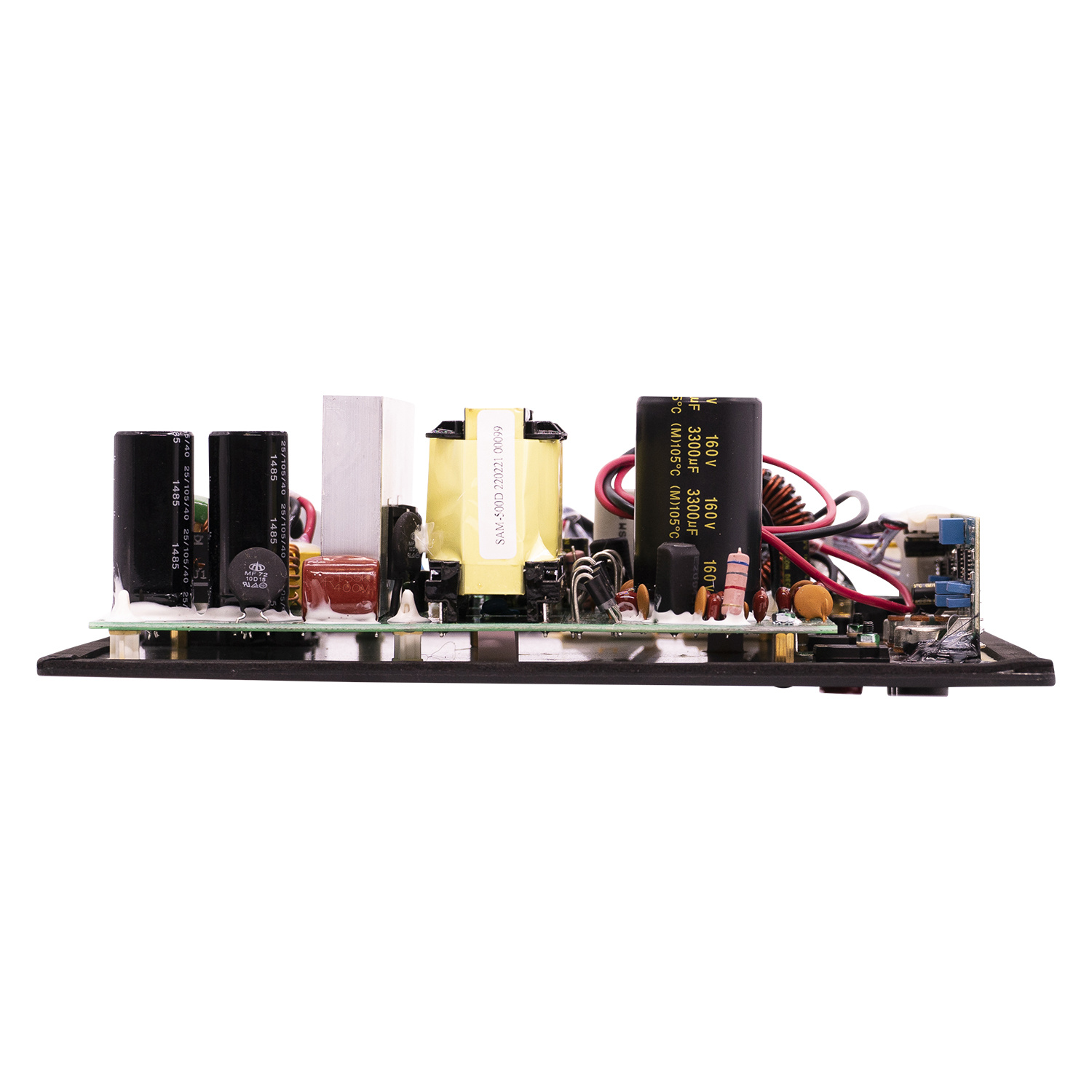

Monacor SAM-500D Class D 500W Active Subwoofer Module
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG STAGELINE provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high-power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

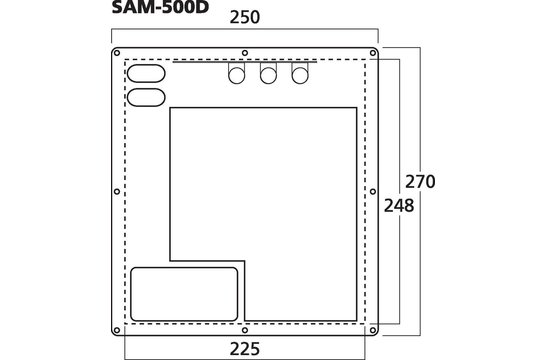

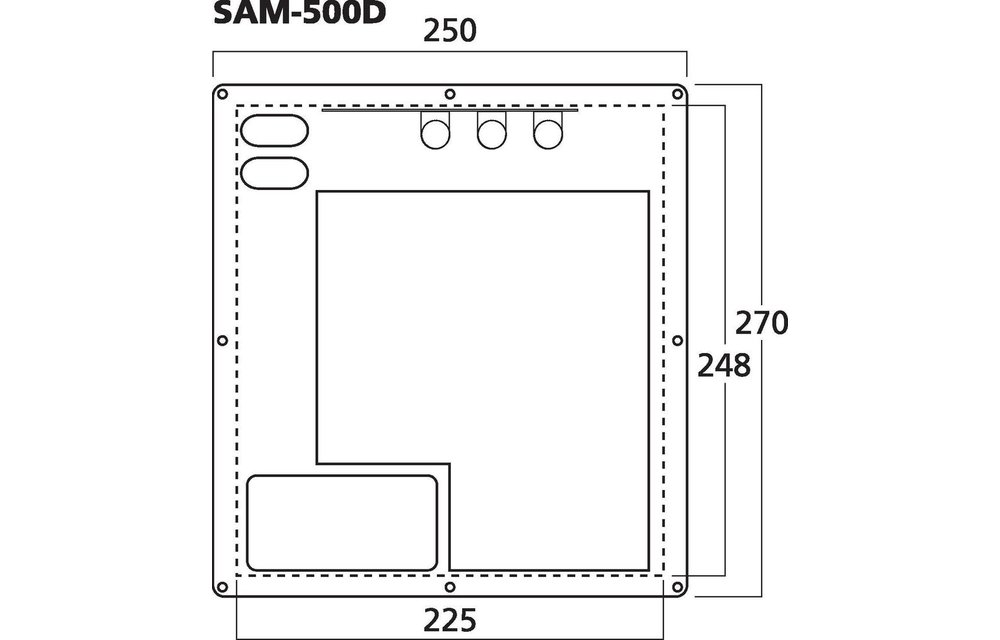

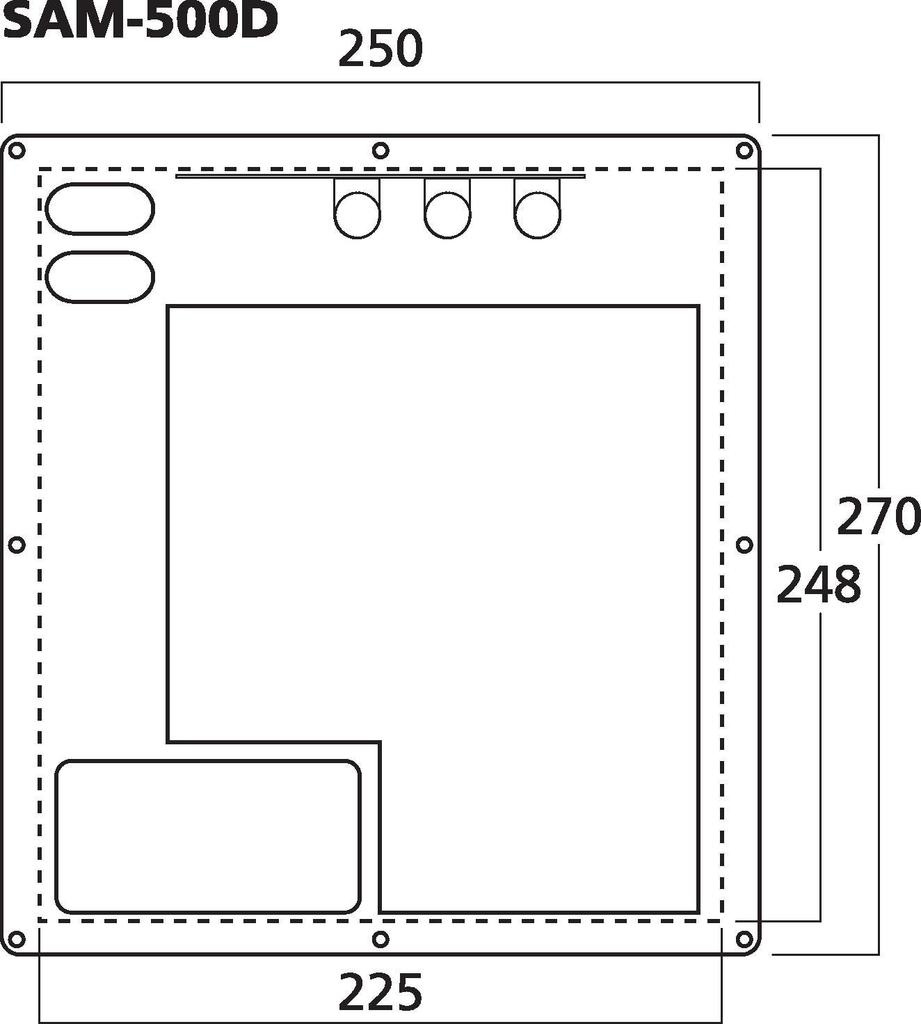

Specifications: Weight: 2.6 kg • Admiss. ambient temp. 0-40 °C • Rated power: 500 W • Power rating at 4 Ω: 500 W • Power rating at 8 Ω: 250 W • Peak music power output (PMAX): 700 W • Inputs: max. 7 V/22 kΩ • Attenuation factor: 25.0 • Frequency range: 20 Hz - (var. 40-200 Hz) • S/N ratio: > 70 dB • THD: < 1% • Power supply: ˜ 230 V/50 Hz/840 VA • Mains voltage: ˜ 230 V • Mains frequency: 50 Hz • Power consumption, operation: 840 VA • Power consumption, standby: < 0.5 W • Width: 251 mm • Height: 270 mm • Depth: 90 mm
