- Artikelnummer:
- SAM-300D
- Rated power output
- <p>1 x 300 watts at 4 ohms<br />1 x 150 watts at 8 ohms</p>
- Bridged rated power output (RMS)
- -
- Minimum load
- 4 ohms
- Signal-to-noise ratio (SNR)
- >70 dB
- Distortion
- < 0.1% THD
- Distortion bridged
- -
- Amplifier classification
- Class D
- Circuit topology
- -
- Efficiency
- -
- Frequency response
- 20 - 200 Hz
- Input impedance
- <p>22k ohms (line level input) <br/> 270 ohms (high level input) </p>
- Input sensitivity
- </p>170 mV (line level input) </br> 1 V (high level input) </p>
- Auto turn-on sensitivity
- -
- DSP
- -
- DAC
- -
- Maximum sampling rate
- -
- Speaker output channels
- 1
- Analog in/out
- 1/1
- S/PDIF in/out
- -/-
- AES/EBU in/out
- -/-
- Coaxial in/out
- -/-
- RCA in/out
- 1/1
- XLR in/out
- -/-
- Jack in/out
- -/-
- USB connection
- -
- Network connection
- -
- Bluetooth
- -
- Subwoofer pre-out
- -
- Auto on/off
- -
- Remote control
- -
- App control
- -
- Equalizer (EQ) adjustment
- -
- Equalizer (EQ) profiles
- -
- Phase control
- check
- Crossover frequency adjustment
- check
- Presets
- -
- Control software
- -
- Windows/Mac compatible
- -/-
- Power requirements
- 230 VAC
- Power inlet connector
- IEC C18
- Standby power consumption
- <0.5 watts
- Current limit
- -
- Under/over voltage protection
- -
- Dimensions (H x W x D)
- 188 x 255 x 90 mm

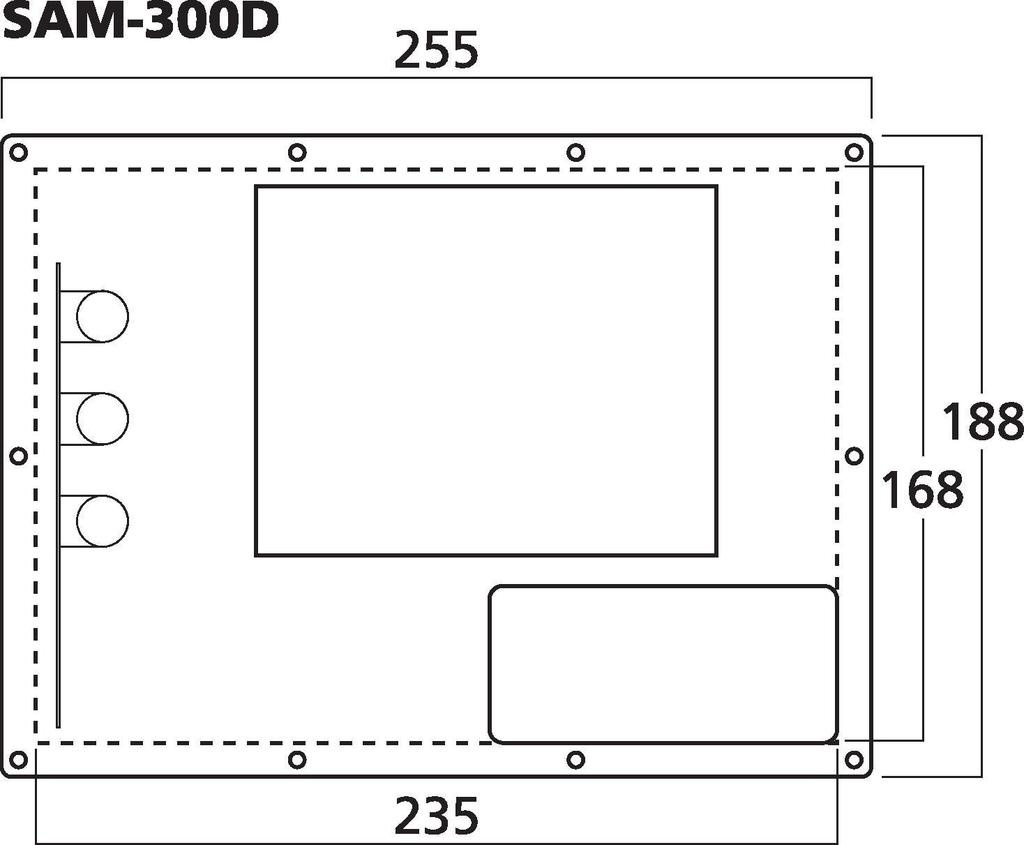

- Cutout dimensions
- 168 x 235 mm
