194x155mm lightweight plastic constant directivity horn. With the standard 35mm thread and 25mm throat.
- 1’’ throat diameter
- 35 mm (1⅜") standard thread
- CD design (constant directivity)
Monacor MRH-80 194x155mm constant directivity horn 1-3/8"- 18 TPI

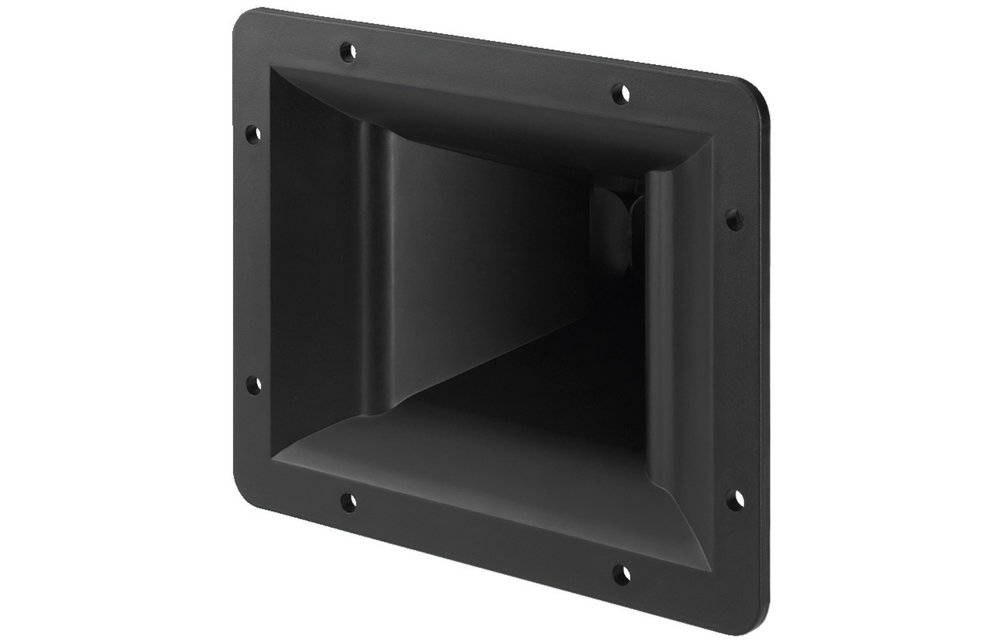

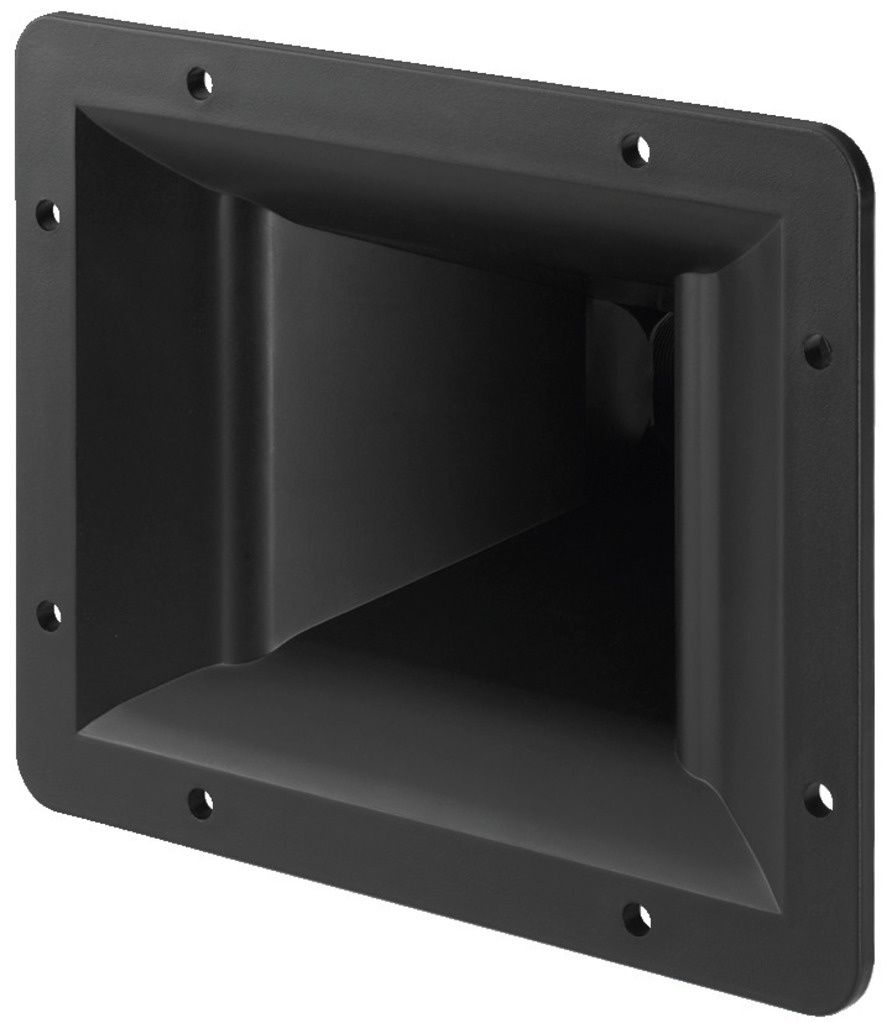

The Monacor MRH-80 is a constant directivity horn made out of plastic, thus keeping the weight down. It has an effective throat diameter of 25mm and uses the standard 35mm thread to attach to most of the available compression drivers out there. Measuring 194x155mm, it provides useful acoustical loading down to 2,500Hz.

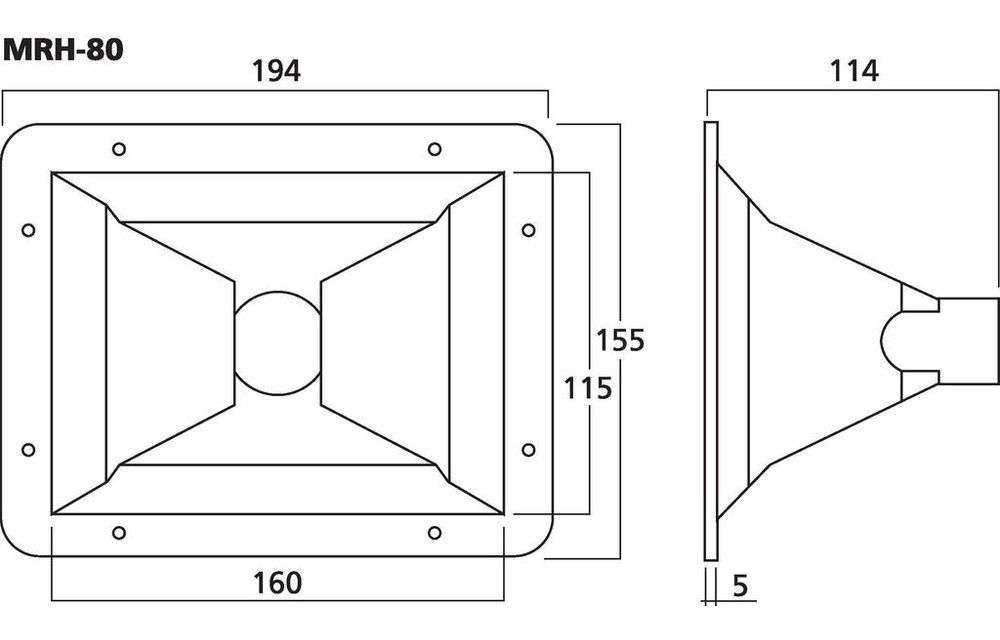

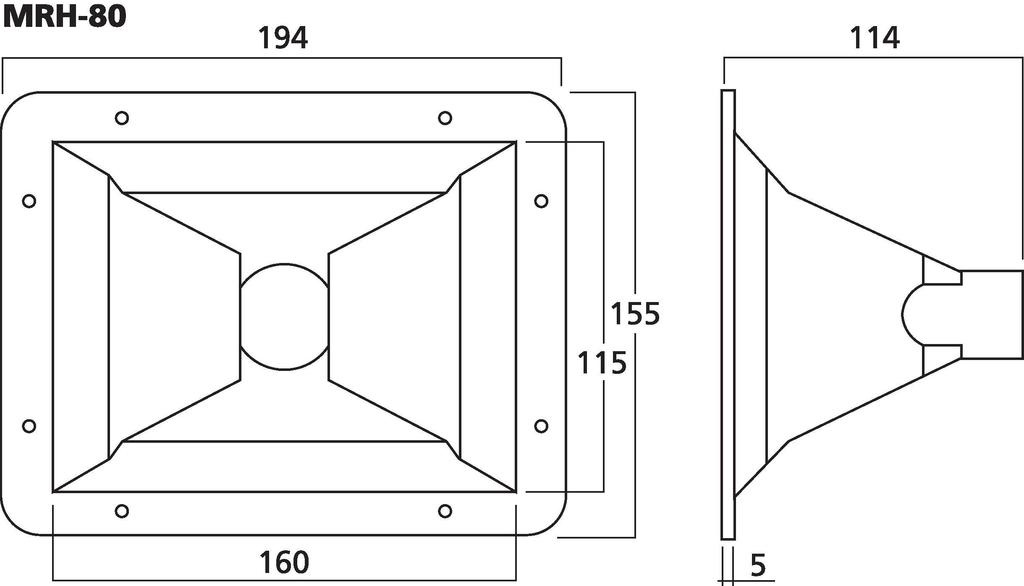

Dimensions: 194 x 155 x 114 (W x H x D)
Cutoutdimensions: 160 x 115 (W x H)
Radiationangle: 60°/90° (vert./hor.)
