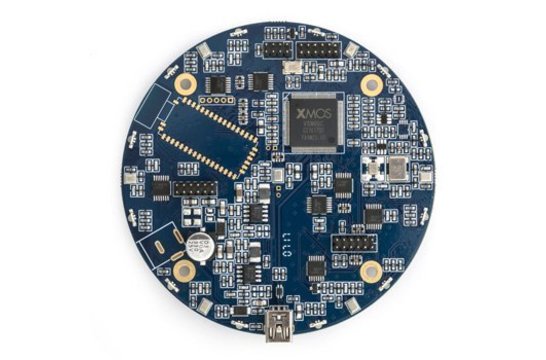

miniDSP UMA-8 Multichannel USB Microphone

€ 148,72€ 179,95 6 Auf Lager: Lieferzeit 1-3 Werktage
Circular USB microphone array, DSP processing for Beamforming, AEC, Noise reduction, 2ch and 8ch mode, Live GUI control of advanced parameters.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €170,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Circular USB microphone array, DSP processing for Beamforming, AEC, Noise reduction, 2ch and 8ch mode, Live GUI control of advanced parameters.



Highlights

  • Multichannel USB microphone array for voice command
  • On-board DSP for beamforming/ noise reduction / echo cancellation / de-reverb / Direction of Arrival (DOA) / Voice Activity Detection (VAD)
  • Ring with 11 LED RGB
  • High quality MEMS from Knowles SPH1668LM4H
  • Simple USB control API for Direction of Arrival
  • Flexible Firmware (DSP mode @2ch beamformed, RAW mode @8ch audio from MEMS)
  • Step by step app notes for Alexa-PiCortanaSiri and IBM Watson. More coming up soon...



Product details

miniDSP UMA-8 Multichannel USB Microphone

Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

The UMA-8 is a high-performance yet low cost multichannel USB microphone array built around XMOS multicore technology. Seven high-performance MEMS microphones are configured in a circular arrangement to provide high-quality voice capture for a wide range of applications.



Leveraging the on-board DSP processing, the UMA-8 supports voice algorithms including beamforming, noise reduction, acoustic echo cancellation and de-reverb. Non-technical users can enjoy a plug&play experience, while advanced users can fine-tune all DSP parameters with a real-time Win/Mac GUI for optimum performance. The UMA-8 is a fully compliant UAC2 audio interface with driverless support for Mac/Linux and ASIO drivers for Windows.



From DIYers to OEM, this pocket-size platform is engineered for flexibility in firmware, software and hardware. Precompiled firmware versions, expansion connectors providing connectivity for additional PDM microphones, I2S in/out expansion and GPIO... It’s all there to grow with your application!



System Diagram







What's in the box?

  • 1 x UMA-8 USB microphone array interface
  • 1 x 1.5m USB type B cable
  • 1 x Coupon code for drivers/firmware/GUI.



Mechanical Specifications





PRODUCT SPECIFICATIONS

Item

Description

USB streaming engine



XMOS XSVM 2000 - Multicore USB audio processor with embedded DSP

USB audio capabilities











USB audio recording in 2 possible modes depending on firmware:

- 8-channel mode (7 x MEMS installed + 1 x spare PDM port in the center)

- Stereo recording with DSP processing enabled

USB audio playback: Stereo I2S channel for I2S out (e.g. external amplifier/DAC board.)

DSP processing (prebuilt firmware)











· Beamforming with configurable beam width (up to 20dB attenuation)

· Perceptual acoustic echo cancellation (up to 80dB attenuation)

· Noise suppression (up to 20dB attenuation)

· De-reverb ( up to 20dB attenuation)

· Manual mode for control of beam forming

UAC2.0 drivers









Driverless interface for Mac OS X v10.6.4 and up

Thesycon Windows ASIO driver (All versions)

Linux Alsa 2.0 compliant

Control via HID interface for advanced settings and active microphone

Resolution / Sample rate

24bit @ 11/16/32/44.1/48 kHz

I2S port

Output port for PDM to I2S conversion (upcoming firmware update required)

MEMS microphones











7 x Knowles SPH1668LM4H with low noise buffer and high performance modulator

· Low distortion: 1.6% @ 120 dB SPL

· High SNR: 65 dB and flat frequency response

· RF shielded against mobile interference

· Ominidirectional pick-up pattern

LED

12 x RGB LED / Bottom mounted - Circular light guide included

Expansion connector



2 x 12-pin, 2 mm pitch expansion connector for connectivity to hardware.

XMOS JTAG connector for custom code.

Power supply

USB powered

Dimensions (diameter) mm

90 mm diameter / 20mm height with LED ring, 14mm height without LED ring
