miniDSP PWR-ICE125 2x125 Watt DSP ICEpower Plate Amplifier

€ 305,74€ 369,95 2 Auf Lager: Lieferzeit 1-3 Werktage
2x125W @ 4Ω or 1 x 450W @ 4Ω DSP plate amplifier, Powered by ICEpower® 125ASX2 module, Ethernet control, FIR + IIR filters... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

2x125W @ 4Ω or 1 x 450W @ 4Ω DSP plate amplifier, Powered by ICEpower® 125ASX2 module, Ethernet control, FIR + IIR filters



Highlights

  • DSP Powered plate amplifier
  • FIR + IIR filter options (please consult manual for details)
  • Powered by ICEpower® technology for 2x125W @ 4Ω or 1 x 450W @ 4Ω
  • Windows & Mac IP control
  • Analog & Digital input
  • Multi-unit control via Ethernet



Product details

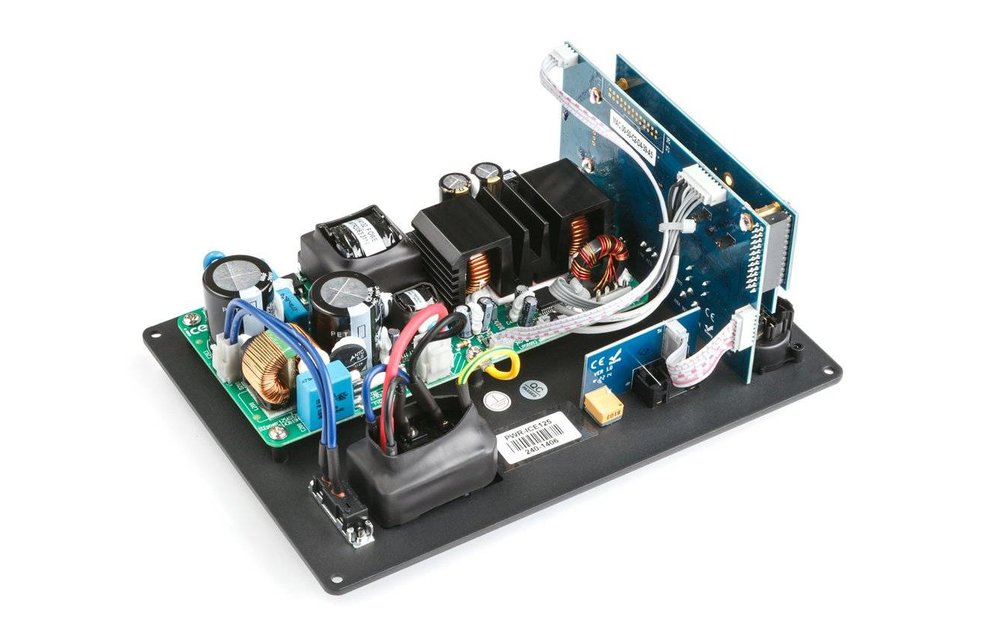

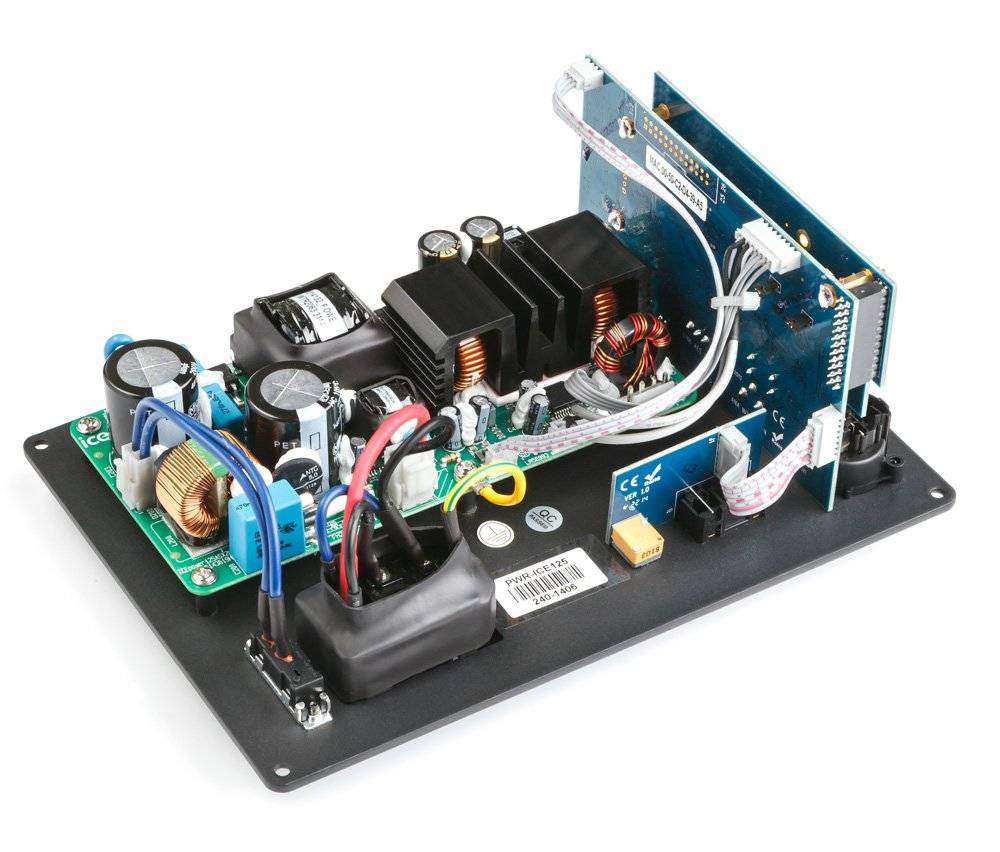

PWR-ICE125 2 x 125 Watt DSP ICEpower Plate Amplifier

Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

Introducing the PWR-ICE125, a DSP powered plate amplifier module for active 2 way loudspeakers or mono subwoofers. Result of the collaborative effort of two innovative technology companies, the PWR-ICEs series key features are:



  • On the processing side is miniDSP's innovative software & firmware allowing a Plug & Play real time control of the onboard DSP over Ethernet/Wifi networks. Using our Zero Conf technology, multiple modules are automatically discovered and controlled from a single User interface in real time. The onboard Digital Signal Processors (DSP) provide real time all the processing a speaker designers will expect to excel at his crossover design task. These include FIR and IIR filters (biquad input), Parametric Equalizers (PEQ), level, crossovers, comp/limiter, delay and more. The Graphical User Interface (GUI) platform is supported on both Mac and Windows environment.
  • On the power amplifier side, the ICEpower® modules are complete AC plug-to-speaker amplification audio solutions offering flexible two-channel or bridgeable speaker drive. Their compact size, audiophile audio quality and high power output make them perfect for high-performing audio products. The amplifier is rated for up to 2x125W @ 4Ω or 1 x 450W @ 4Ω.

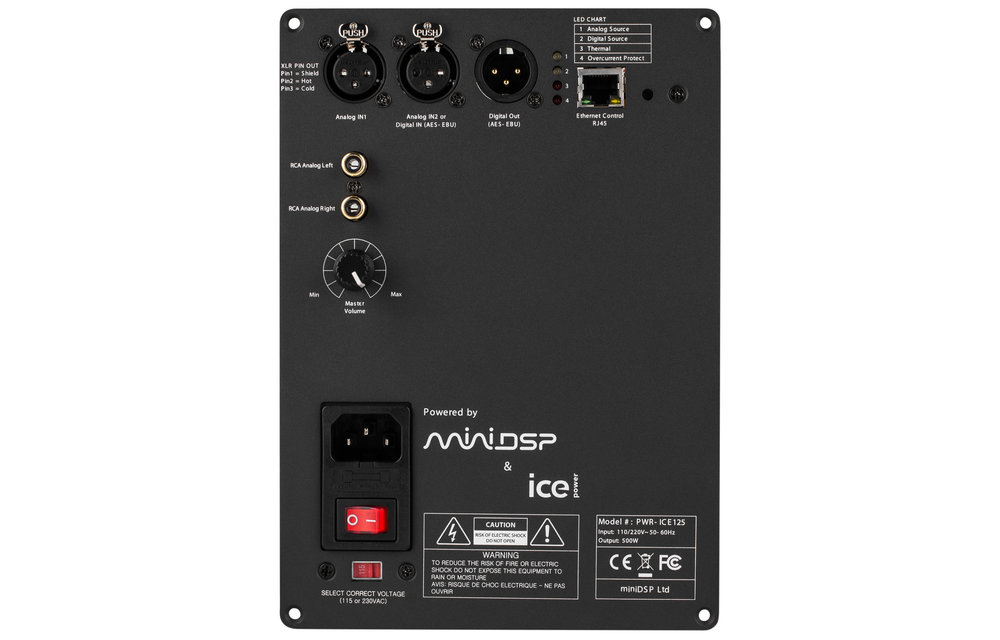

As for audio connectivity, the PWR-ICE125 is fitted with both analog balanced (XLR) & unbalanced inputs (RCA) to provide maximum compatibility. A digital input (AES-EBU) saves on the A-D conversion for maximum performance while a Digital output (AES-EBU) allows multiple plate amplifiers to be linked to each other.



What's in the box?

  • 1 x PWR-ICE125 amplifier module
  • 1 x CAT5 patch cable
  • 1 x IEC power cord
  • 4 x black wood screws for mounting
  • 1 x Speaker wire harness to connect amplifier to speaker (60cm long)
  • 1 x Coupon code for miniDSP plugin download



System Diagram

Eigenschaften

Artikelnummer:
PWR-ICE125
Rated power output
2 x 120 watts at 4 ohms
Bridged rated power output (RMS)
1 x 450 watts at 4 ohms
Minimum load
3 ohms
Signal-to-noise ratio (SNR)
-
Distortion
0.003 % THD+N (100 Hz at 1 watt)
Distortion bridged
0.003 % THD+N (100 Hz at 1 watt)
Amplifier classification
Class D
Circuit topology
ICEpower
Efficiency
75 % at 100 watts
Frequency response
20 - 20,000 Hz
Input impedance

10k ohms (unbalanced)
47k ohms (balanced)

Input sensitivity

1/2 Vrms (unbalanced)
2/8 Vrms (unbalanced)

Auto turn-on sensitivity
-
DSP
check
DAC
check
Maximum sampling rate
96 kHz
Speaker output channels
2
Analog in/out
1/-
S/PDIF in/out
-/-
AES/EBU in/out
1/1
Coaxial in/out
-/-
RCA in/out
1/-
XLR in/out
2/1
Jack in/out
-/-
USB connection
-
Network connection
check
Bluetooth
-
Subwoofer pre-out
-
Auto on/off
-
Remote control
-
App control
check
Equalizer (EQ) adjustment
check
Equalizer (EQ) profiles
-
Phase control
check
Crossover frequency adjustment
check
Presets
check
Control software
miniDSP plugin
Windows/Mac compatible
check/check
Power requirements
110 / 240 VAC
Power inlet connector
IEC C14
Standby power consumption
-
Current limit
20 A
Under/over voltage protection
-
Dimensions (H x W x D)
216 x 153 x 75 mm
Cutout dimensions
202 x 139 mm
