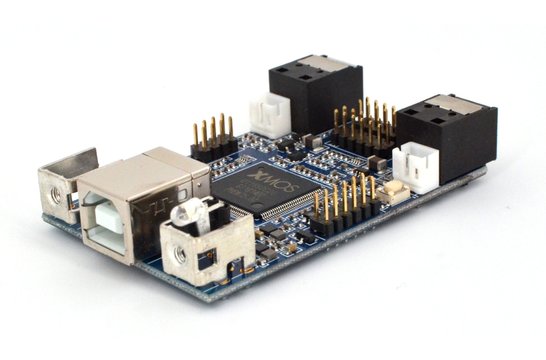

miniDSP MCHStreamer Multi-Channel USB Interface Kit

€ 179,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research &... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications.



Hightlights

  • Multi-channel USB audio interface (up to 24x24)
  • Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
  • Native support up to 32bit / 384kHz
  • PDM to I2S converter for up to 16 MEMS microphones
  • USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
  • OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
  • Toslink (optical) and SPDIF (coax) transmitter and receiver
  • Flexible board powering option: USB powered or External DC input power



Product Specifications

MCHStreamer Multi-Channel USB Interface Kit



The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research & Development applications.



By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S  which makes it a powerful tool for beamforming/voice  algorithm development.



Product Downloads



What's in the box?

  • 1 x MCHStreamer board
  • 1 x 1m long USB audio cable
  • 2 x Toslink audio cables
  • 2 x 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing
  • 1 x Coupon code for access to the Windows ASIO



Item

Description

USB Streaming engine

XMOS XCore 200 / USB 2.0 full speed - USB Audio class 2.0 compliant

Drivers

Driverless interface for Mac OS X v10.6.4 and up

Free Windows ASIO driver (XP/Vista/7/8/Win10)

Linux Alsa compliant driver

Apple IoS (ipad/iphone) using Camera kit - multichannel audio streaming

Logic Level formats

SPDIF: Stereo in/out - 24bit up to 192kHz

I2S: Up to 8ch bidirectional audio - 24/32bit up to 384kHz
TDM8: Up to 24ch bidirection audio - 44.1/48/88.2/96k
PDM: Up to 16ch audio recording - 24bit up to 48kHz
DSD: Up to 8ch DSD64/128/256

Consult user manual for more details

Optical input & Output

Toslink: Stereo support up to 44.1/48/88.2/96/176.4 kHz

ADAT : 8ch ADAT mode @ 48/44.1k and 4ch ADAT mode @ 96kHz

Expansion connector

2 x 12pin, 2mm pitch expansion connector for connectivity to hardware.

Mounting

2 x Right Angle brackets allow easy chassis mounting with M3 threaded hole.

Power supply

USB powered OR 5Vdc external supply via header - 300mA requirement

Dimensions (H x W x D) mm

13 x 40 x 62 mm
