miniDSP DDRC-24 USB DAC Digital Signal Processor

€ 469,95 4 Auf Lager: Lieferzeit 1-3 Werktage
DDRC-24, a USB DAC+DSP Digital Room Correction processor powered by Dirac Live in a tiny form factor... Mehr anzeigen
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support


DDRC-24, a USB DAC+DSP Digital Room Correction processor powered by Dirac Live in a tiny form factor



  • ADSP21489 400MHz Sharc DSP floating point engine
  • XMOS Xcore200 for USB control and bidirectional audio streaming
  • 24 bit ADC/DAC resolution
  • Dirac Live for miniDSP with 4 presets, fully configurable target curve
  • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
  • Toslink digital input
  • Unbalanced outputs: Max 2Vrms
  • USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx

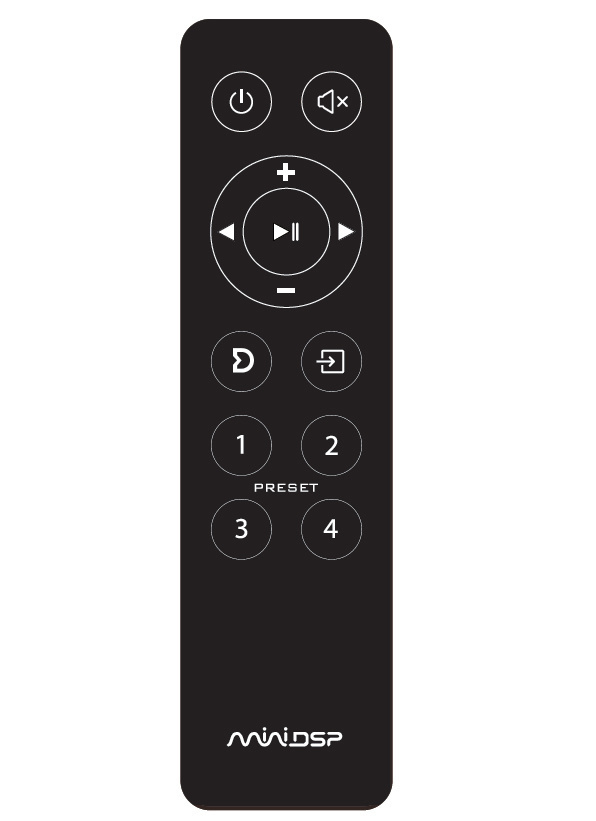

  • 4 preset configuration, recallable via IR, Software
  • Wifi/Alexa voice control via WI-DG accessory


Product details

miniDSP DDRC-24

Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing.

I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed.


What's in the box?

  • 1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin
  • 1 x 12V power supply with UK/EU/US/AU plugs
  • 1 x shielded USB cable
  • 1 x Coupon code for miniDSP plugin download and Dirac live license


Device type
Device serie
Dirac Live Series
DSP chip
Analog Devices ADSP21489
Internal processing resolution & sample rate
32 bit / 48 kHz
Input / ouput configuration
2 / 4
Audio input connectivity
RCA, Stereo USB, Stereo TOSLINK (optical)
Audio output connectivity
Max input level
2 / 4 Vrms (selectable)
Max output level
2 Vrms
Input impedance
10 kOhm
Output impedance
560 Ohm
Calibration software
DDRC-24 plugin
Dirac Live®
check 1.0 + 2.0
DSP presets
Impulse response correction
Infrared remote learning
Windows / Mac compatible
check / check
UMIK-1 included
Room EQ wizard support

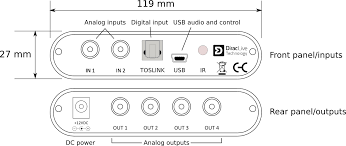

119 x 107 x 27 mm
12 VDC


5 from 5Based on 10 reviews
Produkt bewerten
5 van 5
It fantastically tamed the bass response of my stereo-speaker-room sytem. It sounds now perfect, no booming any more but very powerfull and deep bass without compromising mids and highs.
Durch Niels C. on 7 Januar 2021
5 van 5
Excellent device - most cost effective route to Dirac for 2-channel playback. Some steps required to configure via PC but it's all well explained within the online manuals. Highly recommended.
Durch James S. on 30 Oktober 2020
