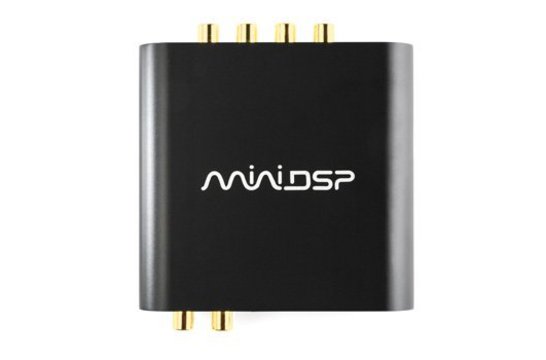

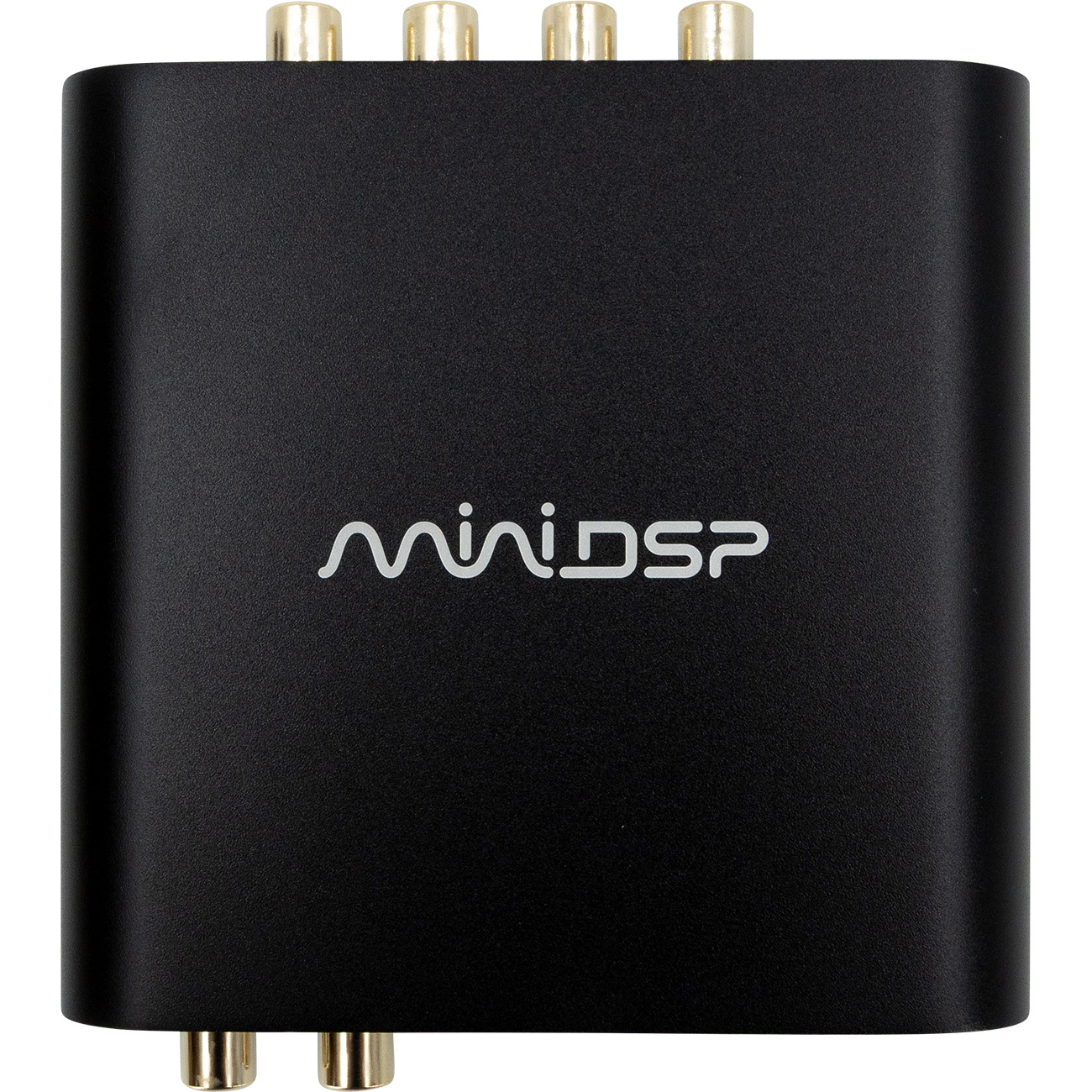

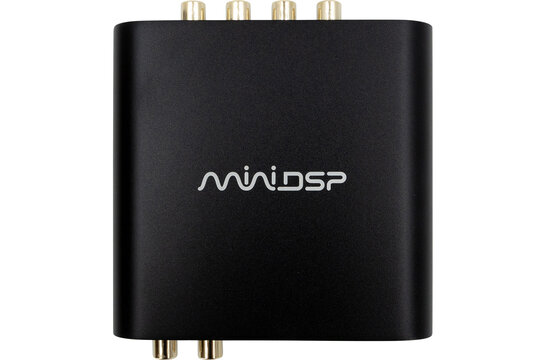

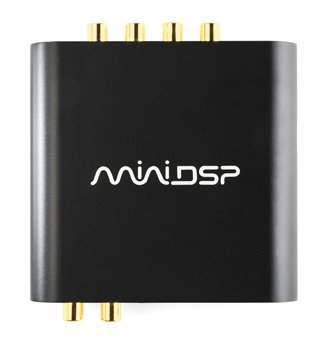

miniDSP 2x4 HD Boxed USB DAC Digital Signal Processor

€ 206,57€ 249,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
MiniDSP 2x4 HD, a USB DAC+DSP in a low cost package powered by a powerful Sharc 400MHz floating point DSP... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

MiniDSP 2x4 HD, a USB DAC+DSP in a low cost package powered by a powerful Sharc 400MHz floating point DSP



Highlights

  • ADSP21489 400MHz Sharc DSP floating point engine
  • XMOS Xcore200 for USB control and bidirectional audio streaming
  • 24 bit ADC/DAC resolution

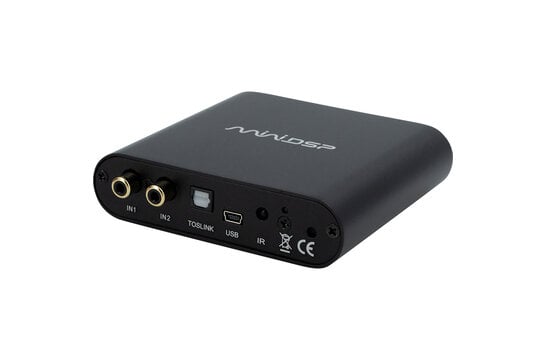

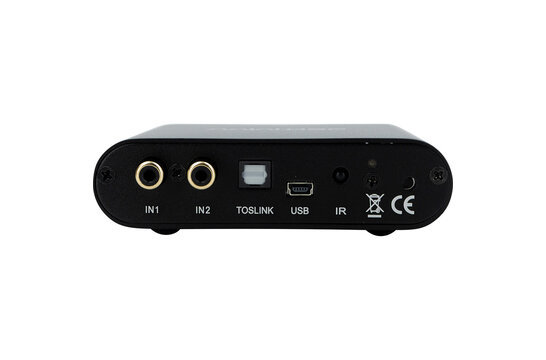

  • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms

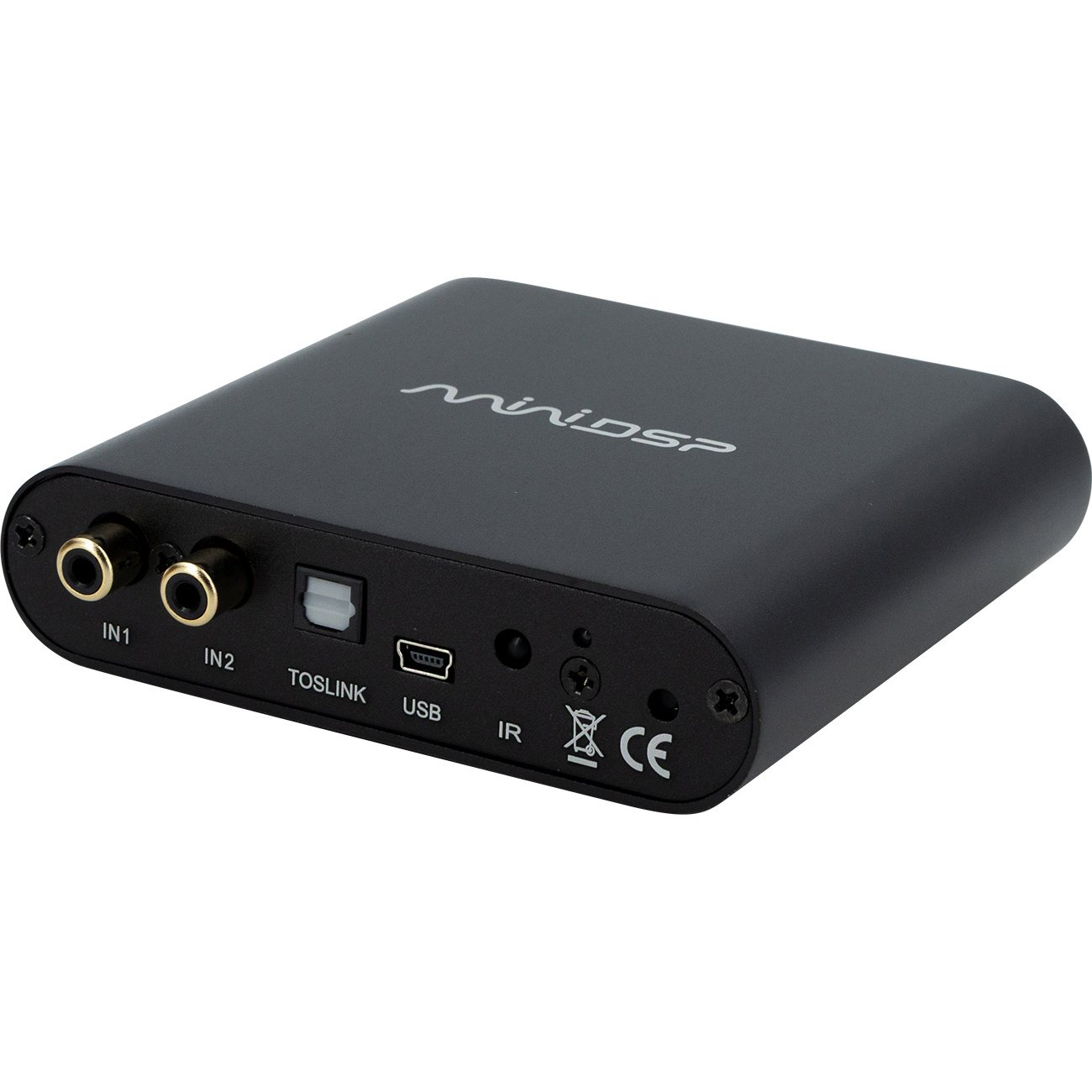

  • Toslink digital input

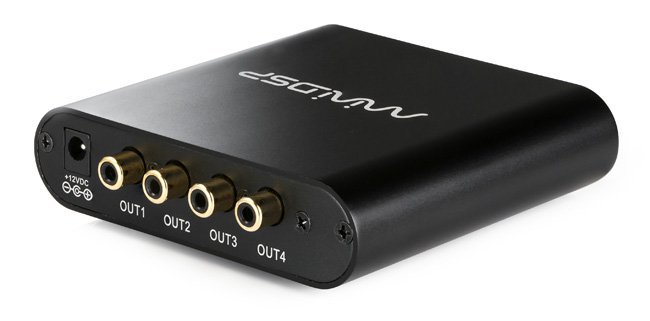

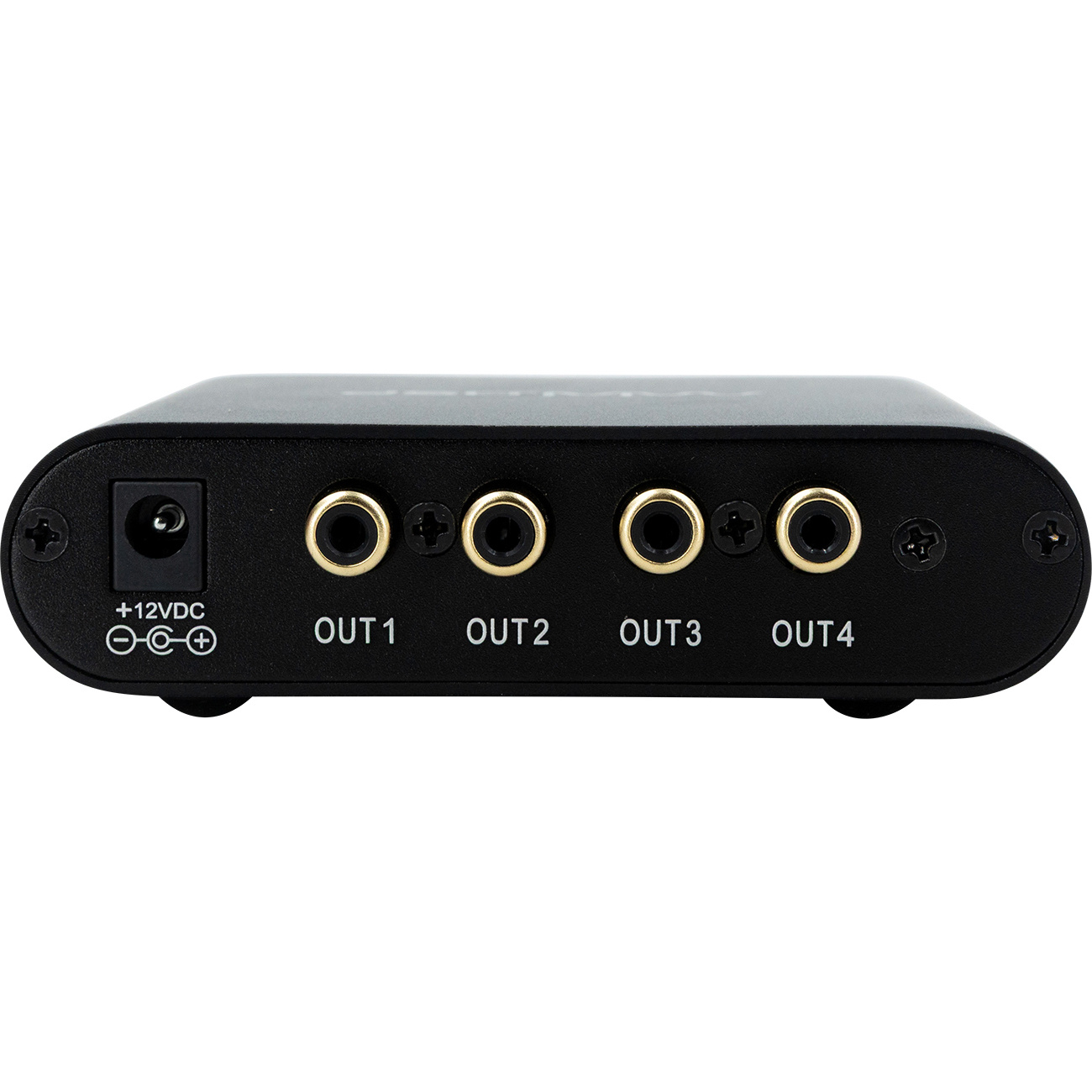

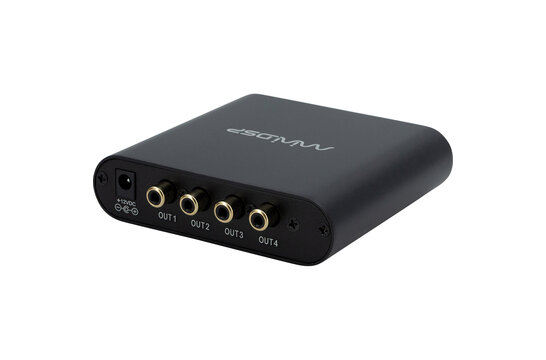

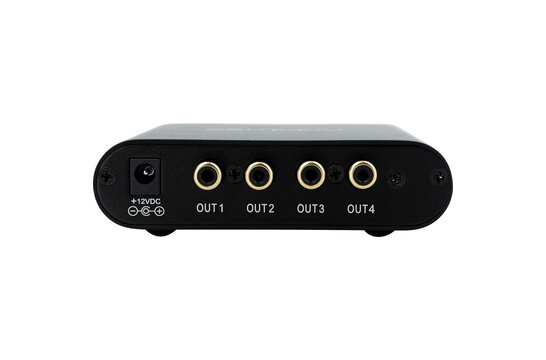

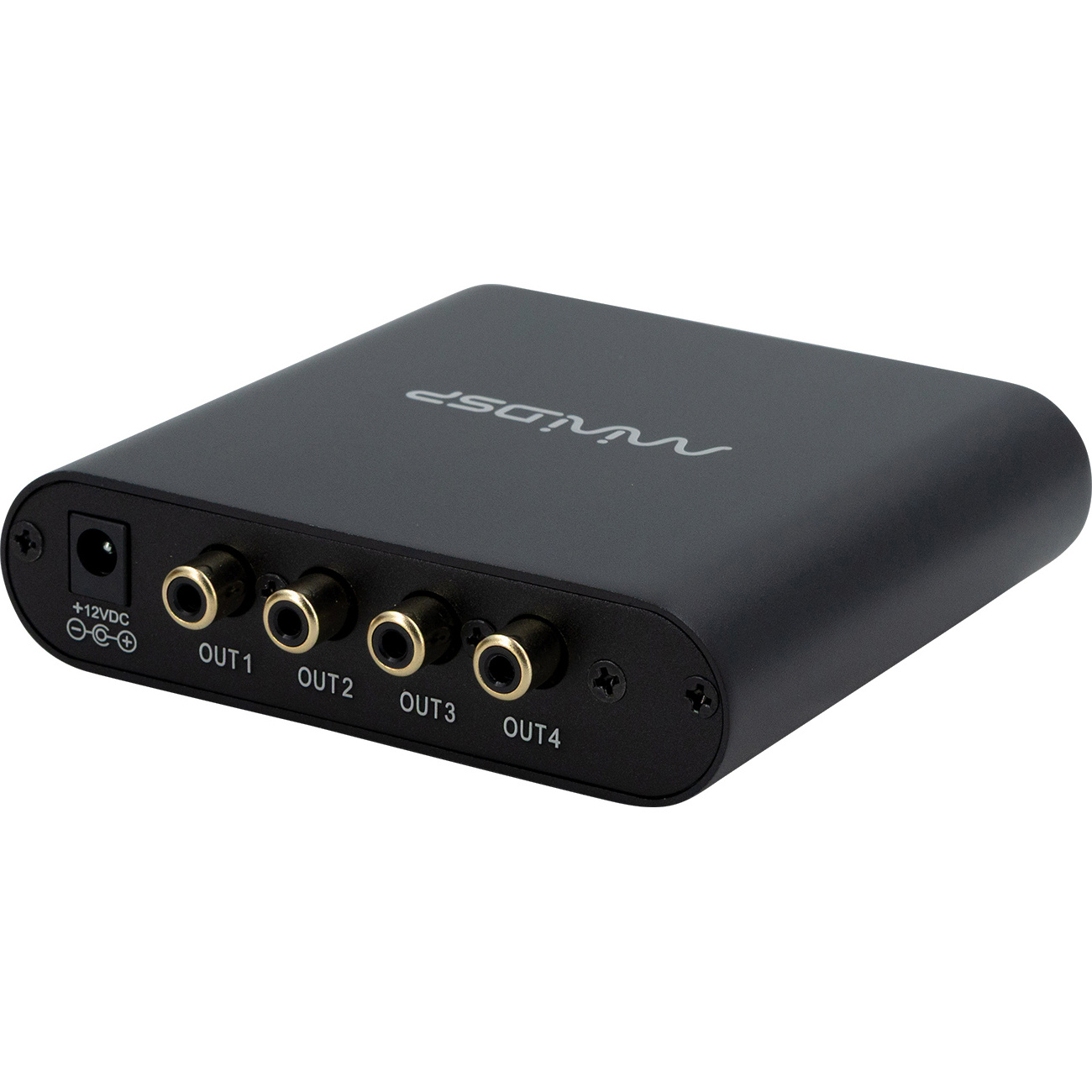

  • Unbalanced outputs: Max 2Vrms
  • USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
  • 4 preset configuration, recallable via IR, Software
  • Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
  • Device does not required a PC once configured
  • External single 12V supply



Product details

miniDSP 2x4 HD Boxed USB DAC Digital Signal Processor

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.

Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

Introducing the long-awaited “reboot” of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!



The upgraded on-board 400 MHz Analog Devices SHARC processor also ena-bles substantial processing upgrades previously available only on more ex-pensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software.



I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.

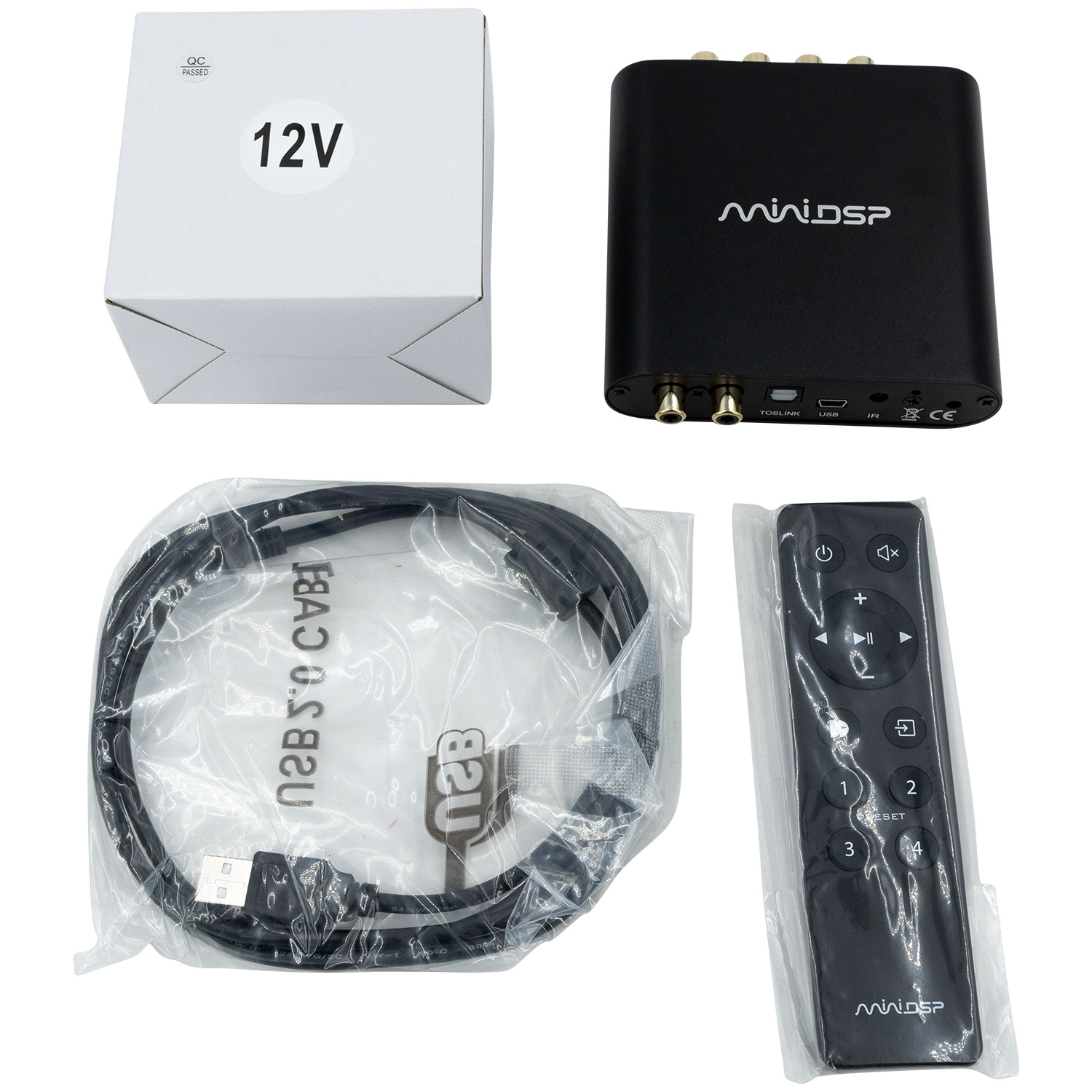

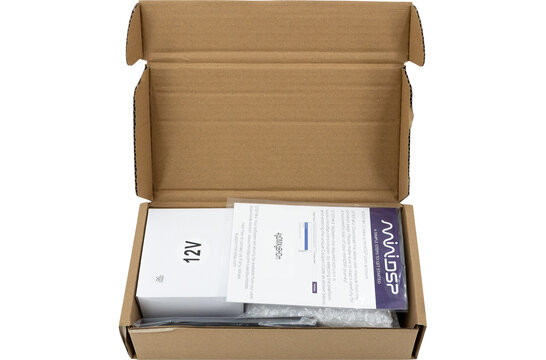

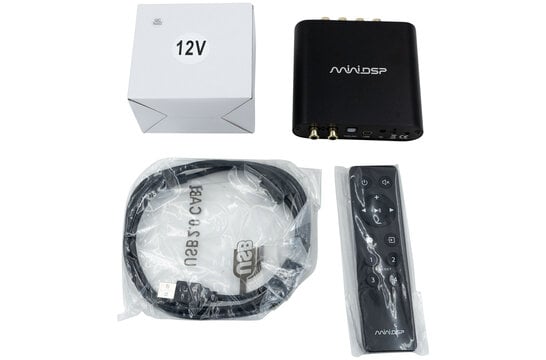

What's in the box?

  • 1 x miniDSP 2x4 HD Boxed
  • 1 x Shielded miniUSB cable
  • 1 x 12V power supply with UK/EU/US/AU plugs
  • 1 x Coupon code for miniDSP plugin download.



System Diagram



Eigenschaften

Artikelnummer:
2x4 HD Boxed
Device type
Boxed
Device serie
miniDSP in a Box
DSP chip
Analog Devices ADSP21489
Internal processing resolution & sample rate
32 bit / up to 192 kHz
Input / ouput configuration
2 / 4

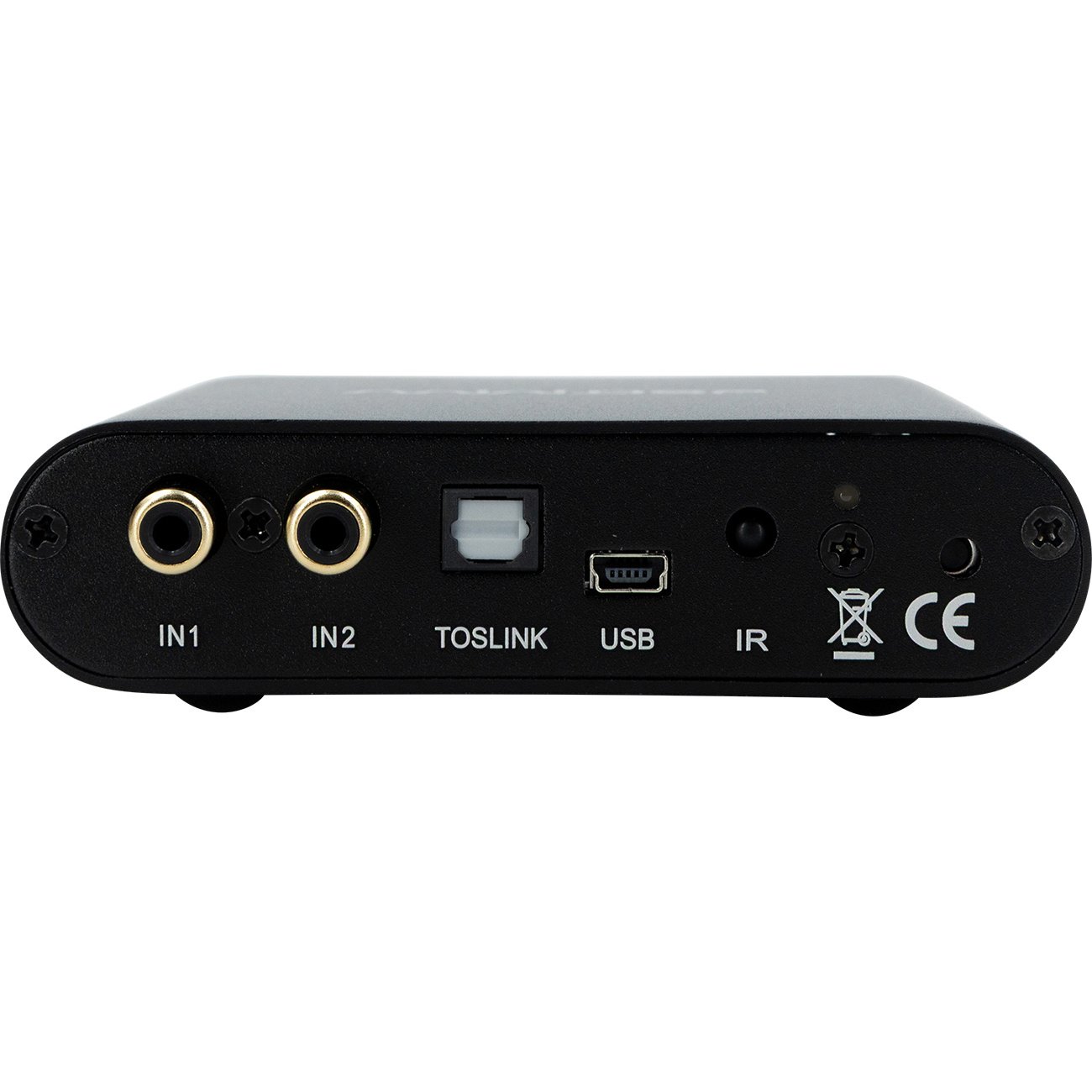

Audio input connectivity
RCA, Stereo USB, Stereo TOSLINK (optical)
Audio output connectivity
RCA
Max input level
2 / 4 Vrms (selectable)
Max output level
2 V
Input impedance
10k ohms
Output impedance
560 ohms
Calibration software
miniDSP 2x4 HD1 plugin
IIR
check
FIR
check
Dirac Live®
-
DSP presets
4
Impulse response correction
-
Infrared remote learning
check
UMIK-1 included
-
Room EQ wizard support
check

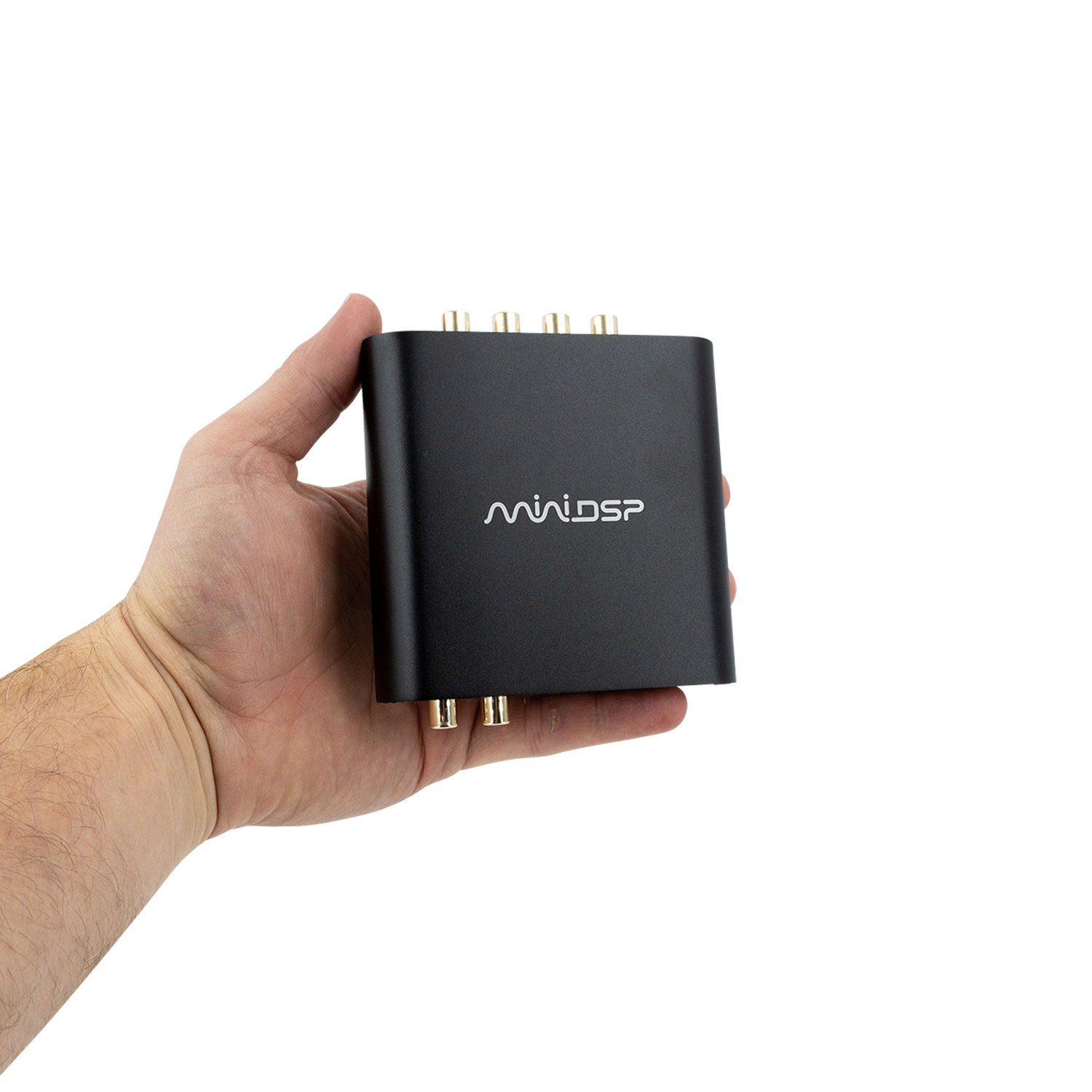

Dimensions

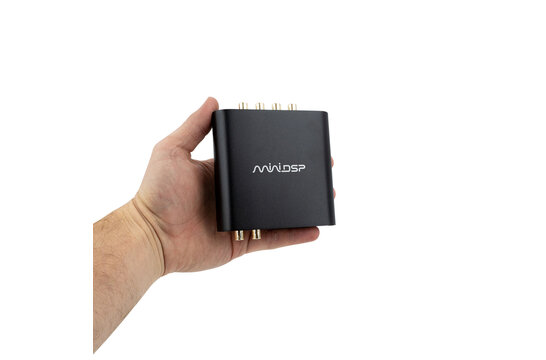

119 x 93 x 16 mm
Power
12 VDC
