    miniDSP 2x4 FLEX digitaler Signalprozessor | Digital (SPDIF/TOS)

    537,15 €649,95 € 6 Auf Lager10+ erwartet auf 09-02-2023

    Buy now, pay later

    • Kostenloser Versand (DE & A)
    • Jetzt bestellt, heute versendet
    • Hausinterner technischer Support
    • 45 Tage Widerrufsrecht
    Angebot anfordern
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden


    MiniDSP Flex, 400MHz Sharc DSP audio processor, toolbox for subwoofer or multiway speaker tuning, Optional Dirac Live license for room correction (available via miniDSP), Bluetooth LDAC/APTX/AAC streaming, Flexible I/O versions for unbalanced/balanced/digital connectivity Array.



    • Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
    • Multi-Core USB Audio processor (XMOS)
    • Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC
    • Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz)
    • Audiophile performance: [email protected](A), THD+N @ -110dB (0.0003%)
    • Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA)
    • Digital (TOSLINK & SPDIF)
    • USB audio recording feature (4xCH processed output via USB audio to record inputs, e.g. Vinyl)
    • White/Black OLED front panel controller with IR control


    Product details

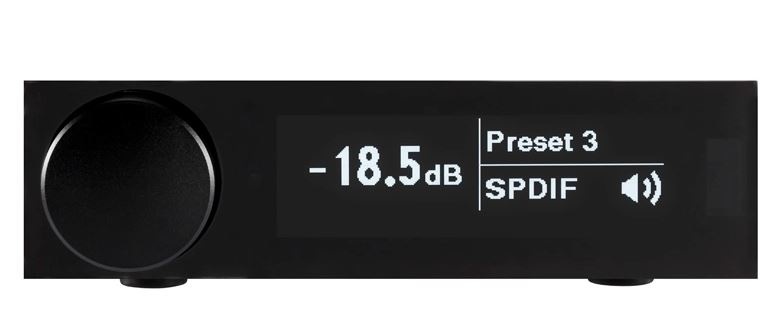

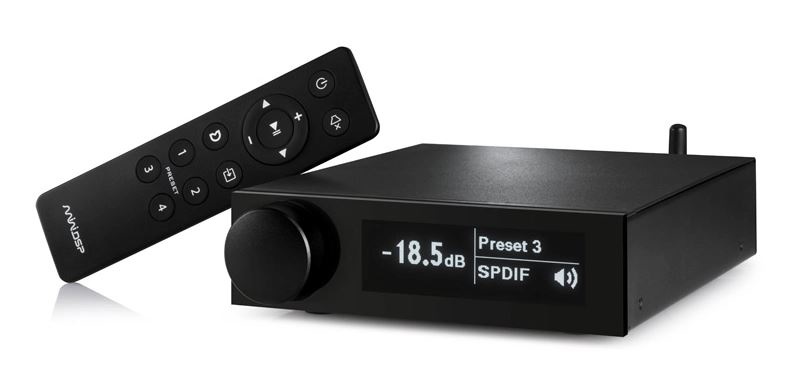

    2x4 FLEX DSP audio processor | Digital (SPDIF/TOS)


    The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment.


    All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning.


    The miniDSP Flex will find a myriad uses in applications ranging from a compact digital stereo preamp through subwoofer integration and optimization to active speakers, home theater and recording studios. You just need to let your creativity do the rest!

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.


    What's in the box?

    • Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration
    • IR remote v2
    • 12V univeral power supply (UK/EU/US/AU plugs)
    • USB cable

    Mehr anzeigen

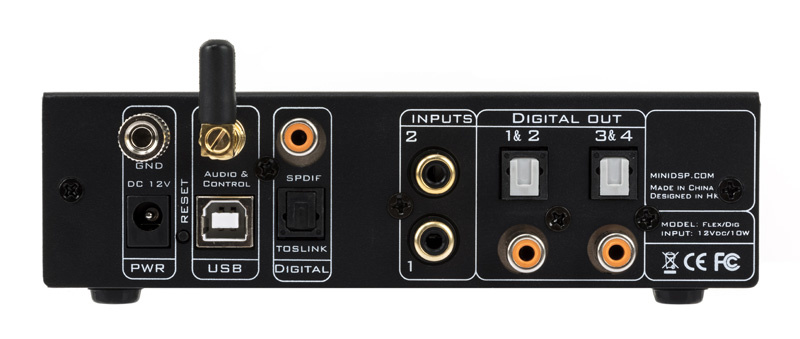

    2x4 Flex Digital
    2 x Unbalanced RCA
    4 x Outputs (Post DSP) on USB Audio, SPDIF& TOSLINK
    100 kΩ
    Dirac Live®
    Not included
    Up to 4 presets
    UMIK-1 enthalten
    150x180x41 mm

    Mehr anzeigen
