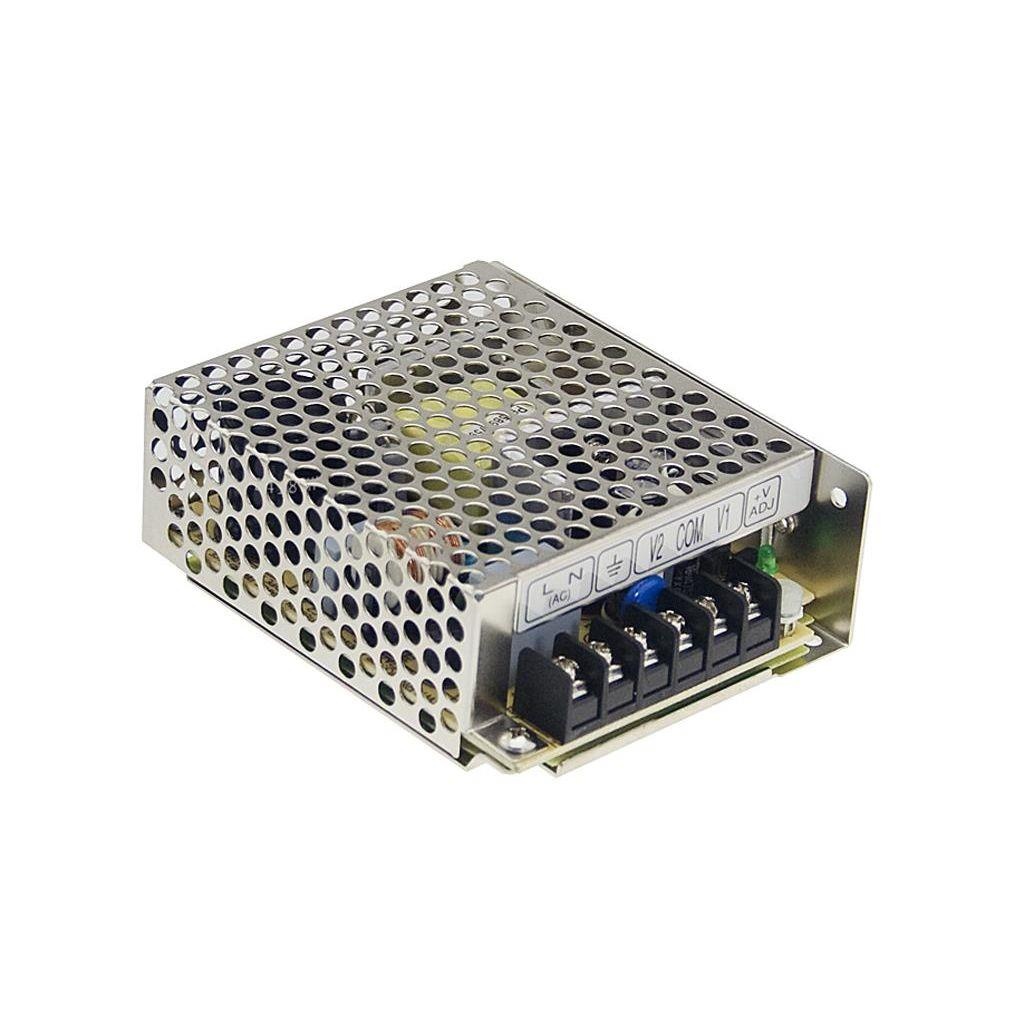

      RS-35-12 Stabilisiertes Schaltnetzteil

      RS-35-12 Stabilisiertes Schaltnetzteil

      €22,95

      Mean Well RS-35-12 Stabilisiertes Schaltnetzteil

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: Mean Well
      18,97 €22,95 € 10 Auf Lager
      • -5% Bestelle 4 für nur 21,80 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, am Montag versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung

      The Mean Well RS-35-12 is a 35W switched-mode power supply (SMPS) that outputs 12VDC at 3A. It is a compact and efficient power supply.



      Highlights

      • Higher efficiency
      • Smaller size
      • Lighter weight
      • Cooler operation



      Product details

      Mean Well RS-35-12 Switched Mode Power Supply



      The RS-35-12 is a versatile and reliable power supply that is suitable for a wide range of applications. It is compact, efficient, and features a number of safety features that make it a safe and reliable choice for any application.



      The RS-35-12 is also equipped with a number of safety features, including:

      • Overvoltage protection: This prevents the output voltage from exceeding the rated voltage, which can damage connected devices.
      • Undervoltage protection: This prevents the output voltage from dropping below the rated voltage, which can cause connected devices to malfunction.
      • Overload protection: This prevents the power supply from drawing too much current, which can damage the power supply itself.
      • Short circuit protection: This prevents the power supply from operating if there is a short circuit in the output circuit, which can prevent damage to connected devices.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      RS-35-12
      Max Output Power
      36W
      Output Voltage (V)
      10.8 ~ 13.2V
      Output Current (A)
      0 ~ 3A
      Max Output current (A)
      3A
      Efficiency
      0.845
      Ripple & noise (max.)
      120mVp-p
      Mains voltage input
      88 ~ 264VAC - 125 ~ 373VDC
      Protection
      Overload / Over Voltage
      Tye of cooling
      Free air convection
      Connector type
      Screw terminals
      Stand-by consumption
      < 0.5 W
      Dimensions (D x W x H)
      99*82*36mm
